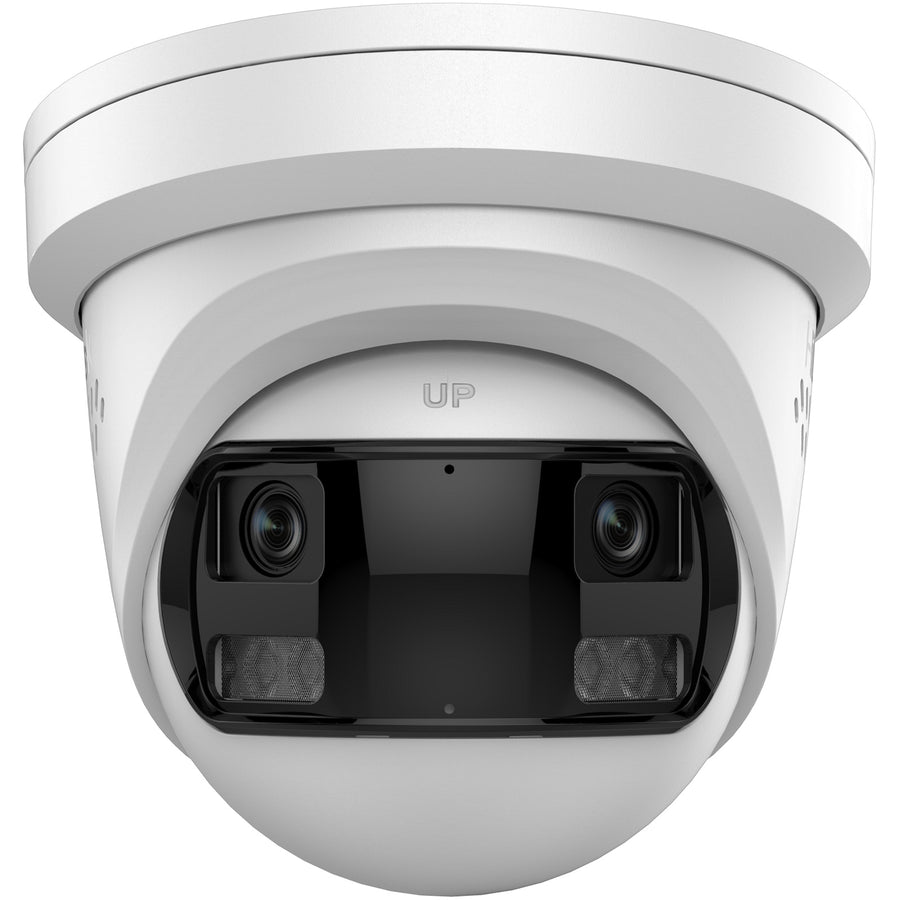

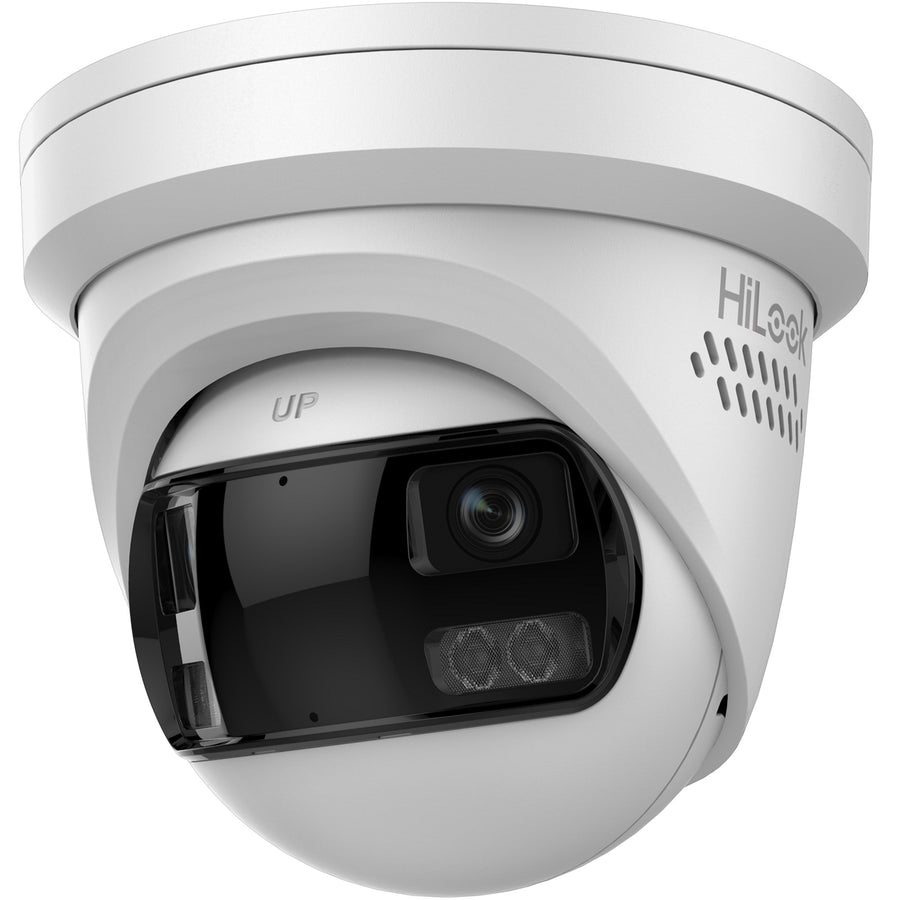

HIKVISION HILOOK PRO T289PH-MU-SL 8MP 180DEGREE TURRET, FIXED 2MM, IR 30M, MIC, 3YR
Features
8 MP Dual Lens Stitched Wide Angle Smart Hybrid Light Fixed Turret Network Camera
- High quality imaging with 8 MP resolution
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- 180° Field of view
- Active strobe light and audio alarm to warn intruders off
Panoramic 180° Monitoring and Dual-Lens 8MP Imaging
This turret camera utilizes advanced dual-lens stitching technology to deliver a seamless 180-degree ultra-wide field of view at 8 MP resolution, capturing more scene detail with a single compact device.
Next-Generation Hybrid Light and Smart Intrusion Deterrence
Combining adaptive IR and white light for night surveillance, the Smart Hybrid Light system provides up to 30 meters of clear monitoring. The active strobe and audio alarm function are designed to deter unauthorized intrusion in real-time.
Intelligent Person and Vehicle Detection with Instant Alerts
Deep learning analytics power accurate person and vehicle detection, reducing false alarms and supporting rapid responses. Integration with strobe, recording, app notification, and FTP ensures comprehensive event monitoring and management.
Built-in Two-Way Audio and Flexible Storage
A built-in microphone and high-power speaker enable real-time audio interaction with the monitored area, supporting proactive security warnings and on-demand communication. Edge storage up to 512 GB SD card enables flexible evidence retention.
Enterprise-Grade Video Compression and Network Security
H.265+ technology dramatically decreases bandwidth and storage needs while retaining image quality. Multiple stream support, 120 dB true WDR, privacy masking, watermarking, and advanced authentication meet modern security and compliance requirements.
Specifications
Technical Specifications
| Image Sensor | 1/2.4" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 4256 × 1888 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2 mm |
| Focal Length & FOV | 2 mm, horizontal FOV 180°, vertical FOV 77° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2 mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m |
| Supplement Light Type | IR,White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 20 fps (4256 × 1888)60 Hz: 20 fps (4256 × 1888) |
| Sub-Stream | 50 Hz: 20 fps (1200× 536, 960 × 432)60 Hz: 20 fps (1200× 536, 960 × 432) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Audio Type | Mono sound |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS |
| User/Host | Up to 32 users3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | Plug-in required live view: IE 11,Local service: Chrome 80+, Firefox 80+, Edge 89+ |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Image Enhancement | BLC,HLC,3D DNR |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes,1 built-in microphone |
| Built-in Speaker | Yes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB. |
| Reset Key | Yes |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing |
| Power | 12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 11.5 W |
| Material | Base: Metal, cover: Plastic |
| Dimension | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
| Weight | Approx. 790 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian |
| General Function | Heartbeat,anti-banding,password protection,password reset via email |
| Flashing Light | /SRB model: Red and Blue Light/SL model: White Light |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
| Brand | Hikvision |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > PoE Cameras |
| Weight | 0.5 kg |
