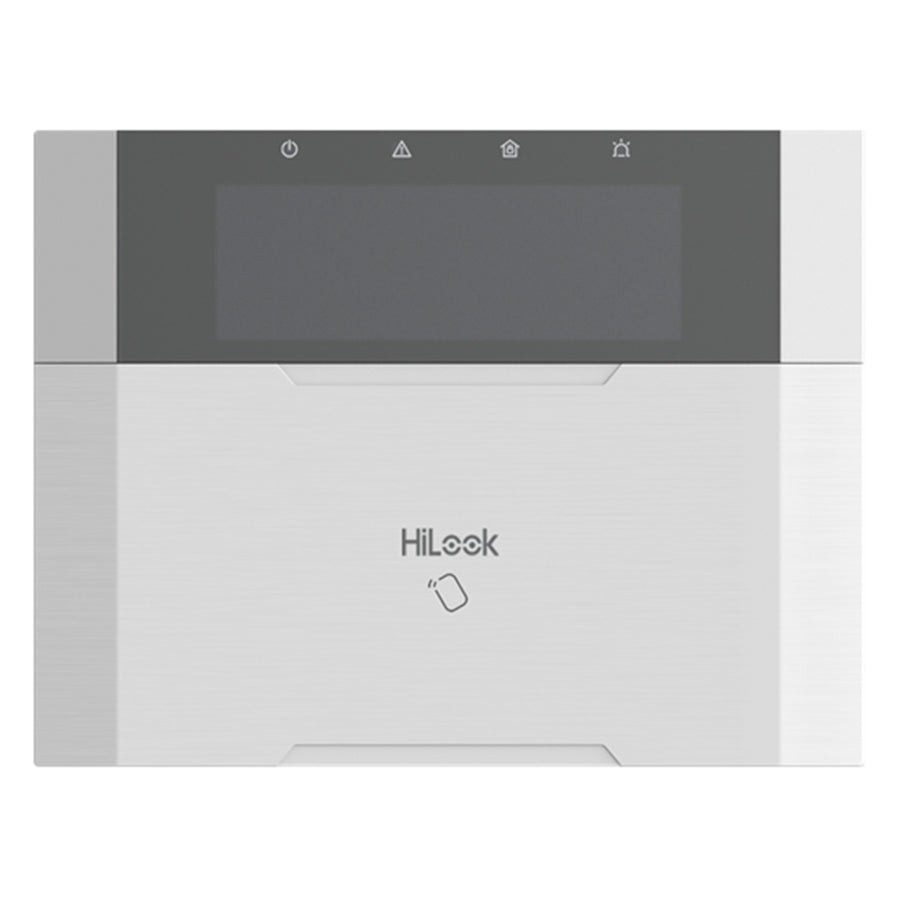

HiLook 314300707 Alarm LCD Keypad

The HA-ALARM-KP-WB wired keypad is an AX series keypad designed for AX hybrid pro control panel(DS-PHA48-EP,DS-PHA64-LP). The HA-ALARM-KP-WB supports built-in wireless transceiver and tag reader,which can work with keyfob and tag for arming/disarming.

- LCD screen display
- Supports one-touch arm(Arming without password)
- Supports Fire/Panic/Medical alarm key
- Supports company name, phone number, time display
- Supports 2 on-board alarm inputs and 1 on-board alarm output
- Supports maximum 64 keyfobs

Intuitive LCD Interface for Clear System Control

The HIKVISION HILOOK Alarm LCD Keypad (HA-ALARM-KP-WB) is designed to provide a highly user-friendly interface for managing your AX hybrid pro alarm system (DS-PHA48-EP, DS-PHA64-LP). The bright LCD display offers real-time status updates, displays company names, contact numbers, and the current time to keep users informed at all times. This intuitive visual feedback ensures every command and system response is easily understood, reducing the risk of operational errors.

Effortless Arming, Disarming, and Emergency Response

Equipped with one-touch arming, the keypad allows users to arm the system quickly without the need for entering a password, streamlining everyday operation. Dedicated fire, panic, and medical alarm keys provide rapid and direct access to emergency alerts, enhancing the safety and responsiveness of your security system. The 8 function keys add even greater flexibility, covering essential operations such as query, arm, disarm, alarm output, and easy navigation with left/right control.

Seamless Wireless Tag and Keyfob Integration

The built-in tag reader and wireless transceiver make it simple to integrate keyfobs and RFID tags, supporting up to 64 devices for convenient arming and disarming. This feature enables staff, family, or authorized personnel easy entry or exit without remembering complicated passwords. The integrated RF system (433 MHz) works reliably in real-world environments, making security management both accessible and secure.

Reliable, Secure, and Expandable Hardware

Designed with security in mind, the keypad features a robust back-cover tamper switch that provides immediate alerts if tampering is detected. The inclusion of 2 onboard alarm inputs and 1 alarm output increases the system's flexibility, allowing for custom triggers and auxiliary device control. RS-485 Speed-X bus support and a TTL serial port ensure compatibility with a range of installation scenarios, while power efficiency is maintained with a quiescent current as low as 72mA@ 12VDC.

Visible Status with Multi-Colored Indicators

Four dedicated LED indicators make system status instantly visible at a glance: green for power, orange for faults (flashing for alerts), blue for armed state, and red for alarms, along with a white keypad button backlight for clarity, even in low-light environments. Compact and stylish at 150 x 115 x 28 mm and finished in clean white, the HA-ALARM-KP-WB keypad is suitable for various indoor environments, operating reliably between -10°C and +55°C and in up to 90% humidity. Its combination of intuitive control, modern technology, and robust design makes it a reliable cornerstone for any AX series alarm setup.
