HiLook

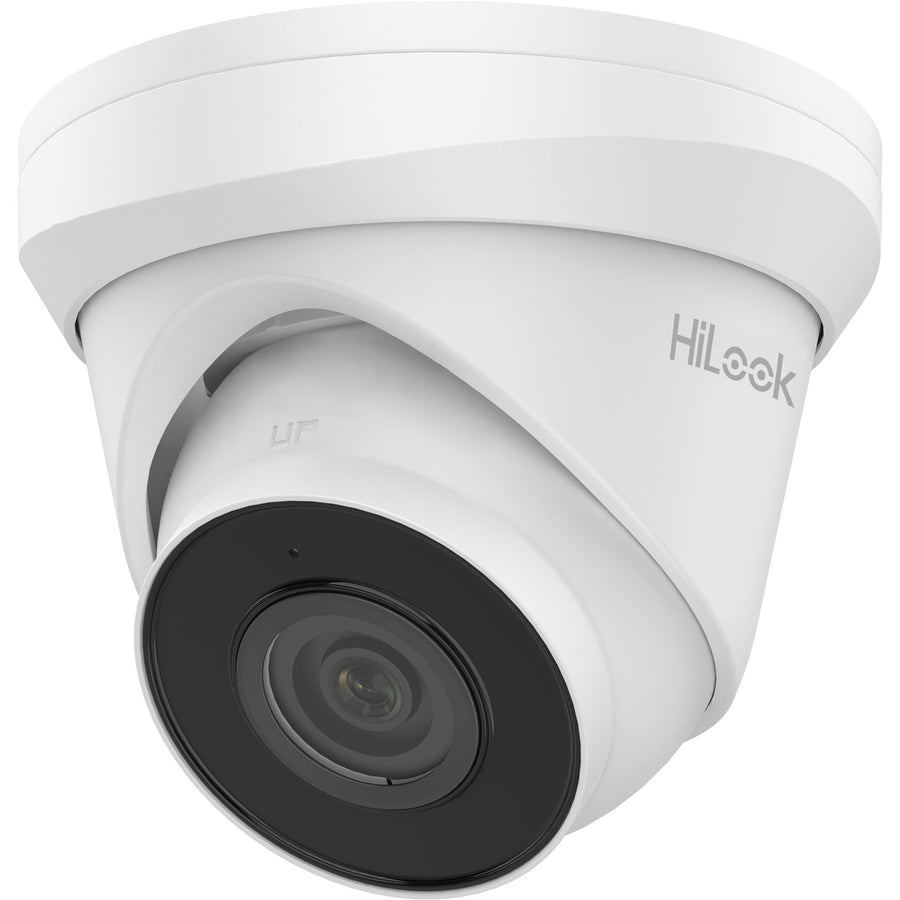

HiLook 4MP IP Turret Camera with 2.8mm Fixed Lens.
$118.45
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
HILOOK 4MP IP Turret Camera with 2.8mm Fixed Lens
Supports H265, PoE, IP EXIR up to 30m, Starlight (0.01 Lux), 120dB True-WDR, WeatherProof, Built-in Mic, 98 Degree Wide Angle FoV.
4MP Fixed Turret Network Camera
- High-quality imaging with 4MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong backlighting due to 120dB WDR
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
-U: Built-in microphone for real-time audio security
-U: Support up to 256 GB SD card storage
Video Footage Viewable
Via FREE mobile app
On local monitor
Over local network
Specifications
Technical Specifications
| Image Sensor | 1/3" progressive scan CMOS |
|---|---|
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Focal Length & FOV | 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° |
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F2.0 |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50 Hz: 20 fps (2560 × 1440)25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | -U: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz |
| Environment Noise Filtering | -U: Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Network Storage -UF | NAS (NFS, SMB/CIFS), ANR |
| Client | Guardingvision |
| Plug-in required live view | IE 10+ |
| Plug-in free live view | Chrome 57.0+, Firefox 52.0+ |
| Local service | Chrome 57.0+, Firefox 52.0+ |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Image Enhancement | BLC, 3D DNR |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | -UF: Built-in memory card slot, support microSD card, up to 256 GB |
| Built-in Microphone | -U: Yes |
| Hardware Reset | -U: Yes |
| Basic Event | Motion detection, video tampering, exception |
| Smart Event | Line crossing detection, intrusion detection |
| Linkage Method | Upload to FTP, notify surveillance center, send email-UF also supports: upload to memory card, trigger recording, trigger capture |
| Camera Material | Metal & Plastic |
| Camera Dimension | Ø 127.2 mm × 94.6 mm (Ø 5.01" × 4.17") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Web Client Language | English, Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IPaddress filter |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 WPoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
| Power Supply | 12 VDC ± 25%PoE: 802.3af, Class 3 |
| Power Interface | Ø 5.5 mm coaxial power plug |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
| Brand | HiLook |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > PoE Cameras |
| Weight | 0.5 kg |
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
You May Also Like
HiLook
HiLook KIT 6x 6MP Cameras 8-Ch NVR Security Surveillance 4TB HDD. 6x IPC-T262H-MU 6MP Turret
$1,657.15
inc GST ▲
+GST
HiLook

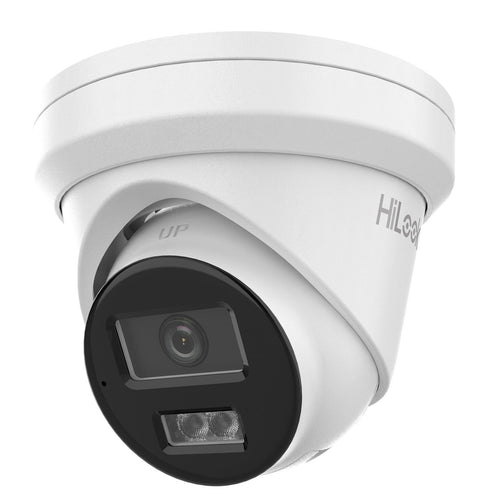

HiLook IPC-T381H-MU (2.8mm) 8MP/4K Outdoor Turret PoE Camera - White
Security Camera8MP / 4K
$219.04
inc GST ▲
+GST
HiLook

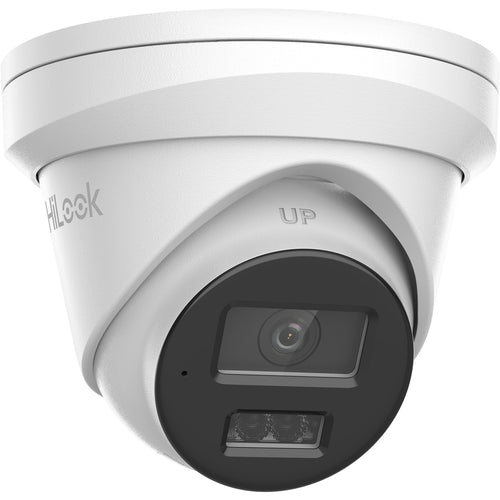

HiLook IPC-T363H-MU (2.8mm) 6MP/3K+ Outdoor Turret PoE Camera - White
Security Camera6MP
$178.10$199.91
inc GST ▲
+GST
HiLook

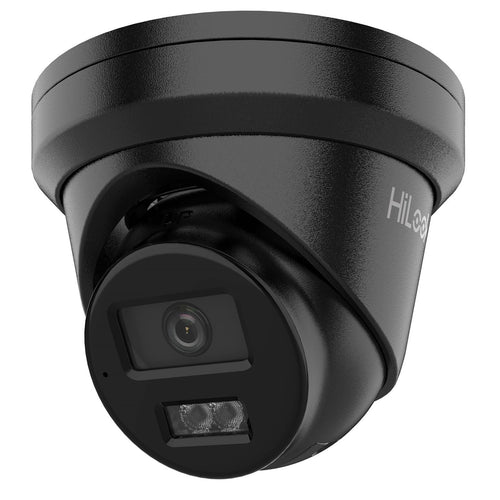

HiLook IPC-T361H-MU-BLK (2.8mm) 6MP/3K+ Outdoor Turret PoE Camera - Black
