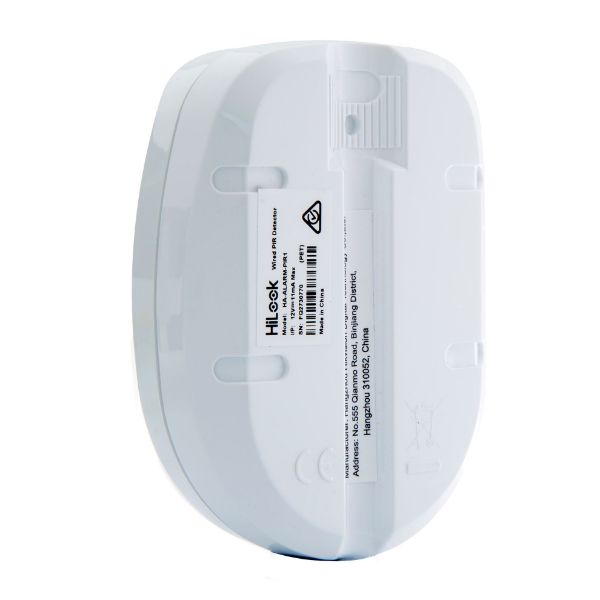

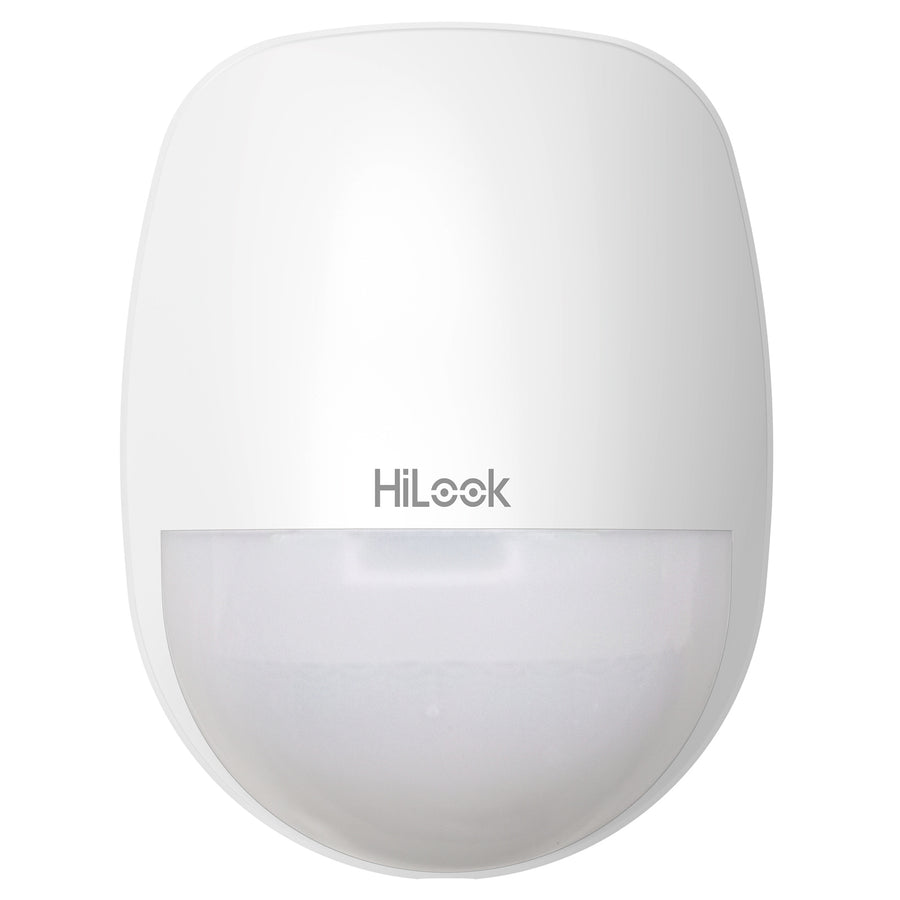

HiLook HA-ALARM-PIR1 - PRO Wired PIR Detector

Modern design
Delivers a small and sleek detection solution that provides a modern yet unobtrusive finish to complement any room.

Detection range

Covers up to 18m volumetric detection, making the Ellipse ideal for small to large indoor rooms and spaces.

Digital temperature compensation

Digitally adjusts its sensitivity to maintain accurate detection performance even when background temperature is close to body temperature.

Automatic sensitivity

Self-adapts to changing environmental conditions to ensure stability and consistent intruder detection performance.

3D optics

Improves the detection of moving targets by enabling precise focusing of the infrared signal onto the pyro-electric sensor, ensuring more accurate signal capture.

Creep-zone protection

Covers the blind spot area directly beneath the detector, preventing intruders from avoiding detection.

Selectable EOL resistors

Incorporates selectable alarm resistor values of 1K, 2K2, 4K7, 5K6, and 8K2, along with tamper resistance values of 1K, 2K2, 4K7, and 5K6, ensuring compatibility with most control panels on the market.

Anti-insect interference

Protects the detector from insect infestation while shielding air movement in front of the pyro-electric sensor and preventing unwanted reflections inside the housing.

Wide voltage

Supports a wide 9 to 16V voltage range with polarity reverse connection protection for reliable operation.

IFT technology

Automatically adjusts upper and lower alarm trip thresholds when exposed to electromagnetic or electrical interference, reducing the chance of false alarms.
