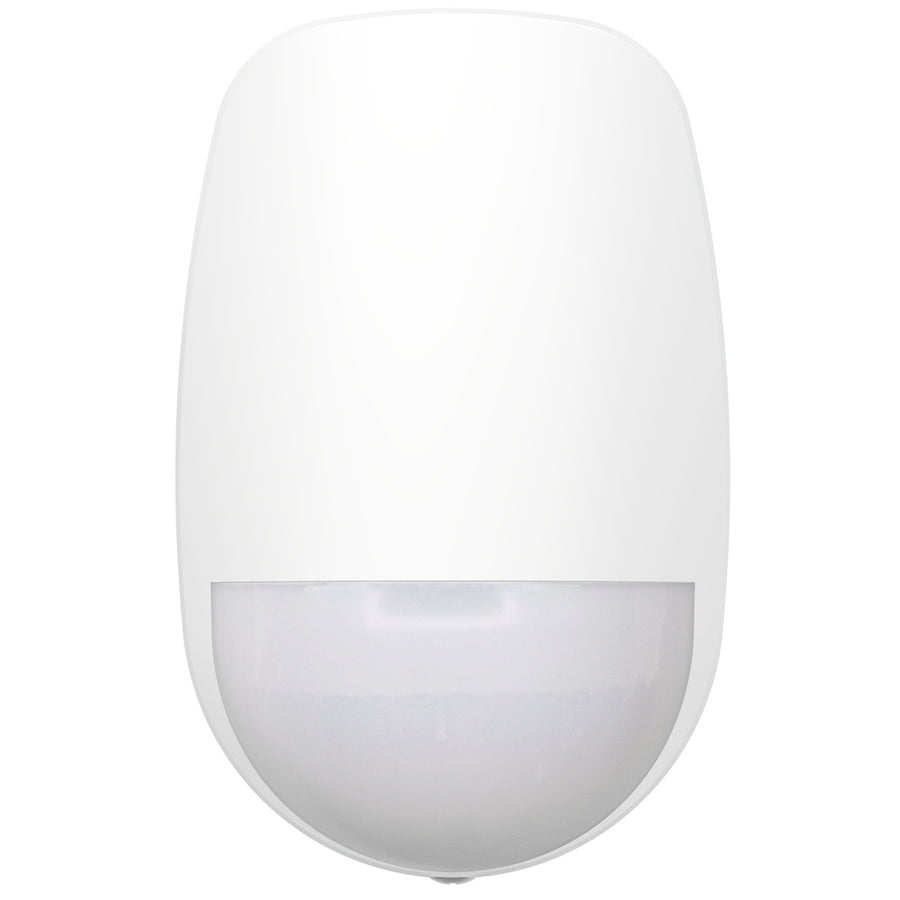

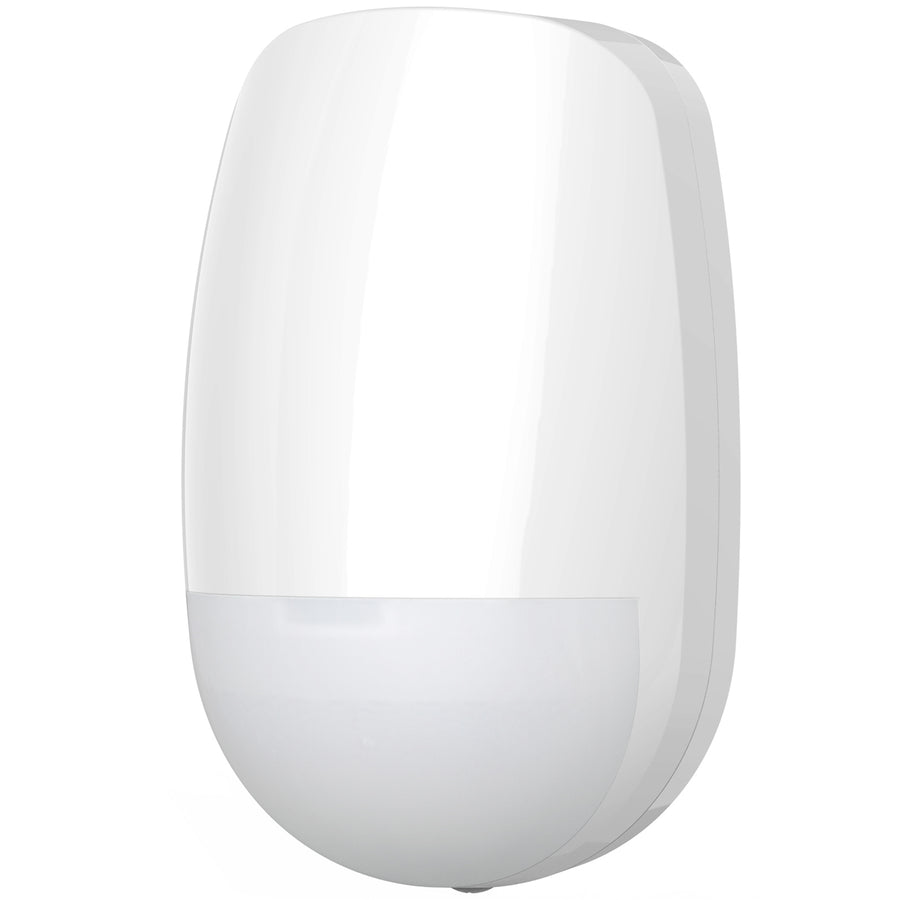

HiLook HA-ALARM-PIR2 Wired Dual-tech Detector
Features
HILOOK PRO Wired Dual PIR Detector
HA-ALARM-PIR2 series of dual-tech detectors are equipped with K-Band 24GHz microwave and 3D fresnel lens technology. Non-interfering technology allows back-to-back installation and no penetration through the wall. It allows the detector to be installed and set up quicker than traditional DT's giving time and cost-saving advantages to the installer.
- Detection Range: 12m / 85.9°
- Up to 30kg pey immunity
- Automatic sensitivity
- Digital temperature compensation
- 52 zones of 3D optics including creep-zone protection, full coverage without dead angle
- Selectable EOL resistors for alarm and tamper-proof wiring
- Sealed optics preventing insect interference
- 24Ghz microwave
- 9 to 16 V wide voltage adaptation with polarity reverse connection protection
- Wall/Ceiling-mounting brackets available (sold separately)
- IFT technology prevents false alarms
Specifications
Technical Specifications
| Model | HA-ALARM-PIR2 |
|---|---|
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 65.7 mm (2.59 ") × 103.8 mm (4.09 ") × 45.5 mm (1. 79 ") |
| Weight | 99g (3.5 oz) |
| Mounting Height | 1.8 m to 2.4 m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Detection Method | Passive Infrared,Microwave |
| Detection Range | 12m |
| Detection Angle | 85.9° |
| Detection Zones | 52 |
| Detectable Speed | 0.3～2m/s |
| Sensitivity | Auto,Pet |
| Pet Immunity | 30Kg |
| White Light Filter | 6500lux |
| Microwave Frequency | 24GHz(24.15～24.25GHz) |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front |
| Alarm Output | Normally Closed |
| LED Indicator | Green(PIR), Orange(Microwave), Blue(Alarm) |
| Transmission Method | Wired |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| Power Consumption | Maximum current：17mA@ 12VDCQuiescent current：17mA@ 12VDC |
| Brand | HiLook |
|---|---|
| Product Type | Smart Home & Security |
| Weight | 0.8 kg |
| Warranty |
|---|
