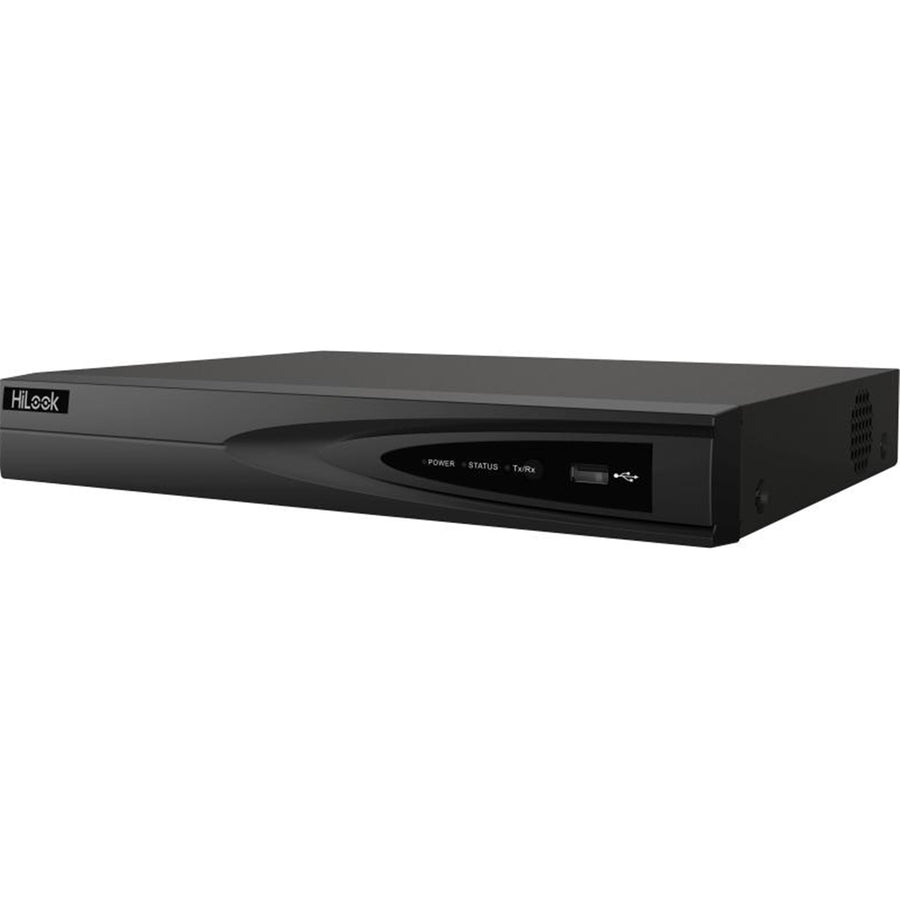

HiLook NVR-104MH-K/4P(B) 4K 4-Channel 1U 1-Bay NVR with 4-Port PoE (50W)
Features
- Up to 4-ch IP camera inputs, plug & play with 4 PoE ports
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch @ 8 MP or 4-ch @ 4 MP or 8- ch @ 1080p decoding capacity
- Up to 40 Mbps incoming bandwidt
Smart Function
- All channels support Motion Detection 2.0
- 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
- Smart search for the selected area in the video, and smart playback to improve the playback efficiency
HD Video Output
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
Storage and Playback
- 1 SATA interface for HDD connection (up to 10TB capacity per HDD)
- 4-ch synchronous playback
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
Network & Ethernet Access
- 4 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- HiLookVision for easy network management
Specifications
Technical Specifications
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
|---|---|
| Face Picture Library | Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture = 4MB, total capacity = 1 GB) |
| Facial Detection and Analytics Performance | 1-ch human face capture |
| Face Picture Comparison | 2-ch face picture comparison alarm |
| Motion Detection | 2.0 |
| Human/Vehicle Analysis | 4-ch |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI1/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KO) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input) |
| Decoding Format | H.265/H.265+/H.264+/H.264 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-ch |
| Decoding Capability | AI on:1-ch@8MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30fps)AI off:2-ch@8MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,UPnP™, HTTP, HTTPS |
| Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | = 50 W |
| Standard | IEEE 802.3af/at |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each HDD |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| Power Supply | 48 VDC, 1.35 A |
| Consumption | = 10 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9") |
| Weight | = 1 kg (without HDD, 2.2 lb.) |
| Brand | HiLook |
|---|---|
| Product Type | Smart Home & Security |
