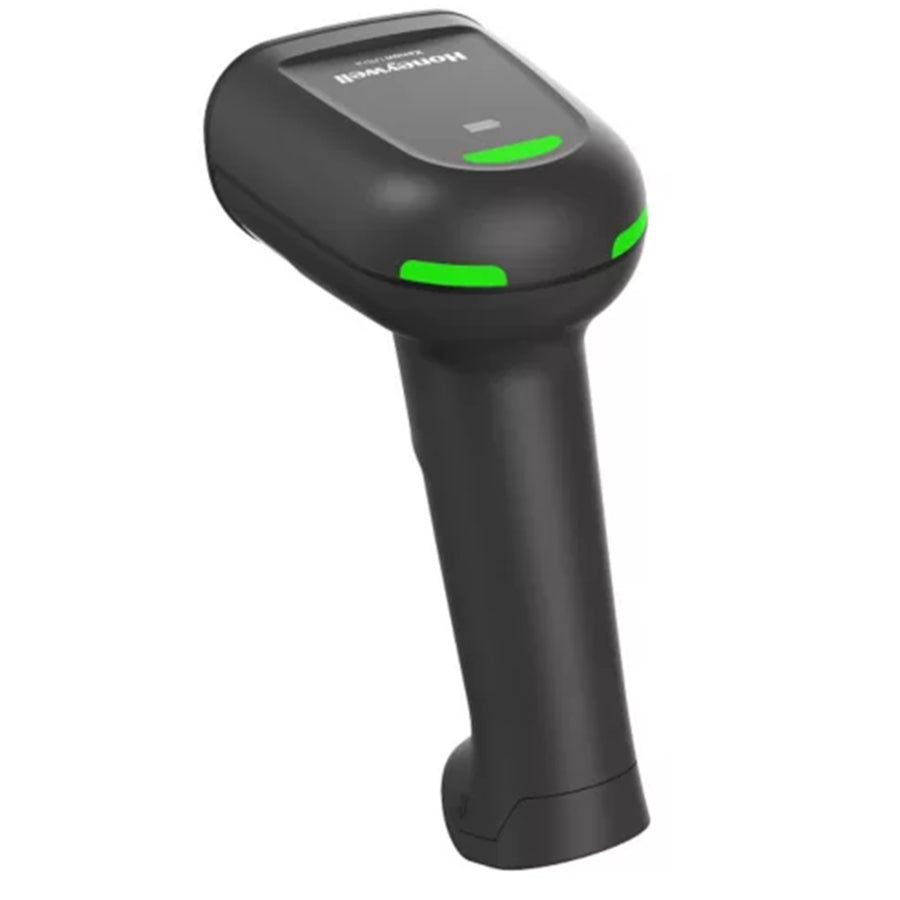

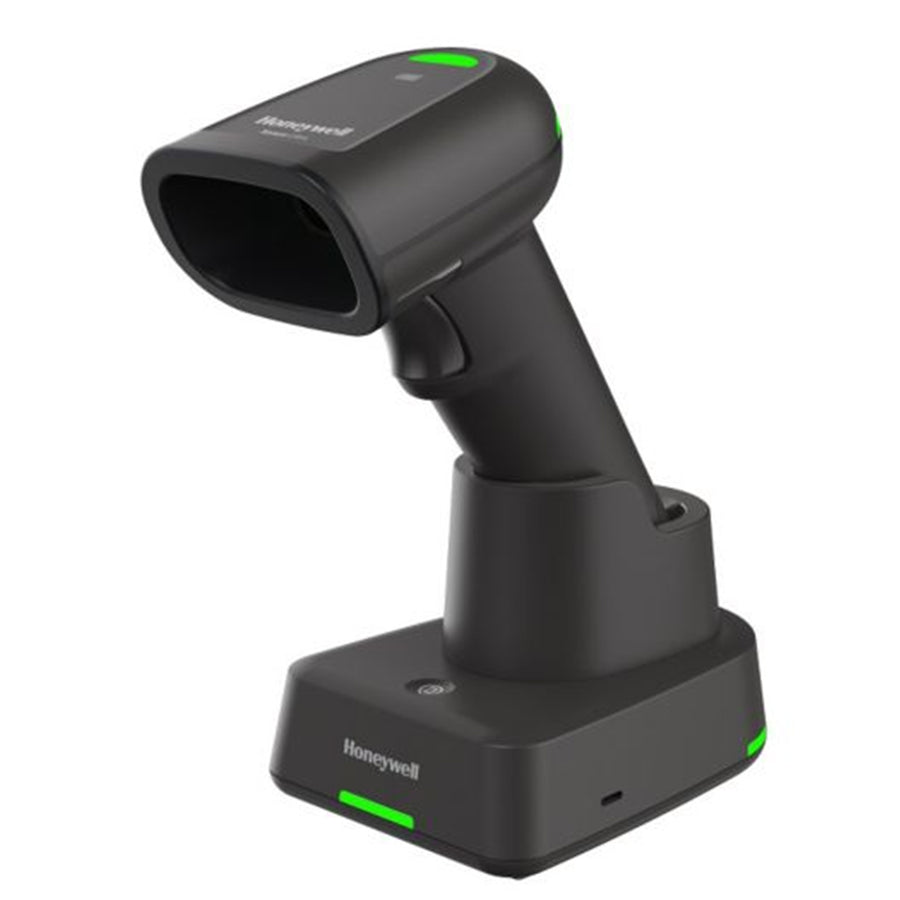

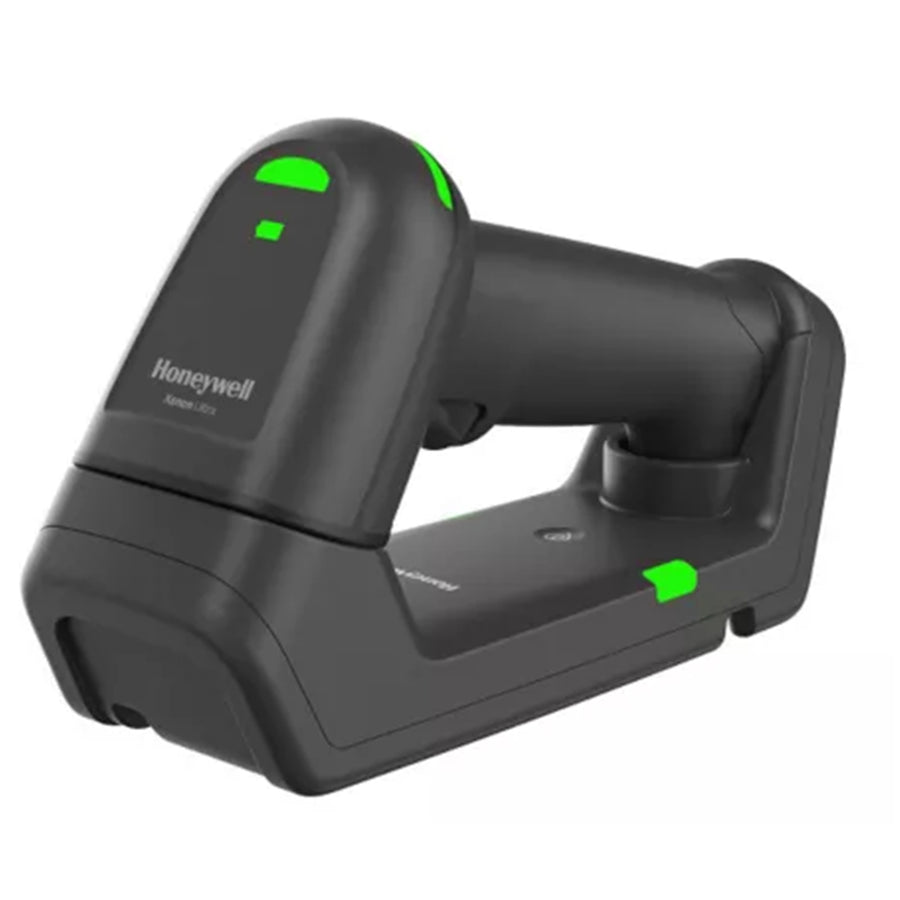

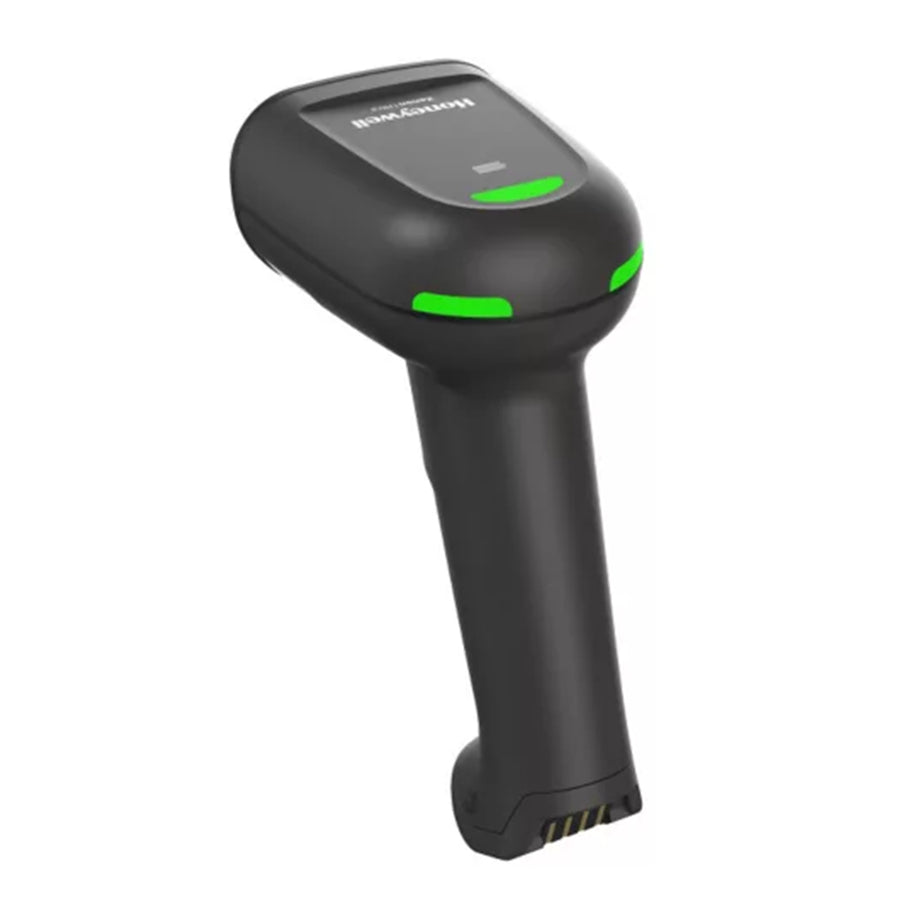

Honeywell 1962GHD-2USB-5-R 1962G USB Kit: Black general purpose housing, HD Focus, USBType A 2.7M straight cable (3012-6337-001), Presentation Charge and Communication base (CCB-U00-G & 1962G-BAT-CUP), ROW
Features
Cordless Bluetooth® Handheld Scanner
Continuing the legacy of barcode technology, Honeywell's Xenon Ultra delivers enhanced scan performance and premium features for retailers.
Next Level Scanning for Retail Productivity
The Xenon Ultra 1962g incorporates Honeywell's next generation of scanning capability - allowing retailers to stay productive and keep customer service as their top priority.
Freedom of movement around POS terminals, conveyors, and customers is a continued challenge for today's retail associates. As more technology is packed into the streamlined modern-day POS station, free space is at a premium. The Xenon Ultra cordless scanner can help ensure that your associates' attention is kept on maximizing customer experience by eliminating wasted time managing cables and having more space for completing transactions.
Flexible Power Options for Any Workflow
One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations. The battery-free technology runs on supercapacitors instead of a battery and is capable of achieving a full charge in less than four minutes via the USB Port (under 60 seconds when using a powered USB port or external wall adapter).
The Xenon Ultra 1962g-BF scanner typically provides at least 450 scans without recharging. This makes the scanner ideal for applications such as self-checkout or as a secondary scanner to a bioptic scanner.
Fast Scanning with Precision Aimer
In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.

Premium Contactless Power Design
The Xenon Ultra 1962 battery and battery-free are available in apremium contactless version, helping reduce the number of failed devices due to corrosion.

Long-Lasting Supercapacitor Performance
Supercapacitors hold their charge for hours when fully charged. So operators who forget to place their scanner in the charger prior to break may not impact operations upon return.

Flexible Battery or Supercapacitor Options
The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a batteryfree supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.

Smart Recharge Alerts for Uptime
Two independently configurable recharge alerts remind the operator to place the scanner back into the base for charging, ensuring continuous operation.

Specifications
Technical Specifications
| Image Sensor | 1280 x 1080 pixel array |
|---|---|
| Motion Tolerance | SR/HD - 4 meters/second |
| Imager Field of View | SR/HD - Horizontal: 42°; Vertical: 36° |
| Print Contrast | As low as 15 % |
| Roll, Pitch, Skew | ±360°, ±65°, ±65° |
| Decode Capabilities | Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologiesNote: Decode capabilities dependent on configuration |
| Illumination | White 2700K |
| LED aimer light source | 525 nm |
| Image Quality | 109 PPI on an A4 document |
| Object Detection | Configurable for 3 in or 6 in 1962 Cordless Scanner (refer to user's manual) |
| Dimensions (LxWxH) | Scanner: 108.2 mm x 70.4 mm x 160.2 mm (4.3 in x 2.8 in x 6.3 in)Presentation Base: 82.9 mm x 90.4 mm x 121.6 mm (3.3 in x 3.6 in x 4.8 in)Desktop/Wall Mount Base: 211.3 mm x 74.2 mm x 77.7 mm (8.3 in x 2.9 in x 3.0 in) |
| Weight | Lithium-ion Scanner: 247 g / 255 g (contactless)Battery Free Scanner: 218 g / 227 g (contactless)Presentation Base: 214 g / 220 g (contactless)Desktop/Wall Mount Base: 223 g / 229 g (contactless) |
| Operating Power (Charging) Bases | 2.5W (500 mA at 5 V DC) Standard USB10W (2A at 5V DC) - when utilizing power adapter |
| Non-Charging Power (Bases) | 0.75W (150 mA at 5V DC) |
| Host System Interfaces | USB, Keyboard Wedge, RS-232 |
| Operating Temperature | Scanner: 0°C to 50°C (32°F to 122°F)Bases: Charging: 5°C to 35°C (41°F to 95°F)Non-Charging: 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 0 % to 95 % relative humidity, non-condensing |
| ESD (Scanners and Cradles) | ±8 kV indirect coupling plane, ±15 kV direct air |
| Drop | Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range |
| Mil Spec Drop | 8 ft |
| Tumble | 2,000 at 0.5 m (1.6 ft) |
| Environmental Sealing (Scanner) | IP52 |
| Environmental Sealing (CCB) | IP41 |
| Light Levels | 0 - 100,000 lux |
| Brand | Honeywell |
|---|---|
| Product Type | Printing, Scanning & Office |
