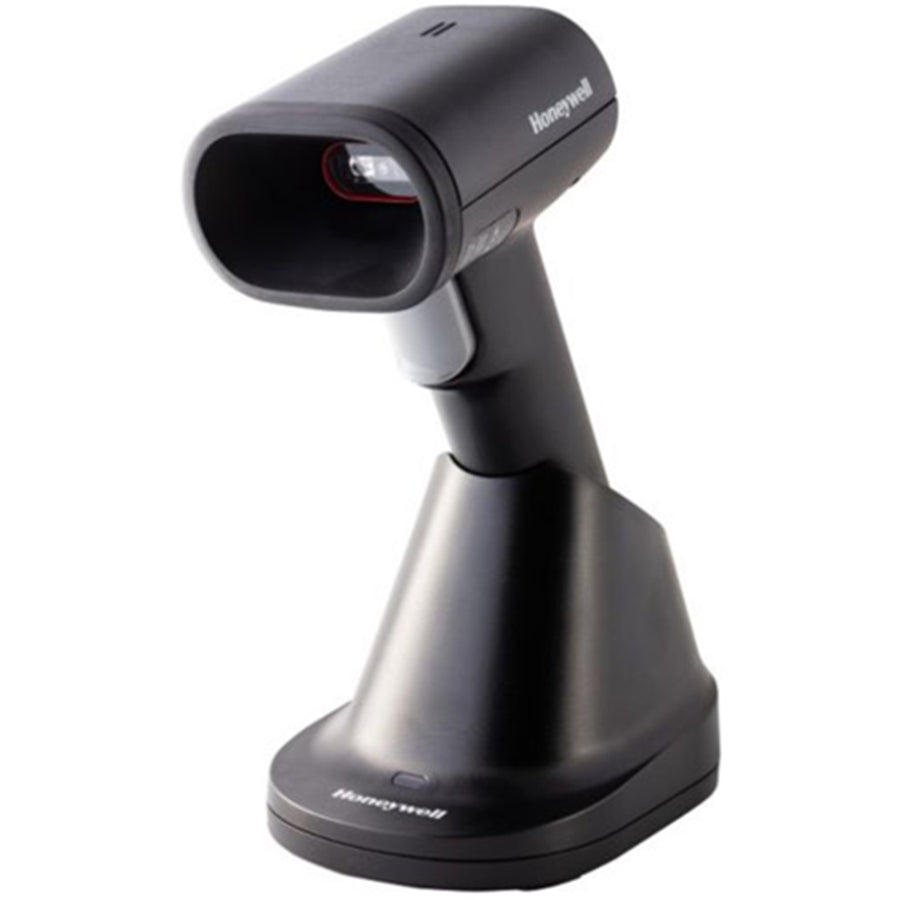

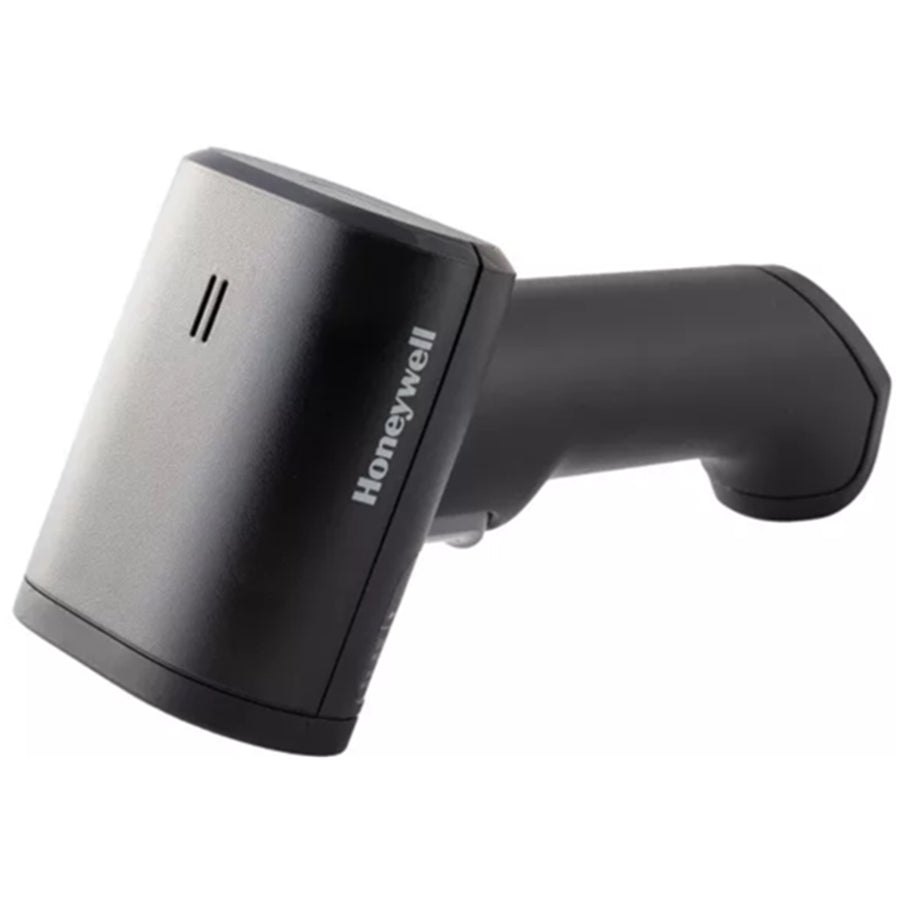

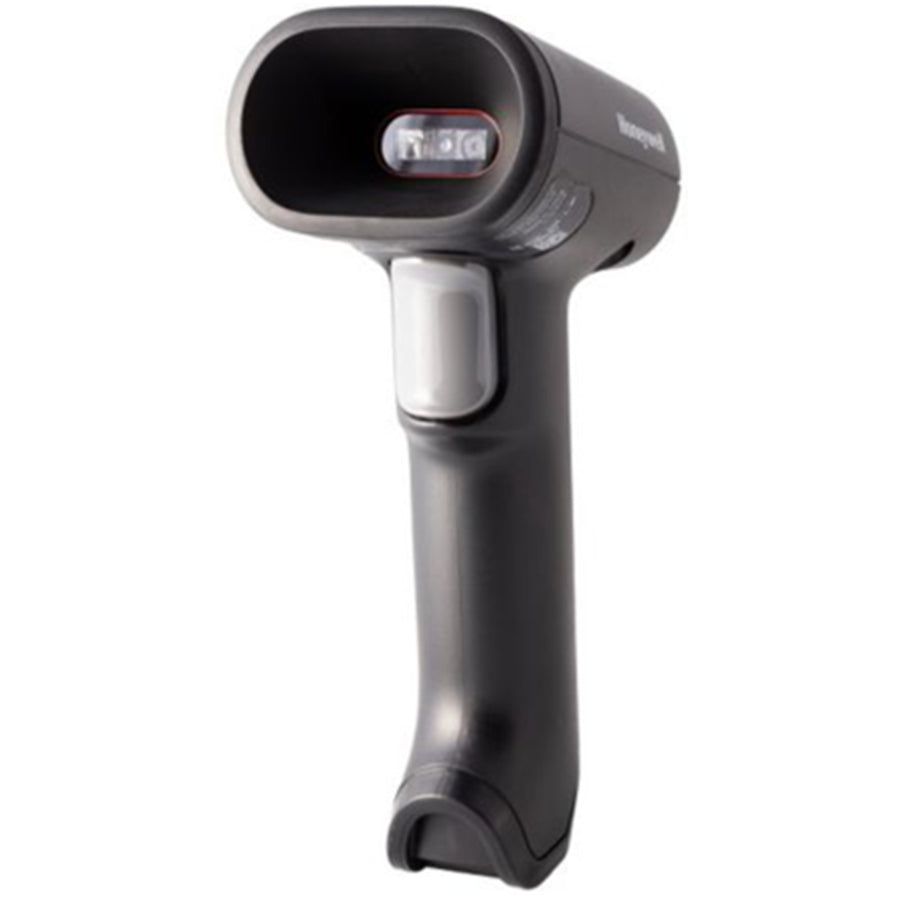

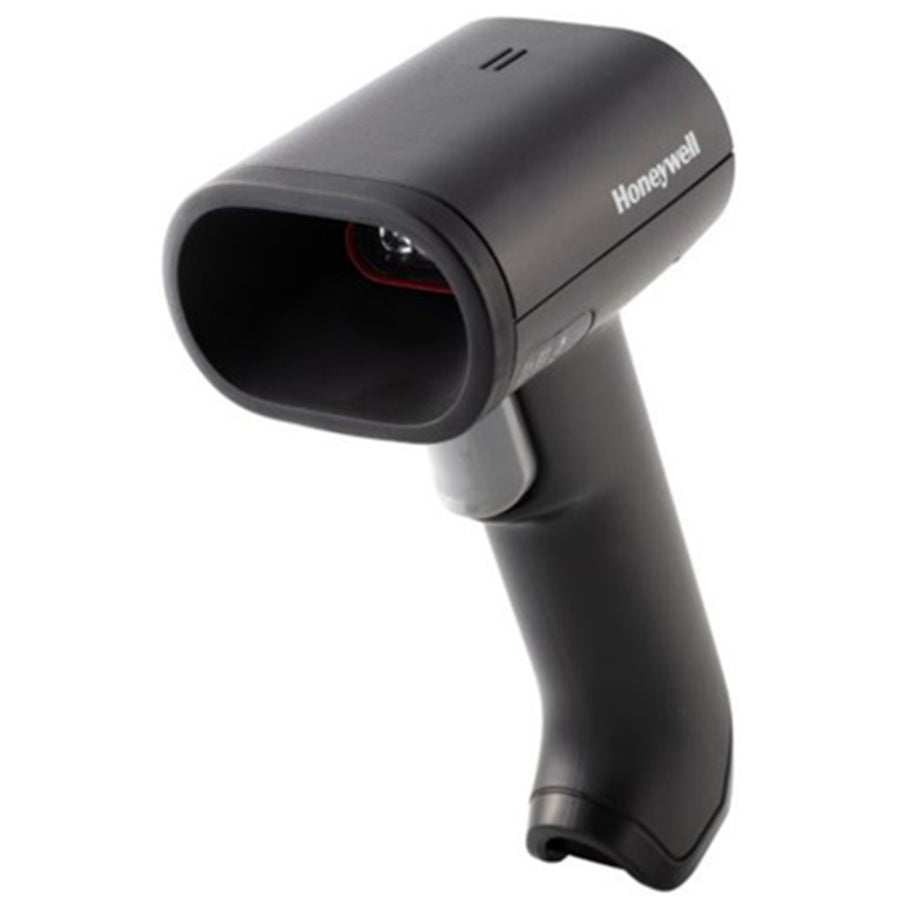

Honeywell HH492 Wireless Barcode Scanner HANDHELD Bluetooth 2D Area-Imaging Performance Scanner with Charge & Communication Base - Not Power Supply included, with 1.5M USB CABLE
Features
As Honeywell's new-generation 2D image wireless scanner, HH492 integrates GEN7 platform and 1472 module to decode all standard 1D/2D barcodes. The base allows for data transmission through the BLE module while also charging the device. These key features make the HH492 a valuable asset in inventory management in government departments, distribution centers express delivery outlets, retail, where fast barcode scanning and identification are required.
The Honeywell HH492 makes scanning easier and faster helping users quickly obtain data and minimizing input errors, which allows for increased productivity and simplified workflow.
Specifications
Technical Specifications
| Charger/Communication Base | 130 mm x 86 mm x 85 mm (5.1 in x 3.4 in x 3.3 in) |
|---|---|
| Dimensions (L x W x H) | 64 mm x 166 mm x 84 mm (2.5 in x 6.5 in x 3.3 in |
| Decode Capability | 1D2DDotCodePDF |
| Motion Tolerance | 25cm/s (9.8in/s) for 13 mil UPC at optimal focus |
| Number of Scans | Up to 50,000 scans per charge |
| Scanning Range | Max: 400mm for 13 mil UPCMin: 5mm for 20 mil QR |
| Depth of Field | Up to 400mm for 13 mil UPC |
| Scan Pattern | Area Imager CMOS (1040 x 720 pixel array) |
| Bluetooth Specifications | 5.0 |
| Bluetooth | Yes |
| Wireless | Yes |
| Host System Interface | HIDUSB |
| Engine Type | Area Imager Scanning |
| Aimer Type | Area Imager |
| Battery Types | Li-Ion |
| Storage Temperature Range | Scanner/Communication Base: -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | 0% to 95% relative humidity |
| Drop Specifications | Communication Base: 1.0m (3.3ft) concrete floorScanner: 1.5m (4.9ft) concrete floor |
| Protection Ratings | IP40 |
| For Use With | Charge and Communication baseUSB Dongle |
| Form Factor | Charger/Communication Base: 130 mm x 86 mm x 85 mm (5.1 in x 3.4 in x 3.3 in)Dimensions (L x W x H): 64 mm x 166 mm x 84 mm (2.5 in x 6.5 in x 3.3 in |
| Application | ManufacturingRetailT&L |
| Battery Capacity | 2730 mAh |
| Operating Power | 2.5 W (500mA @ 5V USB input)5W (1000mA @ 5V Adaptor input) |
| Operating Temperature | Communication Base: Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: 0°C to 50°C (32°F to 122°F)Scanner: Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: -20°C to 50°C (-4°F to 122°F) |
| Power Connector Type | Charge and Communication baseUSB Dongle |
| Brand | Honeywell |
|---|---|
| Product Type | Printing, Scanning & Office |
| Weight | 0.3 kg |
| Warranty |
|---|
