HP
HP HPE JC683A 58x0AF Frt(ports)-Bck(pwr) Fan Tray
$346.96
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features

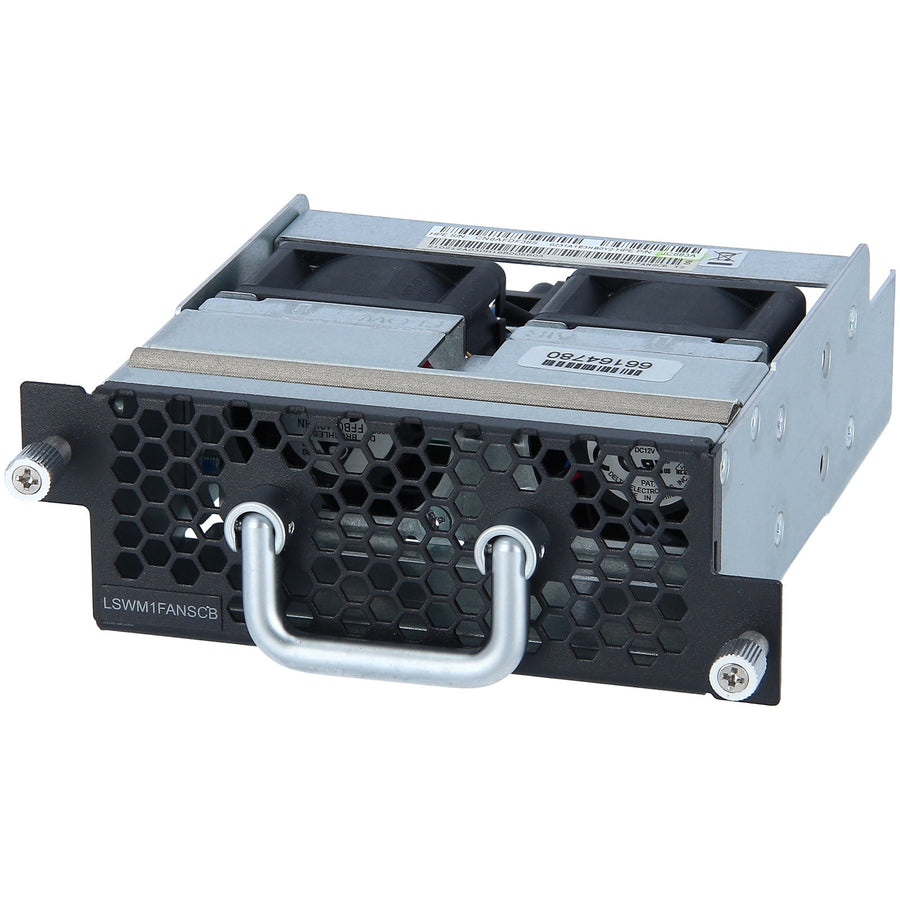

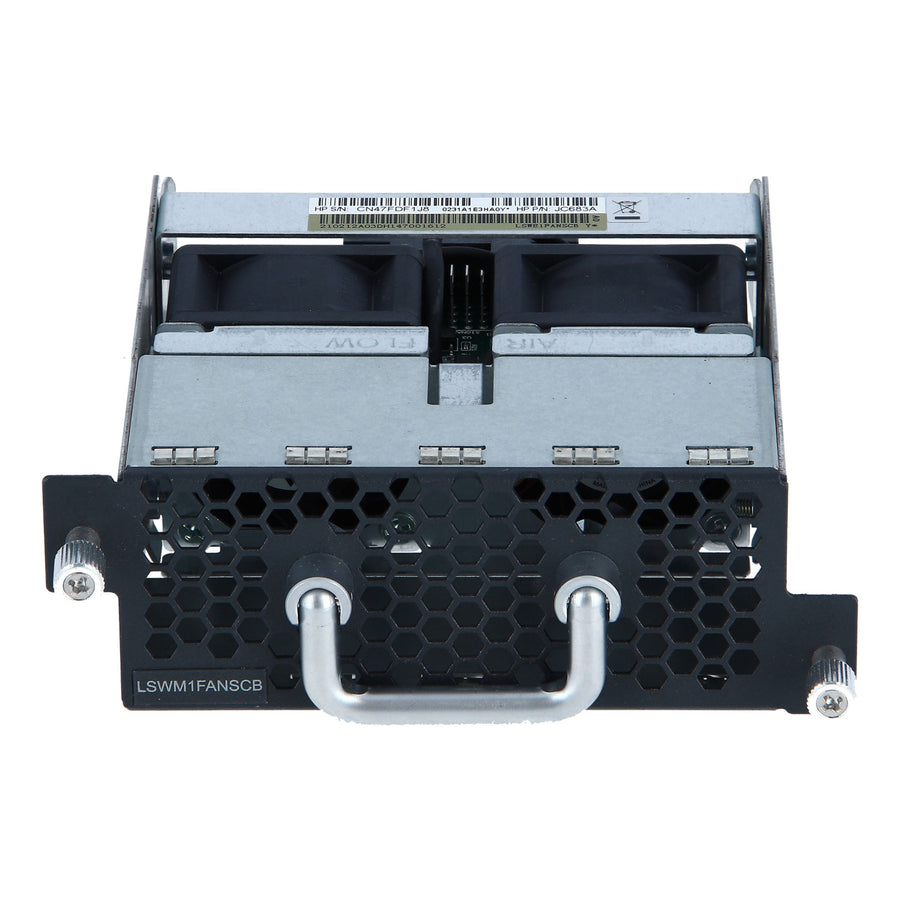

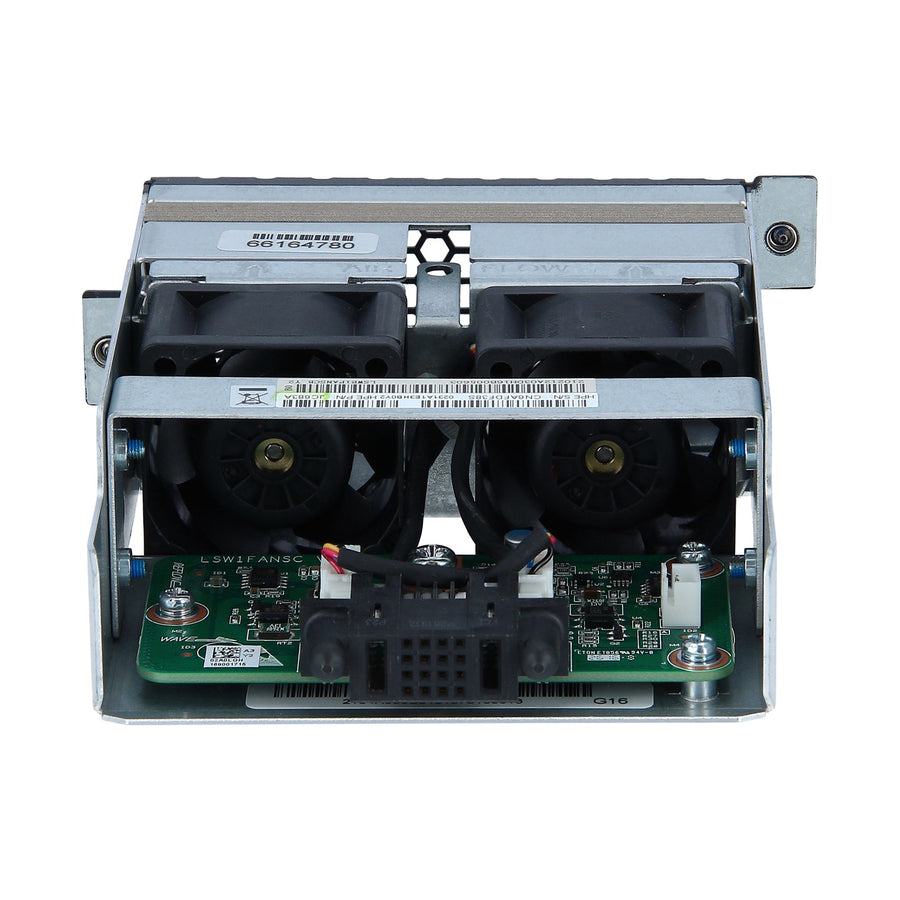

HP HPE JC683A 58x0AF Frt(ports)-Bck(pwr) Fan Tray
Specifications
Technical Specifications
| Manufacturer part number | JC683A |
|---|---|
| Manufacturer | HPE |
| Manufacturer Part Number | JC683A |
| Product Name | 58X0AF Front Port Side to Back Power Side Airflow Fan Tray |
| Product Type | Fan Tray |
| Fans | Two 40 × 40 × 28 mm (1.57 × 1.57 × 1.10 in) fans |
| Airflow Direction | Fans draw in air from the network port side to thepower module side |
| Max Fan Speed | 18500 R.P.M |
| Max Airflow | 45 CFM |
| Max Power Consumption | 19.5 W |
| Voltage | 12 V |
| Operating Temperature | 10°C to 70°C (14°F to 158°F) |
| Relative Humidity | 5% to 95% (non condensing) |
| Storage Temperature | 40°C to 75°C (-40°F to 167°F) |
| Relative Humidity | 5% to 95% (non condensing) |
| Compatibility | HPE FF 5940 48SFP+ 6QSFP+ Switch HPE FlexFabric 5700-32XGT-8XG-2QSFP+ Switch HPE FlexFabric 5700-40XG-2QSFP+ Switch HPE FlexFabric 5700-48G-4XG-2QSFP+ Switch HPE FF 5900AF-48G-4XG |
| Product type | Network Accessories |
| Weight | 3 kg |
| Warranty | 12 months |
| Brand | HP |
|---|---|
| Product Type | Network Accessories |
| Weight | 3.0 kg |
| Warranty |
|---|
