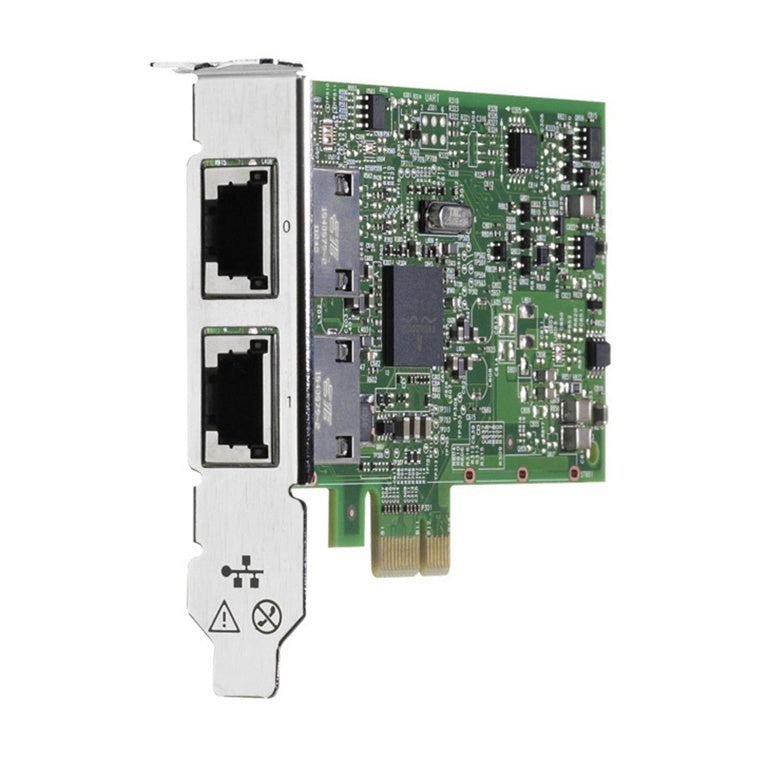

615732-B21 - HP NIC 332T 1GbE RJ-45 2-port PCI-E-2.0x1 Ethernet Controller (Broadcom BCM5720)
Features
HPE Ethernet 1Gb 2-port 332T Adapter
Need a cost effective 1GbE Solution for your HPE ProLiant Gen 7 or Gen 8 server? The HPE Ethernet 1Gb 2-port 332T Adapter is a dual-port, low-cost, low profile 1Gb adapter featuring a PCIe 2.0 compliant form factor designed for select HPE ProLiant Gen 8 and Gen 7 ML/DL/SL servers. It delivers full line-rate performance across all ports with low power consumption, providing Ethernet connectivity ideal for virtualization, security, server consolidation, and network segmentation. Supported advanced features include Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588 (Precision Time Protocol - PTP), and virtualization features such as VMware NetQueue and Microsoft Virtual Machine Queue (VMQ). Support for HPE Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.
Single-chip, Dual-port, 1 Gb Ethernet Adapter Designed for Performance and Energy Savings
- An aggregate, full duplex transfer rate of 4 Gb/s per adapter improves response times and alleviates bottlenecks.
- Comprehensive stateless offloads optimize host efficiency and virtual machine density by offloading network processes from the host CPU.
- Virtualization support for VMware NetQueue and Microsoft VMQ helps meet the performance demands of consolidated virtual workloads.
- Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.
- Support for Energy Efficient Ethernet (EEE) reduces operating expenses.
Specifications
Technical Specifications
| Transfer rate | 1 Gb/sec |
|---|---|
| Form factor | Stand Up |
| Connector type | Base-T |
| Power availability | 2W (maximum) |
| Technology | Network processor |
| Protocol supported | Ethernet, 802.3, 802.3ab, 802.3u,802.3x, Dynamic 802.3ad, 802.1Q,802.3az, 1588, 802.1as |
| Network processor | Broadcom NetXtreme BCM5720 chipset |
| Data rate | 1Gb per port, 2Gb Total |
| Bus type | PCIe Gen2 x1 |
| Power | Typical - 2.1W Max - 2.2W |
| Server type supported | ProLiant servers |
| IEEE compliance | 802.3,802.3u,802.3ab,802.3x,802.3ad,802.1p, 802.1q, 802.3az,1588,802.1as |
| Compatible operating systems | Microsoft Windows 2008, Server 2008,Microsoft Windows HPC Server 2008Red Hat Enterprise Linux 5.7 and 6.1 (AMD64/EM64T)SUSE Linux Enterprise Server 10 and 11 (AMD64/EM64T)Oracle Solaris 10 VMware Microsoft Windows Hyper-V |
| Port speed | 4 Gbps |
| Product dimensions (H x W x D) | 2.25 x 9.5 x 7.5 in |
| Weight | 1 lb |
| Brand | HP |
|---|---|
| Product Type | Networking > Network Cards |
| Weight | 0.5 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
