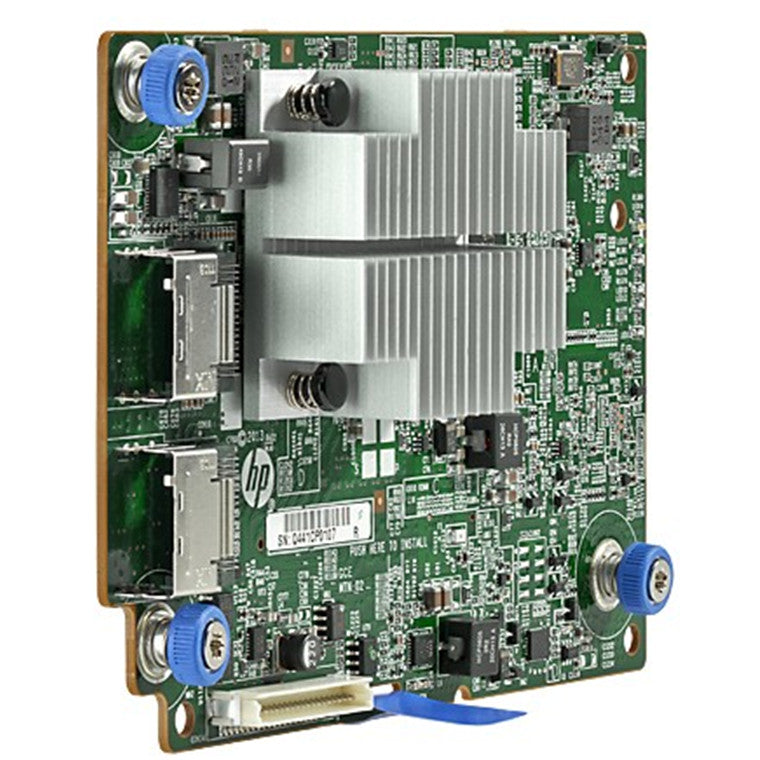

726757-B21 - HP SAS 12G H240ar 2-Port Int (SFF-8087) PCI-E-3.0x8 Module
Features
The HP H240ar Smart Host Bus Adapter comes in a Flexible Smart SAS HBA form factor that provides a reliable, high performing SAS connectivity to the data in the server internal drives. Supported on select Gen9 servers, it features eight internal physical links and it delivers 12 Gb/s SAS performance. The H240ar Smart Host Bus Adapter provides flexibility to run as an HBA mode or simple RAID mode. When operating in simple RAID mode, it provides RAID 0, RAID 1, and RAID 5 with optional HP Secure Encryption capabilities. Unlike the HP Smart Array Controllers, the H240ar does not offer any acceleration or support cache modules.
- HP H240ar 12GB Dual Port Internal
- Smart Host Bus Adapter
Specifications
Technical Specifications
| Category | Controller |
|---|---|
| Sub-Category | HBA |
| Generation | H240ar |
| Part Number | 726757-B21 |
| Manufacturer | HP |
| Device Type | Smart HBA-Storage Controller |
| Host Bus | PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s SAS 12Gb/s |
| Data Transfer Rate | 1.2GB/s |
| RAID Level | 0, 1, 5 |
| Supported Devices | Hard Drive, Solid State Drive |
| Channel Quantity | 8 |
| Form Factor | Plug-in Module |
| Connector Type | 36 Pin 4i Mini MultiLane SAS (SFF-8087) |
| Brand | HP |
|---|---|
| Product Type | Computers & Tablets > Servers > Server Parts & Accessories |
| Weight | 0.5 kg |
| Warranty |
|---|
