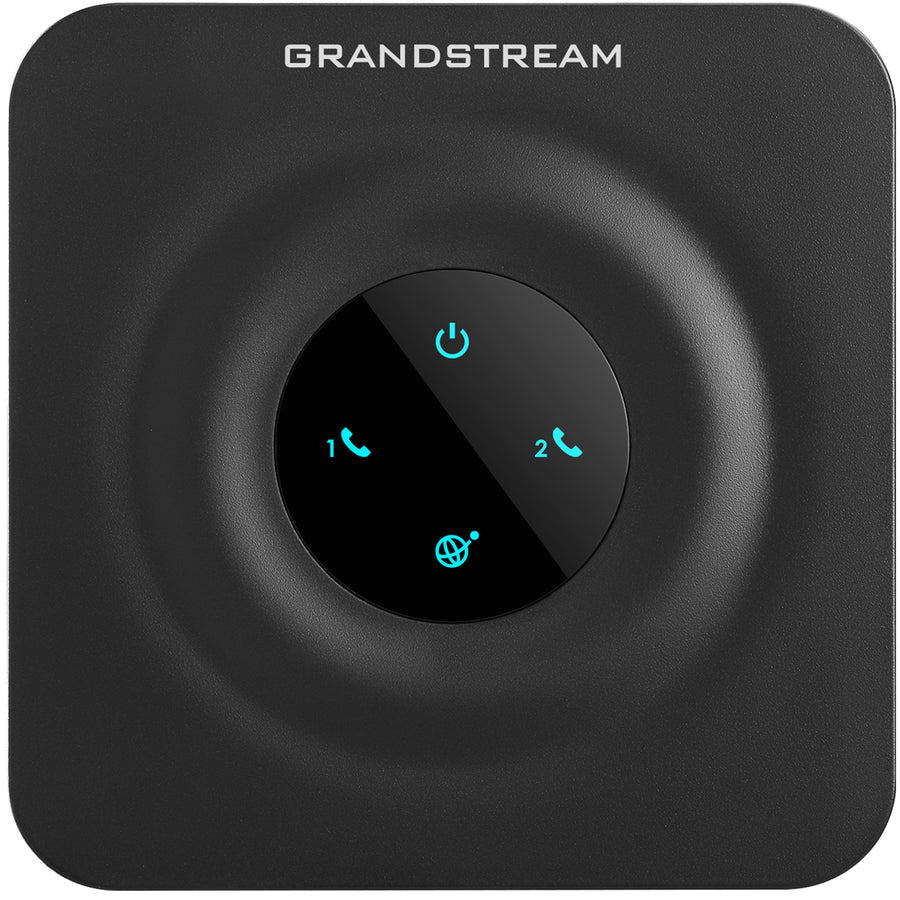

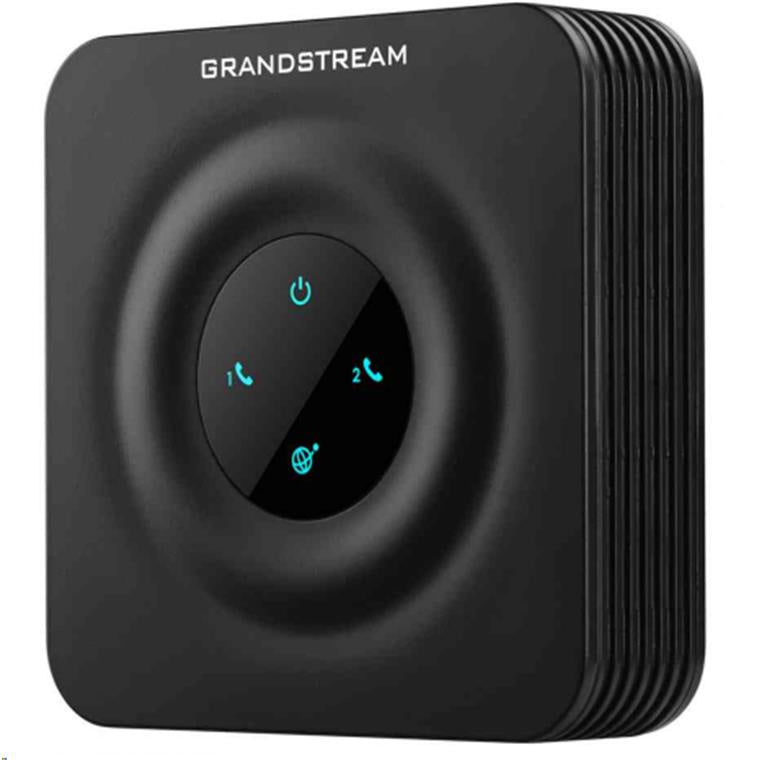

Grandstream HT802 2-Port FXS Analog Telephone Adapter (ATA)
Features
The HT802 is a 2 port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analog phones and enables service provider s to offer high quality IP service. The HT802 is an ideal ATA for individual use and for large scale co mmercial IP voice deployments.
- Supports 2 SIP profiles through 2 FXS ports and a single 10/100Mbps port
- TLS and SRTP security encryption technology to protect calls and accounts
- Automated provisioning options include TR-069 and XML config files
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Use with Grandstream's UCM series of IP PBXs for Zero Configuration provisioning
Specifications
Technical Specifications

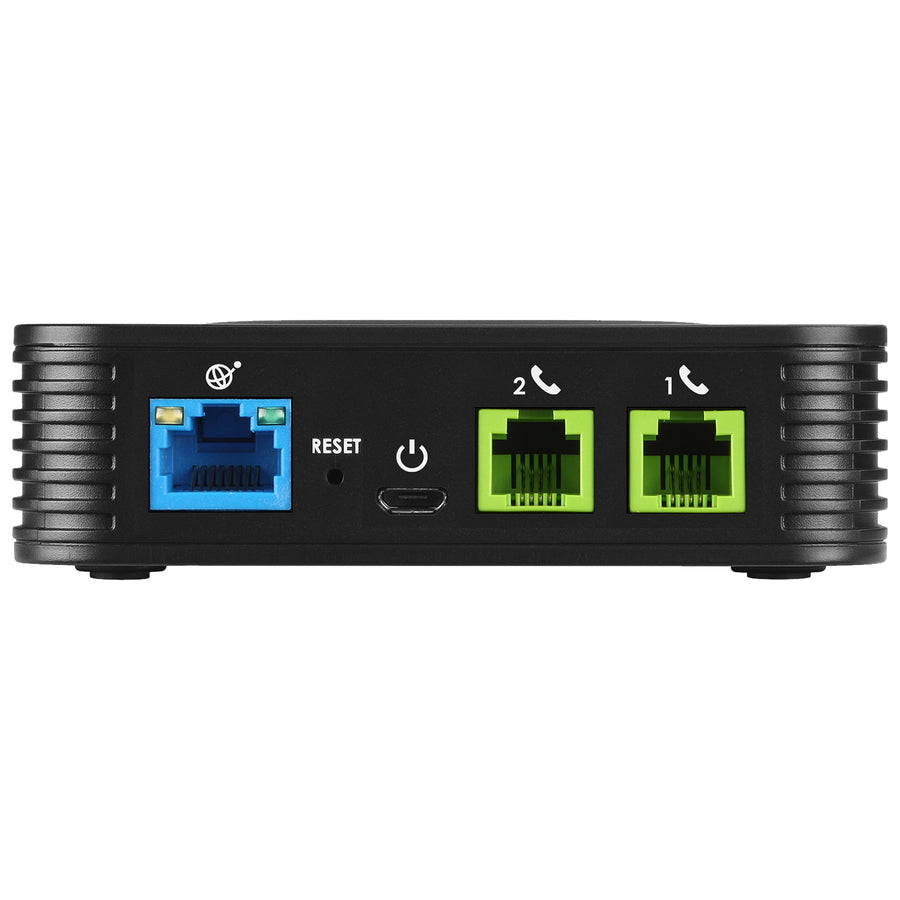

| Telephone Interfaces | Two (2) FXS ports |
|---|---|
| Network Interfaces | One (1) 10/100Mbps auto-sensing ethernet ports (RJ45) |
| LED Indicators | POWER, INTERNET, PHONE1, PHONE2 |
| Factory Reset Button | Yes |
| Telephony Features | Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference |
| Voice Codecs | G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation |
| Fax Over IP | T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through |
| Short/Long Haul Ring Load | 2 REN: Up to 1km on 24 AWG |
| Caller ID | Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID |
| Disconnect Methods | Busy Tone, Polarity Reversal/Wink, Loop Current |
| Network Protocols | TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069 |
| QoS | Layer 3 (ToS, DiffServ, MPLS) |
| DTMF Method | In-audio, RFC2833 and/or SIP INFO |
| Provisioning and Control | HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog |
| Media | SRTP |
| Control | TLS/SIPS/HTTPS |
| Management | Syslog support, telnet, remote management using web browser |
| Universal Power Supply | Input: 100-240VAC, 50-60HzOutput: 5.0VDC/1.0A |
| Environmental | Operational: 32º - 104ºF or 0º - 40ºCStorage: 14º - 140ºF or -10º - 60ºCHumidity: 10 - 90% Non-condensing |
| Dimension and Weight | 100mm x 100mm x 29.5mm, 114g (without package) |
| Brand | Grandstream |
|---|---|
| Product Type | UC & Video Conferencing > Business Phones > IP Phones / Gateways |
| Weight | 0.328 kg |
| Warranty |
|---|
