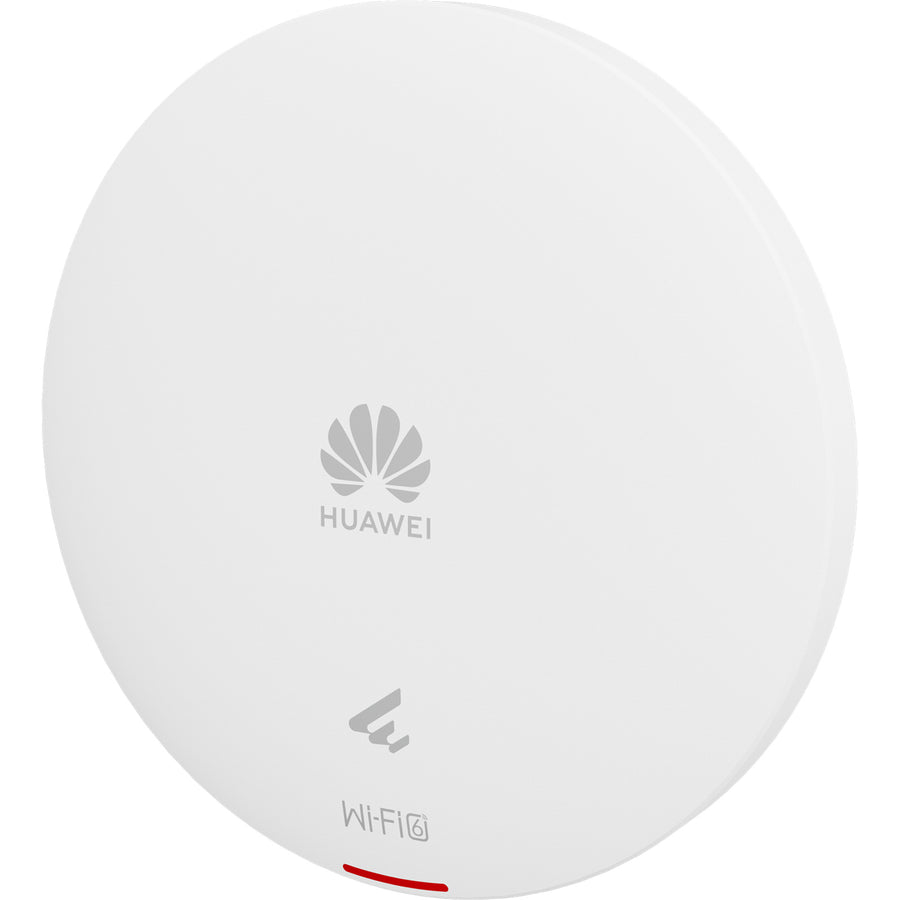

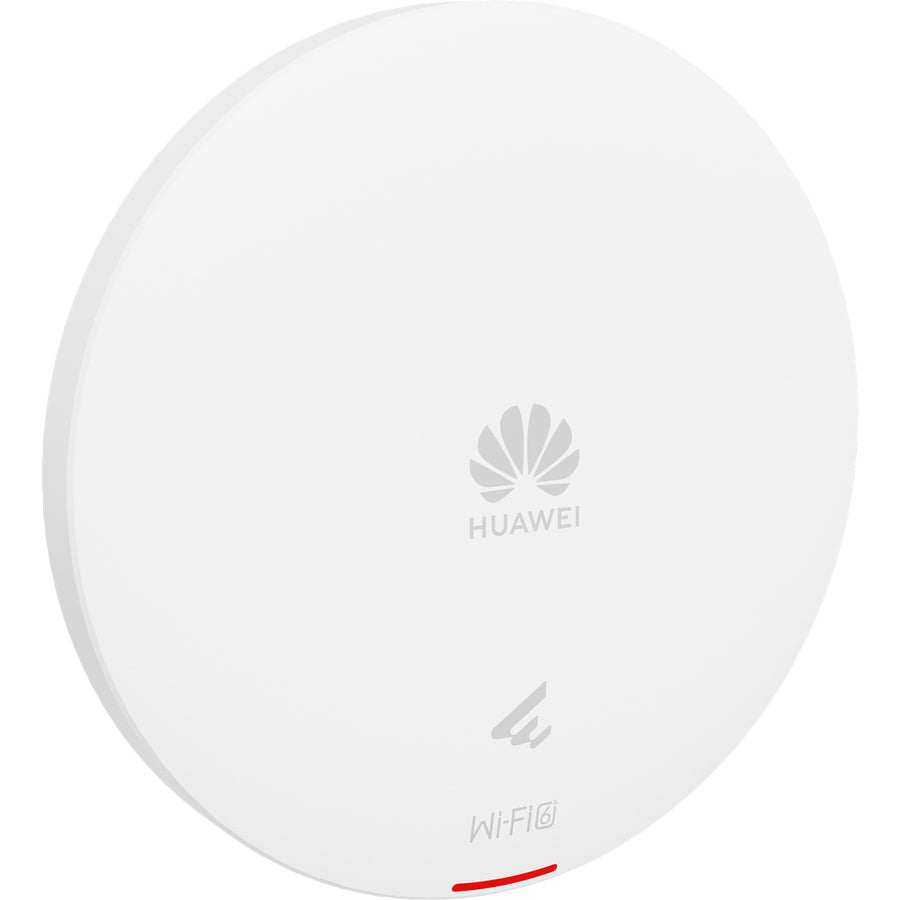

HUAWEI EKIT 50086871 - AP361(11ax indoor2+2 dual bandssmart antenna)

HUAWEI EKIT

HUAWEI EKIT 50086871 - AP361(11ax indoor2+2 dual bandssmart antenna)

Name: HUAWEI EKIT 50086871 - B2B - Networking & Routing | KW Tech NZ
Brand: HUAWEI EKIT
SKU: 50086871
Price: 208.0 NZD
Availability: InStock

SKU: 50086871 ● In Stock

$208.00

Free shipping over $299 Genuine product 7-day returns

HUAWEI EKIT 50086871 - AP361(11ax indoor2+2 dual bandssmart antenna)

Features

Wireless Network with Guaranteed Security

WPA3 with industry's strongest encryption ensuring network security.

AI-based Intelligent Signal Optimization

Adaptive channel adjustment, ensuring Internet access signal quality 20% greater coverage range and one more wall penetrated.

Seamless Roaming

Seamless roaming steering technology Eliminating service interruption for mobile terminals

Powerful Forwarding capabilities

Smooth multi-channel HD video conferencing without frame freezing, improving user experience

Specifications

Technical Specifications

Wi-Fi standard	2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
Installation Type	Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)
Optimal Signal Distance (m)	20
Max Number of Access Users	128
Recommended Number of Access Users	80
Device Rate	1.775 Gbps

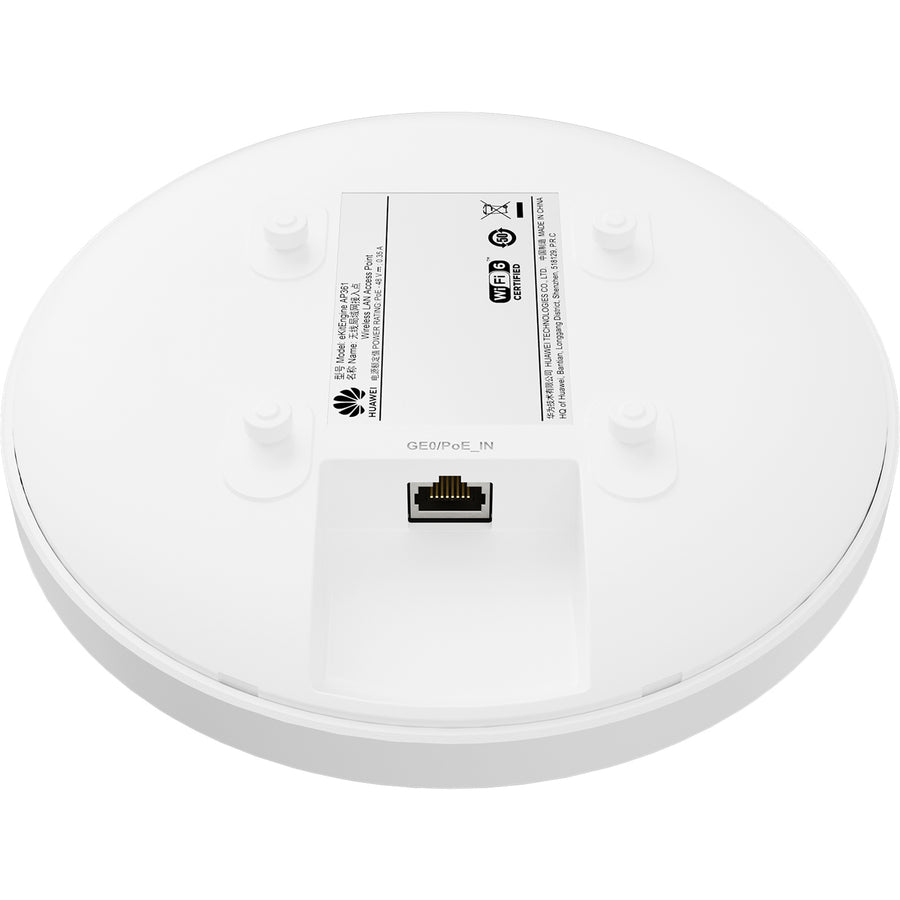

Maximum number of physical ports on the entire device	GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Radio number	2
Maximum channel bandwidth [MHz]	Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 80 MHz
Maximum transmit power	2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power) Note: In V200R024C10 and later versions, the combined power is increased to 23 dBm by default. In versions earlier than V200R024C10, the combined power is only 20 dBm. To increase the transmit power for the AP running an earlier version, install the corresponding patch by referring to the announcement on the official website.
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Maximum power consumption [W]	9.4
Input voltage range [V]	PoE: 802.3af
Dimensions without packaging (H x W x D) [mm(in.)]	Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.)
Weight without packaging [kg(lb)]	0.45 kg (0.99 lb)
Weight with packaging [kg(lb)]	0.75 kg (1.65 lb)
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain)
Operating frequency band	2.4GHz,5GHz
