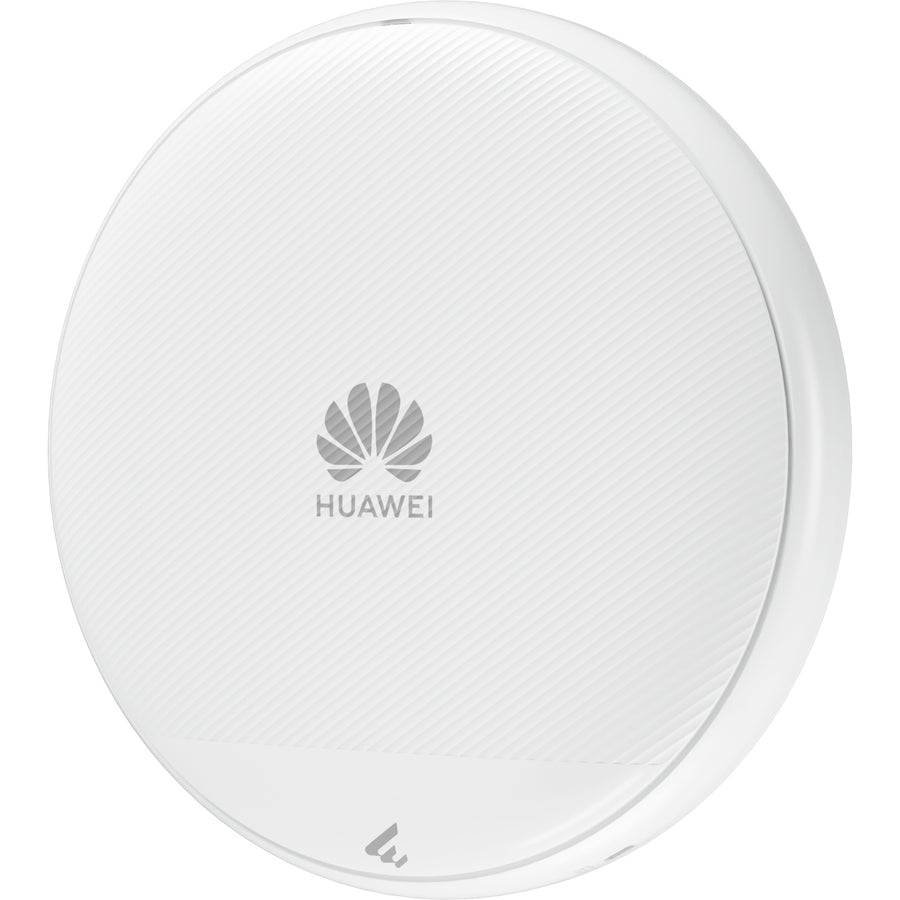

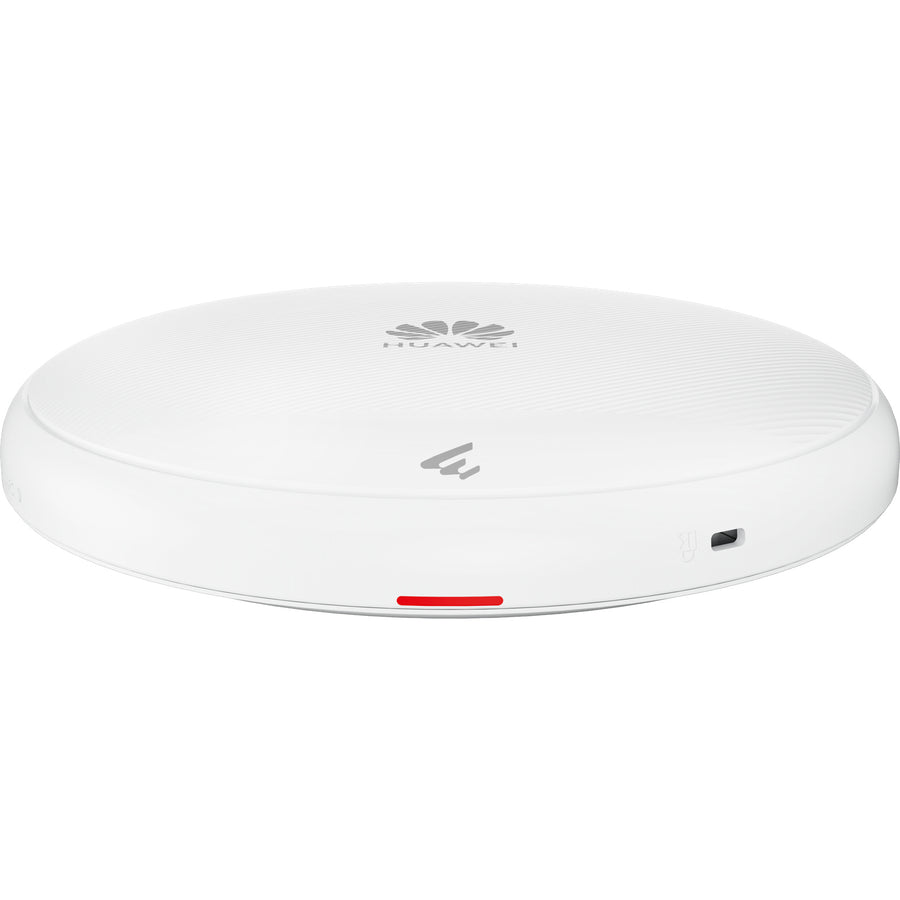

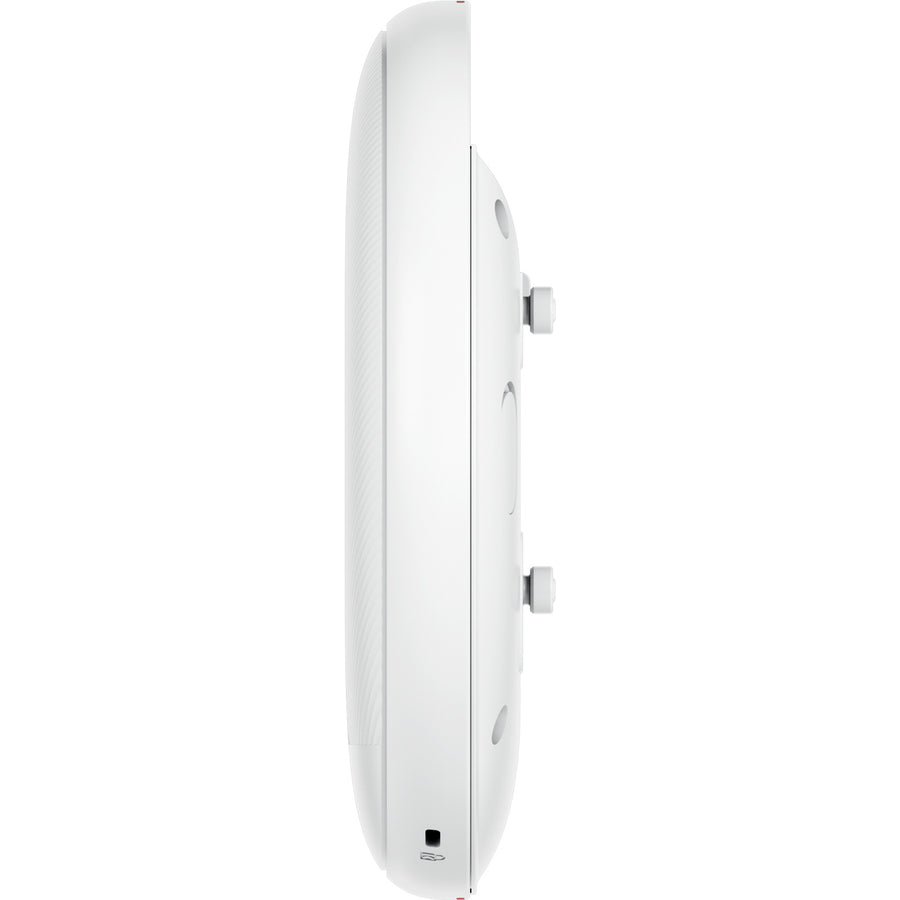

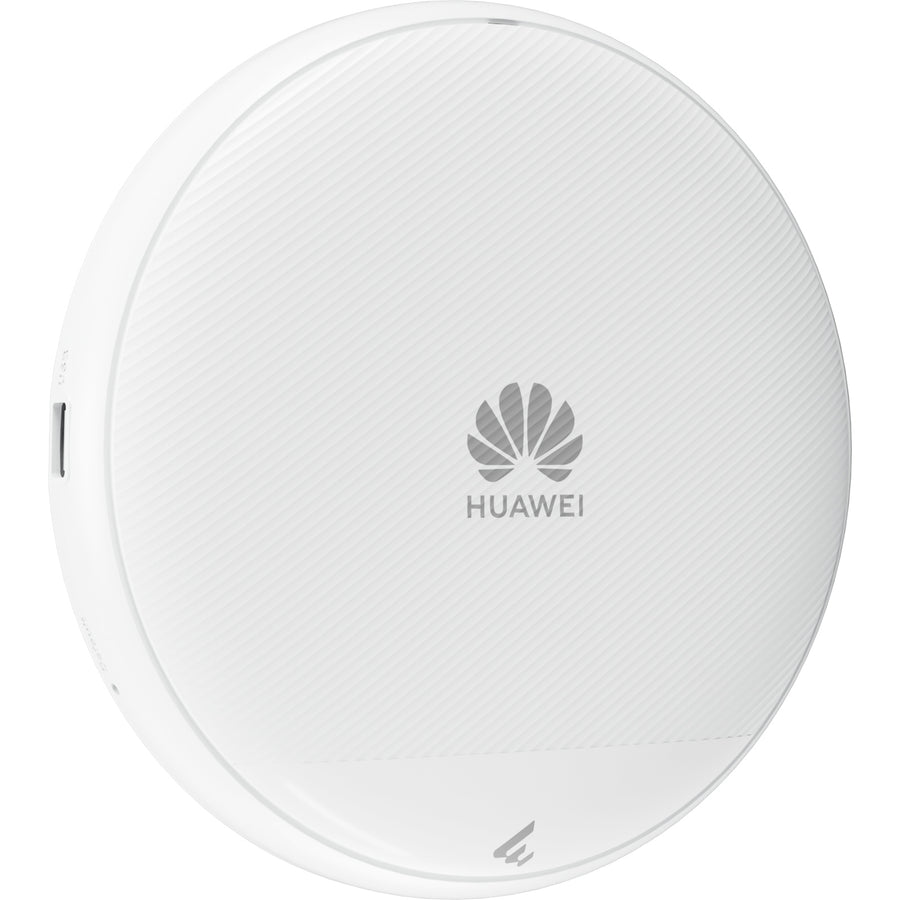

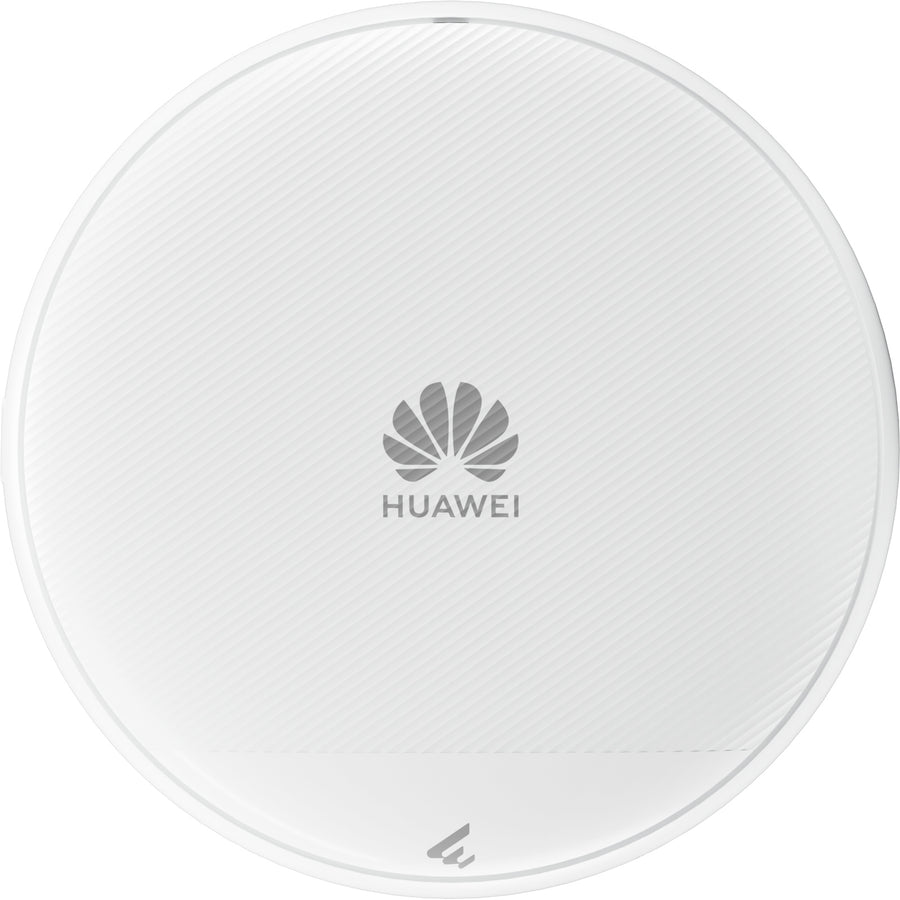

HUAWEI EKIT Wireless LAN EquipmentAP371AP371(11be indoor2+2 dual bandssmart antennaUSBBLE)AP371RJ45*111bedual bands
Features
Settled AP | Wi-Fi 7 | 3.57 Gbps device rate | Dual-radio | 150 access users recommended | Max. 256 access users | 23 dBm transmit power | Smart antenna | 18 m optimal coverage range
To Enjoy the Latest Wi-Fi 7 Technology
Up to 3600Mbps speeds Easy to download massive files, play large-scale games watch HD movies
1.2-Fold higher Data Rate
4096-QAM much more data is transmitted within the same period of time, improving the transmission rate 20%
Dual Radio Operation 2x Higher Reliability
Wi-Fi 7 capable terminals can connect to both 2.4 GHz and 5GHz bands, greatly increasing the network reliability while reducing the latency.
Multi-RU Feature Millisecond-Level Latency
Multi-RU achieves better spectrum utilization higher multi-user transmission efficiency, lower latency.
4 Channel Signal Amplification Easy Wall Penetration
Four high performance signal amplifiers improve the signal strength and sensitivity, enabling easier wall penetration and wider coverage.
Strong Encryption Levels Robust Security
Support WPA3 the highes level of ecryption, anti-brute force cracking - effectively prevent network attacks or hijacking, safeguarding network security.
Specifications
Technical Specifications
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be 5 GHz:802.11a/n/ac/ac Wave 2/ax/be |
|---|---|
| Installation Type | Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod) |
| Optimal Signal Distance (m) | 18 |
| Max Number of Access Users | 256 |
| Recommended Number of Access Users | 150 |
| Device Rate | 3.57 Gbps |
| Maximum number of physical ports on the entire device | 2.5GE (RJ45) x 1, 100M/1000M/2500 Mbit/s auto-sensing |
| Radio number | 2 |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz |
| Maximum transmit power | 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power) |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Maximum power consumption [W] | 13.3 (excluding USB) |
| Input voltage range [V] | DC: 12 V ± 10% PoE: 802.3at/af |
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 61 mm x 231 mm x 203 mm (2.40 in. x 9.09 in. x 7.99 in.) |
| Weight without packaging [kg(lb)] | 0.47 kg (1.04 lb) |
| Weight with packaging [kg(lb)] | 0.69 kg (1.52 lb) |
| Long-term operating temperature [°C(°F)] | -10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz: 4 dBi/chain (peak gain) 1 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) |
| Operating frequency band | 2.4GHz,5GHz |
| Brand | HUAWEI EKIT |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 0.5 kg |
