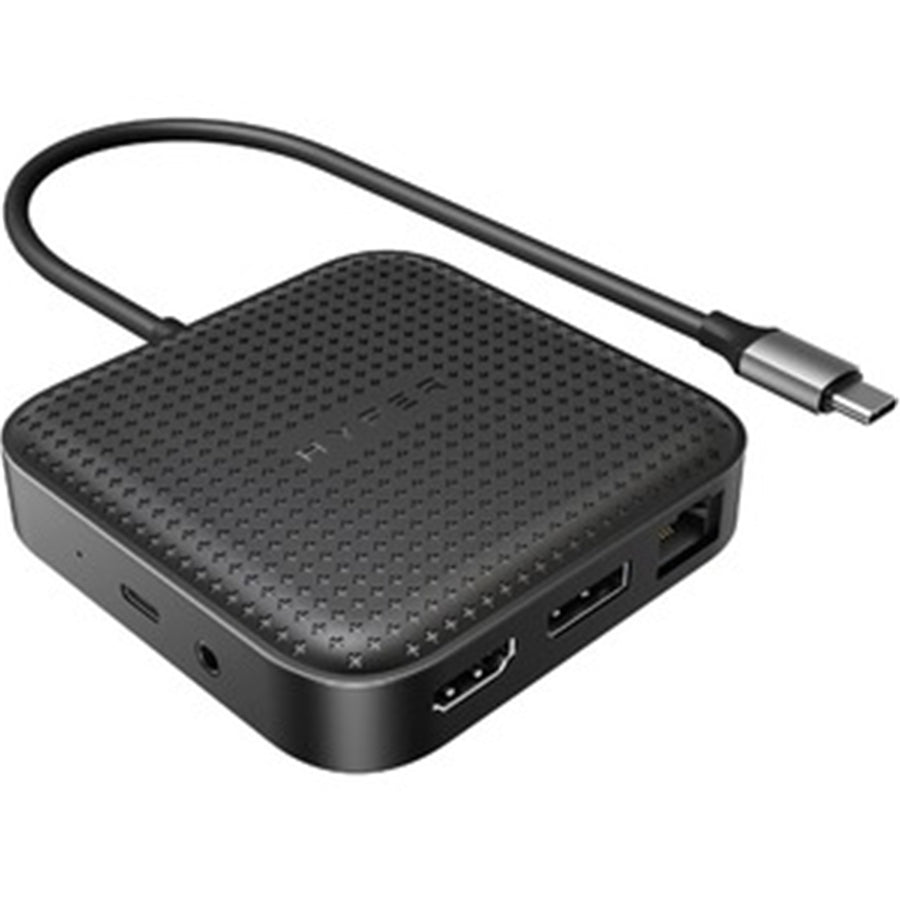

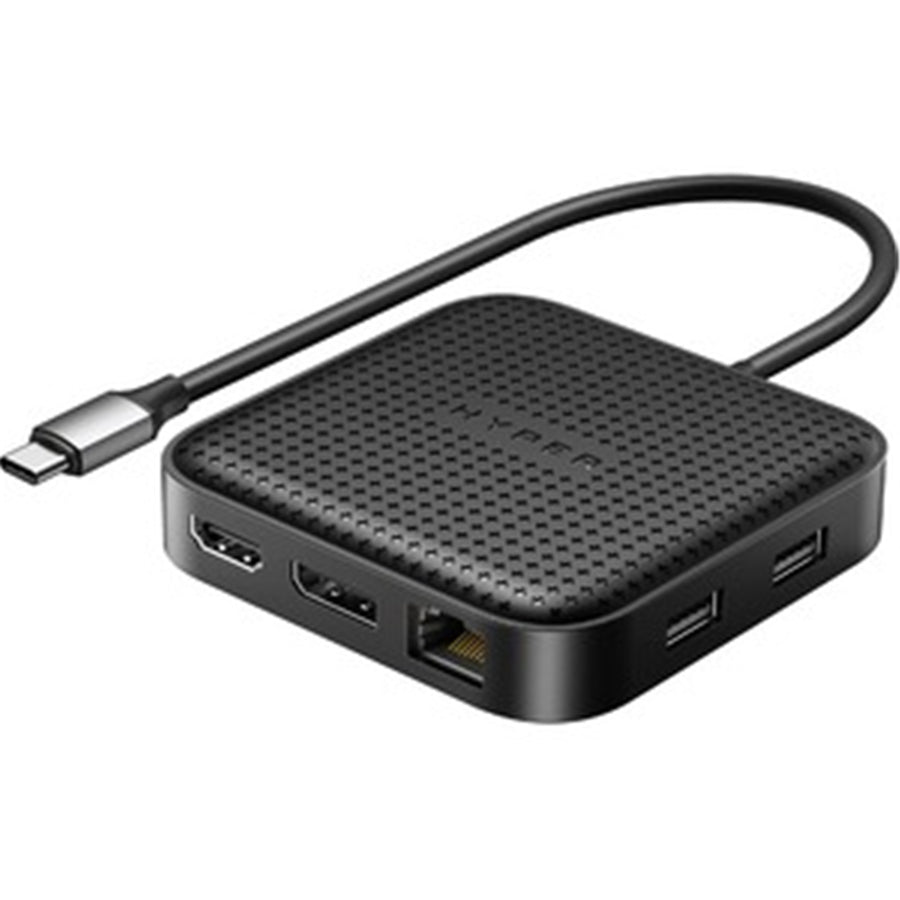

Targus HD583 - HyperDrive USB4 Mobile Dock
Targus HD583 - HyperDrive USB4 Mobile Dock
Targus HD583 - HyperDrive USB4 Mobile Dock
Targus HD583 - HyperDrive USB4 Mobile Dock
Targus HD583 - HyperDrive USB4 Mobile Dock
Targus HD583 - HyperDrive USB4 Mobile Dock
Targus

Targus HD583 - HyperDrive USB4 Mobile Dock

SKU: HD583 ● In Stock
$158.25$167.47
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Cruxtec

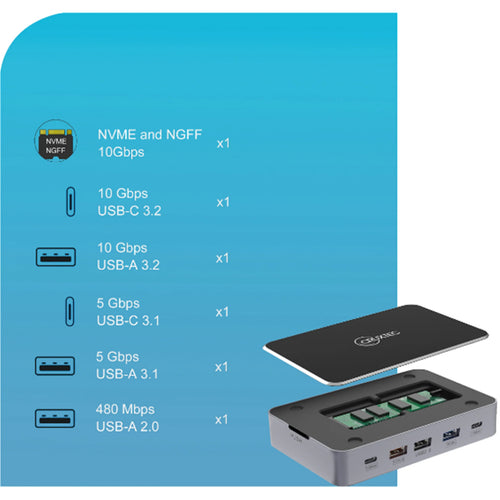

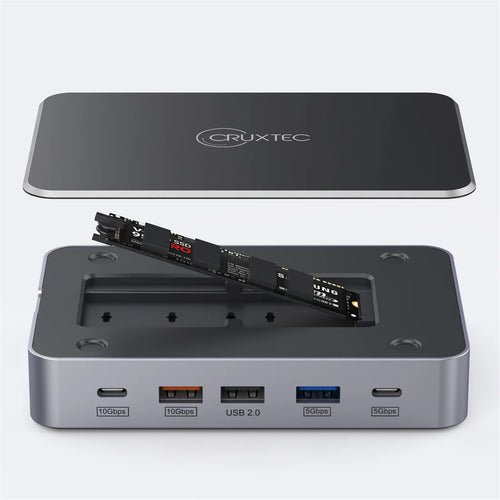

Cruxtec CDK14-SG 14-in-1 USB-C 100W Docking Station with Built-in M.2 Slot support upto 4TB -

$190.35$206.33
inc GST ▲ +GST
Cruxtec

Cruxtec CMH04-SG USB-C 4-in-1 Mini Docking

$36.86
inc GST ▲ +GST
Cruxtec

Cruxtec CDK15-BK USB-C 100W 15-in-1 Universal Docking Station

$200.91
inc GST ▲ +GST
Cruxtec

Cruxtec CMH04-SG USB-C 4-in-1 Mini Docking

$36.86
inc GST ▲ +GST
Cruxtec

Cruxtec CDK10-SG USB-C to Dual HDMI, Multi- Screen output 4K60hz - Mini Docking

$103.47$104.00
inc GST ▲ +GST

Features

The HyperDrive USB4 Mobile Dock is a slim, portable USB4 docking station that features integrated HDMI 2.1 and DisplayPort 1.4 for single 8K 30Hz display support on SST and MST devices, and is capable of dual 4K 60Hz display support on MST enabled devices.


It also provides the ability to quickly charge a host device with USB-C 85W power delivery while giving 2x USB-A 10Gbps ports for blazing fast file transfers and supplementary peripheral support. Compatible with USB4 devices, macOS, Thunderbolt 4 and 3 Windows PCs, and Thunderbolt docking stations.

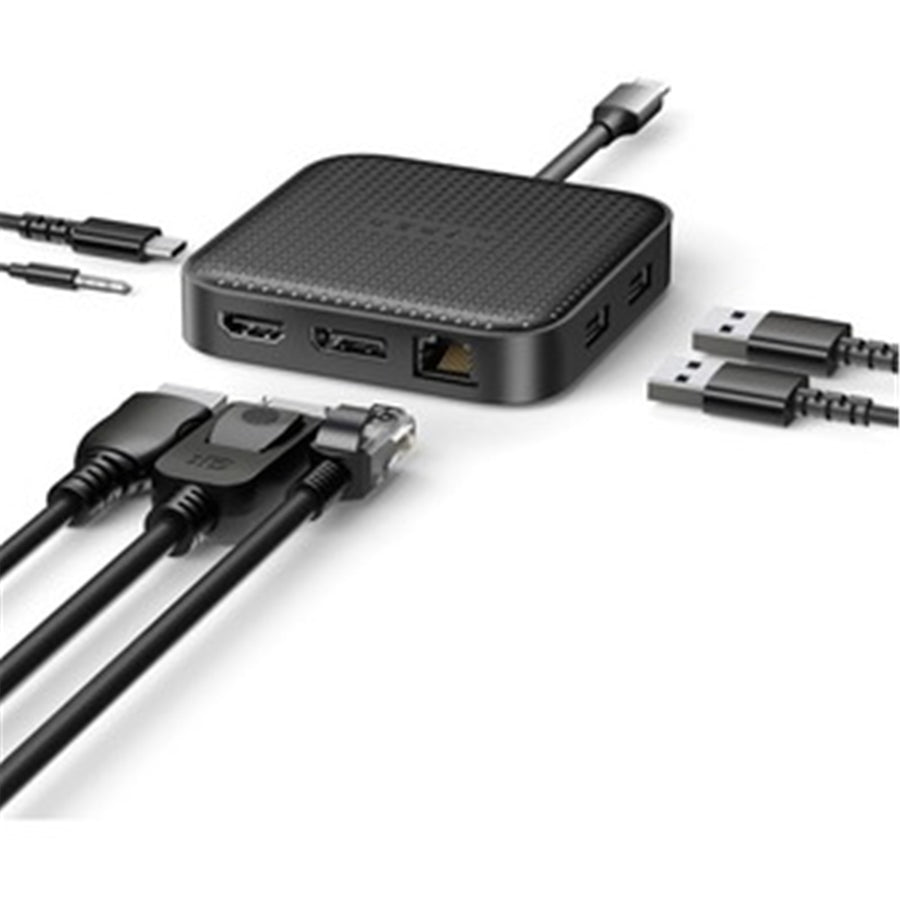

Ports

1 x HDMI 2.1
1 x DisplayPort 1.4
1 x Gigabit Ethernet RJ45 LAN
1 x USB 3.2 Gen 2 Type-C
1 x 3.5 mm Audio
2 x USB 3.2 Gen 2 Type-A



Features

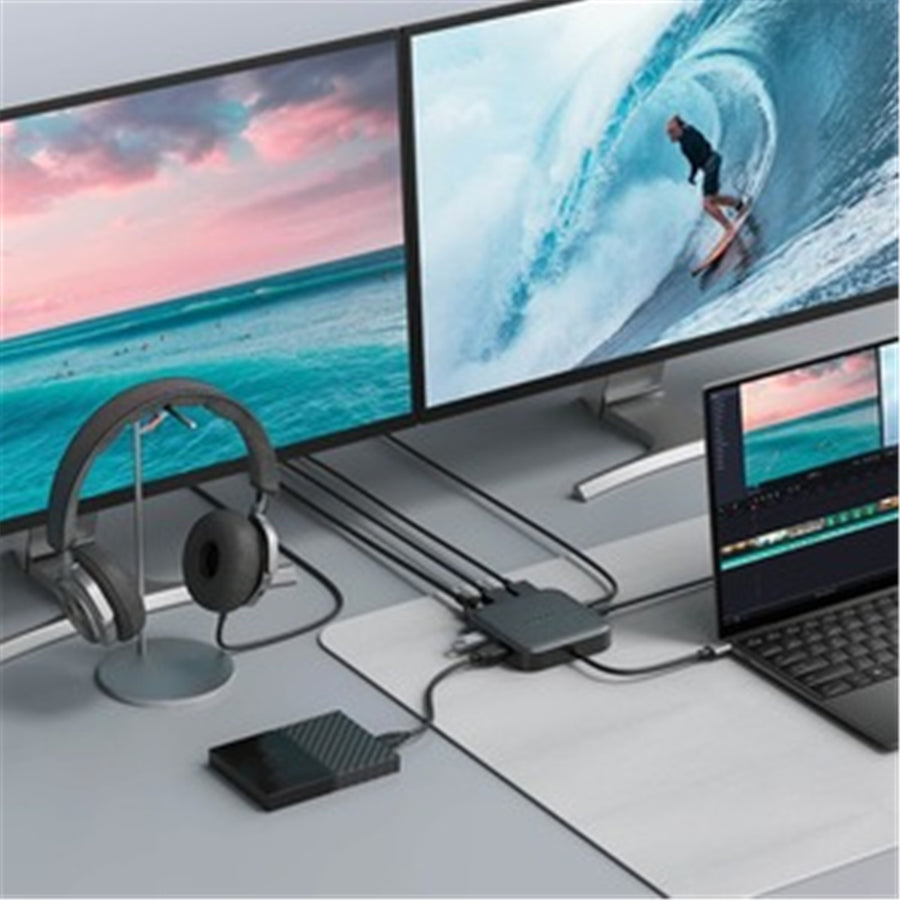

Dual Extended Display Support

Easily connect up to 2 external displays at 4K 60Hz with the flexibility of HDMI 2.1 or DP 1.4.
Up to 2 Extended Displays are supported on Windows and Chrome OS only as MST (Multi-Stream Transport) is required. macOS does not support MST. 4K 60Hz requires that your USB-C port supports DP 1.4 and DSC.

Single 8K 30Hz Display Support

Easily connect a single external display at 8K 30Hz with the flexibility of HDMI 2.1 or DP 1.4.

USB-C 85W PD Passthrough

Quickly charge your host computer with 85 watts of power when connected to an external 100W Power Delivery charger.

High-Speed USB-A

2x USB-A ports provide 10Gbps for transferring photos, files, or high-resolution HD movies in under 30 seconds





Speciifcations

Ports

  • HOST: USB4 (40Gbps; 85W PD Passthrough)
  • HDMI 2.1 (8K 30Hz; HDR)
  • DisplayPort 1.4 (8K 30Hz; HDR)
  • USB-C (10Gbps; 100W PD*)
  • USB-A (10Gbps; 4.5W)
  • USB-A (10Gbps; 4.5W)
  • 1 Gigabit Ethernet
  • 3.5 mm Audio Combo Jack (96 kHz 24 bit)

Model

HD583

Dimensions

84.9 x 84.9 x 19.4mm
3.34" x 3.34" x 0.76"

Weight

109g / 3.84 oz / 0.24 lb

Certifications:

CE, UKCA, FCC, RCM, ICES003, PAHs, RoHS, REACH, WEEE, SOR, Prop65, TSCA

Warranty Length:

2 Years

Compatible Devices

  • Windows OS laptop with Thunderbolt 3/4, USB4, USB 3.0 or later Type C with DP Alt-Mode
  • Chrome OS laptop with Thunderbolt 3/4, USB4, USB 3.0 or later Type C with DP Alt-Mode
  • MacBook Pro 2016 or Later
  • MacBook Air 2018 or Later
  • MacBook 2015, 2016
  • iPad Pro 2018 or later
  • iPad Air 2020 or later

Compatible Operating Systems

  • macOS 10.16 or later: Yes
  • Windows 8 or later: Yes
  • Chrome OS: Yes
  • Linux: Yes
  • iPad OS: Yes
  • Android: No
Monitor Support Capability Monitor A Monitor B
Extended Monitors 2
Single Monitor (Max output) 8K 30Hz
Dual Monitor (Max output)  4K 60Hz 4K 60Hz
Triple Monitor (Max output)

Specifications

Technical Specifications

USB 2 x USB-A 3.1/3.2 Gen 2 / Supports 4.5 W Output1 x USB-C 3.1/3.2 Gen 2 / Supports 100 W Power Delivery
Ethernet 1 x RJ45 (10/100/1000 Mb/s)
Display 1 x DisplayPort 1.41 x HDMI 2.1
Audio 1 x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
Media Card Reader None
Host Connection USB-C (USB4)
Connection Type Integrated Cable
Powered Connection 85 W
Number of Displays Supported 2
Maximum Resolution Supported 3840 x 2160 at 60 Hz (Dual Display)7680 x 4320 at 30 Hz (Single Display)
OS Compatibility WindowsmacOSLinuxAndroidiPadOSChrome OS
Power Source Bus Powered
Power I/O USB-C (Input/Output)
Maximum Power Consumption 15 W (Bus Power)
LED Indicator Power
Lock Slot No
Dimensions 3.34 x 3.34 x 0.76" / 84.84 x 84.84 x 19.3 mm
Weight 3.8 oz / 109 g
Package Weight 0.385 lb
Box Dimensions (LxWxH) 6.7 x 5 x 1"
