I4 BLACK - Zalman I4 ATX Mid Tower Case Black

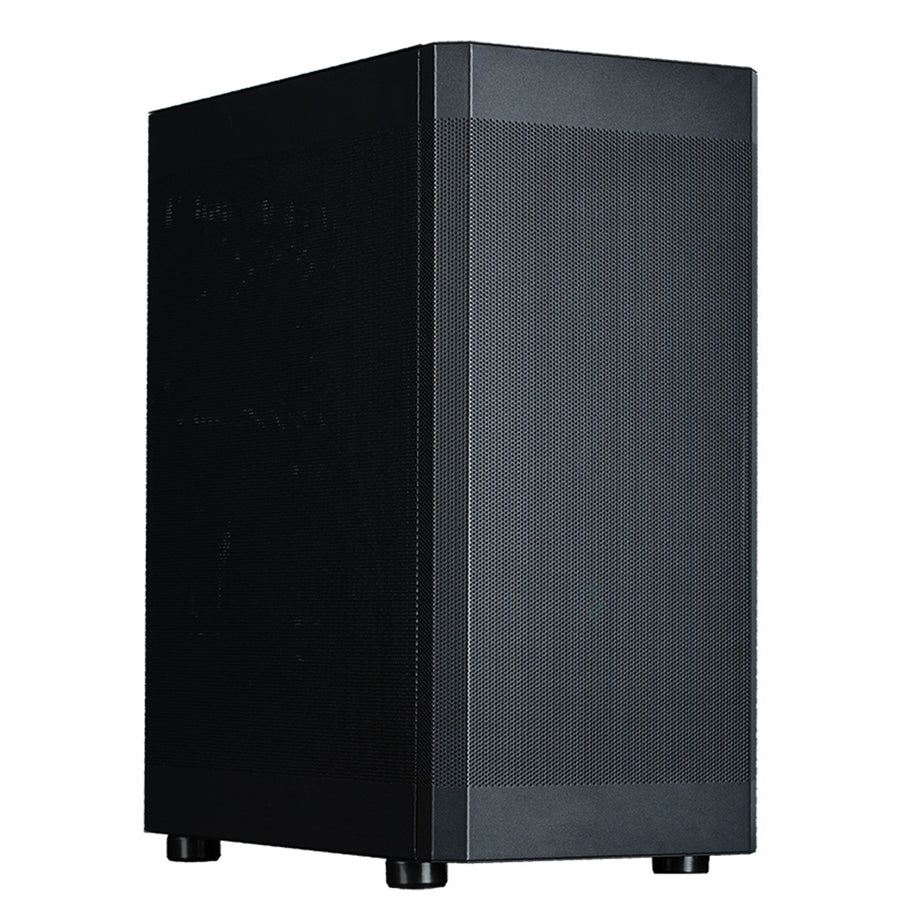

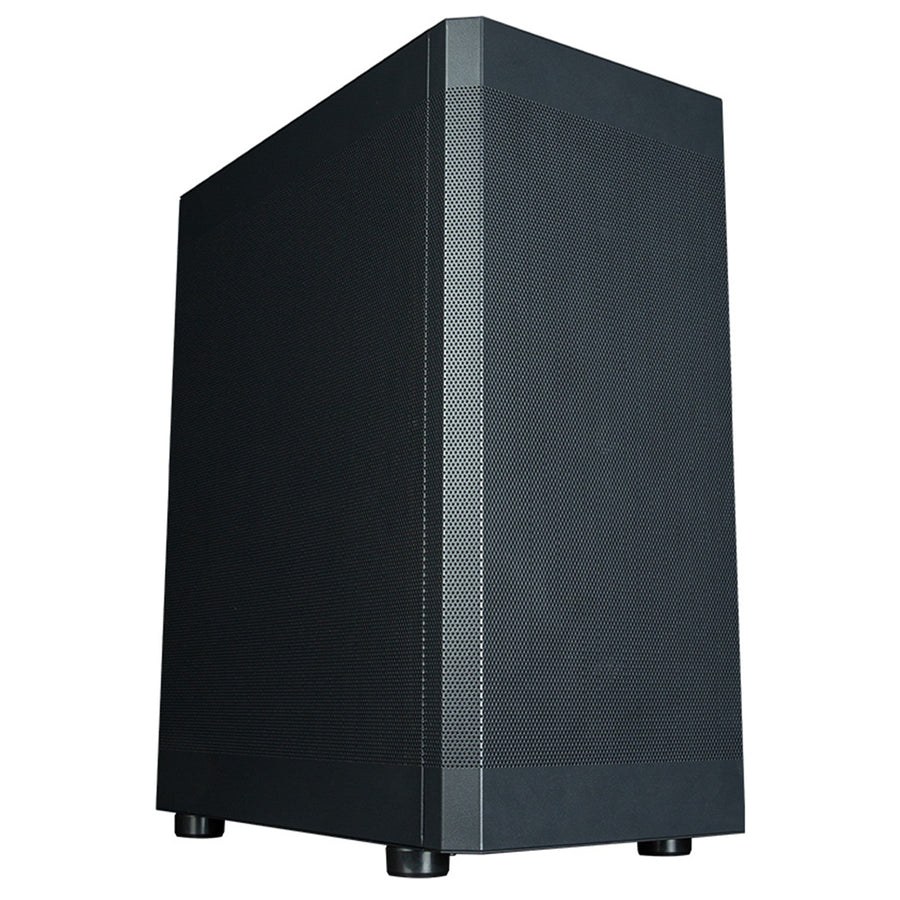

Zalman I4 ATX Mid Tower Case BLACK

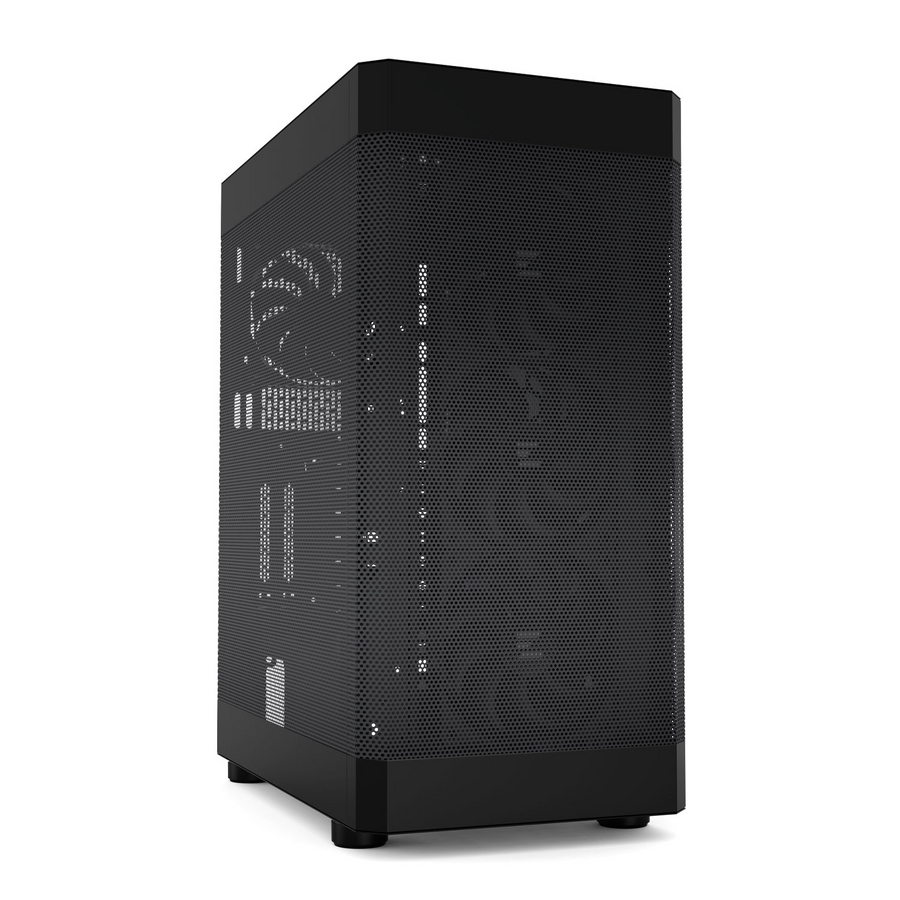

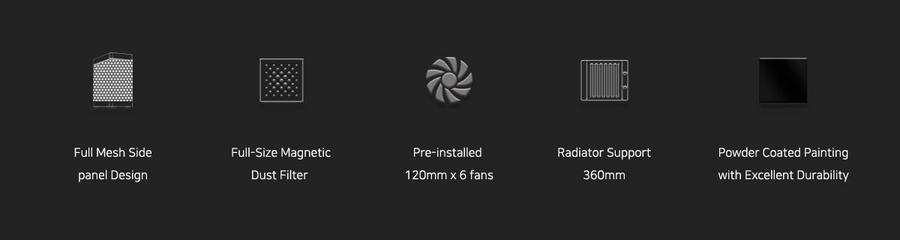

Full Mesh Side panel Design for Optimized Ventilation

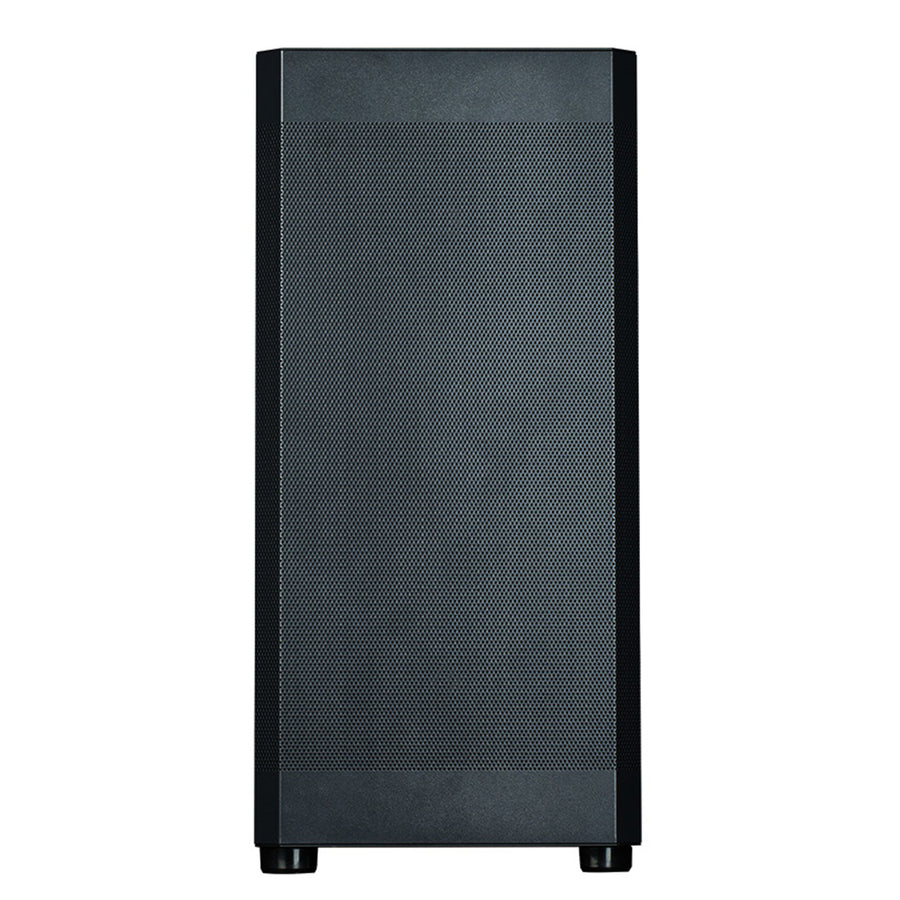

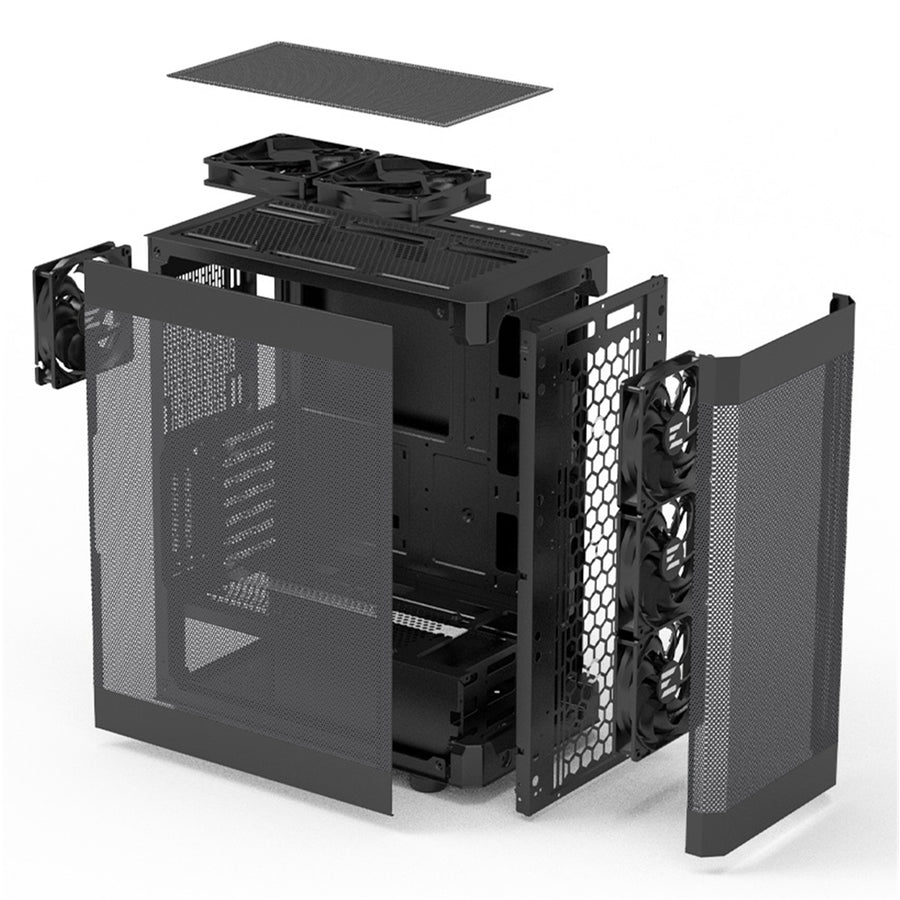

Full Mesh Design for Optimized Ventilation (Front / Top / Side)

optimal airflow with Clean, Simple and modern Full Mesh Design

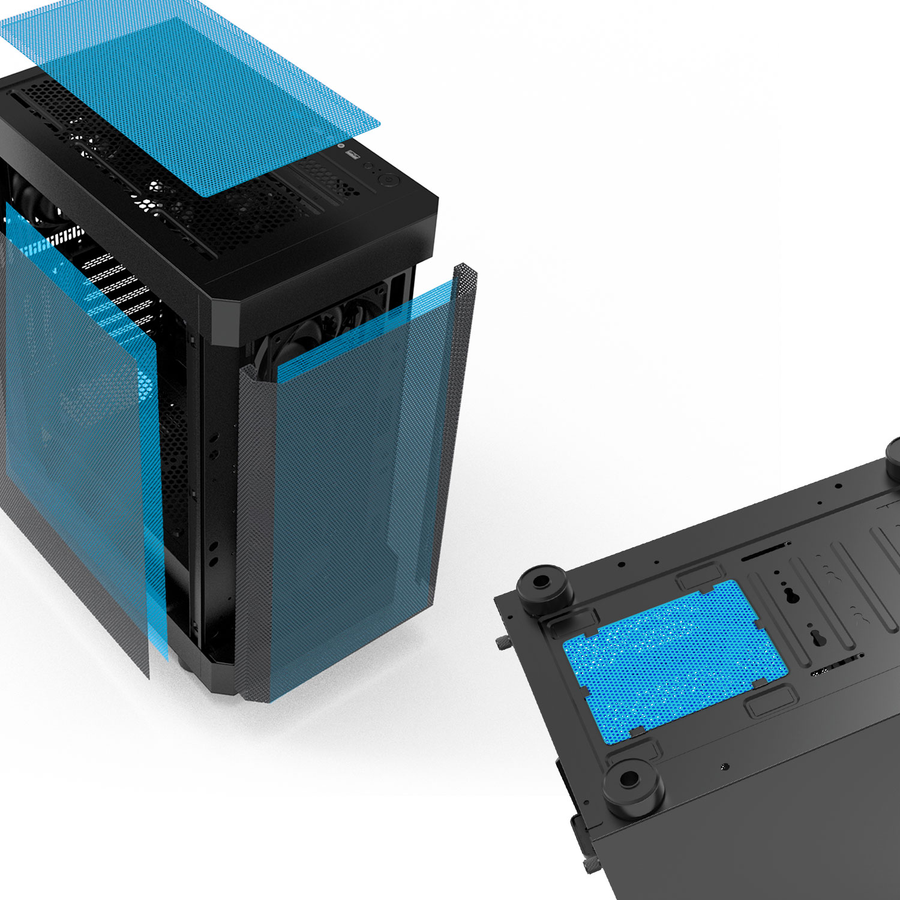

Full-Size Magnetic Dust Filter to Protect PC Components

Protect your components and provides unobstructed airflow through Front/Top/Side Full-size Dust Filter

Magnetic Dust Filter (Top)

Protects your components and provides unobstructed airflow

Magnetic Dust Filter (Bottom)

Protects your power supply from piling up dust through dust filteration

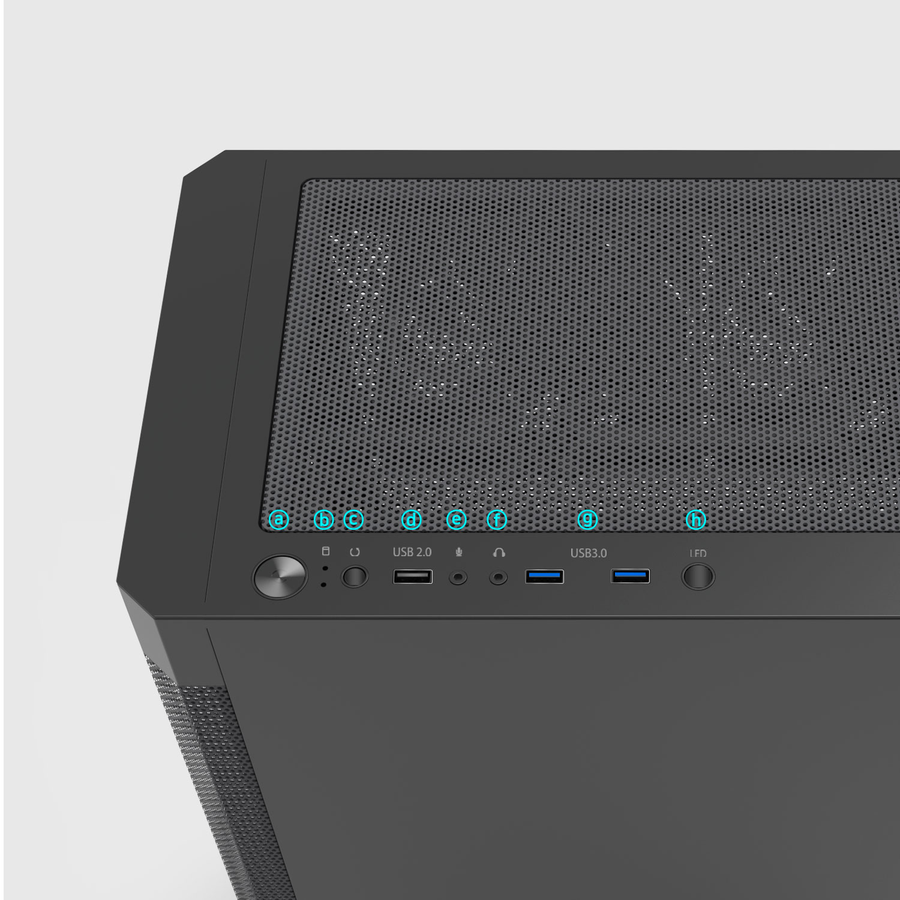

Easy accessible design on top I/O ports

- Power
- HDD / Power LED
- Reset Button
- USB 2.0
- Microphone Jack
- Headphone Jack
- USB 3.0
- LED Button

*LED button can be used by connecting LED fan and hub

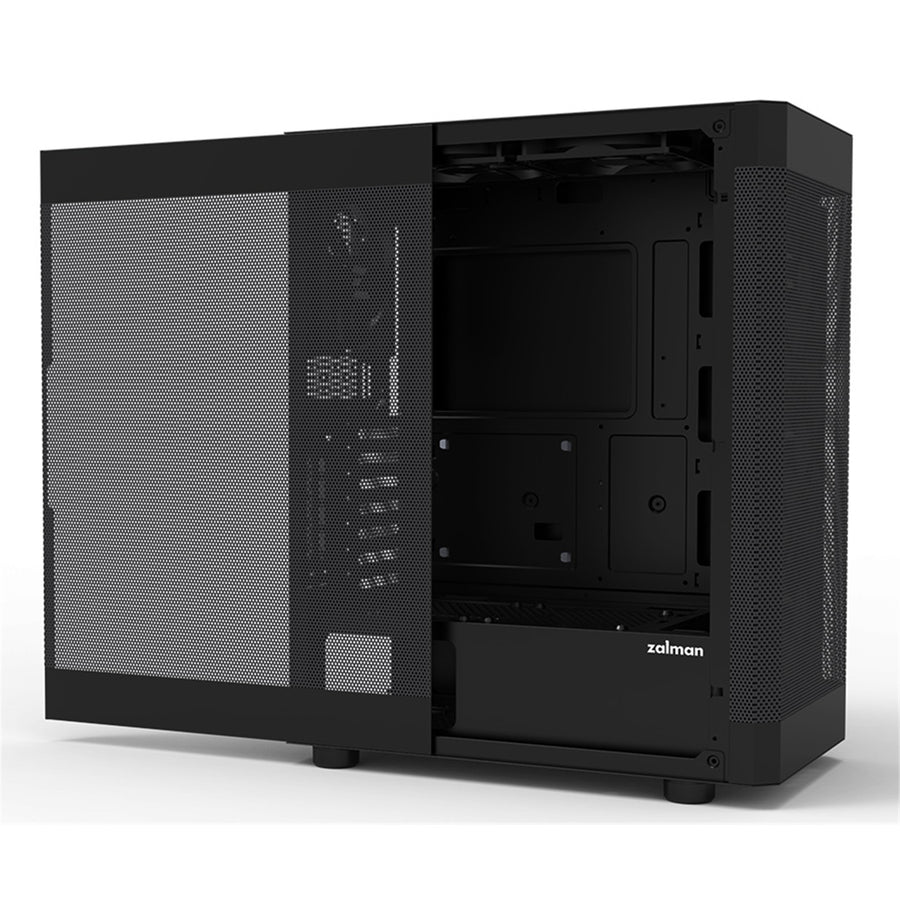

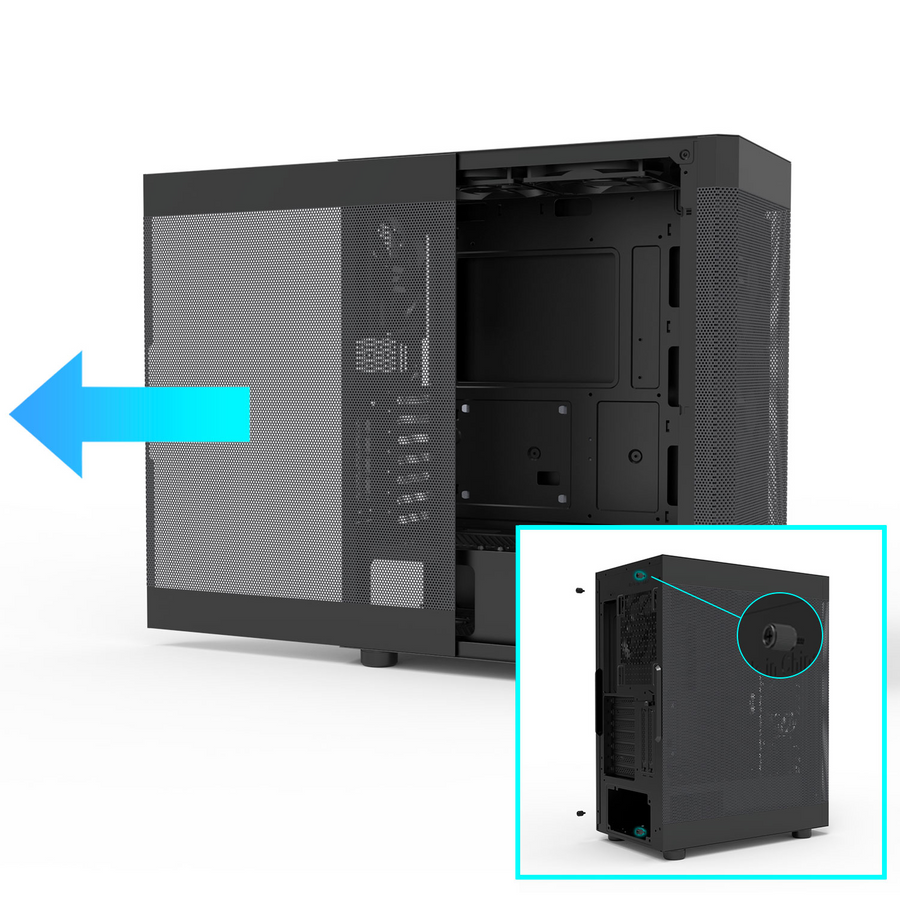

Full Mesh Sliding Type SIde Panel

The modern and clean full mesh side panel design provides excellent cooling efficiency with optimal air intake

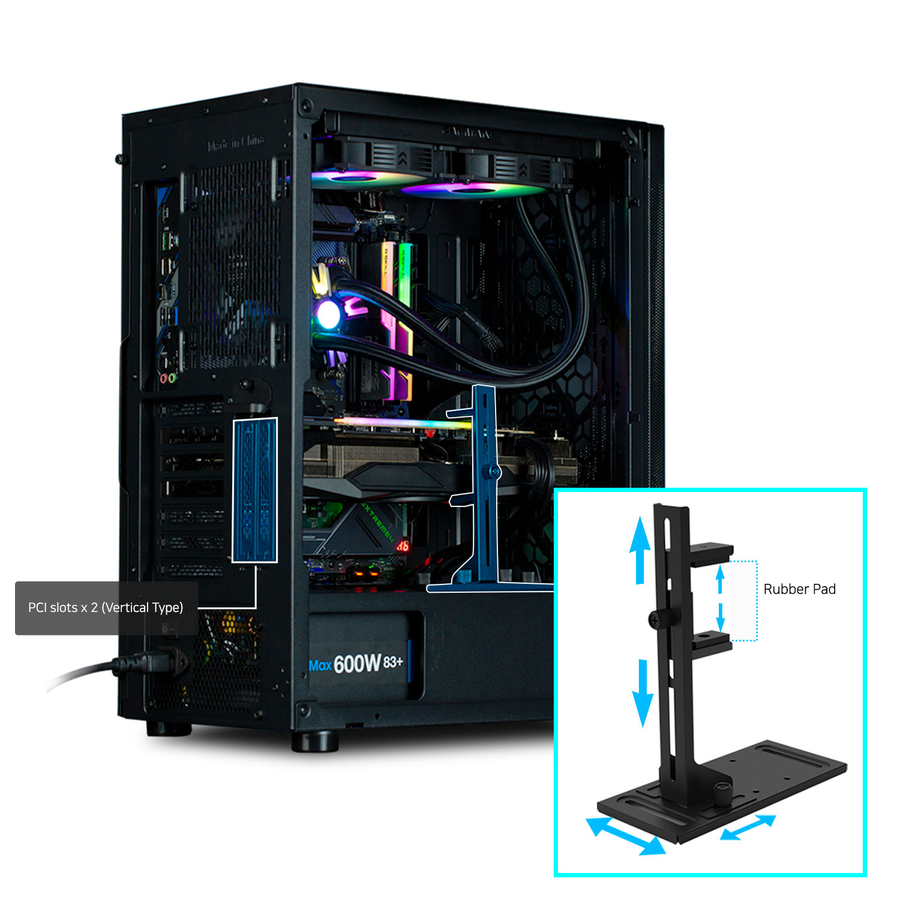

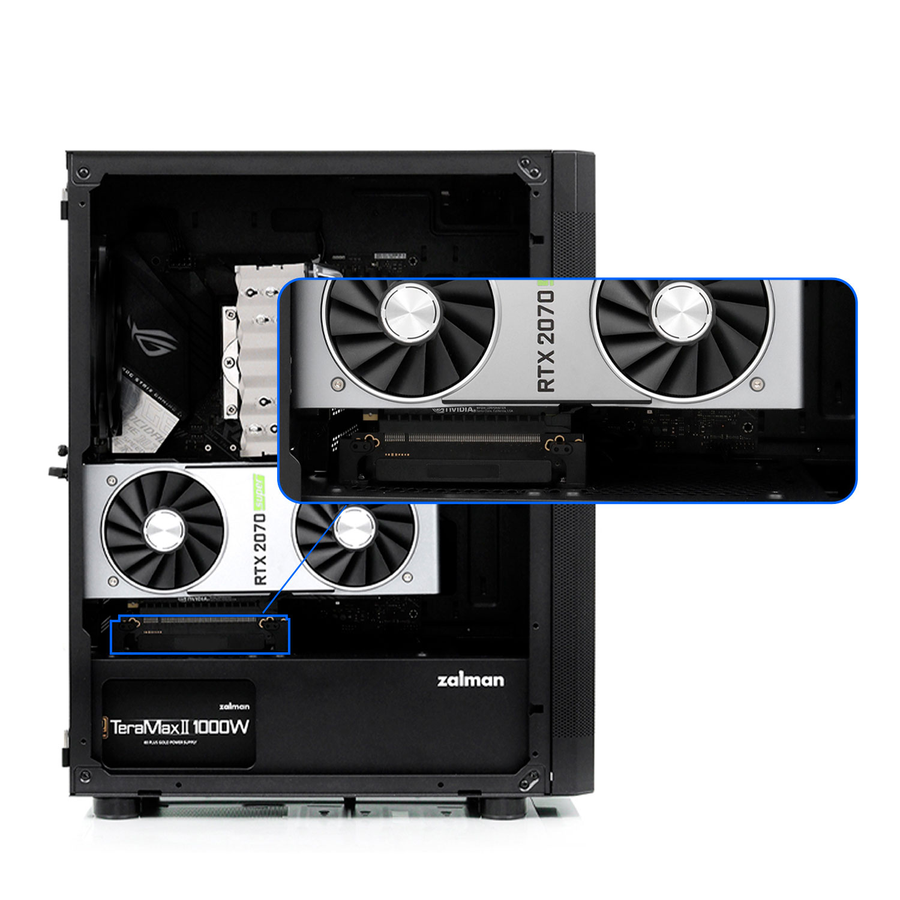

GPU Support Bracket Included with Height Adjustment

Slides Up and Down to position GPU Precisely



Vertical Graphics Card Holder (*Riser cable not included)

*Note: Riser cables with 90° connectors are not compatible
* For riser cables with 90° connectors, remove the vertical graphic card holder and use standoffs included in accessories kit

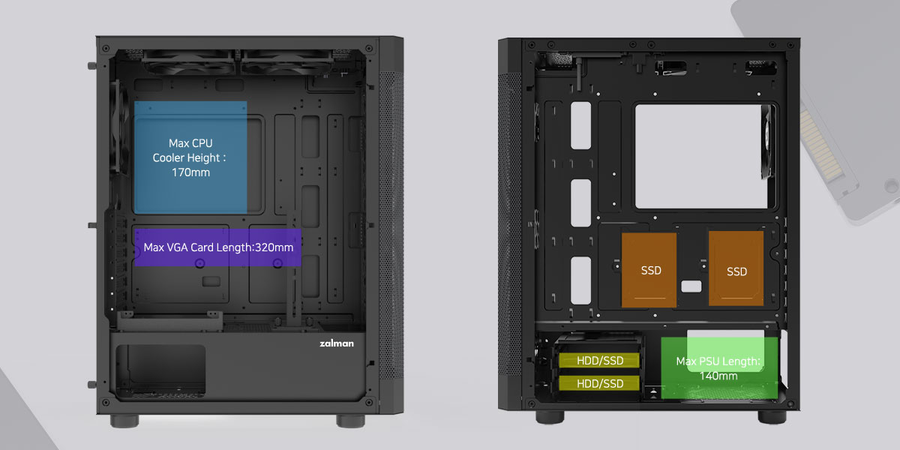

Excellent Expandability and Convenience

Max CPU Cooler Height : 170mm

Max VGA Card Length : 320mm

Max PSU Length : 140mm

Drive Memory Support :  Supports up to 2 x  3.5" HDD / 2 x 2.5" SSD

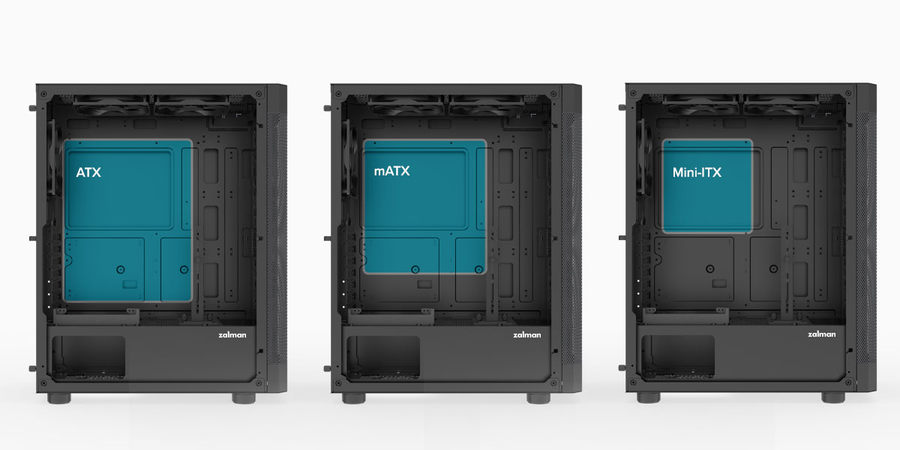

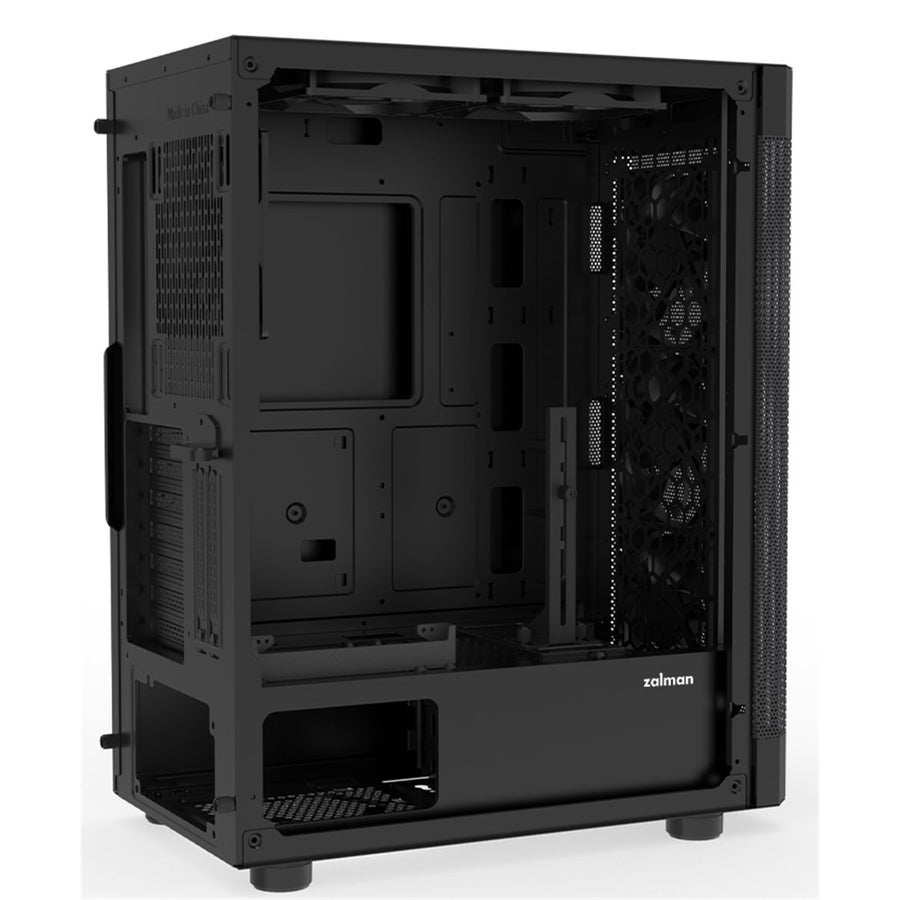

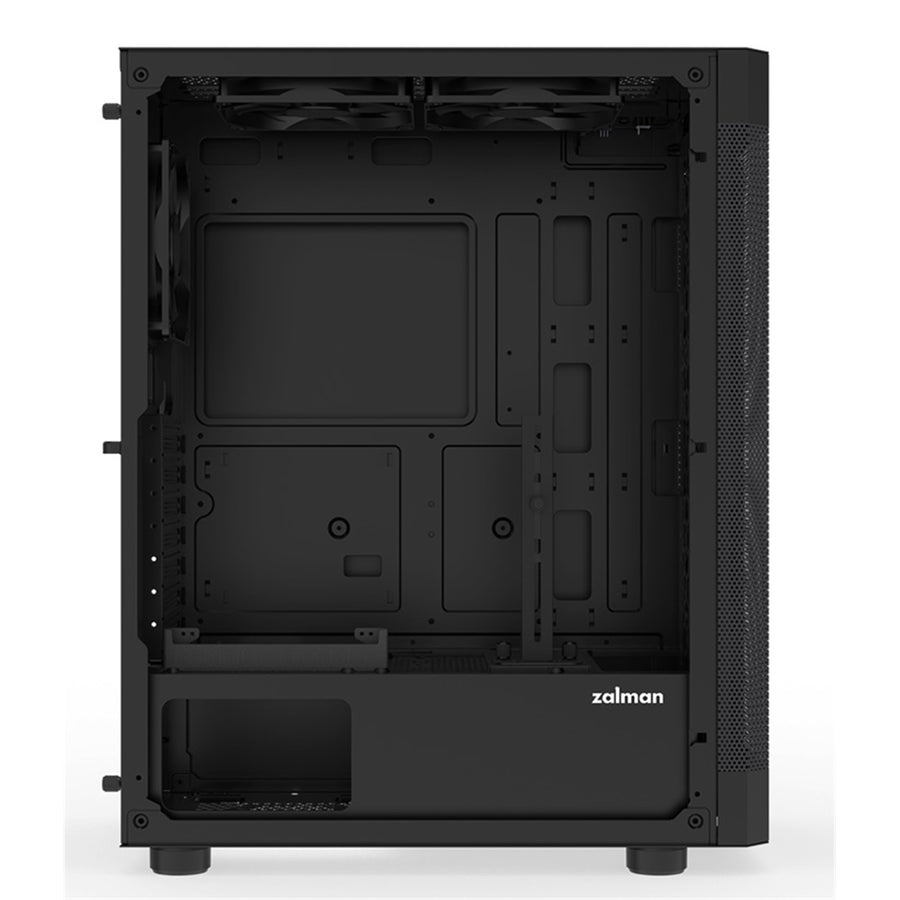

Motherboard Support

ATX / mATX / Mini-ITX

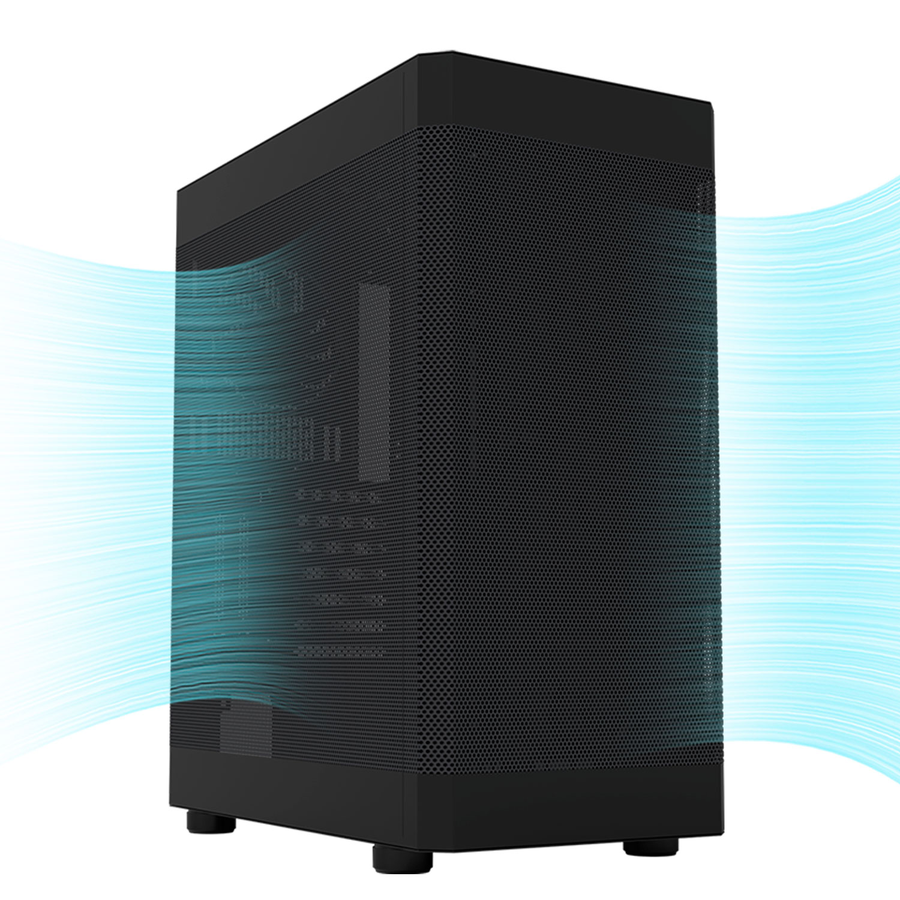

Maximum Airflow and Ventilation

Pre-installed 120mm x 6 fans (Front x 3 , Top x 2 , Rear x 1) and optimized ventilation provide quick heat dissipation from the case

FRONT / TOP / REAR (120mm Black Fan)

Rated Voltage : DC 12VRated Current : 0.17A
Max. Fan Speed : 1,100 RPM ± 10%
Max. Fan Air Flow : 39 CFM
Max. Fan Noise Level : 19dB(A)

Fan Life Span : 25,000 hours
Fan Bearing Type : Hydraulic Bearing

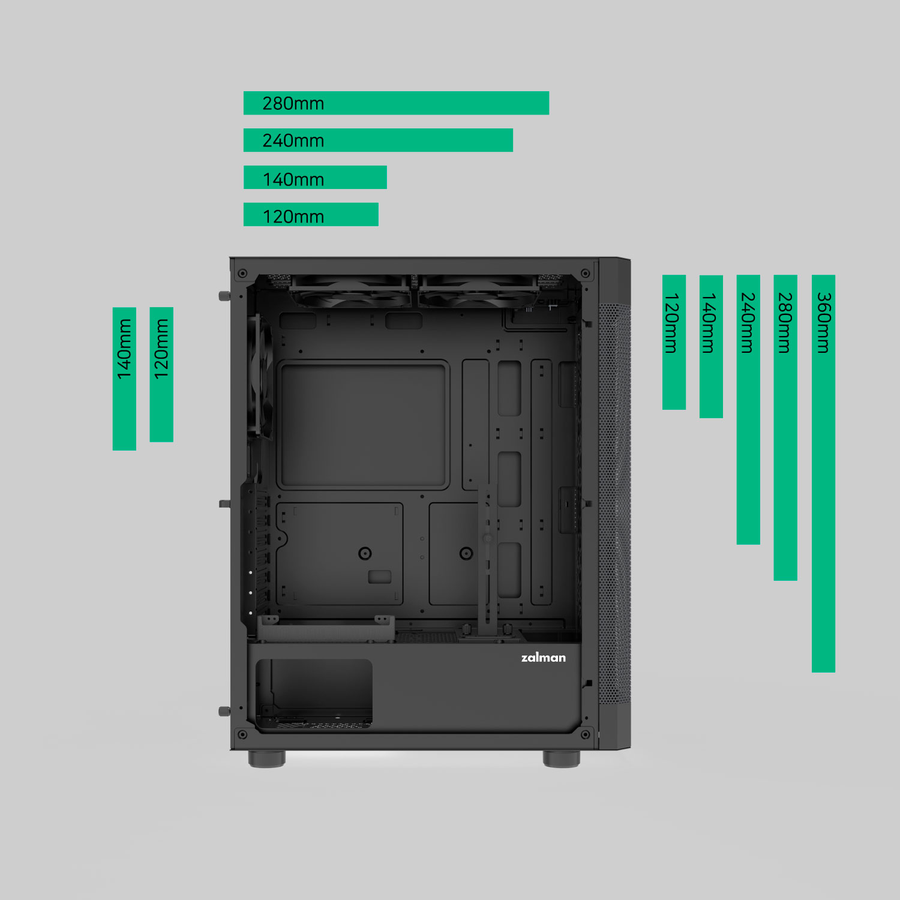

Radiator Configuration

Front : 120mm / 140mm / 240mm / 280mm / 360mm
Top : 120mm / 140mm / 240mm / 280mm
Rear : 120mm / 140mm

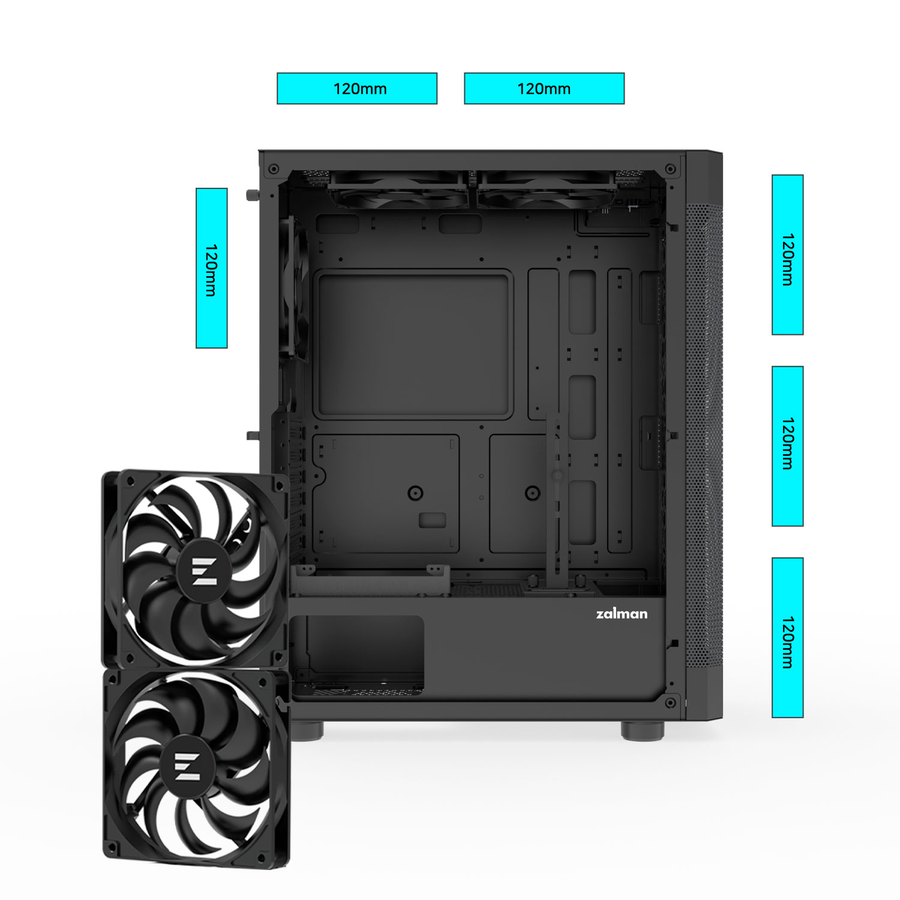

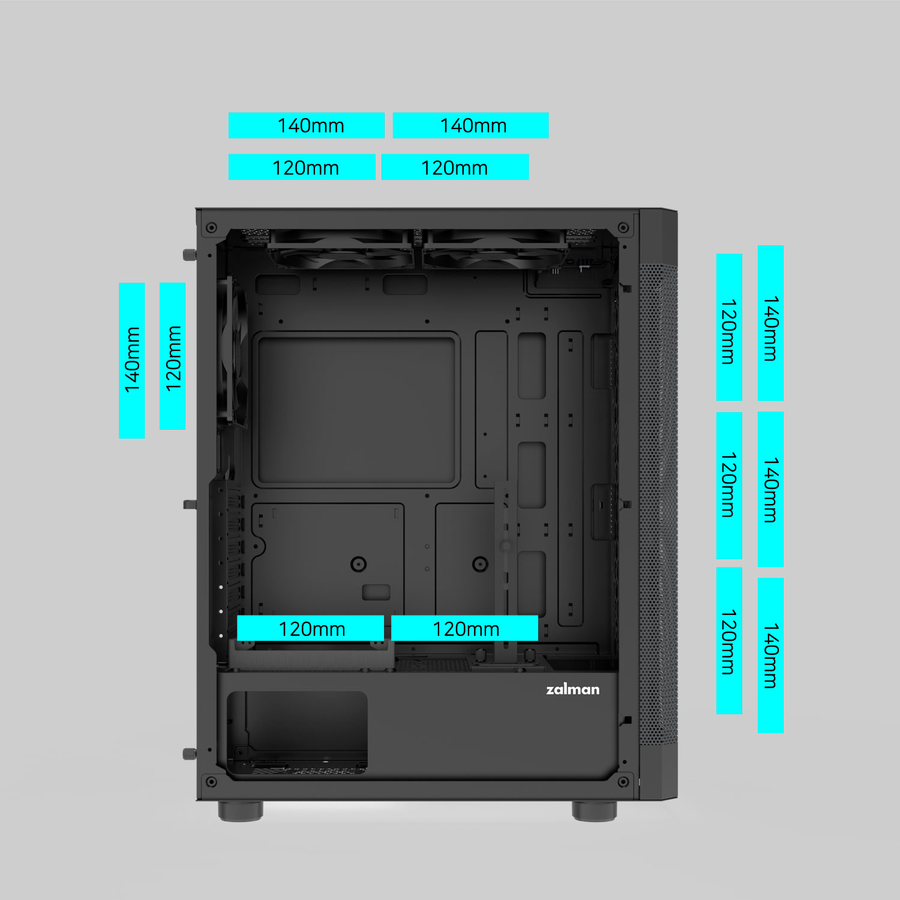

Fan Support

Front : 3 x 120mm / 3 x 140mm
Top : 2 x 120mm / 2 x 140mm
Rear : 1 x 120mm / 1 x 140mm
Bottom : 2 x 120mm

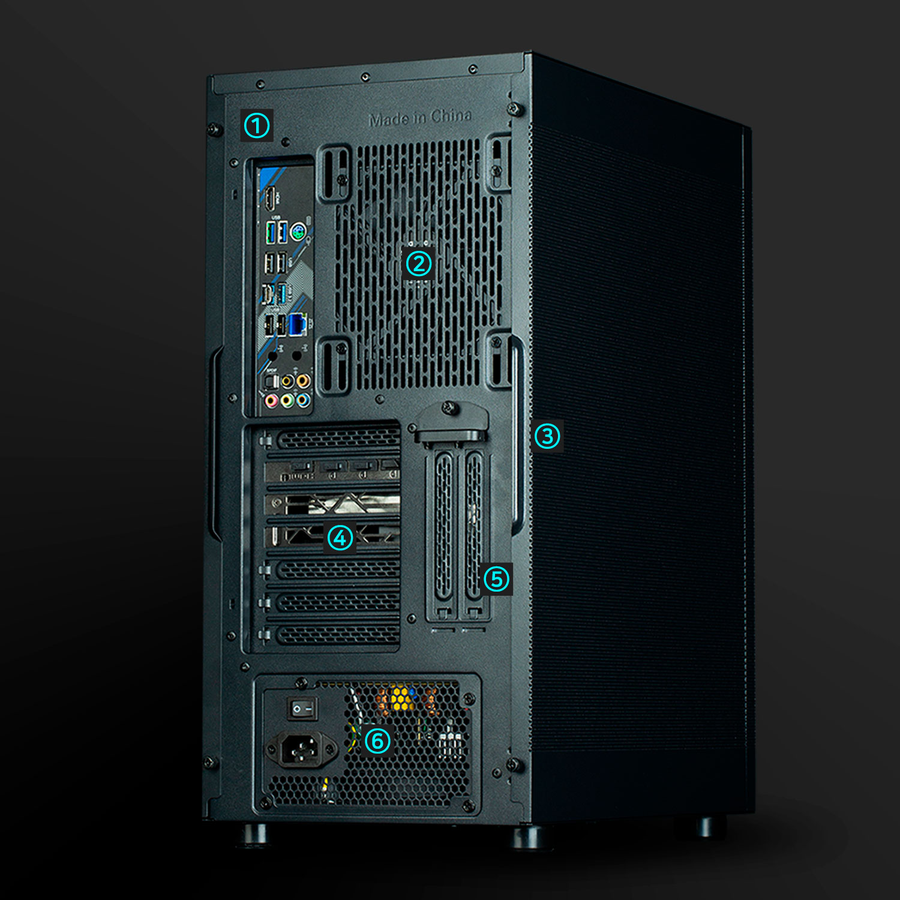

Rear Layout

- Rear Hand Screw
- Rear 120mm Fan (Pre- installed)
- Rear Panel Handle
- PCI Slots x 7
- PCI Slots x 2 (Vertical Type)
- PSU Slot
