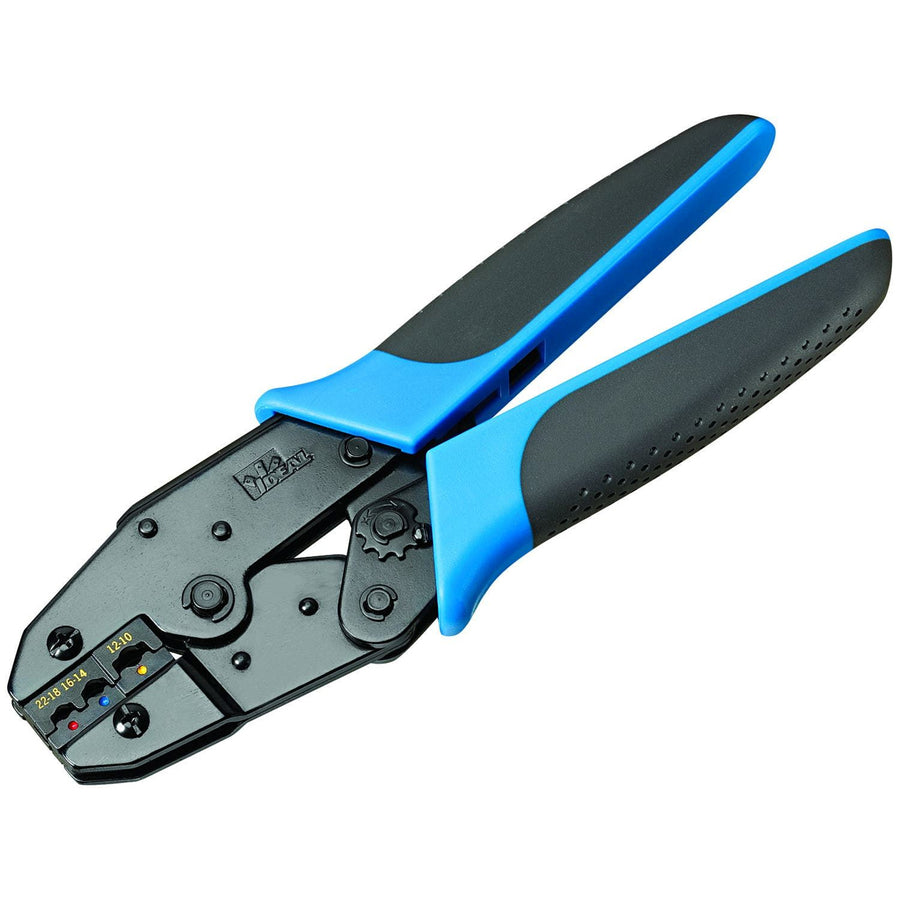

IDEAL INDUSTRIES IDL30-500 - Crimping Tool w/ Insulated Terminal Die Set
Features
Ideal Industries IDL30-500 Crimping Tool with Insulated Terminal Die Set
IDEAL INDUSTRIES Crimping Tool with Insulated Terminal Die Set. Includes the 30-506 Crimpmaster Frame. For Insulated Ring, Butt and Splice Wire Terminals.
The Crimpmaster™ ratcheting crimp tool is a versatile hand-held tool that uses interchangeable die sets to crimp many types of connectors including RF, wire terminals, and modular plugs. 15+ die sets are available for the Crimpmaster.
The tool is designed for heavy daily professional use. The thick-walled frame is manufactured from fine-blanked high-carbon steel with a black oxide coating. Large, contoured, rounded-edge handles provide comfort and leverage during the crimping process.
The Crimpmaster has a ratchet mechanism that prevents the user from under-crimping a connector. The tool will not open, or release the connector being crimped until a full crimping cycle has been completed. The tool does have a ratchet release lever located between the handles to open the tool if a full cycle cannot be completed.
The tool can be fine-adjusted to die set variations with the 6-position cam wheel. Precision ground die sets can be changed with a flat or Phillips screwdriver. The Crimpmaster is a professional-grade, general-purpose crimping tool that requires no factory calibration.
- Crimpmaster™ tool plus die set for insulated wire terminals
- For insulated ring, butt, and splice wire terminals
- Colour-coded locations for red, blue, and yellow terminals
- Includes the 30-506 Crimpmaster™ frame
- Crimpmaster™ tool plus die set for insulated wire terminals
- 3 cavity die: 22~10 AWG
- For insulated ring, butt, and splice wire terminals
- Also available as die set only (see part number 30-579)
- Heavy-duty professional hand-held ratcheting crimp tool
- Compatible with over 15 different die sets for RF connectors, wire terminals and modular plugs
- Provides a consistent crimp every time
- Comfort grip contoured handles
- Dies change quickly with a screwdriver
- Adjustable cam for fine adjustments to the crimping cycle
Specifications
Technical Specifications
| Brand | Ideal Industries |
|---|---|
| Product type | Crimping Tool with Insulated Terminal Die Set |
| Model No. | IDL30-500 |
| Brand | IDEAL INDUSTRIES |
|---|---|
| Product Type | Networking > Structured Cabling |
| Weight | 0.32 kg |
| Warranty |
|---|
