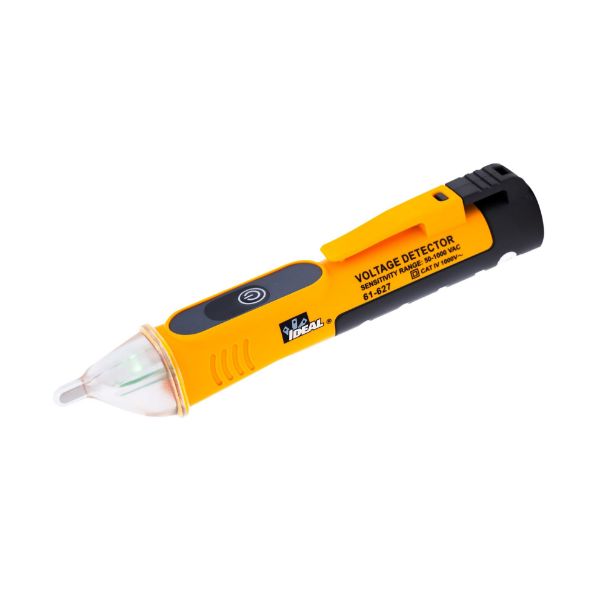

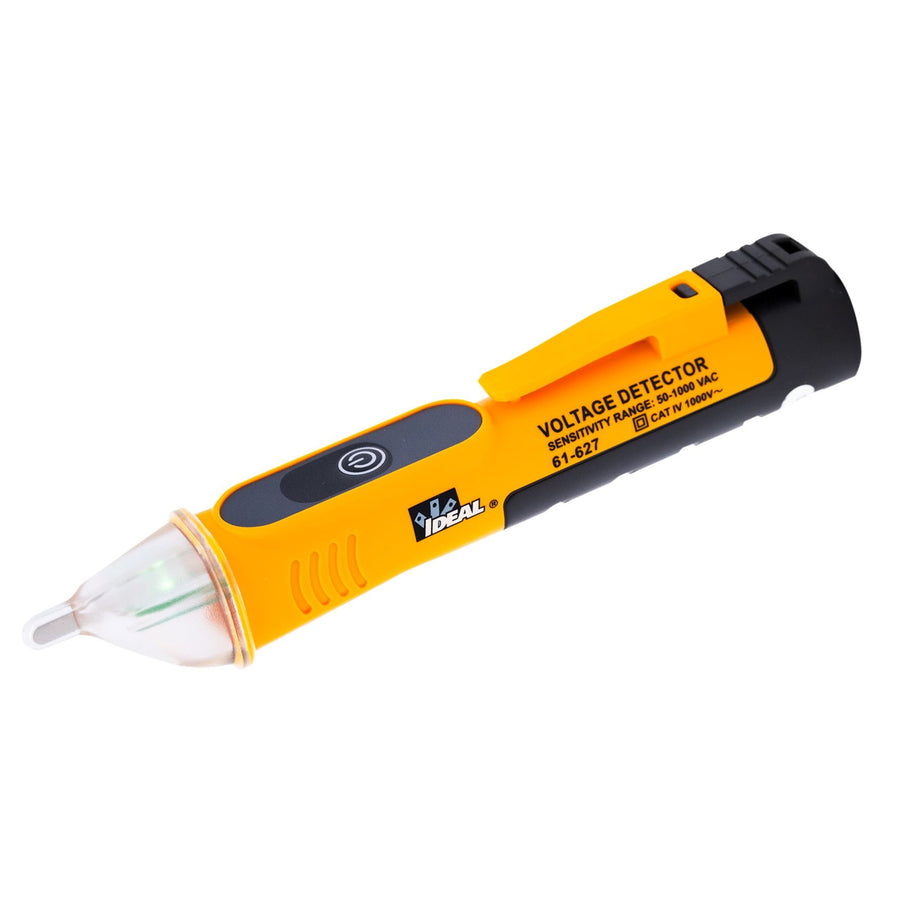

IDEAL INDUSTRIES IDL61-627 - 50-600V AC Single Range NCVT CAT IV 600V Rating
Features
The IDEAL® 61-627 is a CAT IV 1000V AC, UL Listed, Single Range Non-Contact Voltage Tester designed for reliable and safe voltage detection. It automatically identifies and indicates the presence of voltage within the range of 50 - 1000V AC. This tester features a non-contact detection mechanism through an antenna enclosed in plastic at the tip, which senses the electromagnetic field around live conductors. When powered on, the tip is illuminated by a green LED. Upon detecting voltage, it switches to a red flashing LED and emits an audible beep that increases in frequency with the voltage level. Powered by two 1.5V AAA batteries, the tester includes a lanyard tie-off point, auto power-off function, and low battery indication for added convenience and safety.
- UL Certified CAT IV 1000V AC, 50 to 600V AC
- Auto power off after 10 minutes of inactivity: The tester will emit one long beep (0.5s) and then shut off
Specifications
Technical Specifications
| MPN | IDL61-627 |
|---|---|
| Brand | Ideal Industries |
| CAT Rating (Safety) | CAT IV 600V |
| Listing | cULus, CE, RCM |
| Voltage Sensing Range | 50 ~ 600V AC |
| Drop Protection | 3.3 ft. (1m) |
| Audible Indication | Yes |
| Visual Indication | Green On, Flashing Red |
| Lanyard Compatible | Yes |
| Auto-Power Off (APO) | Yes |
| Low Battery Indication | Yes |
| Battery Type (Included) | 2 x 1.5V AAA |
| Brand | IDEAL INDUSTRIES |
|---|---|
| Product Type | Home Appliances > Tools & DIY |
| Weight | 0.063 kg |
