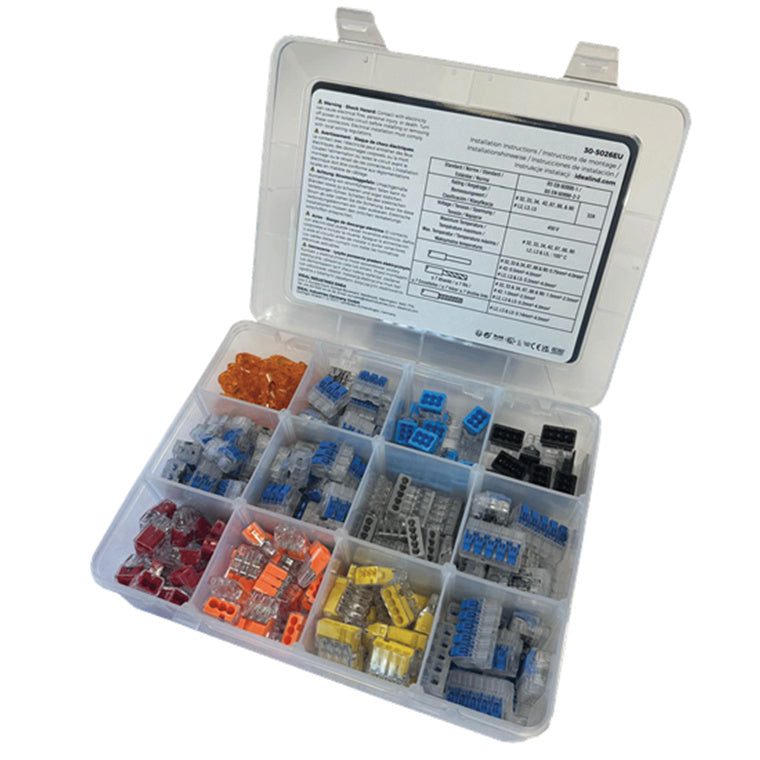

IDEAL INDUSTRIES IDL30-5025EU - Push-In & Lever Wire Connector Kit 80pc Box

Ideal Industries IDL30-5025EU Push-In and Lever Wire Connector Kit Box of 80

IDEAL Gen II Lever wire connectors are a cost-effective solution for joining solid, stranded or flexible conductors. The innovative levers open in the opposite direction of the insertion point and lock in position to avoid accidental loosening or pull out.

Rated at 32A, they are reusable and can accommodate multiple wires of different types and sizes from 0.2mm2 - 4.0mm2 for solid and stranded plus 0.14mm2 - 4.0mm2 for flexible wires.

IDEAL Push-in wire connectors can reduce installation time by up to 50% compared to more traditional connection methods such as terminal blocks. They are the perfect replacement for crimped splices with 2, 3 and 4 port models rated at 32A.

The SpliceLine® in-line wire connector provides a crimp-free solderless butt splice accepting up to 4.0 mm2 solid wire allowing one connector to do the job of multiple through crimps.

Push-In and Gen II Lever Wire Connector Kit:

10 x 32A 2 port Gen II Lever Wire Connectors
10 x 32A 3 port Gen II Lever Wire Connectors
5 x 32A 5 port Gen II Lever Wire Connectors
10 x 32A 2 port Push-In Wire Connectors
10 x 32A 3 port Push In Wire Connectors
10 x 32A 4 port Push In Wire Connectors
10 x 32A 6 port Push In Wire Connectors
15 x 32A 2 port SpliceLine® Wire Connectors
