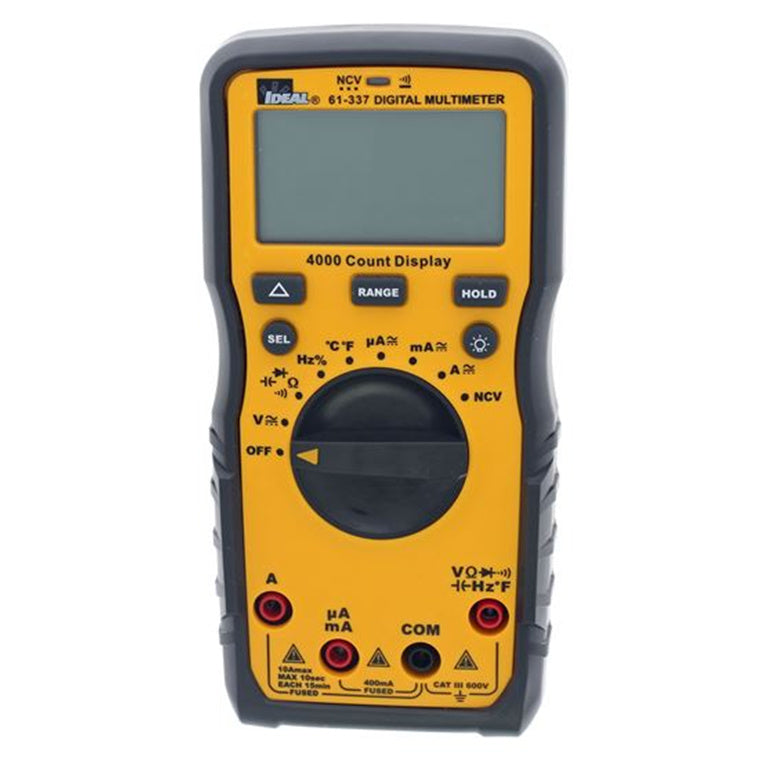

IDEAL INDUSTRIES IDL61-337 - 600V Auto Range Multimeter 600V AC/DC CAT III Rating

IDEAL INDUSTRIES 600V Auto Range Multimeter. 600V AC/DC CAT III Rating.

The IDEAL 61-337 Digital Multi Meter is a CAT III 600-rated auto-ranging digital multimeter that measures up to 10 Amps AC and DC via the test leads in series with the load. It measures up to 600V AC and DC, AC V, frequency, resistance, continuity, capacitance, and diodes via test leads (included) and measures temperature (°C) via a K-Type thermocouple (included).

It's capable of detecting the presence of voltage between 40V to 600V via a non-contact sensor in the top center of the meter. Its display can be backlit. The unit uses an illuminated red LED in the centre of the meter and emits audible tones to notify when voltage is above 30 volts, when continuity is detected and when the NCV senses voltage within its set range. The rubber boot has two probe storage points, has built-in probe tip holders to allow measurements while holding the meter in one hand and the second lead in the other hand. The meter has a hanging strap mount (compatible with all other IDEAL meters with this feature) that allows for a hanging strap (sold separately) to be attached to the meter so it can be hung from a nail, screw or magnetic surface. A rugged over-moulding enhances grip and drop protection. This meter features HOLD, Relative, Range, and selectable Auto Power Off functions. The meter comes with 3 1.5V AAA Batteries and an easily open, fully accessible storage pouch with a belt loop that allows for meter, probes and thermocouple storage.

- UL Certified CAT III 600V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter
- Measures AC/DC Current, AC/DC Voltage, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage
- LEAD Position Warning and Open FUSE indication

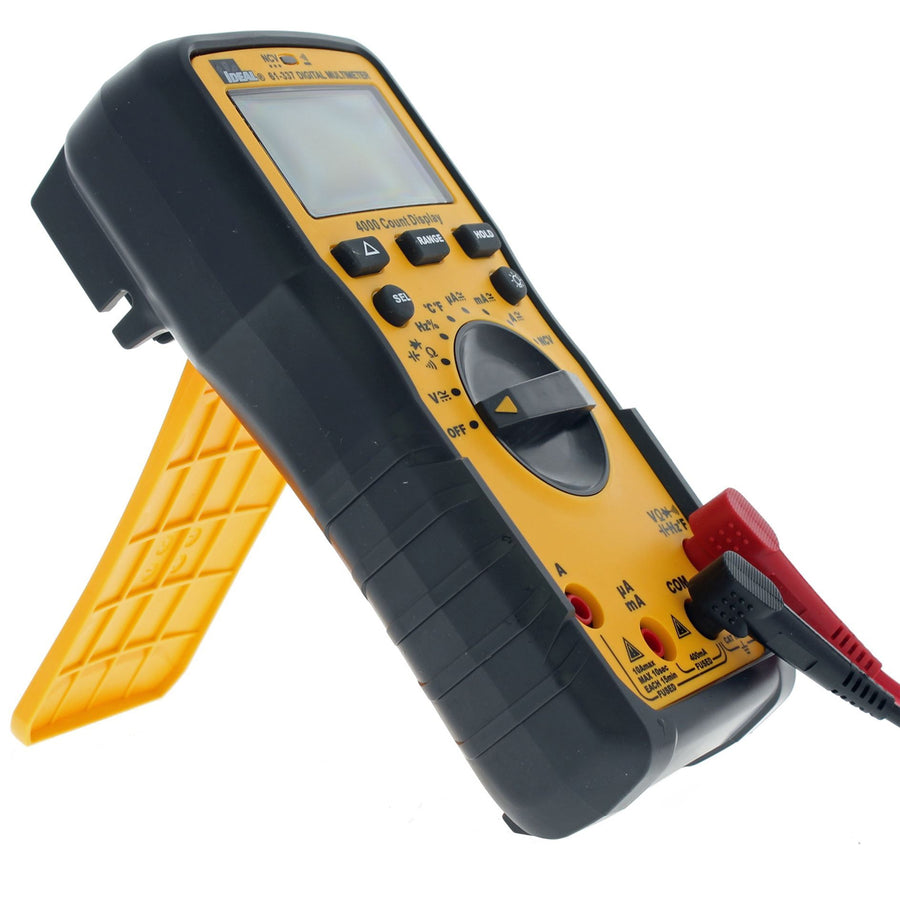

- Built-in probe tip holders and hanging strap clip allow safer, easier measurement (Hanging Strap sold separately)
- Backlit display, allows for safer/faster work in poorly lit environments

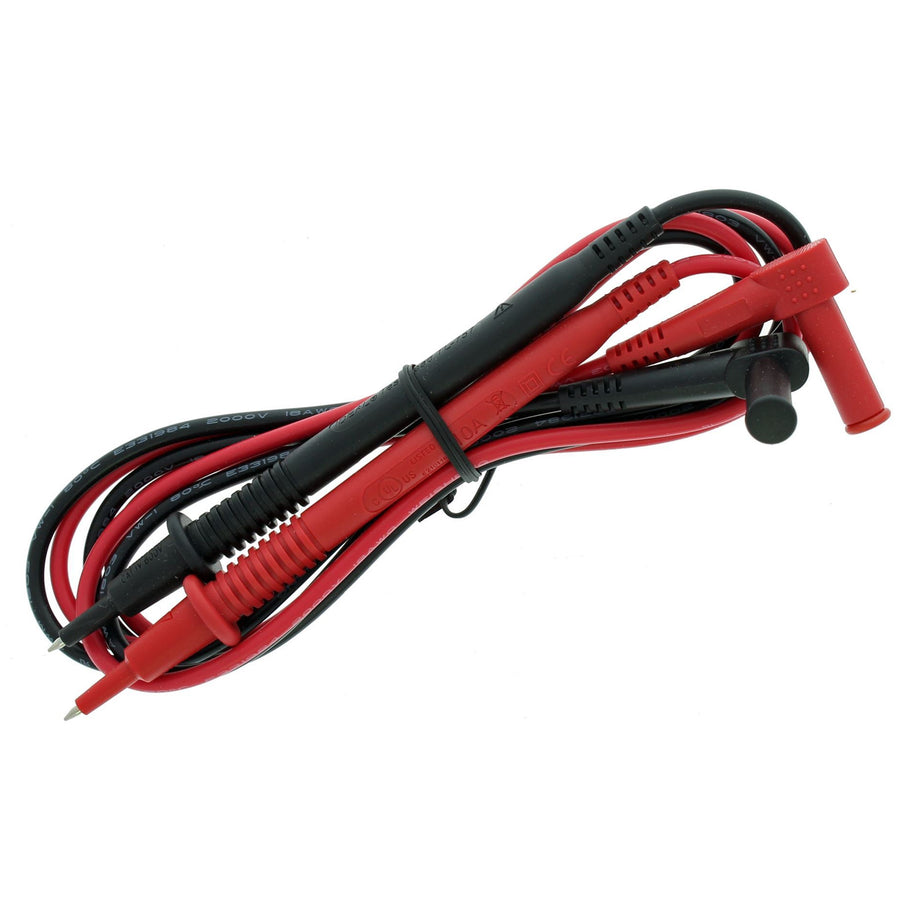

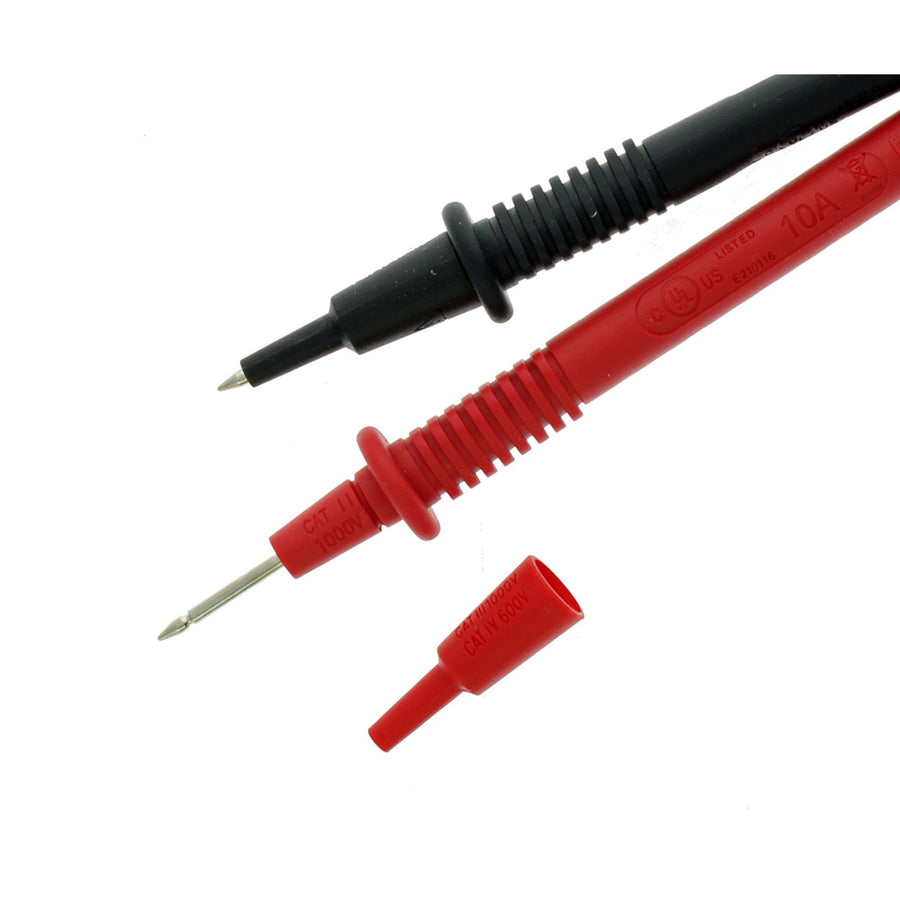

- Includes soft case, test leads, batteries, and K-Type Thermocouple
