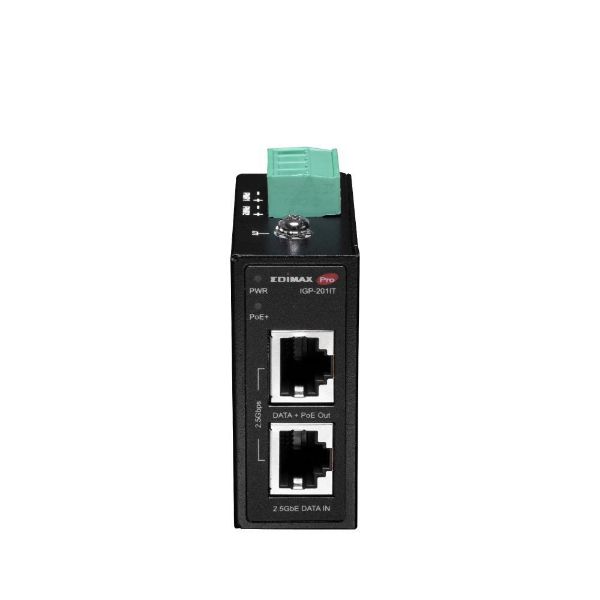

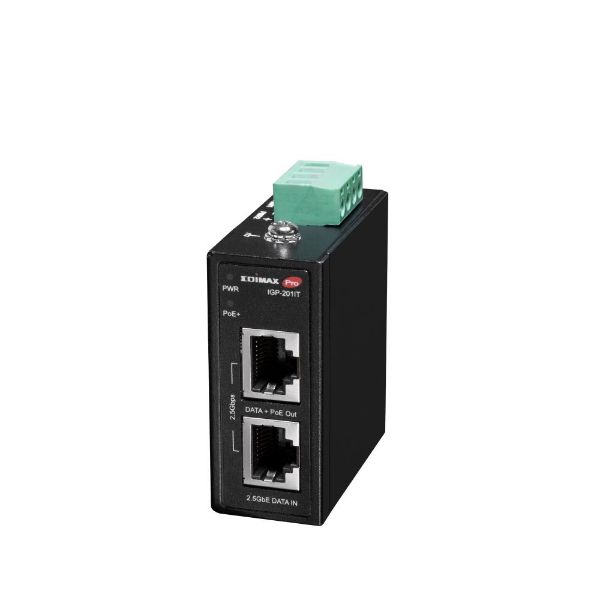

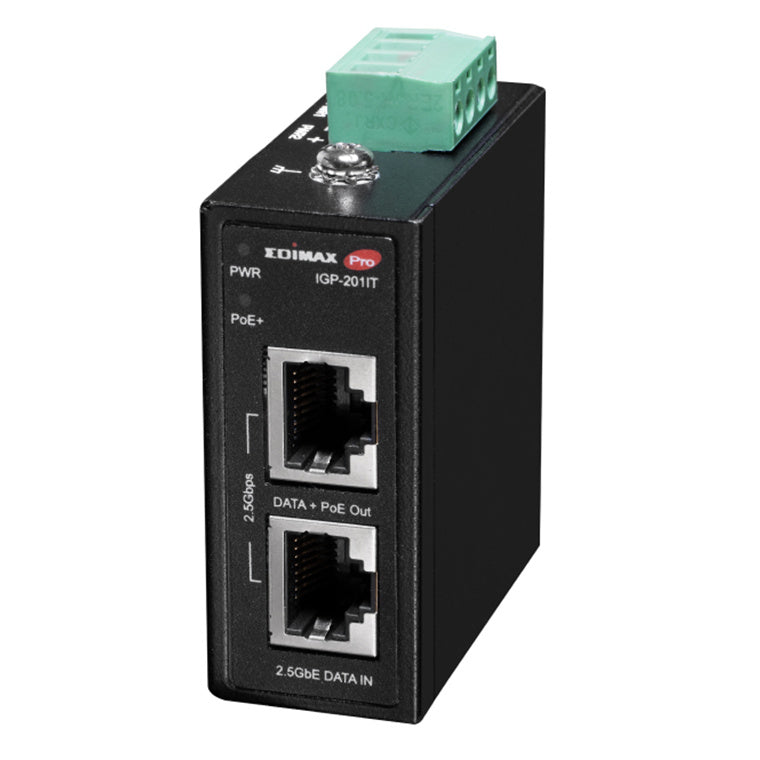

IGP-201IT - EDIMAX Industrial 2.5 Gigabit PoE+ 30W Power Injector. Supports IEEE 802.3at, Provides Power & Data, DIN-rail or Wall-mount, Operating Temp Range: -40 to 75C.
Features
The Edimax IGP-201IT is an industrial PoE injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service.

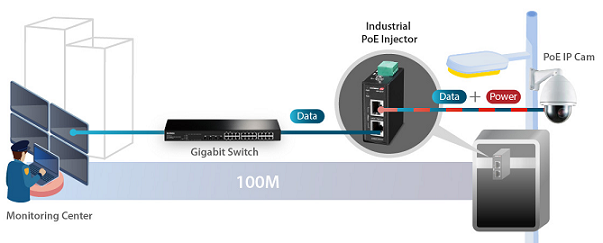

With the use of power injectors, DC power of up to 30W based on the IEEE 802.3at standard and the data that comes from a non-PoE switch or router are merged together and then transmitted to the remote IEEE 802.3af/at compliant products located without power outlet through the Ethernet cabling. Hence, the easy plug-and-play IGP-201IT 2.5 Gigabit PoE+ injector preserves your investment in hardware upgrade without the need to purchase extra PoE switches and deploy power cables.
- Compliant with IEEE 802.3at Power over Ethernet (PoE+) Standards
- 2.5 Gigabit LAN ports provide high-speed connectivity by using existing CAT5e cables
- Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
- Wide operating temperature range: -40 to 75°C
- 6KV surge protection to avoid damage of the connected Powered device
- Flexibility for DIN-rail mount or wall-mount deployment
Rugged Industrial Design with Certified Reliability
The IGP-201IT PoE+ Injector features a rugged industrial-grade design with an IP50-rated metal enclosure, operating from -40°C to 75°C. It includes 6KV lightning surge protection and is certified to withstand vibration, shock, free-fall, and ESD/EMI surges-ensuring reliable performance in harsh industrial and outdoor environments.
Beyond Durability: Performance and Flexibility
Combining durability and certified reliability, the IGP-201IT Industrial PoE+ 30W Injector offers a range of advanced features designed to optimize performance, enhance connectivity, and simplify deployment in demanding environments.
2.5G High-Speed Connectivity
Supports up to 2500Mbps on both ports for fast, stable transmission-ideal for IP cameras and APs over distances up to 100 meters.
30W PoE+ Power Delivery
Delivers up to 30W for powering high-demand devices like Wi-Fi 6 access points, IP cameras, VoIP phones, and digital signage.

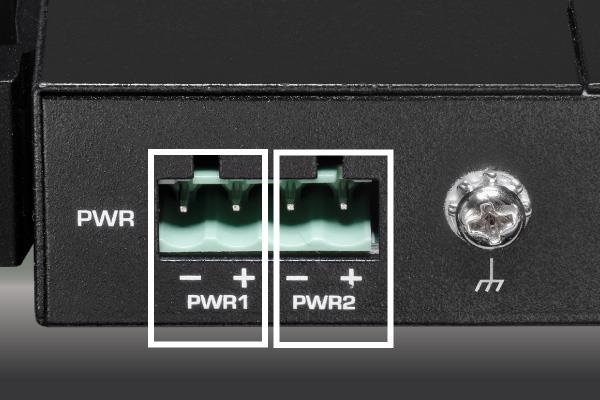

Dual DC Redundant Power
Ensures continuous operation with dual DC inputs for failover protection-ideal for critical industrial deployments.

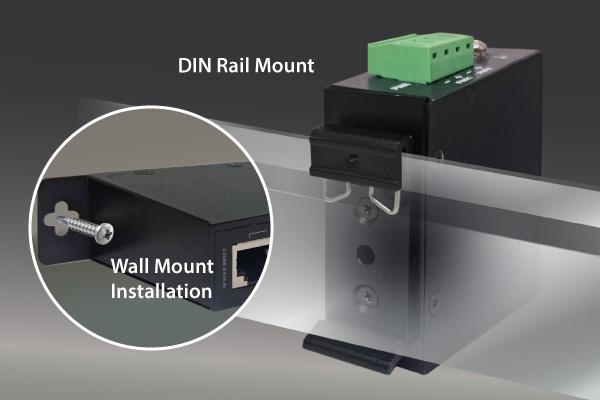

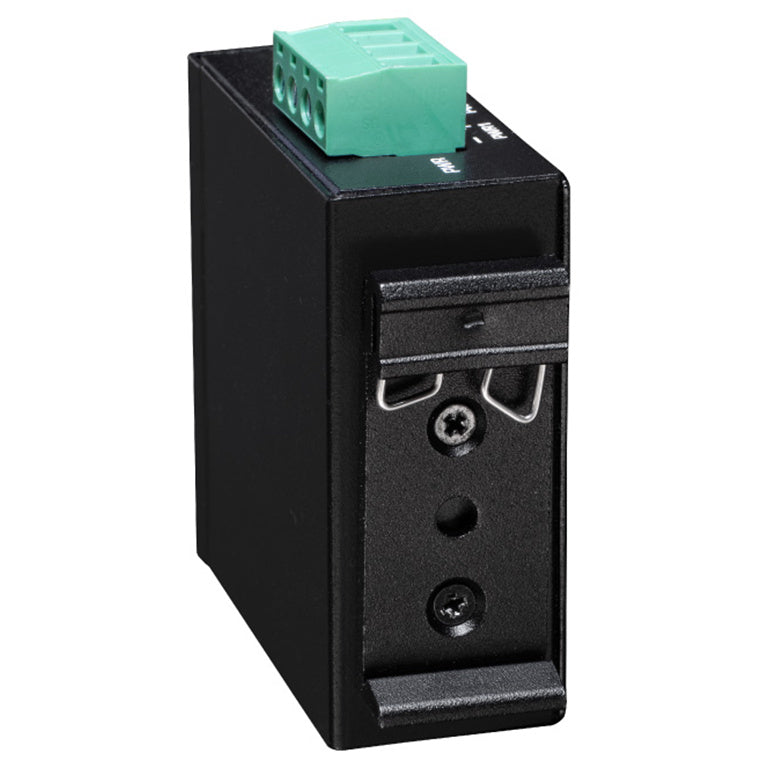

Flexible Mounting Design
Supports DIN-rail and wall-mount options for quick, space-saving installation in diverse environments.
Extended Power Reach
Reliable 30W PoE+ delivery up to 100 meters (328ft) for demanding PTZ camera and other remote devices installations.
Specifications
Technical Specifications

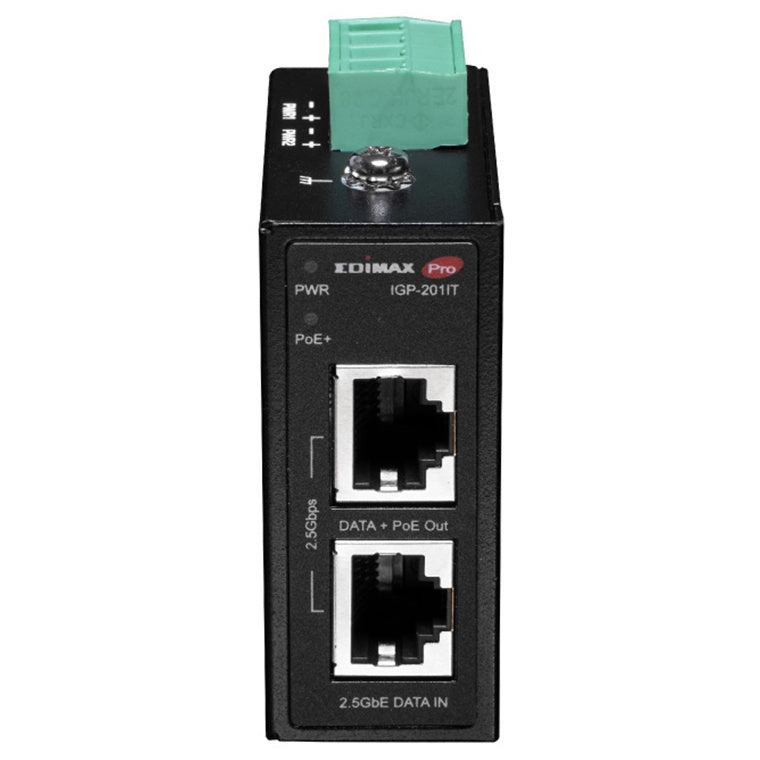

| Ports | 1 x RJ-45 10/100/1000/2500Base-T data input port1 x RJ-45 10/100/1000/2500Base-T data/PoE+ output port |
|---|---|
| LED Indicators | PWR: System Power On/OffPoE+: PoE Power Supply Status |

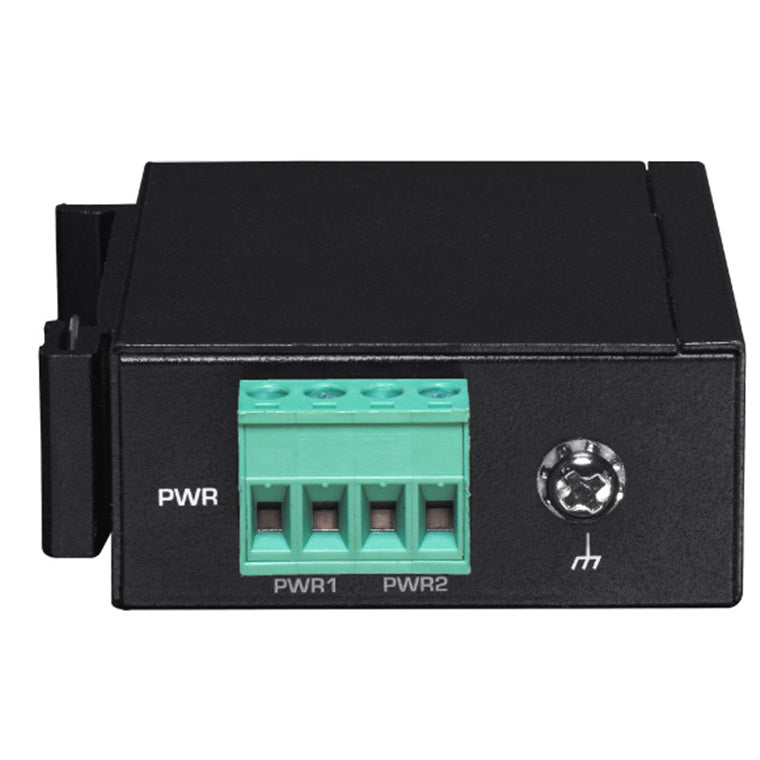

| Power Input | 4-Pin Terminal block DC 48~57V, 1A |
| Power Consumption | 32W (Max.) |
| Mounting | DIN-rail mount/Wall-mount |
| Housing | Metal |
| Fan | Fanless |
| Dimension | 26(W) x 58(D) x 61(H)mm(1.02(W) x 2.28(D) x 2.40(H) inches) |
| Weight | 126g (0.28lb) (DIN-rail Mounting Kit Included) |
| Standard | IEEE 802.3af (PoE)IEEE 802.3at (PoE+) |
| Power Budget | 30 Watt |
| Pin Assignment | Pins 3, 6, 4, 5 (+), Pins 1, 2, 7,8 (-)Output Power Voltage: DC 54V |
| Short Circuit Protection | Yes |
| Over Circuit Protection | Yes |
| PoE PD Auto Detection | Yes |
| Standard | IEEE 802.3 10Base-T EthernetIEEE 802.3u 100Base-TX Fast EthernetIEEE 802.3ab 1000Base-T Gigabit EthernetIEEE 802.3an 2.5GBase-T Gigabit EthernetIEEE 802.3af Power over Ethernet (PoE)IEEE 802.3at Power over Ethernet Plus (PoE+) |
| Environmental Condition | Operating Temperature: -40~75°C (-40~167°F)Storage Temperature: -40~85°C (-40~185°F)Operating Humidity: 10~90% (NonCondensing)Storage Humidity: 5~90% (NonCondensing) |
| Certification | Emission (EMI/EMS): CE/FCC class A; EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (FET); EN61000-4-5 (Surge); EN61000-4-6 (CS); EN61000-4-8 (MagneticField)EMC: EN61000-6-2; EN61000-6-4Safety: IEC 62368-1:2020+A11:2020Shock: IEC60068-2-27Freefall: IEC60068-2-32Vibration: IEC60068-2-6 |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 2.812 kg |
| Warranty |
|---|
