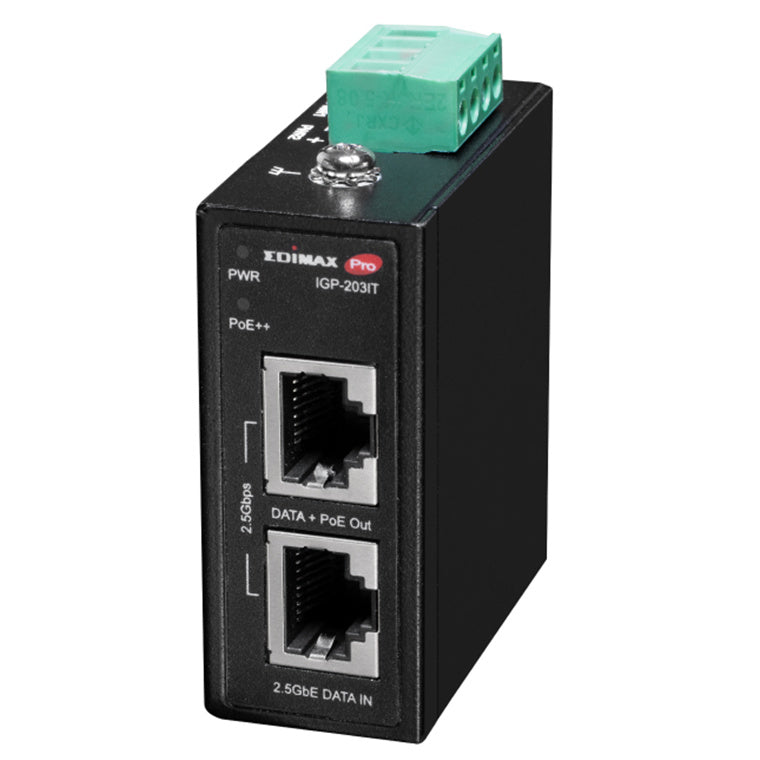

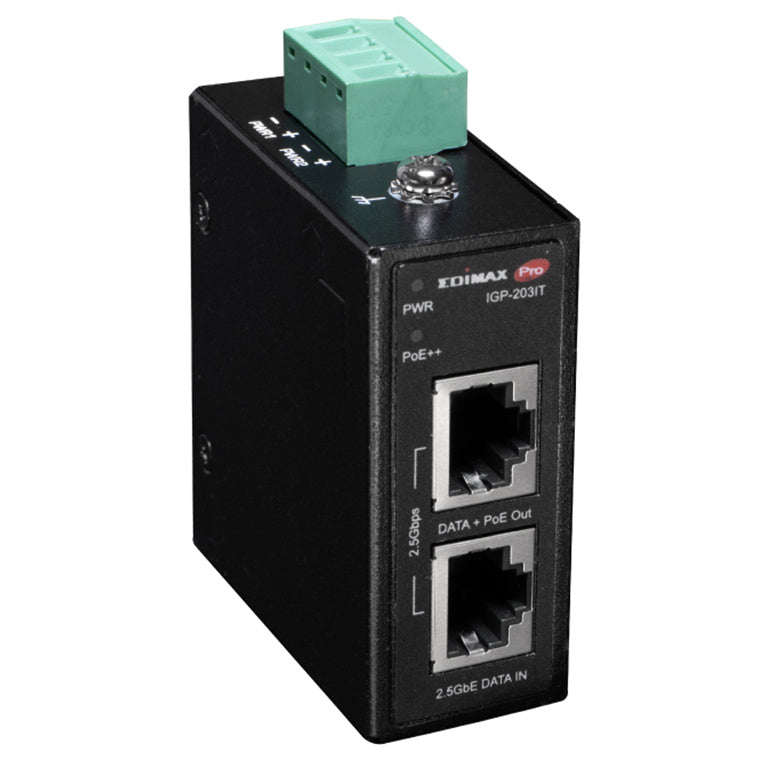

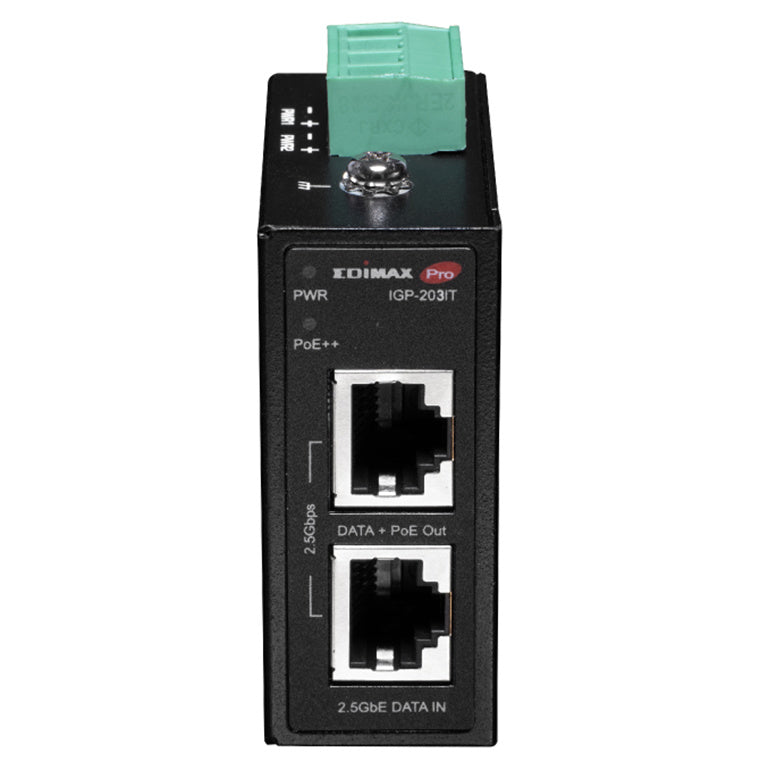

IGP-203IT - EDIMAX Industrial 2.5 Gigabit PoE++ 90W Power Injector. Supports IEEE 802.3at, IEEE 802.3at & IEEE 802.3bt, Provides Power & Data, DIN-rail or Wall-mount, IP50 Ingress Protection.
Features
The Edimax IGP-203IT is an industrial PoE injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service.
With the use of power injectors, DC power of up to 90W based on the IEEE 802.3bt standard and the data that comes from a non-PoE switch or router are merged together and then transmitted to the remote IEEE 802.3af/at/bt compliant products located without power outlet through the Ethernet cabling. Hence, the easy plug-and-play IGP-203IT 2.5 Gigabit PoE++ injector preserves your investment in hardware upgrade without the need to purchase extra PoE switches and deploy power cables.
- Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt Power over Ethernet (PoE++) Standards
- 2.5 Gigabit LAN ports provide 2.5Gbps wired-speed connectivity by using existing CAT5e cables
- Supplies PoE output 95W to ensure the Powered Device (PD) is able to be powered up to 90W

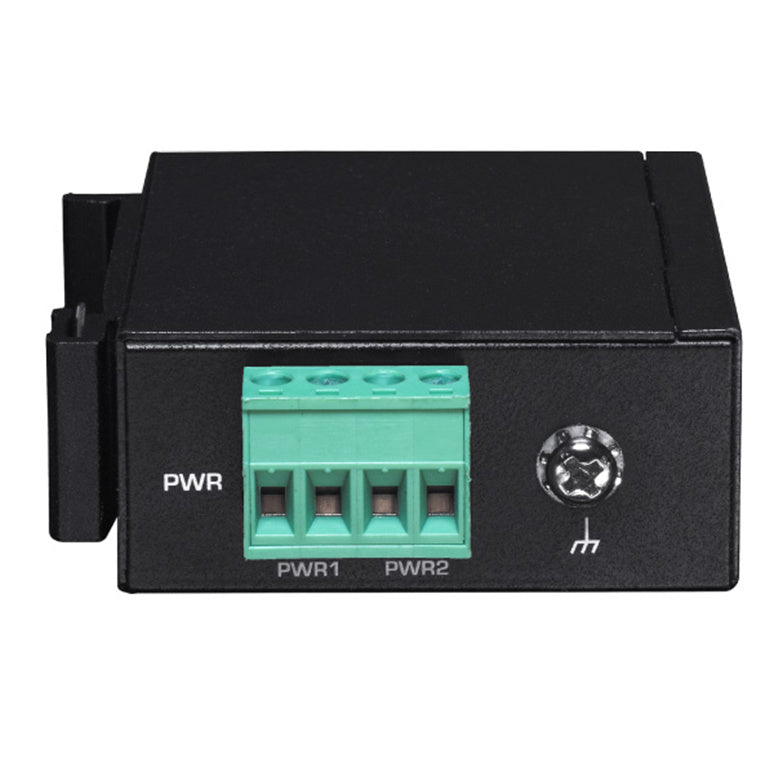

- Power redundancy by providing dual-DC power inputs to ensure stable and reliable network service
- Operating Temperature: -40~75?
- Passed IP50 Ingress Protection tests offer protection against limited dust ingress
- Industrial-Grade Certified: Shock (EN 60068-2-27), Freefall (EN 60068-2-32), and Vibration (EN 60068-2-6)

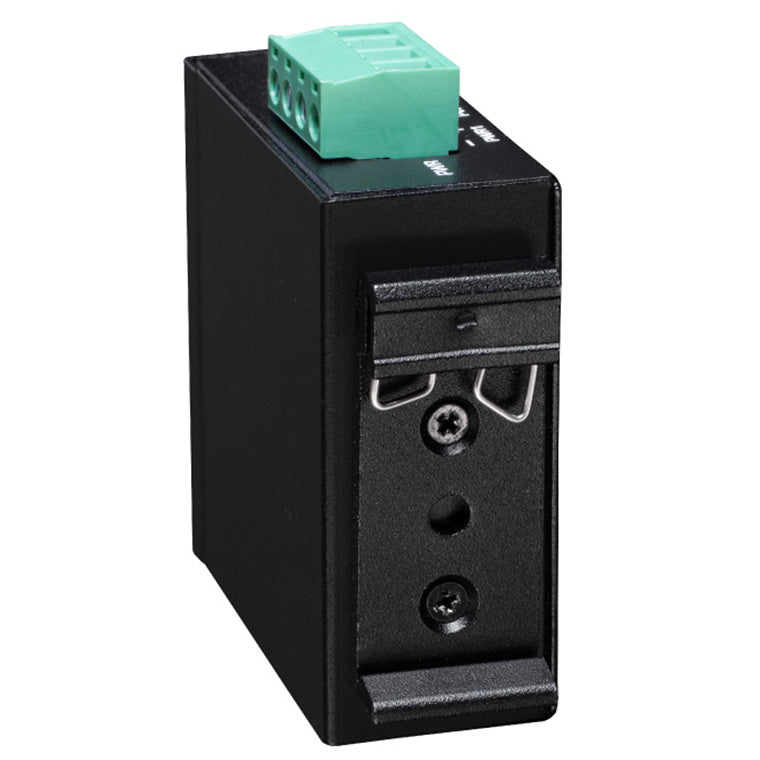

- Flexibility for whether DIN-rail mount or wall-mount deployment
Rugged Industrial Design with Certified Reliability
The IGP-203IT PoE++ Injector features a rugged industrial-grade design with an IP50-rated metal enclosure, operating from -40°C to 75°C. It includes 6KV lightning surge protection and is certified to withstand vibration, shock, free-fall, and ESD/EMI surges-ensuring reliable performance in harsh industrial and outdoor environments.
Beyond Durability: Performance and Flexibility
Combining durability and certified reliability, the IGP-203IT Industrial PoE++ 90W Injector offers a range of advanced features designed to optimize performance, enhance connectivity, and simplify deployment in demanding environments.
2.5G High-Speed Connectivity
Supports up to 2500Mbps on both ports for fast, stable transmission-ideal for IP cameras and APs over distances up to 100 meters.
90W PoE++ Power Delivery
Delivers up to 90W for powering high-demand devices like PTZ cameras, Wi-Fi 6/6E APs, signage, POS systems, and thin clients.

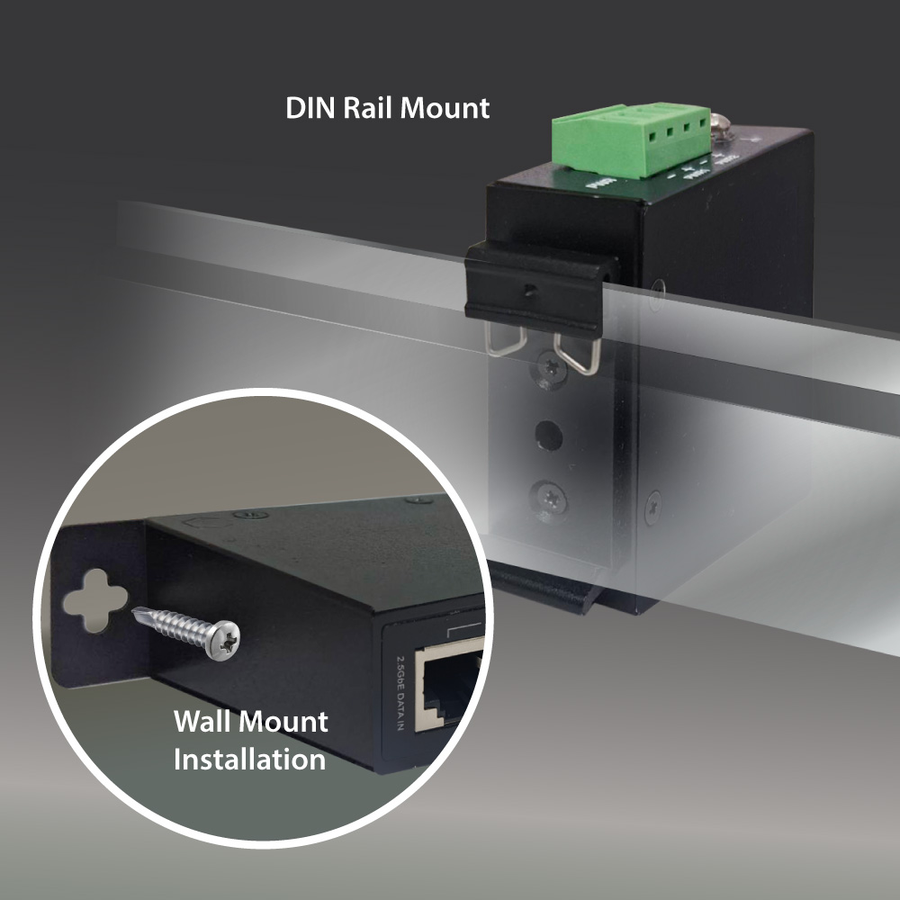

Flexible Mounting Design
Supports DIN-rail and wall-mount options for quick, space-saving installation in diverse environments.

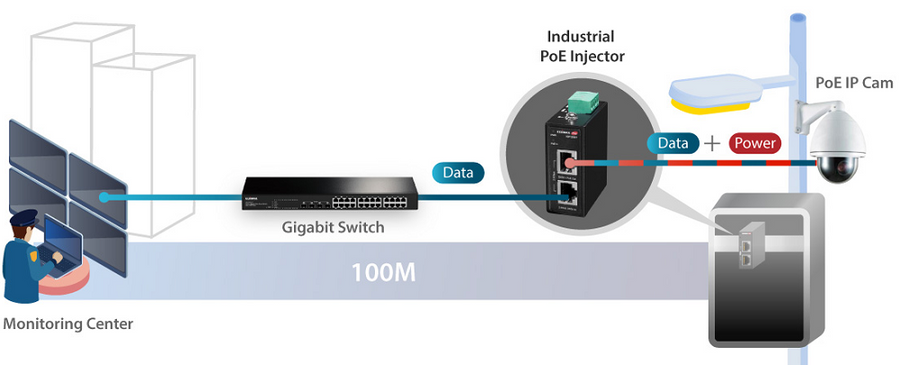

Extends High Power PoE++ for PTZ Camera over 328ft

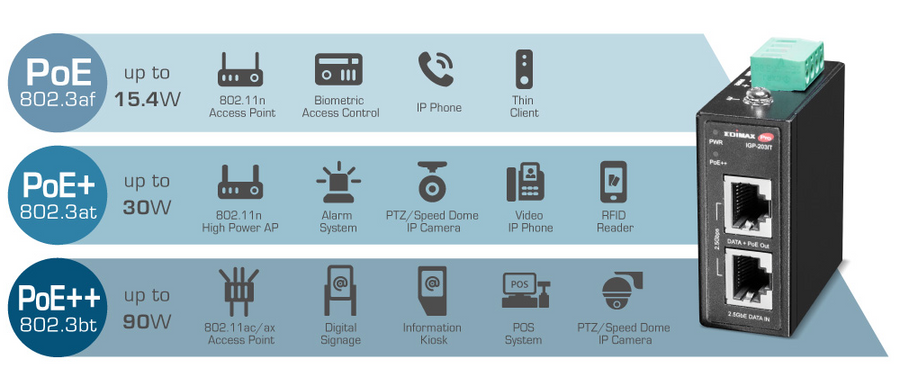

Power Your PoE Devices
Complies with IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) Standards and supports PoE PD (Power Device) up to 90W.
Specifications
Technical Specifications
| Ports | 1 x RJ-45 10/100/1000/2500Base-T data input port1 x RJ-45 10/100/1000/2500Base-T data/PoE++ output port |
|---|---|
| LED Indicators | PWR: System Power On/OffPoE++: PoE Power Supply Status |
| Power Input | 4-Pin Terminal block DC 48~57V, 1.5A |
| Power Consumption | 95W (Max.) |
| Mounting | DIN-rail mount/Wall-mount |
| Housing | Metal |
| Fan | Fanless |
| Dimension | 26(W) x 58(D) x 61(H)mm(1.02(W) x 2.28 (D) x 2.40 (H) inches) |
| Weight | 126g (0.28lb) (DIN-rail Mounting Kit Included) |
| Standard | IEEE 802.3af (PoE)IEEE 802.3at (PoE+)IEEE 802.3bt (PoE++) |
| Power Budget | 90 Watt |
| Pin Assignment | Pins 3, 6, 4, 5 (+), Pins 1, 2, 7,8 (-)Output Power Voltage: DC 54V |
| Short Circuit Protection | Yes |
| Over Circuit Protection | Yes |
| PoE PD Auto Detection | Yes |
| Standard | IEEE 802.3 10Base-T EthernetIEEE 802.3u 100Base-TX Fast EthernetIEEE 802.3ab 1000Base-T Gigabit EthernetIEEE 802.3an 2.5GBase-T Gigabit EthernetIEEE 802.3af Power over Ethernet (PoE)IEEE 802.3at Power over Ethernet Plus (PoE+)IEEE 802.3bt 4-Pair Power over Ethernet Type 4 (PoE++) |
| Environmental Condition | Operating Temperature: -40~75°C (-40~167°F)Storage Temperature: -40~85°C (-40~185°F)Operating Humidity: 10~90% (NonCondensing)Storage Humidity: 5~90% (NonCondensing) |
| Certification | Emission (EMI/EMS): CE/FCC class A; EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (FET); EN61000-4-5 (Surge); EN61000-4-6 (CS); EN61000-4-8 (MagneticField)EMC: EN61000-6-2; EN61000-6-4Safety: IEC 62368-1:2020+A11:2020Shock: IEC60068-2-27Freefall: IEC60068-2-32Vibration: IEC60068-2-6 |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 2.812 kg |
