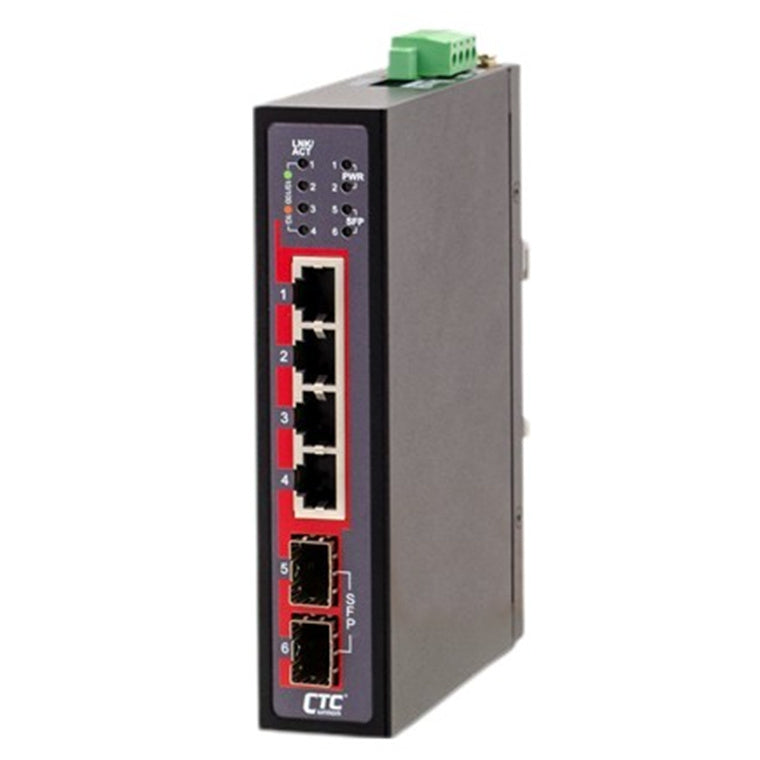

CTCUNION IGS-402CS-E - 4 Port Gigabit Unmanaged Compact Switch. -40C +75C. 4x 10/100/1000Base-T plus 2x
Features
The IGS-402CS-E is a 6-port unmanaged industrial-grade Ethernet switch that provides stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, the switch is designed for harsh environments, such as industrial networking, security automation applications, IP Surveillance, and intelligent transportation systems (ITS) and is also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature ranges (-40 to 75°C) to fulfil the special needs of industrial automation applications.
- 4KV surge protection for UTP and SFP ports
- Wide operating temperature -40°C~75°C
- P30 rugged metal housing and fanless
- 12/24/48V DC (9.6~60V DC) redundant dual input power
- Supports DIP switch to set broadcast storm protection, SFP Auto/Force Mode, SFP 100M/1000M; RJ45 Auto/force mode, 10M/100M, Full/half.
- Supports flow control
- Provides broadcast storm protection
- DIN Rail mounting or wall mounting
Specifications
Technical Specifications
| IEEE Standard | IEEE 802.3 10Base-T EthernetIEEE 802.3u 100Base-TX and 100Base-FX Fast EthernetIEEE 802.3ab 1000Base-T Gbit/s Ethernet over twisted pairIEEE 802.3z 1000Base-X Gigabit Ethernet over fiber-opticIEEE 802.3x Flow Control and Back Pressure |
|---|---|
| Switch Architecture | Back-plane (Switching Fabric): 12 Gbps |
| Data Processing | Store and Forward |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| MAC Address Table | 4K |
| Packet Buffer Size | 1.75Mbit |
| Max Frame Size | 1522Bytes |
| Jumbo Frame | 10K Byte |
| Network Connector | 4x RJ-45 for 10/100/1000Base-T Auto Negotiation Speed or Force Mode, Auto MDI/MDI-X function, Full/Half duplex |
| Network Cable | UTP/STP Cat. 5e cable or aboveEIA/TIA-568 100-ohm (100meter) |
| Network Cable | Fiber Cable (Multi-mode): 50/125um, 62.5/125umFiber Cable (Single-mode): 9/125um |
| Protocols | CSMA/CD |
| LED | Per unit: Power 1 (Green), Power 2 (Green)Per RJ-45 port : 10/100M Link/Act (Green)1000M Link/Act (Amber)SFP Fiber port: 100 Link/Active (Green)1000 Link/Active (Amber) |
| DIP SW | DIP 1 Broadcast ProtectionOFF : Enable ON : DisableDIP 2 Off: Fiber AutoOn: Fiber Force ModeDIP 3 SFP Fiber SpeedOFF: Giga ON: 100MDIP 4 RJ45 ModeOFF: Auto ON: ForceDIP 5 RJ45 SpeedOFF: 100M ON: 10MDIP 6 RJ45 DuplexOFF: Full ON: Half |
| Reverse Polarity Protection | Supported for Power Input |
| Overload Current Protection | Supported |
| Power Supply | Redundant dual 12/24/48VDC (9.6~60VDC) input power (Removable terminal block) |
| Power Consumption | 12VDC 5.8W24VDC 6.5W48VDC 8.2W |
| Removable Terminal Block | Provides 2 Redundant power, 4 Pin |
| Operating Temperature | -40 ~ 75°C (IGS-402CS-E) |
| Operating Humidity | 5% to 95% (Non-condensing) |
| Storage Temperature | -40 ~ 85°C |
| Housing | Rugged metal, IP30 Protection and fanless |
| Dimensions | 106x 31.6x 142mm (D X W X H) |
| Weight | 420g |
| Installation Mounting | DIN Rail mounting, or wall mounting (Optional) |
| MTBF | 862,267Hours (MIL-HDBK-217) |
| Brand | CTCUNION |
|---|---|
| Product Type | Networking > Switches |
| Weight | 4.018 kg |
