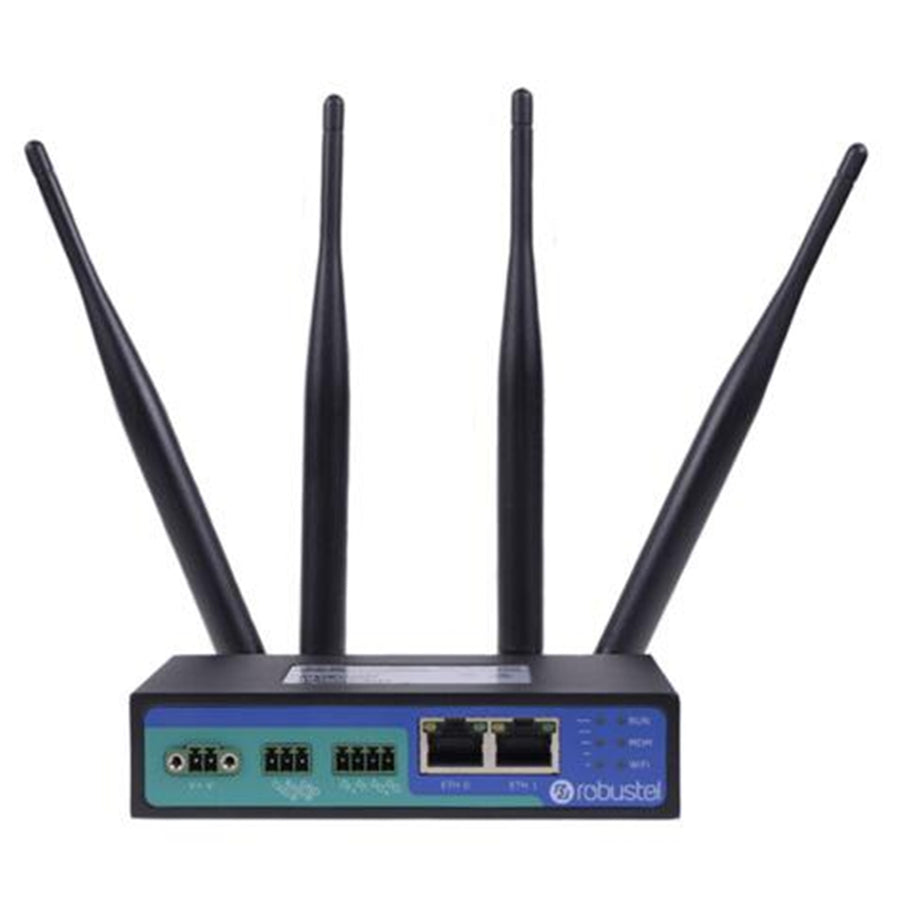

Robustel B069705 - Industrial 4G Gateway dual Ethernet ports dual SIM WiFi
You May Also Like
TP-Link TP LINK Deco X50-POE AX3000 Whole Home Mesh WiFi 6 System with PoE - 2-Pack
TP-Link TP LINK Deco X50-POE AX3000 Whole Home Mesh WiFi 6 System with PoE - 2-Pack
EZVIZ 8MP + 2MP 4K Outdoor Dual PT Security Camera w/ ColourFULL Technology in Ultra-low Light.
H47BE-2 - Mercusys Halo H47BE (2-pack) BE9300 Whole Home Mesh Wi-Fi 7 System
Features
The Robustel R2010 Industrial Cellular Gateway is a rugged, versatile 4G Gateway with dual Ethernet ports, dual SIM single standby capability and a range of advanced functions for mission critical IoT or M2M applications.
The R2010 takes into account the varying budgetary, interface and connectivity requirements of customers to create a simple and cost-competitive networking solution for customers deploying IoT solutions in industrial environments such as water, gas, electricity, factory automation and warehousing.
- SIM redundancy for continuous cellular network connections
- Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
- WAN - Static/DHCP Client
- RobustOS + SDK + Apps
- IPsec/OpenVPN/GRE/Wireguard VPN capabilities
- Management and maintenance via Web/RCMS Cloud
- Auto reboot via SMS/time schedule
- Robust industrial design (9 to 36 V DC, desktop or wall mounting or DIN rail mounting)
The R2010 runs on Robustel's own Linux based Operating System, RobustOS. Developed entirely in-house, this gives way to a very high standard of technical support and high reliability. Robustel offers a Software Development Kit (SDK) to allow additional customization by using C, C++. It also provides rich Apps to meet fragmented IoT market demands such as:
RobustVPN
Highly Flexible hosted VPN service so customers can easily enjoy a "?xed IP Gateway"
Data-Guard
Invaluable failsafe in case of a system failure and runaway data usage
Smart Reboot
SMS tool to push roaming SIMs from a non-working to working state
Smart Roaming
Provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.

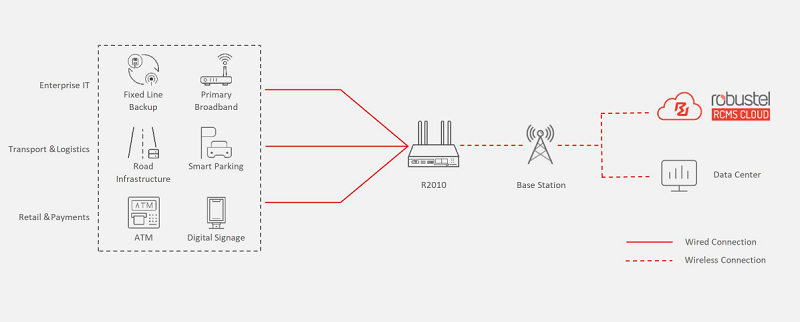

Application Example
Example R2010 Use Cases
Industrial PLC Connectivity
Keep production running with reliable remote access to PLCs and HMIs. Diagnose faster, reduce site visits, maintain secure telemetry between plant cells and control rooms.
ATM Connectivity
Protect transactions and cardholder data with encrypted tunnels. Maintain uptime across carriers, allow central monitoring and updates, and meet compliance requirements.
Environmental Monitoring
Connect sensors and PLCs in remote or harsh environments using RS-485, digital I/O, and Modbus, rugged enough for edge deployments in agriculture and utilities
Specifications
Technical Specifications
| Number of antennas | 2 (MAIN + AUX) or 1 (MAIN) |
|---|---|
| Connector | SMA-K |

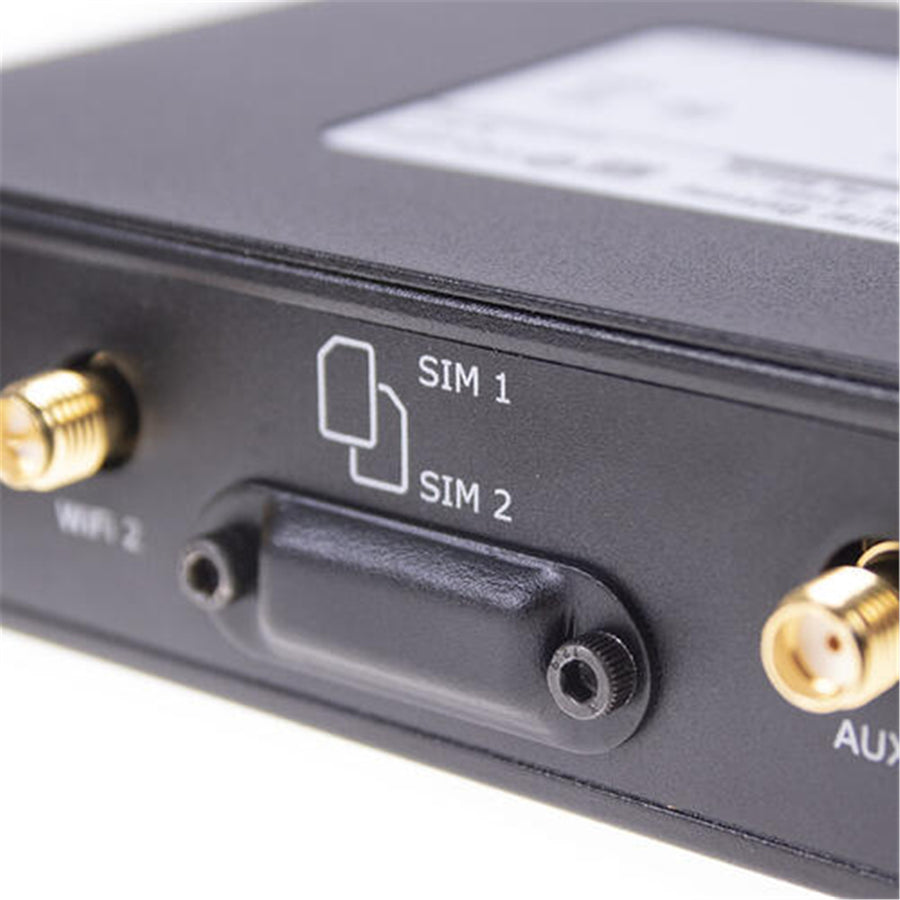

| SIM | 2 Mini SIMs (2FF) |
| Number of ports | 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN |
| WAN port | Supports 802.3at PD feature (optional) |
| Magnet isolation protection | 1.5 KV |
| Number of antennas | 2 (Wi-Fi1 + Wi-Fi2) |
| Connector | RP-SMA-K |
| Standards | 802.11 b/g/n, supporting AP and Client modes |
| Frequency bands | 2.4 GHz |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Data speed | 2 x 2 MIMO, 300 Mbps |
| Type | 1 x DI, 1 x DO |
| Connector | 1 x 4-pin 3.5 mm female socket |
| Signal definition | DI+, DI-, DO+, DO- |
| Type | RS232 or RS485 (software configurable) |
| Connector | 1 x 3-pin 3.5 mm female socket |
| Signal definition | RS232: TXD, RXD, GND RS485: A, B |
| Reset button | 1 x RST |
| LED indicators | 1 x RUN, 1 x MDM, 1 x WIFI, 3 x RSSI |
| Built-in | Watchdog, Timer |
| Connector | 2-pin 3.5 mm female socket |
| Input voltage | 9 to 36 V DC |
| Power consumption | Idle: 200 mA@12 VData link: 580 mA (peak)@12 V |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE, WireGuard |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
| Supported programming language | C, C++ |
| Flash available for SDK | 16 MB |
| RAM available for SDK | 64 MB |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 350 g |
| Dimensions | 127 x 82 x 30 mm |
| Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
| Operating temperature | -35 ~ +75°C |
| Storage temperature | -40 ~ +85°C |
| Relative humidity | 5% ~ 95% |
| Environmental | RoHS 2.0 |
| EMI | EN 55032 Conducted Emission class BEN 55032 Radiated Emission class B |
| EMS | IEC 61000-4-2 (ESD) Level 4IEC 61000-4-3 (RS) Level 2IEC 61000-4-4 (EFT) Level 2IEC 61000-4-5 (Surge) Level 2IEC 61000-4-6 (CS) Level 2IEC 61000-4-11(DIP) |
| Frequencies supported | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD: B403G: WCDMA: B1/B2/B5/B82G: GSM: B2/B3/B5/B8 |
| Brand | Robustel |
|---|---|
| Product Type | Networking > Routers |
| Weight | 0.4 kg |
| Warranty |
|---|
