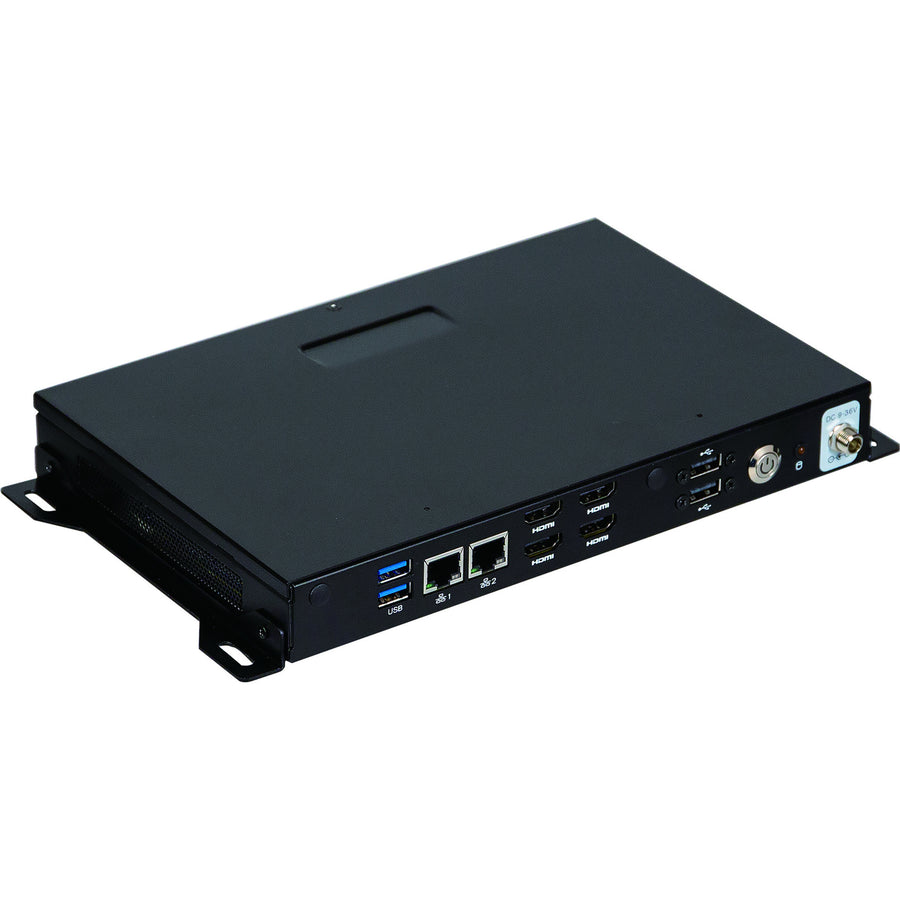

6BQL1605AMR-SI - Industrial system with AMD® RYZEN™ Embedded V1605B/ Fan Design/ Dual Channel DDR4 up to 32GB/ 4 x HDMI
Features
QBiX-Lite series, a media display system kit, is designed for easy installation, upgrade and maintenance for large scale of digital signage applications in retail market.
QBiX-Lite-AMDA1605H-A1? is one of the product line to be integrated with GIGAIPC 3.5" SBC (QBiP-1605B), it's only 30mm in hight and extra light in weight to fit it any space-limited environment, or mount it on the back of display panel vertically or horizontally, based on your product design. With powerful AMD Ryzen™ V1605B Embedded Processor, it provides up to 4 independent display outputs of 4K resolutions with high computing performance and stability. It features with onboard TPM2.0 chip for system security protection and supports a wide range of operating temperature from 0°C to 50°C with industrial fan design for heat dissipation.
- System Size: 234W x 155D x 30H (mm)
- AMD RYZEN™ V1605B Embedded Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 4 x HDMI 2.0 for multiple displays
- 2 x GbE LAN Ports
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a KW Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Your can
Specifications
Technical Specifications
| Dimension | 234W x 155D x 30H (mm) |
|---|---|
| CPU | AMD Ryzen™ V1605B Embedded Processor14nm, 4 cores, 8 threads, up to 3.6 GHzTDP 25W2MB of shared L2 plus 4MB of shared L3 total |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GBSupport Dual channel DDR4 2400 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Realtek® RTL8111HS) |
| Graphics Support | Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz*Support EDID emulation with AMD graphic driver/utility(4 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 1 x 2.5" HDD/SSD (SATA 6Gb/s) |
| Expansion-Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)1 x 2230 M.2 E-Key (WiFi/BT)1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module |
| Front I/O | 2 x RJ45 LAN Ports2 x USB 3.2 Gen 12 x USB 2.04 x HDMI1 x Power button with LED1 x HDD LED1 x Screw type DC Jack |

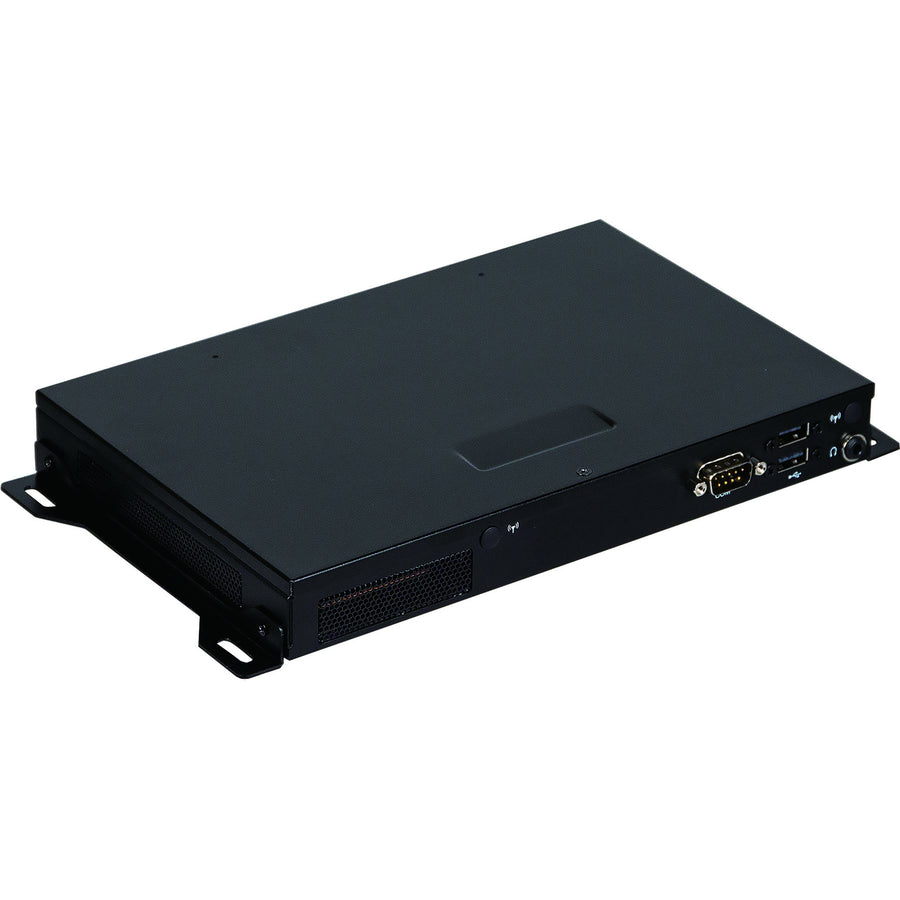

| Rear l/O | 1 x COM Port (RS-232/422/485 & RI/5V/12V)2 x USB 2.01 x Line out phone jack2 x External Antenna Holes (Optional) |
| TPM | Onboard TPM 2.0 security chipINFINEON SLB9665TT2.0 |
| Power | +9V~36VDC (Adapter 19V/65W) |
| Operation Temperature | Operating temperature: 0°C to 50°COperating humidity: 0-90% (non-condensing)Non-operating temperature: -20°C to 70°CNon-operating humidity: 0%-95% (non-condensing)Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packing Content | Single Box size: 336 x 279 x 90 (mm) |
| Including: | Bracket for Wall Mount x 2 : 25HB1-SD4000-R0RPSU ADP 19V 65W 100-240VAC x 1 : 25EP1-100650-A3SPower Cord : Optional (by region) |
| Mounting | Wall mount (Default)VESA 75/100 (Optional) |
| Order Information | 6BQL1605AMR-SI (Box packing) |
| Brand | KW Tech NZ |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Industrial PCs |
| Weight | 1.0 kg |
| Warranty |
|---|
