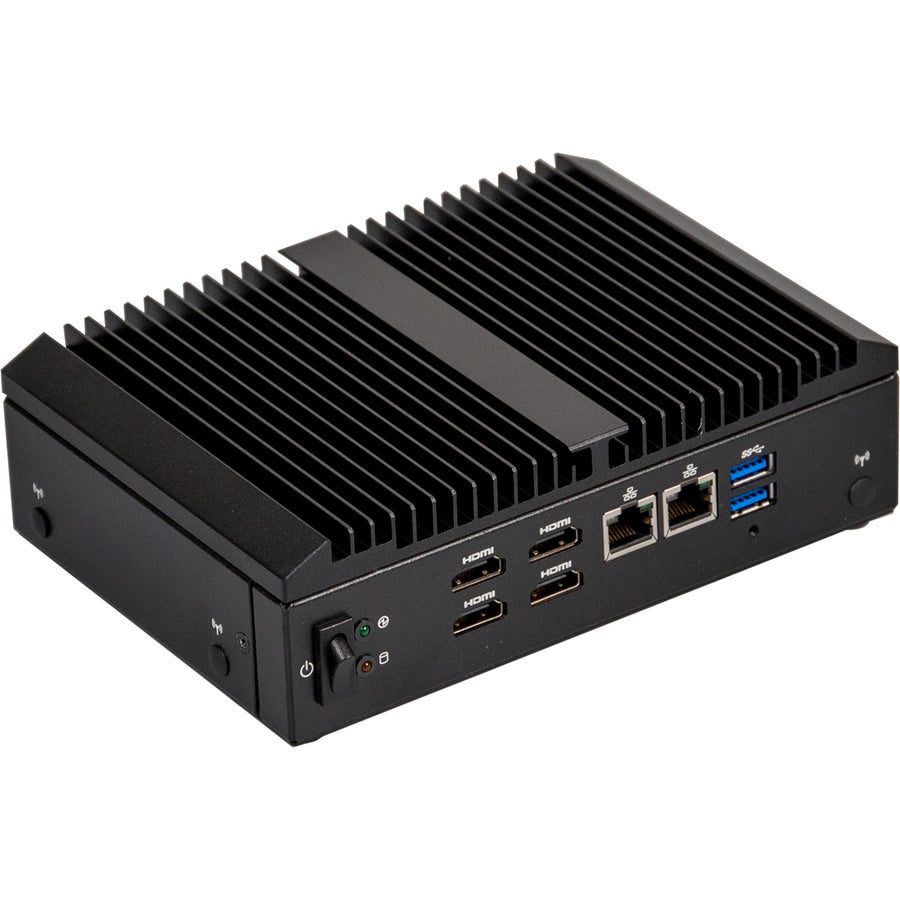

6BQP1605AMR-SI - Industrial system with AMD Ryzen™ V1605B Embedded Processor
Features
QBiX-Pro-AMDA1605H-A1 integrated with GIGAIPC 3.5" SBC QBiP-1605B, is designed for retail and commercial market with AMD Ryzen™ V1605B processor and support quad independent display output with 4 x HDMI 2.0 ports as well as rich I/O interface of 4 x COM Ports (2 x switchable and 2 x RS-232), 2 x USB 3.2 Gen 1 and 2 x USB 2.0, to be connected to various devices for different working environment.
It features with onboard TPM2.0 chip for system security protection and supports a wide range of operating temperature from 0°C to 50°C with industrial fan-less thermal solution and therefore reduces the risk of fan failure. QBiX-Pro-AMDA1605H-A1 is ruggedized, stable and reliable for indoor and outdoor environments.
- System Size: 178W x 125D x 52.7H(mm)
- AMD Ryzen™ V1605B Embedded Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 4 x HDMI 2.0 for multiple displays
- 2 x GbE LAN Ports
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a KW Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Your can
Specifications
Technical Specifications
| Dimension | 178W x 125D x 52.7H(mm) |
|---|---|
| CPU | AMD Ryzen™ V1605B Embedded Processor14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHzTDP 25W2MB of shared L2 plus 4MB of shared L3 total |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GBSupport Dual channel DDR4 2400MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Realtek® RTL8111HS) |
| Graphics Support | Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz*Support EDID emulation with AMD graphic driver/utility(4 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 1 x 2.5" HDD/SSD (SATA 6Gb/s) |
| Expansion-Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)1 x 2230 M.2 E-Key (WiFi/BT)1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module |
| Front I/O | 2 x RJ45 LAN Ports2 x USB 3.2 Gen 14 x HDMI1 x Power switch1 x Power & HDD LED |
| Rear l/O | 2 x USB 2.02 x COM Ports (RS-232/422/485 & RI/5V/12V)2 x COM Ports (RS-232)1 x Screw Type DC Jack |
| Side I/O | 2 x External Antenna Holes (Optional) |
| TPM | Onboard TPM 2.0 security chipINFINEON SLB9665TT2.0 |
| Power | +9V~36VDC (Adapter 19V/65W) |
| Operation Temperature | Operating temperature: 0°C to 50°COperating humidity: 0-90% (non-condensing)Non-operating temperature: -20°C to 70°CNon-operating humidity: 0%-95% (non-condensing)Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packing Content | Single Box size: 313 x 191 x 95 (mm)Single Box weight: Approx. 2.0kg |
| Including: | Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)Thermal Pad x 2 (P/N: 25ST3-200052-T5R)Thermal Pad x 1 (P/N: 25ST3-200060-T5R)Thermal Pad x 1 (P/N: 25ST3-200051-T5R)SATA Cable x 1 (P/N: 25CF4-170020-S9R)Power Cord : Optional (by region)Power ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S) |
| Order Information | 6BQP1605AMR-SI (Box packing) |
| Optional Kit | Wall mount (Optional) |
| Brand | AMD |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Industrial PCs |
| Weight | 1.0 kg |
| Warranty |
|---|
