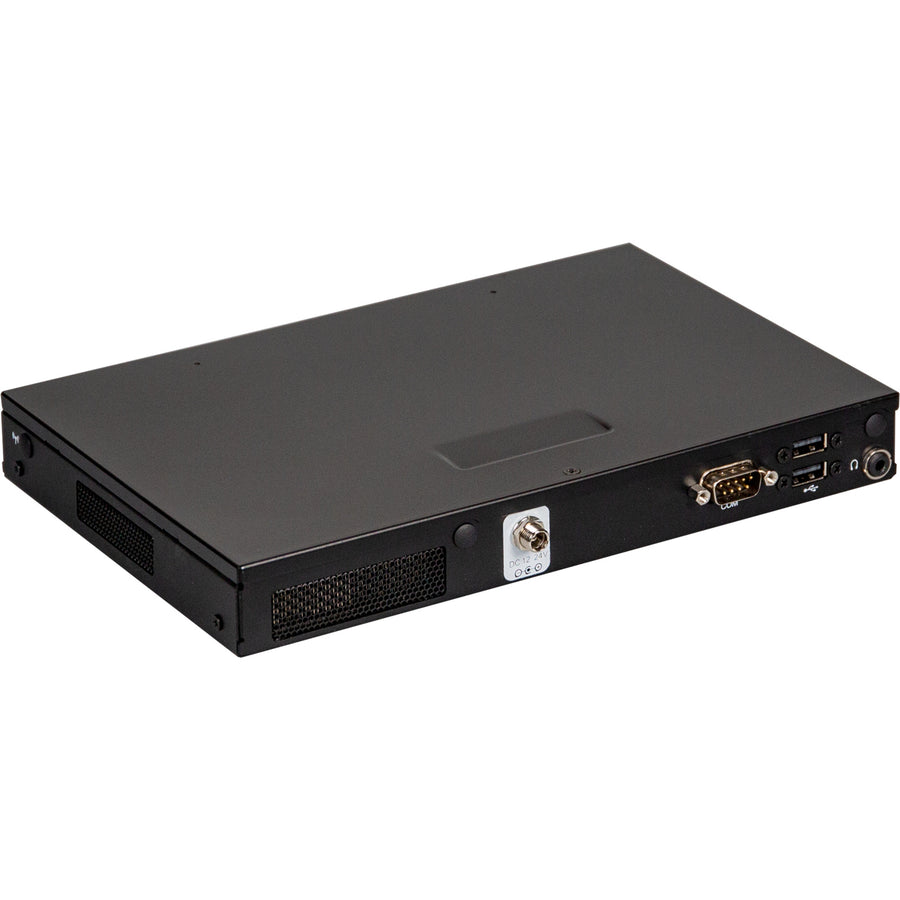

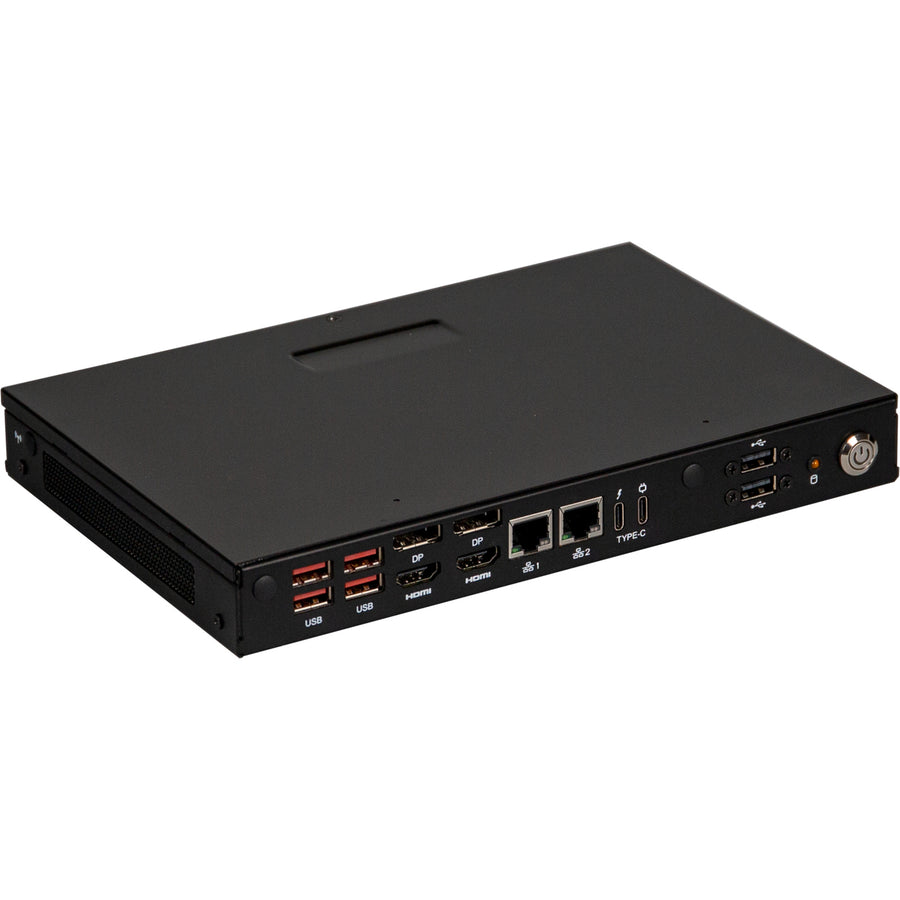

6BQL1145AMR-SI - Industrial system with Intel® Core™ i5-1145G7E Processor/ Fan Design/ Dual Channel DDR4 up to 64GB/ 2 x HDMI/ 2 x DP
Features
- Intel® Core™ i5-1145G7E Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x HDMI
- 2 x Display Ports
- 2 x GbE LAN Ports
- 2 x USB Type-C Ports
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a KW Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Your can
Specifications
Technical Specifications
| Dimension | 234W x 155D x 30H (mm) |
|---|---|
| CPU | Intel® Core™ i5-1145G7E Processor10nm SuperFin, 4 cores, 8 threads, up to 4.1 GHz |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GBSupport Dual channel DDR4 3200 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I219LM and Intel® I211AT) |
| Graphics Support | Integrated Graphics Processor - Intel® Iris® Xe Graphics:2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz2 x DP 1.4 ports, supporting a maximum resolution of 7680x4320 @30Hz1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @30Hz(4 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 1 x 2.5" HDD/SSD (SATA 6Gb/s) |
| Expansion-Slots | 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)1 x 2230 M.2 E-Key1 x 3052 M.2 B-Key with SIM slot (Support 5G) |
| Front I/O | 1 x USB type C (USB 3.2 Gen 2x1, DP Alt Mode & PD Out -30W)(-100W requests to use 250W adapter)1 x USB type C (USB 3.2 Gen 2x1, PD input-100W)4 x USB 3.2 Gen 2x12 x HDMI2 x DP2 x RJ45 LAN Ports2 x USB 2.01 x HDD LED1 x Power button with LED2 x External Antenna Holes (Optional) |
| Rear l/O | 1 x COM Port (RS-232)2 x USB 2.01 x Headphone Jack1 x Screw type DC Jack2 x External Antenna Holes (Optional) |
| Side I/O | 1 x External Antenna Hole (on each side) |
| Power | +12V~24VDC (Adapter 19.5V/135W) |
| Operation Temperature | Operating temperature: 0°C to 50°COperating humidity: 0-90% (non-condensing)Non-operating temperature: -40°C to 85°CNon-operating humidity: 0%-95% (non-condensing)Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packing Content | Single Box size: 336 x 279 x 90 (mm)Single Box weight: Approx. 2.2kg |
| Including: | Bracket for Wall Mount x 2 : 25HB1-SD4000-R0RScrews for Wall Mount x 4 : 25KS9-130600-S0RPSU ADP 19.5V 135W 100-240VAC x 1 : 25EP4-201352-C1SPower Cord : Optional (by region)Thermal Pad for Memory x 1 : 25ST3-200086-T5RSATA Cable x 1 : 25CRI-180002-S9RScrews for 2.5" HDD x 8 : 25KS2-13004G-S0R |
| Mounting | Wall mount (Default)VESA 75/100 (Optional) |
| Order Information | 6BQL1145AMR-SI (Box packing) |
| Brand | KW Tech NZ |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Industrial PCs |
| Weight | 1.0 kg |
| Warranty |
|---|
