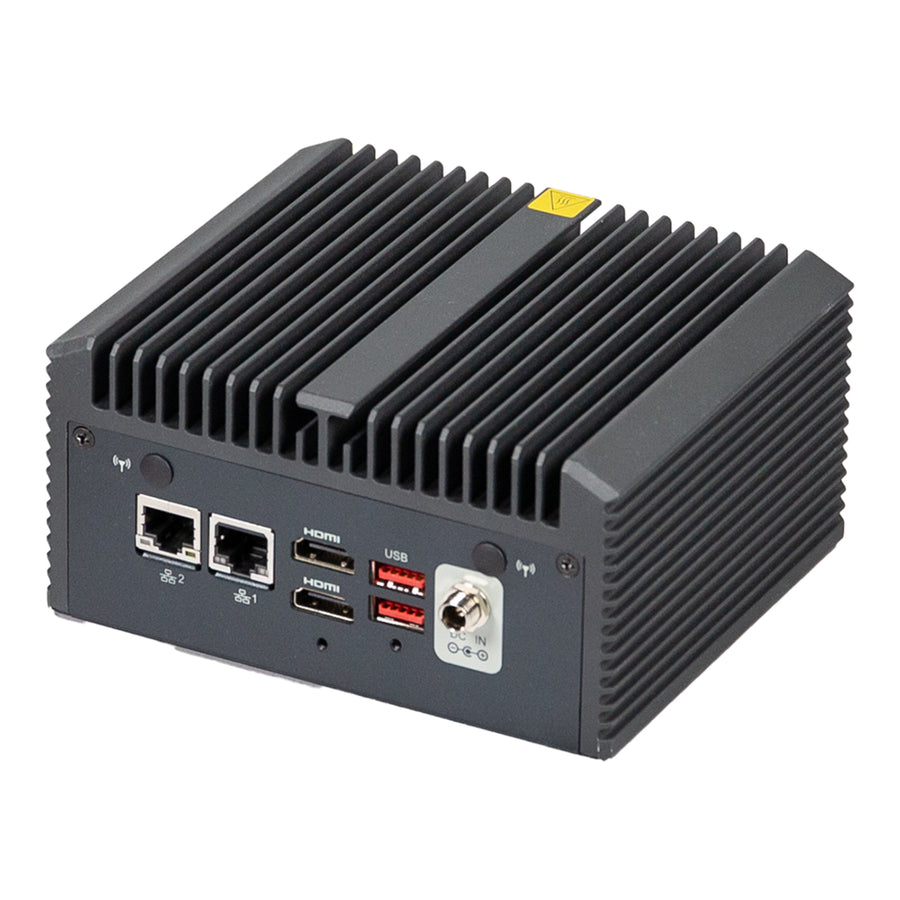

6BQB1335AMR-SI - Industrial system with Intel® Core™ i5-1335U Processor / Lockable DC Connector/ 2 x HDMI / 2 x LAN Ports
Features
- System Size : 138W x 118D x 74.2H (mm)
- Intel® Core™ i5-1335U Processor
- 1 x COM Port (RS-232/422/485)
- Dual Channel DDR5, 2 x SO-DIMMs
- 2 x HDMI for Dual display
- 1 x 2.5GbE LAN Port
- 1 x GbE LAN Port
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a KW Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Your can
Specifications
Technical Specifications
| Dimension | 138W x 118D x 74.2H(mm) |
|---|---|
| CPU | Intel® Core™ i5-1335U ProcessorIntel® 7, 10 cores, 2P+8E, 12 threads, up to 4.6 GHzTDP 15W (CCG) |
| Chipset | SoC |
| Memory | 2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GBSupport Dual Channel DDR5 5200 MHz memory modules |
| Ethernet | 1 x 2.5 GbE LAN Port (Intel® I226V)1 x GbE LAN Port (Realtek RTL8111H) |
| Graphics Support | Integrated Graphics Processor - Intel® Iris® Xe Graphics eligible:2 x HDMI 2.0, 1 x DP 1.4 (USB type C - DP Alt. mode)(3 independent display outputs) |
| Audio | Realtek® ALC897 |
| Storage | 1 x 2.5" HDD/SSD (SATA 6Gb/s) |
| Expansion-Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)1 x 2230 M.2 E-Key (PCIe x1, USB 2.0) |

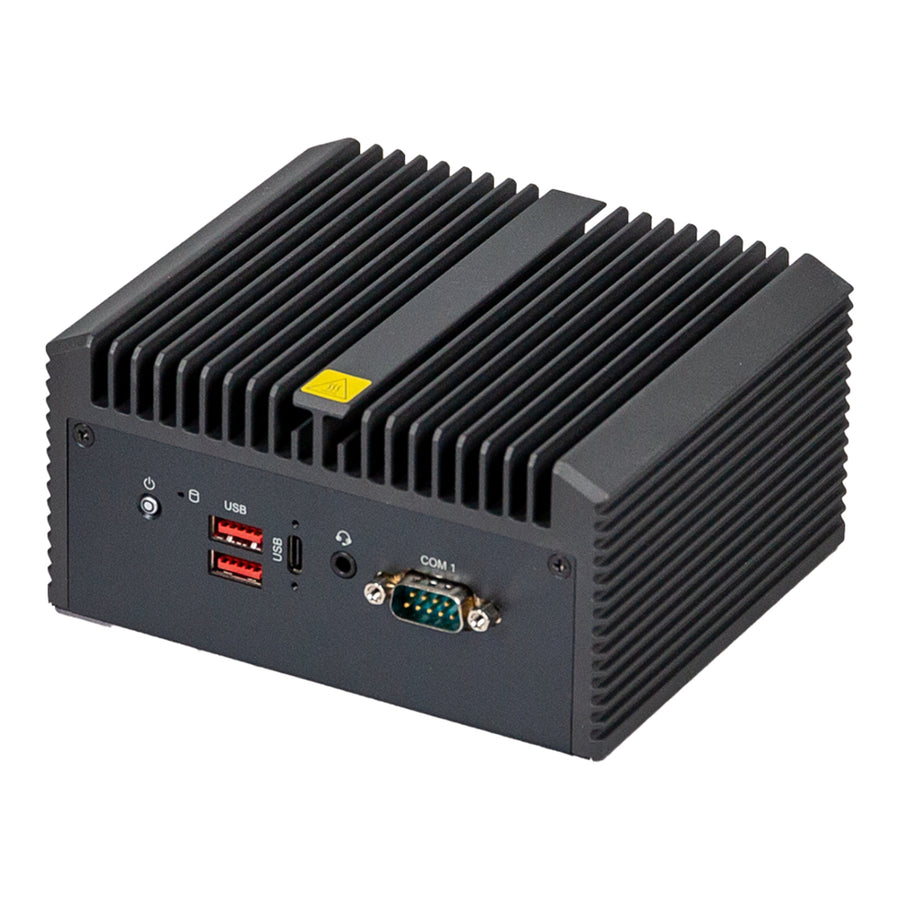

| Front I/O | 2 x USB 3.2 Gen 2x11 x USB 3.2 type C with DP 1.4b (DP Alt. mode)1 x Power button with LED1 x HDD LED1 x COM Port (RS-232/422/485)1 x Combo Audio Jack (Headphone & Headset) |
| Rear l/O | 2 x HDMI2 x RJ45 LAN Ports2 x External Antenna Holes (Optional)2 x USB 3.2 Gen 2x11 x Screw type DC Jack |
| TPM | Onboard TPM 2.0 security chipINFINEON SLB9670VQ2.0 |
| Power | +12V~36VDC (Adapter 19.5V/135W) |
| Operation Temperature | Operating temperature: 0°C to 50°COperating humidity: 0-90% (non-condensing)Non-operating temperature:-40°C to 85°CNon-operating humidity: 0%-95% (non-condensing)Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSDNon-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packing Content | Single Box size: 258 x 191 x 130 (mm)Single Box weight: Approx. 2.5kg |
| Including: | PSU ADP 19.5V 135W 100-240VAC x 1 (P/N: 25EP4-201352-C1S)Power Cord : Optional (by region)Wall Mount Bracket x 2 (P/N: 25HB2-CGAA20-CHR) |
| Brand | KW Tech NZ |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Industrial PCs |
| Weight | 2.27 kg |
| Warranty |
|---|
