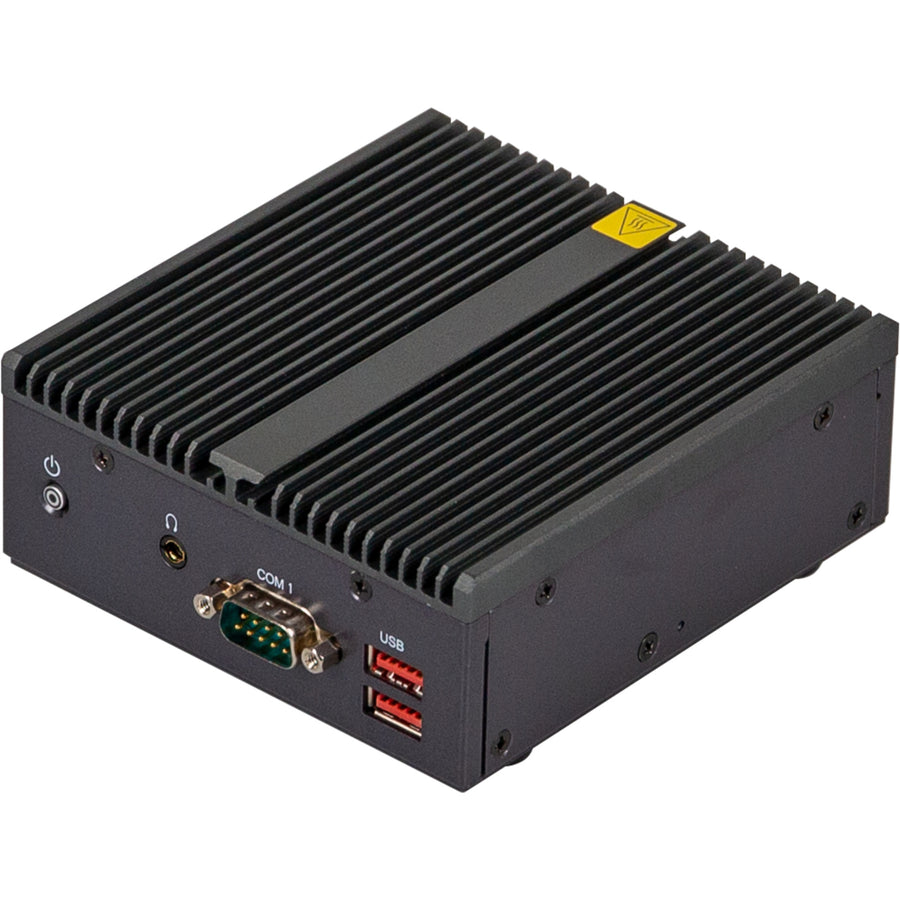

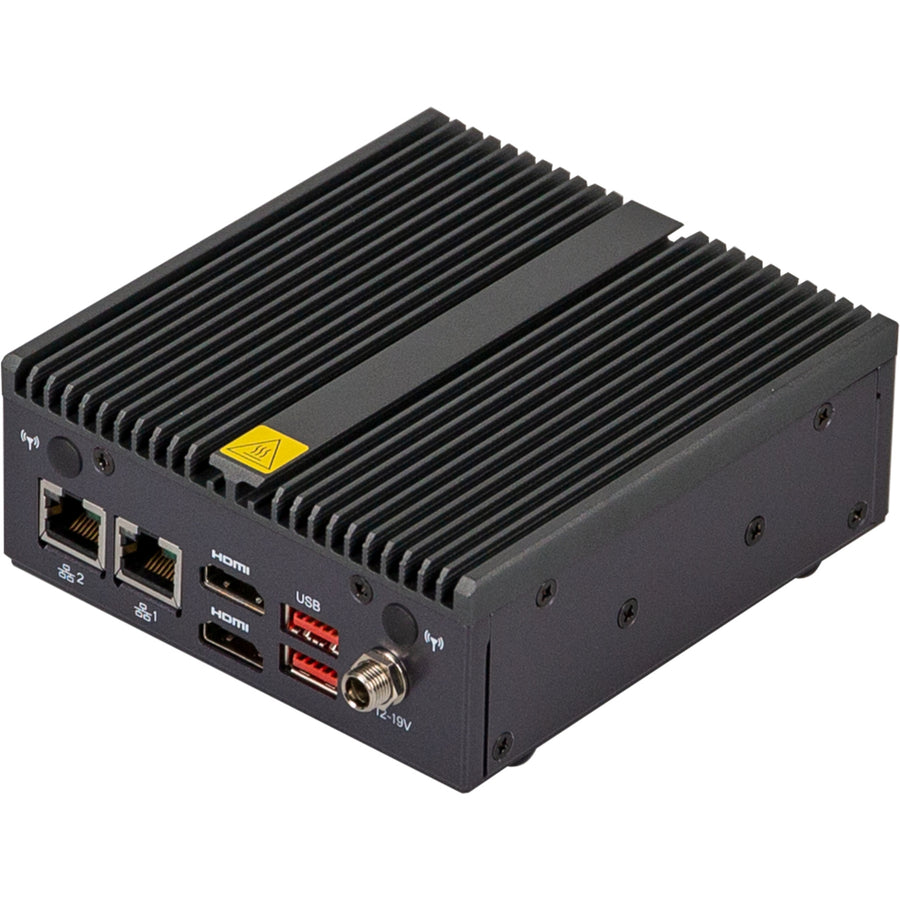

6BQB6412AMR-SI - Industrial system with Intel® Celeron® J6412 Processor/ Lockable DC Connector/ 2 x HDMI / 2 x LAN ports/ 1 x Headphone Jack
Features
- Intel® Celeron® J6412 Processor
- 1 x COM Port (RS-232)
- Single Channel DDR4, 1 x SO-DIMM
- 2 x HDMI for Dual display
- 2 x GbE LAN Ports
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a KW Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Your can
Specifications
Technical Specifications
| Dimension | 118W x 109.4D x 44.4H(mm) |
|---|---|
| CPU | Intel® Celeron® J6412 Processor10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W |
| Memory | 1 x DDR4 SO-DIMM socket, Max. Capacity 32 GBSupport Single Channel DDR4 3200 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I211AT) |
| Graphics Support | Integrated Graphics Processor - Intel® UHD Graphics for 10th Gen Intel® Processors :2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz(2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Expansion-Slots | 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)1 x 2230 M.2 E-Key (WiFi/BT) |
| Front I/O | 2 x USB 3.2 Gen 2x11 x COM Port (RS-232)1 x Combo Audio Jack (Headphone & Headset)1 x Power button with LED |
| Rear l/O | 2 x RJ45 LAN Ports2 x USB 3.2 Gen 2x12 x HDMI2 x External Antenna Holes (Optional)1 x Screw Type DC Jack |
| Power | +12V~19VDC (Adapter 19V/65W) |
| Operation Temperature | Operating temperature: 0°C to 50°COperating humidity: 0-90% (non-condensing)Non-operating temperature: -40°C to 85°CNon-operating humidity: 0%-95% (non-condensing)Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSDNon-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packing Content | Single Box size: 258 x 191 x 130 (mm)Single Box weight: Approx. 1.7kg |
| Including: | Power Cord : Optional (by region)PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S)VESA Bracket x 1 (P/N: 25HB1-TPL021-S8R)VESA Screws x 1 (P/N: 25KSD-000001-S4R) |
| Order Information | 6BQB6412AMR-SI (Box packing) |
| Brand | KW Tech NZ |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Industrial PCs |
| Weight | 2.0 kg |
| Warranty |
|---|
