6BQE1340AMR-SI - Industrial system with Intel® Core™ i5-1340P Processor/ Fanless Design / Dual Channel DDR5 up to 64 GB/ 2 x HDMI
Features
Intel® Core™ i5-1340PProcessor
Dual Channel DDR5, 2 x SO-DIMMs
2 x HDMI for Dual display
10 x LAN Ports
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a KW Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Your can
Specifications
Technical Specifications
| Dimension | 210.36W x 165D x 65H(mm) |
|---|---|
| CPU | Intel® Core™ i5-1340P ProcessorIntel 7, 12 cores, 16 threads, up to 4.60 GHz |
| Chipset | SoC |
| Memory | 2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GBSupport Dual Channel DDR5 5200 MHz memory modules |
| Ethernet | 2 x 2.5GbE LAN Ports4 x GbE LAN Ports4 x PoE GbE LAN Ports |
| Graphics Support | Integrated Graphics Processor - Intel® Iris® Xe Graphics eligible:2 x HDMI 2.1 ports, supporting a maximum resolution of 4096x2160 @60Hz(2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | Support 1 x Swappable 2.5" HDD/SSD (SATA 6Gb/s) |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe Gen 4x4)1 x 2230 M.2 E-Key (WiFi/BT)1 x 3052 M.2 B-Key with SIM slot |

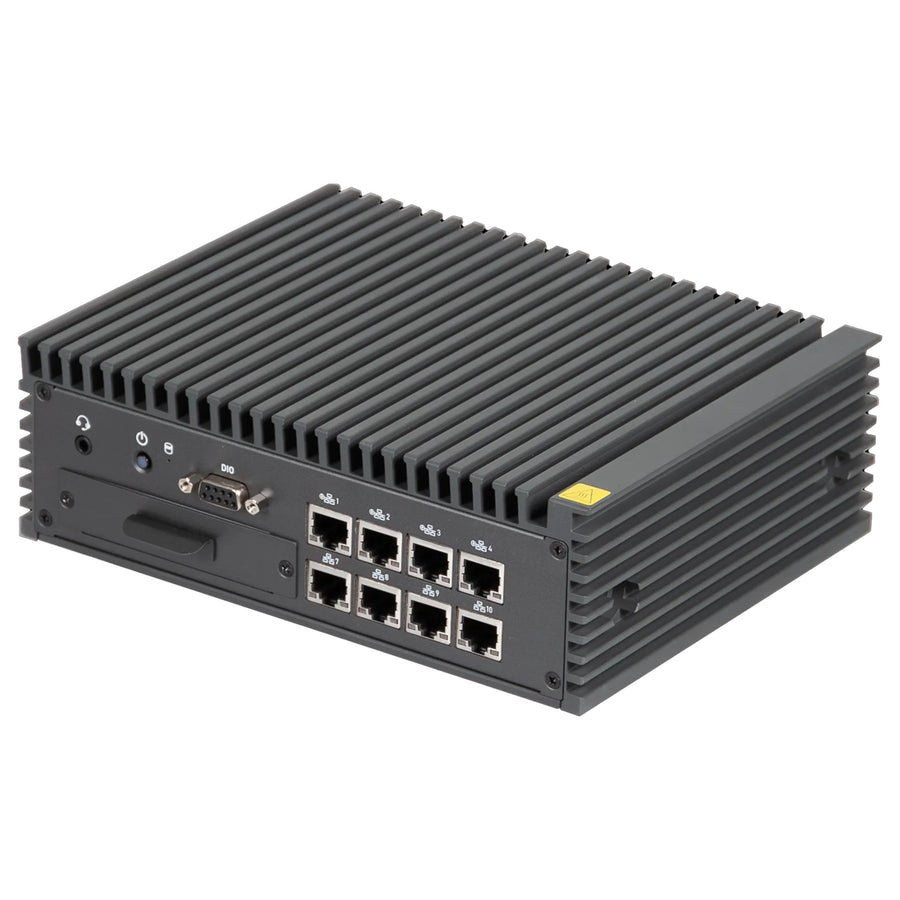

| Front I/O | 4 x RJ45 LAN Ports with PoE4 x RJ45 LAN Ports1 x GPIO (8 bits)1 x HDD LED1 x Power button with LED1 x Combo audio jack (Headphone & Headset) |

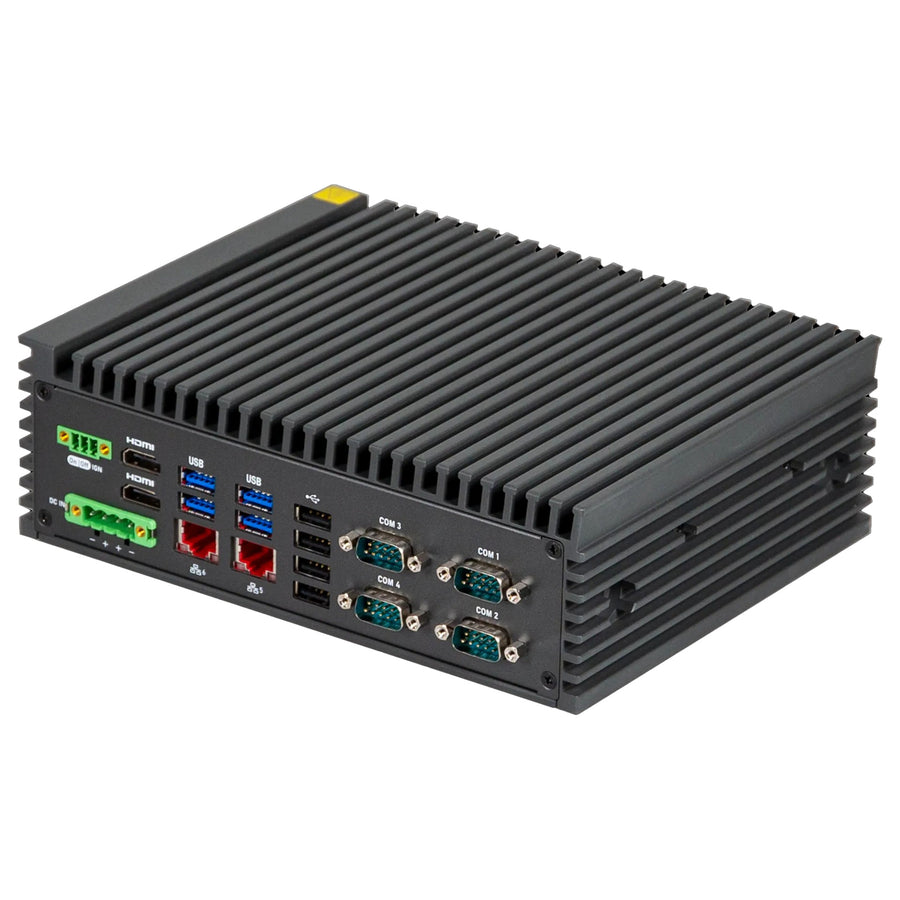

| Rear l/O | 2 x 2.5GbE LAN Ports4 x COM Ports (RS-232/422/485)4 x USB 3.2 Gen14 x USB 2.02 x HDMI1 x Ignition support (3 pin)- HW Jumper1 x 4-pin Terminal block (DC IN) |
| Side I/O | 4 x External Antenna Holes (wifi/5G)-optional |
| TPM | TPM on board |
| Power | +19~36VDC |
| Operation Temperature | Operating temperature: 0°C to 50°COperating humidity: 0-90% (non-condensing)Non-operating temperature: -40°C to 85°CNon-operating humidity: 0%-95% (non-condensing)Use wide temperature range memory and storage |
| Order Information | 6BQE1340AMR-SI (Box Packing) |
| Brand | KW Tech NZ |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Industrial PCs |
| Weight | 3.64 kg |
| Warranty |
|---|
