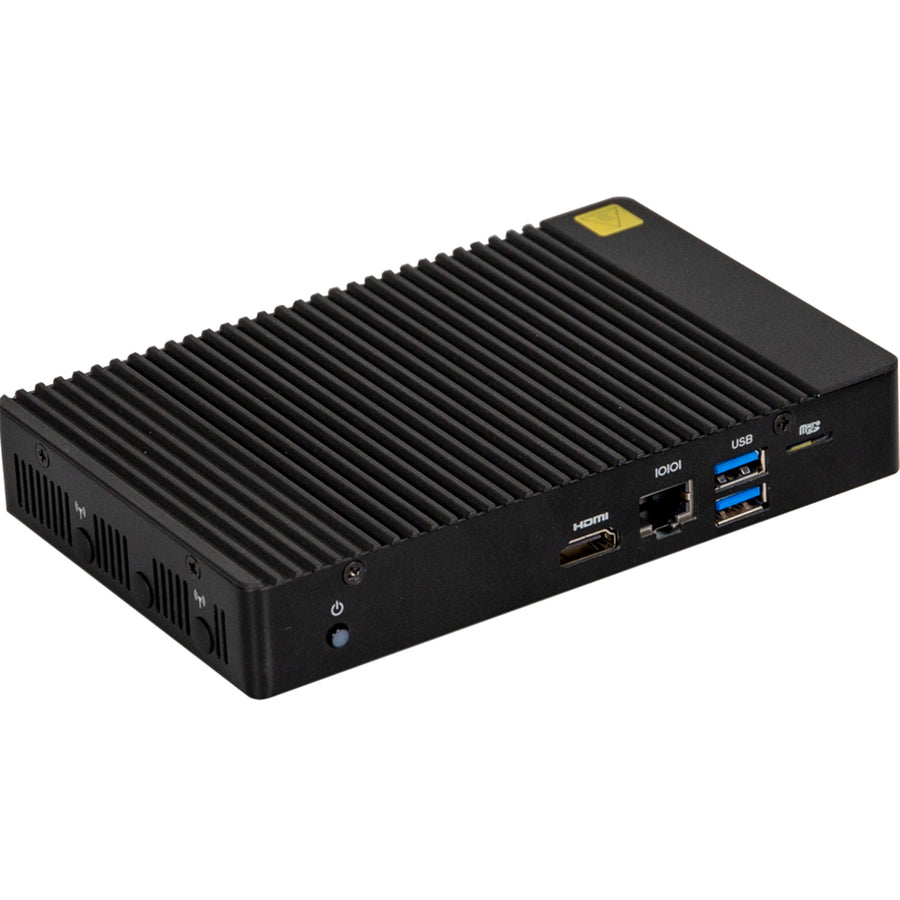

6BQSN150AMR-SI - Industrial system with Intel® Processor N150 / 3 x HDMI / 2 x LAN Ports/ 1 x COM
Features
Industrial system with Intel® Processor N150
System Size : 165W x 105D x 27H (mm)
Intel® Processor N150
Single Channel DDR5, 1 x SO-DIMM
3 x HDMI for Multiple display (2 Ports support CEC)
2 x GbE LAN Ports
Support Micro SD Card
Support COM (RS-232 mode, pass through RJ45 Port)
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a KW Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Your can
Specifications
Technical Specifications
| Dimension | 165W x 105D x 27H (mm) |
|---|---|
| CPU | Intel® Processor N150Intel 7, 4 cores, up to 3.60 GHz |
| Memory | 1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GBSupport Single Channel DDR5 4800 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Realtek® RTL8111H) |
| Graphics Support | Integrated Graphics Processor -Intel® Graphics:3 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz (HDMI 1 & 2 port support CEC)(3 independent display outputs) |
| Audio | Realtek® ALC269 |
| Expansion-Slots | 1 x 2280 M.2 M-Key (PCIe Gen3x1, SATA 6Gb/s)1 x 2230 M.2 E-Key1 x 3042 M.2 B-key with SIM Slot (support 3G/4G LTE module) |
| Front I/O | 2 x USB 3.2 Gen 11 x COM Port (RS-232)(RJ45 Type)1 x Micro SD card slot (USB 2.0)1 x Power button1 x HDMI |

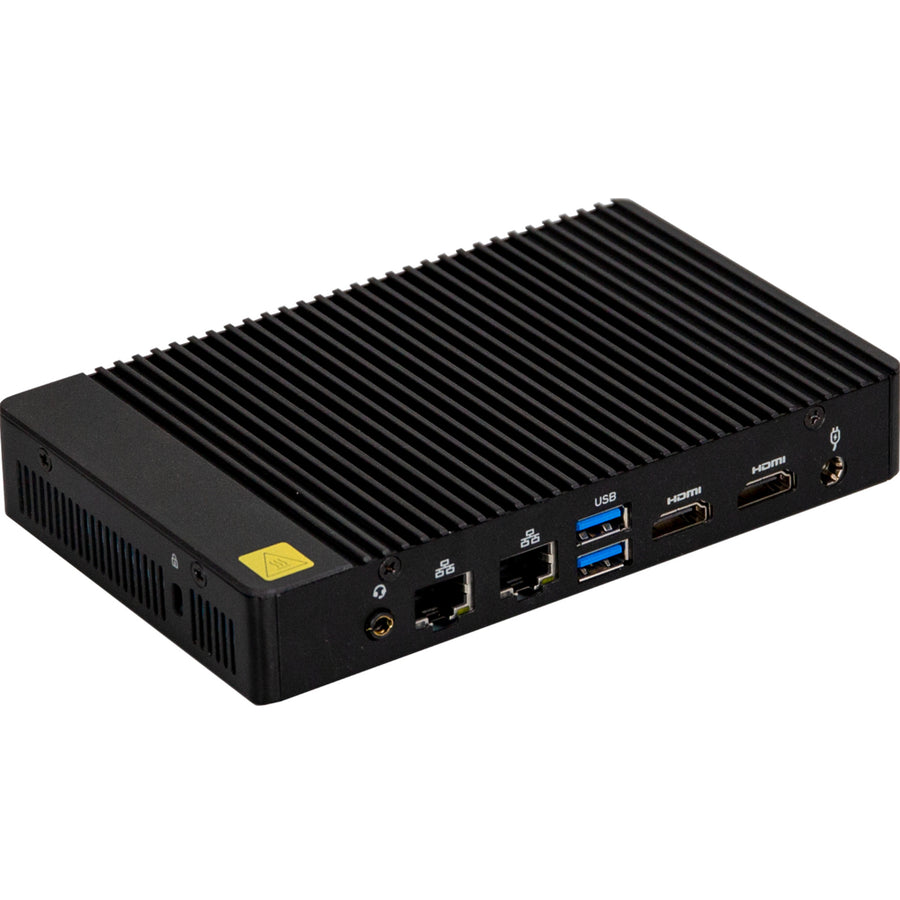

| Rear l/O | 1 x Combo audio jack (Headphone & Headset)2 x RJ45 LAN Ports2 x USB 3.2 Gen 12 x HDMI1 x DC Jack |
| Side I/O | 3 x External Antenna Holes (Optional) |
| Power | +12~19VDC (Adapter 19V/65W) |
| Operation Temperature | Operating temperature: 0°C to 50°COperating humidity: 50°C @ 20-95% (non-condensing)Non-operating temperature: -40°C to 85°CNon-operating humidity: 85°C @ 95% (non-condensing) |
| Vibration During Operation | Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packing Content | Carton size: 416 x 359 x 257 (mm)Packing Capacity: 10pcsSingle Box size: 209 x 169 x 75 (mm)Single Box weight: Approx. 1.5kg |
| Including: | Power Cord : Optional (by region)PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065V-A3S)RJ45 to D-SUB Cable #24 150mm x 1 (P/N: 25CR0-150402-S9R)VESA Mount Bracket x 1 (P/N: 25HB1-TPL021-S8R)VESA Mount screws x 1 (P/N: 25KSD-000002-C0R) |
| Order Information | System: 6BQSN150AMR-SI (Box packing) |
| Brand | KW Tech NZ |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Industrial PCs |
| Weight | 0.65 kg |
| Warranty |
|---|
