9MTGU5ALMR-SI - Intel® Smart Display Module with Intel® 11th Generation Core™ i5-1135G7 Processor
Features

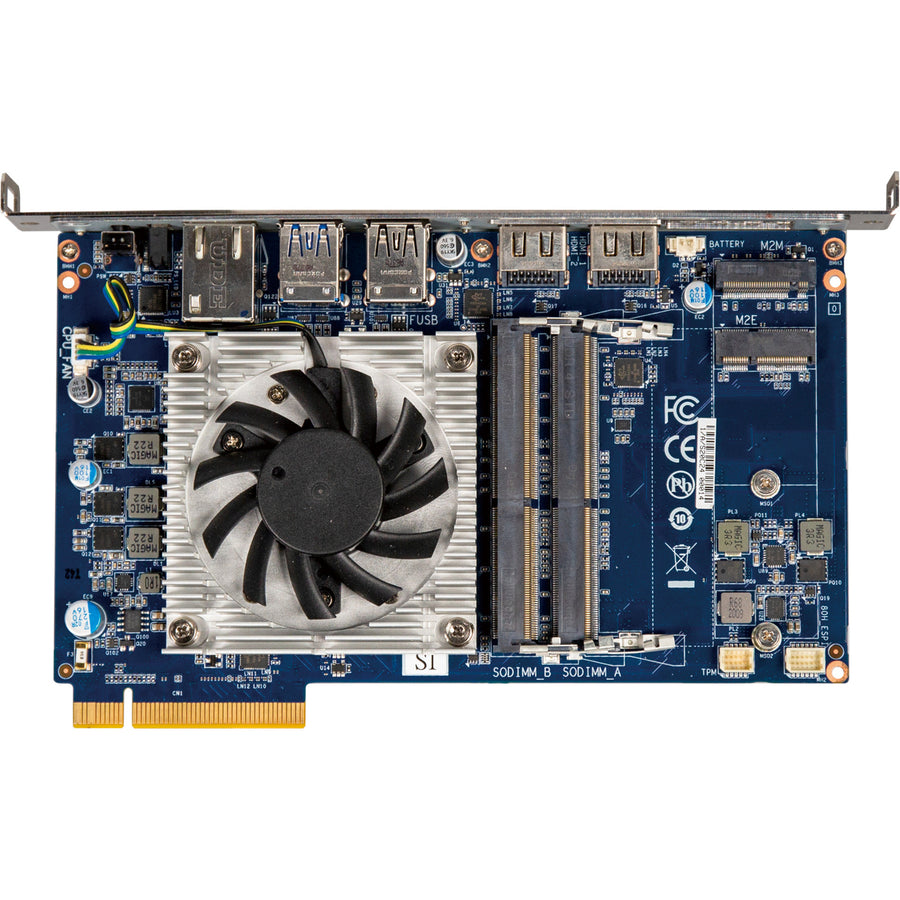

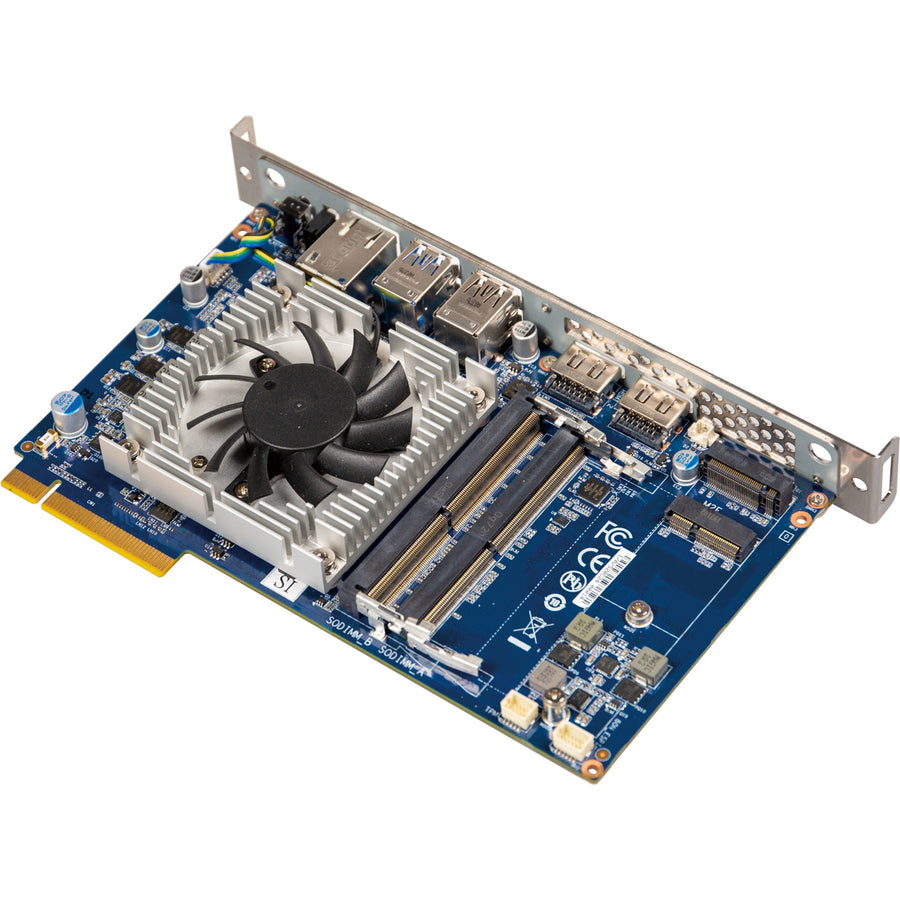

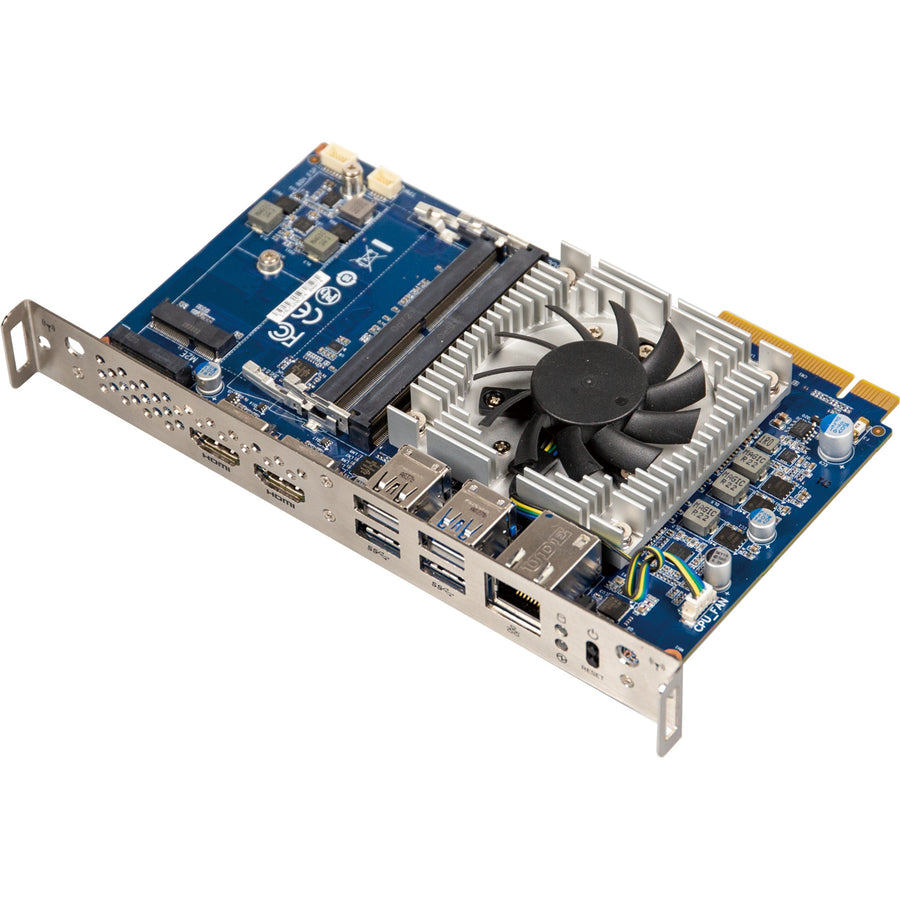

GigaIPC Intel® Smart Display Module with Intel® 11th Generation Core™ i5-1135G7 Processor
SDM-1135G7L is the latest Intel® Smart Display Module (SDM) powered by 11th generation Intel® Core™ i5-1135G7 processor and Intel® Iris Xe Graphics to support 4 x display outputs up to 4K solutions on Interactive Whiteboard, digital signage, menu board, broadcasting display system...etc in smart retail market.
It provides adequate I/O ports of 1 x GbE LAN Port, 3 x USB 3.2 Gen 1, 1 x USB 2.0 port, and enable choices of optional memory speed and capacity, various storage and WiFi module through M.2 connectors, and mostly important, 4 x 4K display outputs via 1 x HDMI, 1 x DP, and 2 x HDMI ports in the rear I/O. This all-in-one display module is perfect for SDM-complaint display monitor for space-limited environment, all you need to do is plug and play, easy installation as it is!!! In case any hardware failure or upgrade request, it can be easily removed or replaced without any complicated process. Users can also update media contents or software through Internet connectivity remotely to save time and costs.
- Intel® Core™ i5-1135G7 Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 1 x GbE LAN Port
- 3 x USB 3.2 Gen 1
- 1 x USB 2.0
- Environment : Operation 0°C to 55°C
- Support 4K/60Hz, HDCP v2.2
Specifications
Technical Specifications
| Form Factor | SDM-Large175W x 100D(mm) |
|---|---|
| CPU | Intel® Core™ i5-1135G7 Processor10nm SuperFin, 4 cores, 8 threads, up to 4.20 GHzTDP 28W |
| Socket | 1 x FCBGA1449 |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GBSupport Dual Channel DDR4 3200 MHz memory modules |
| Ethernet | 1 x GbE LAN Port (Intel® I219V) |
| Video | Integrated Graphics Processor - Intel® Iris X? Graphics:1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz1 x Display Port (SDM), supporting a maximum resolution of 4096x2160 @60Hz2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz(4 independent display outputs) |
| Audio | Intel® Integrated Audio |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)1 x 2230 M.2 E-Key |

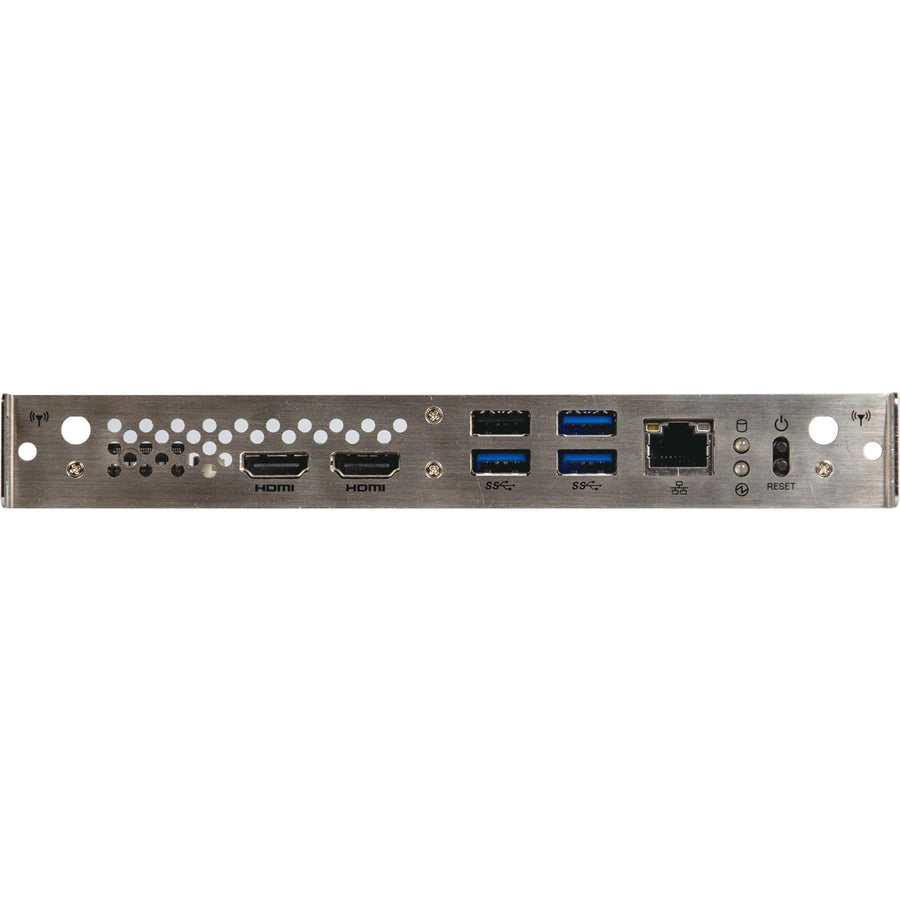

| Rear l/O | 2 x HDMI1 x RJ45 LAN Port3 x USB 3.2 Gen 11 x USB 2.01 x PWR LED1 x HDD LED2 x External Antenna Holes (Optional)1 x Reset button1 x Power button |
| TPM | 1 x TPM header |
| OS Compatibility | Windows® 10 (x64) |
| Operating Properties | Operating temperature: 0°C to 55°COperating humidity: 0%-90% (non-condensing)Non-operating temperature: -40°C to 85°CNon-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 465 x 351 x 217 (mm)Packing Capacity: 10pcsSingle Box size: 221 x 178 x 65 (mm)Single Box weight: Approx. 0.46kgIncluding:Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R) |
| Order Information | 9MTGU5ALMR-SI (Box packing) |
| Optional Kit | TPM 2.0 module P/N: 9CTM010NR-00TPM Cable P/N: 25CRZ-100600-S9RInternal Wi-Fi Cable P/N: 25CA0-090004-A5S (90mm) *1 + 25CA0-280003-A5S (280mm) *1External Wi-Fi 5 Antenna P/N: 25CA0-112001-A5S *2External Wi-Fi 6/6E Antenna P/N: 25CA0-163002-A5S *2Followings are the optional components to be purchased only when choosing M.2 NVMe SSD for SKU combination:DIMM2 PAD P/N: 25ST3-200086-T5R*1M.2 Standoff P/N: 12KSF-F10303-20R*1M.2 Screw P/N: 25KSG-130048-S0R*1M.2 Bracket P/N: 25ST1-1231Z0-S7R*1 |
| Brand | KW Tech NZ |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Industrial PCs |
| Weight | 1.0 kg |
| Warranty |
|---|
