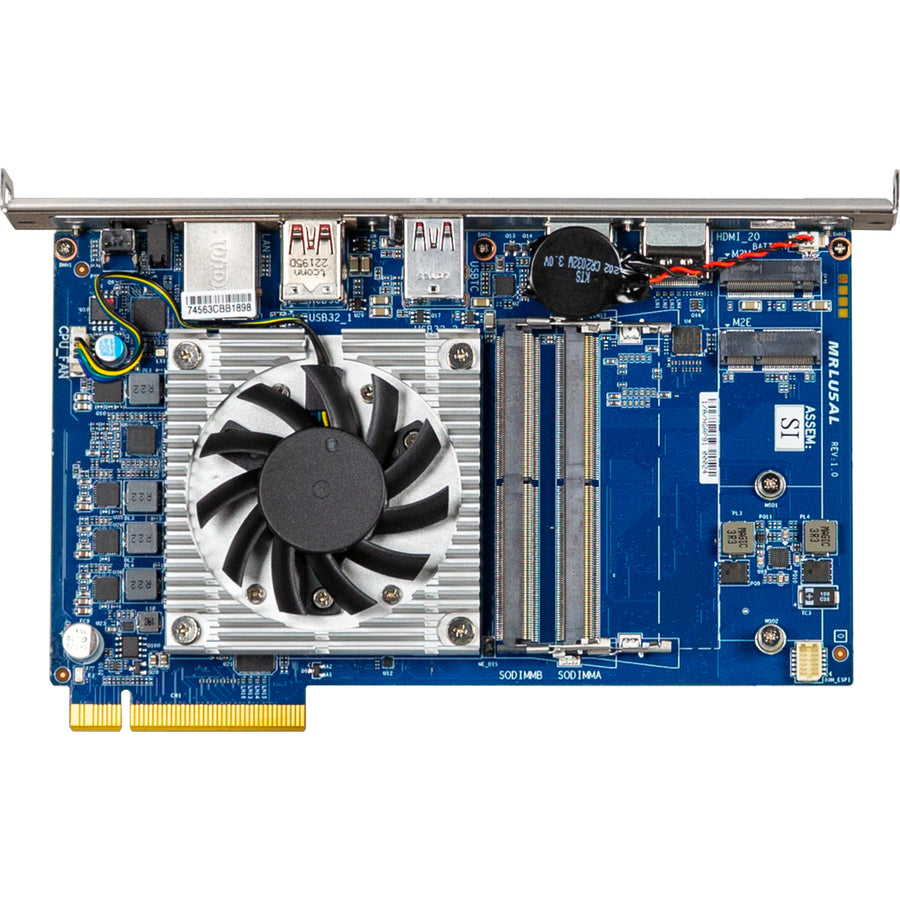

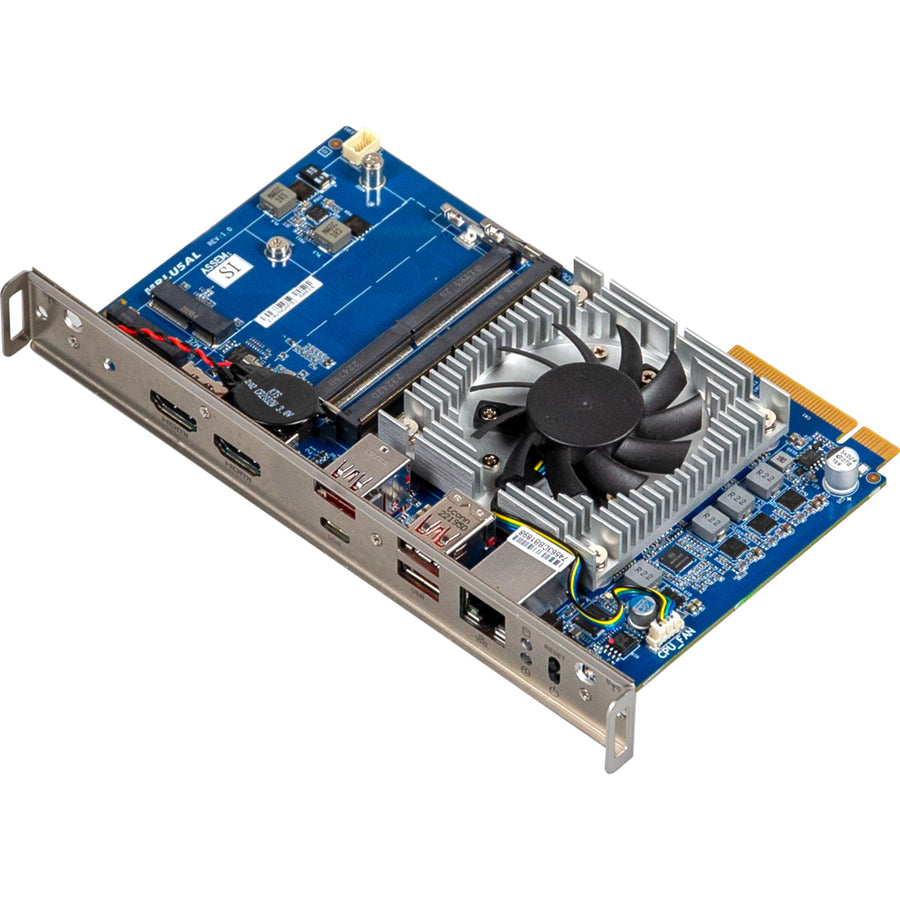

9MRLU5ALMR-SI - Intel® Smart Display Module with Intel® 13th Generation Core™ i5-1335U Processor
Features
GigaIPC Intel® Smart Display Module with Intel® 13th Generation Core™ i5-1335U Processor
- 8K Smart Display Module (SDM)
- Intel® Core™ i5-1335U Processor
- Dual Channel DDR5, 2 x SO-DIMMs
- 1 x 2.5GbE LAN Port
- 3 x USB 3.2 Type A Gen 2x1
- 1 x USB 3.2 Type C Gen 2x1 (with DP output)
- Environment : Operation 0°C to 55°C
Advanced Display Technology
The GigaIPC Intel® Smart Display Module (SDM) introduces next-generation display technology tailored for demanding signage and commercial display applications. Featuring an impressive 8K display capability, this SDM supports ultra-high-definition visuals, making it ideal for applications that require exceptional image clarity and detail. The standardized SDM form factor ensures effortless integration into compatible monitors and digital signage systems, streamlining deployment and maintenance.
Cutting-Edge Processing Power
At the heart of this module lies the Intel® 13th Generation Core™ i5-1335U Processor, providing robust performance for multitasking, media playback, and advanced analytical tasks. This processor utilizes the latest Intel architecture, delivering energy efficiency and rapid response times, perfectly suited for interactive and intelligent display systems.
High-Performance Memory Support
The module is equipped with dual-channel DDR5 memory support, featuring two SO-DIMM slots. This configuration not only ensures high data transfer rates but also improves multitasking capabilities and overall system responsiveness. DDR5 technology provides a significant leap over previous generations in terms of speed and energy efficiency.
Comprehensive Connectivity
To cater to varied connectivity needs, the SDM includes one 2.5GbE LAN port for fast and reliable network access, addressing bandwidth-intensive applications with ease. Additionally, users benefit from three USB 3.2 Type A Gen 2x1 ports for fast device connection and data transfers, alongside a versatile USB 3.2 Type C Gen 2x1 port, which also supports DP output for expanded display options.
Rugged and Flexible Operations
Designed for stability and resilience, the Smart Display Module operates reliably within a temperature range of 0°C to 55°C. This broad operational envelope ensures continuous functionality across diverse environments-from indoor commercial venues to industrial settings-making it suitable for a wide spectrum of deployment scenarios.
Specifications
Technical Specifications
| Form Factor | SDM-Large175W x 100D(mm) |
|---|---|
| CPU | Intel® Core™ i5-1335U ProcessorIntel® 7, 10 cores, 2P+8E, 12 threads, up to 4.6 GHzTDP 15W12 MB Smart Cache |
| Socket | 1 x FCBGA1744 |
| Memory | 2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GBSupport Dual Channel DDR5 5200 MHz memory modules |
| Ethernet | 1 x 2.5GbE LAN Port (Intel® I225LM) |
| Video | Integrated Graphics Processor - Intel® Iris Xe Graphics:1 x HDMI 2.1 (SDM), supporting a maximum resolution of 7680x4320 @60Hz1 x Display Port 1.4a (SDM), supporting a maximum resolution of 7680x4320 @60Hz1 x HDMI 2.1 (Rear), supporting a maximum resolution of 7680x4320 @60Hz1 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @60Hz(4 independent display outputs) |
| Audio | Intel® Integrated Audio |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe Gen 4x4)1 x 2230 M.2 E-Key |

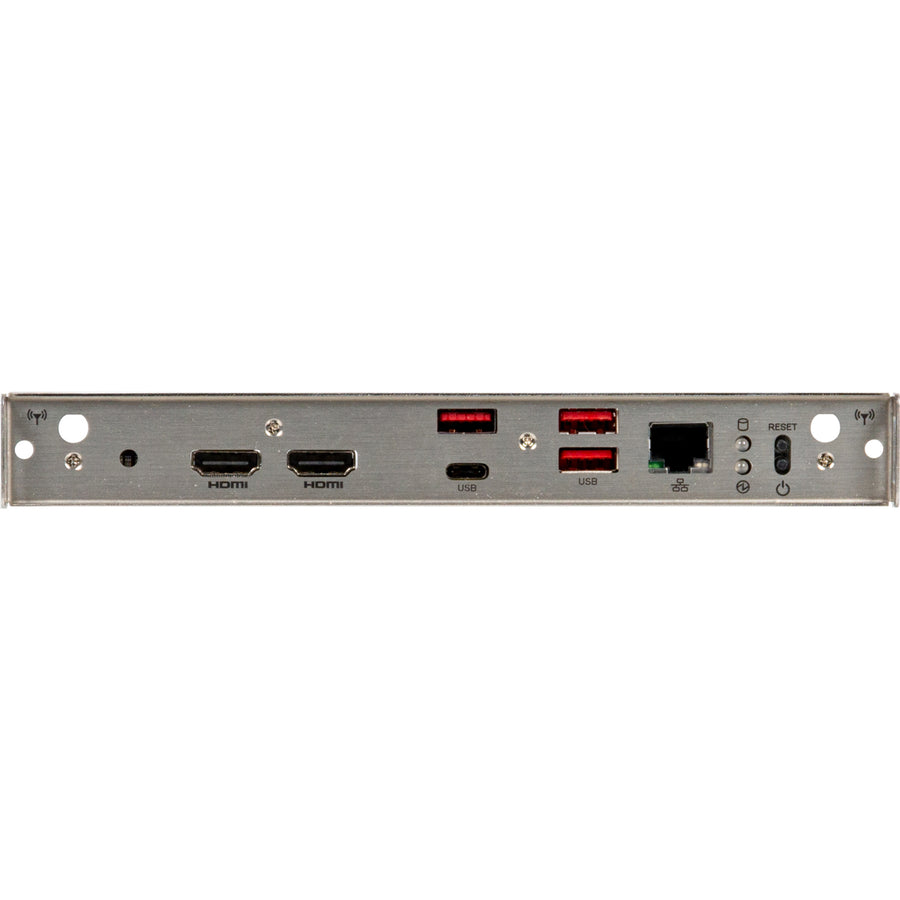

| Rear l/O | 2 x HDMI1 x RJ45 LAN Port3 x USB 3.2 Type A Gen 2x11 x USB 3.2 Type C Gen 2x1 (with DP output)1 x PWR LED1 x HDD LED2 x External Antenna Holes (Optional)1 x Reset button1 x Power button |
| TPM | Onboard TPM 2.0 security chipINFINEON SLB9670VQ2.0 |
| OS Compatibility | Windows 10/11 (x64) |
| Operating Properties | Operating temperature: 0°C to +55°COperating humidity: 0%-90% (non-condensing)Non-operating temperature: -40°C to +85°CNon-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 465 x 351 x 217 (mm)Packing Capacity: 10pcsSingle Box size: 221 x 178 x 65 (mm)Single Box weight: Approx. 0.46kgIncluding:Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)Followings are the optional components to be purchased only when choosing M.2 NVMe SSD for SKU combination:DIMM2 PAD P/N: 25ST3-200086-T5R*1M.2 Standoff P/N: 12KSF-F10303-20R*1M.2 Screw P/N: 25KSG-130048-S0R*1M.2 Bracket P/N: 25ST1-1231Z0-S7R*1 |
| Order Information | 9MRLU5ALMR-SI (Box packing) |
| Optional Kit | Internal Wi-Fi Cable P/N: 25CA0-090004-A5S (90mm) *1 + 25CA0-280003-A5S (280mm) *1External Wi-Fi 5 Antenna P/N: 25CA0-112001-A5S *2External Wi-Fi 6/6E Antenna P/N: 25CA0-163002-A5S *2 |
| Brand | KW Tech NZ |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Industrial PCs |
| Weight | 1.0 kg |
