-11%

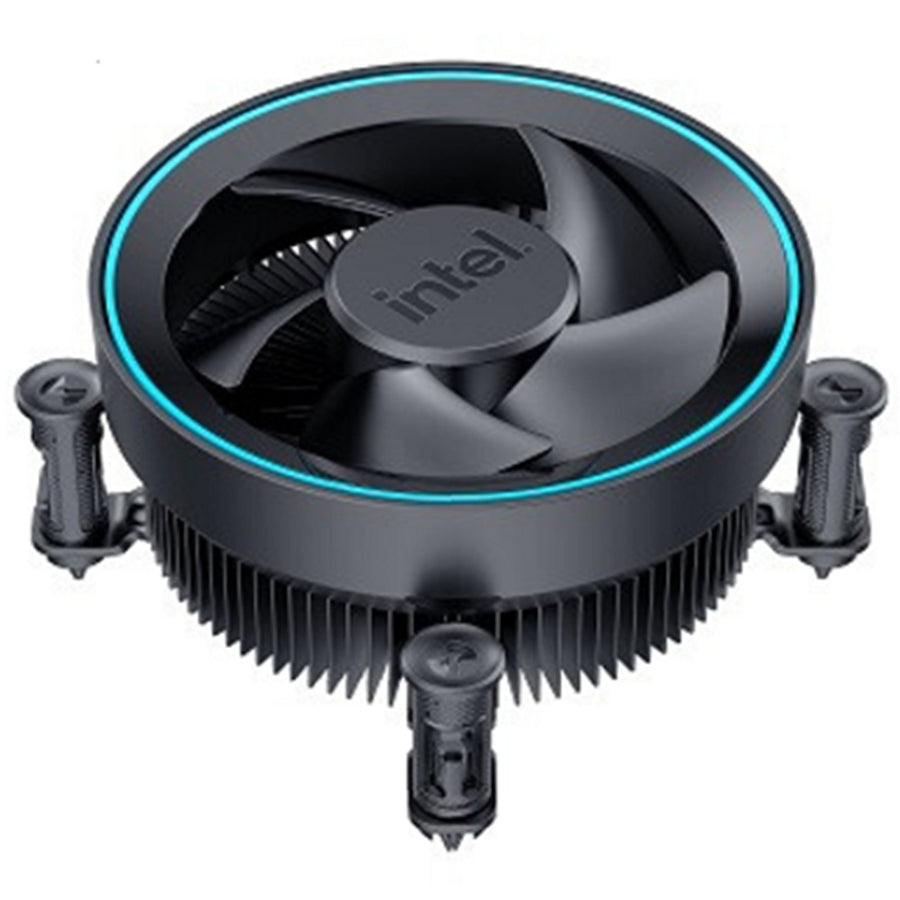

Intel Original CPU Fan ( OEM Package ) for Socket LGA1851

Name: Intel Original CPU Fan ( OEM Package ) for Socket LGA1851
Brand: Intel
SKU: FANINT1851
Price: 10.12 NZD
Availability: InStock

SKU: FANINT1851 ● In Stock

$8.80~~$9.90~~

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

Intel® Laminar RM2 Cooler

- Standard size
- 3.6 BA Quiet Performance
- Intel Validated Compatibility

Specifications

Technical Specifications

Heatsink fin material	Aluminum
Heatsink base/core material	Copper
Overall Height	Up to 47mm (top of fan to bottom of heatsink)
Overall Size	Up to 100mm x 100mm
Mass	Up to 340g
Sound Power Level	3.6 BA (2400 RPM, 40C inlet, 65W); 4.6 BA (max RPM)
Sound Pressure Level	30 dBA (2400 RPM, 40C inlet, 65W)
Plastic	8% Post Consumer Recycled Plastic, including Ocean BoundPlastic
TDP Support	65W
Fan Type	PWM controlled variable speed fan
Connector Type	4-pin
Operating Voltage	13.2V max, 12.0V rated, 10.8V min
Current (peak)	Up to 400mA
Max RPM (+/- 5%)	Up to 3250 RPM
Min RPM (+/- 20%)	600 RPM
Operating Temp	0 to 70C
Operating Humidity	85% relative humidity @ 55C
Fan Protection	Locked-rotor/polarity protected
Sense Frequency	2 pulses/Rev, 12V pull-up with 10Kohm
PWM Frequency	25KHz +/- 5KHz
PWM Pull-up Voltage	5.25V max
PWM Duty Cycle Range	0-100%
