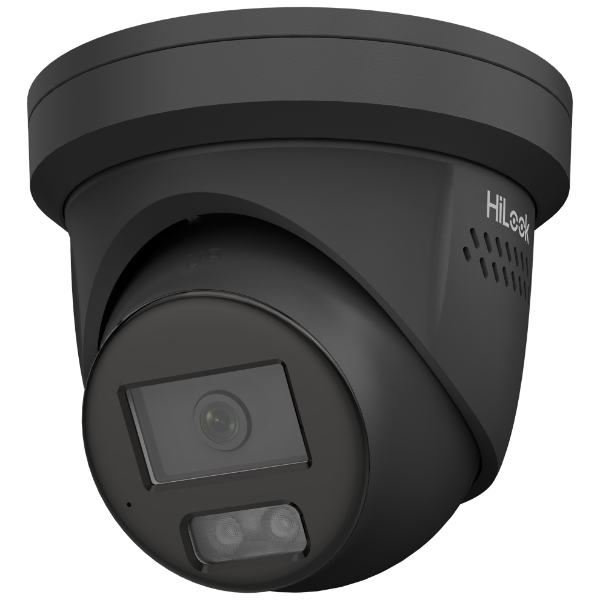

HiLook IPC-T269H-MU-4-B - 6MP IP Fixed Turret Camera w/ Active Colour Deterrence Strobe Light & Audio Alarm 4
HiLook

HiLook IPC-T269H-MU-4-B - 6MP IP Fixed Turret Camera w/ Active Colour Deterrence Strobe Light & Audio Alarm 4

SKU: IPC-T269H-MU-4-B ● In Stock
$260.86
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

6 MP All-in-One Fixed Turret Network Camera

- High quality imaging with 6 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Human and vehicle targets classification based on deep learning
- Active red and blue strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- 24/7 colorful imaging
- Smart Dual -light Supplement,auto switch IR to White light supplement when event triggered
- Water and dust resistant (IP67)

Specifications

Technical Specifications

Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 x 1800
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),0 Lux with white light B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens Type Fixed lens, 2.8 mm
Iris Type Fixed
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
Aperture F1.6
Lens Mount M12
Supplement Light Type White light & IR
Supplement Light Range IR Range: Up to 30m ; White light Range: Up to 30m
Smart Supplement Light Yes
Main Stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),*Third stream is supported under certain settings.
Main stream H.265+/H.265/H.264+/H.264,
Sub-stream H.265/H.264/MJPEG,Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region Of Interest (ROI) 1 fixed region(s) for main stream and sub-stream
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/Host Up to 32 users 3 levels: administrator, operator, and user
Network Storage Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200,Hik-Connect
Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance ajustable by client sfotware or web browser
Privacy Mask 4 regions of privacy masks
Wide Dynamic Range (WDR) 120 dB
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Audio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium
Built-In Microphone Yes
Built-In Speaker Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB
On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Key Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event Line crossing detection(human and vehicle targets classification)
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password protection, password reset via email
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power 12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 9.7 W
Material Metal except for trim ring
Dimension Ø 138.3 mm× 112.1 mm (Ø 5.4" × 4.4")
Package Dimension 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight Approx. 820 g (1.8 lb.)
With Package Weight Approx. 1150 g (2.5 lb.)
EMC FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
Environment CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
