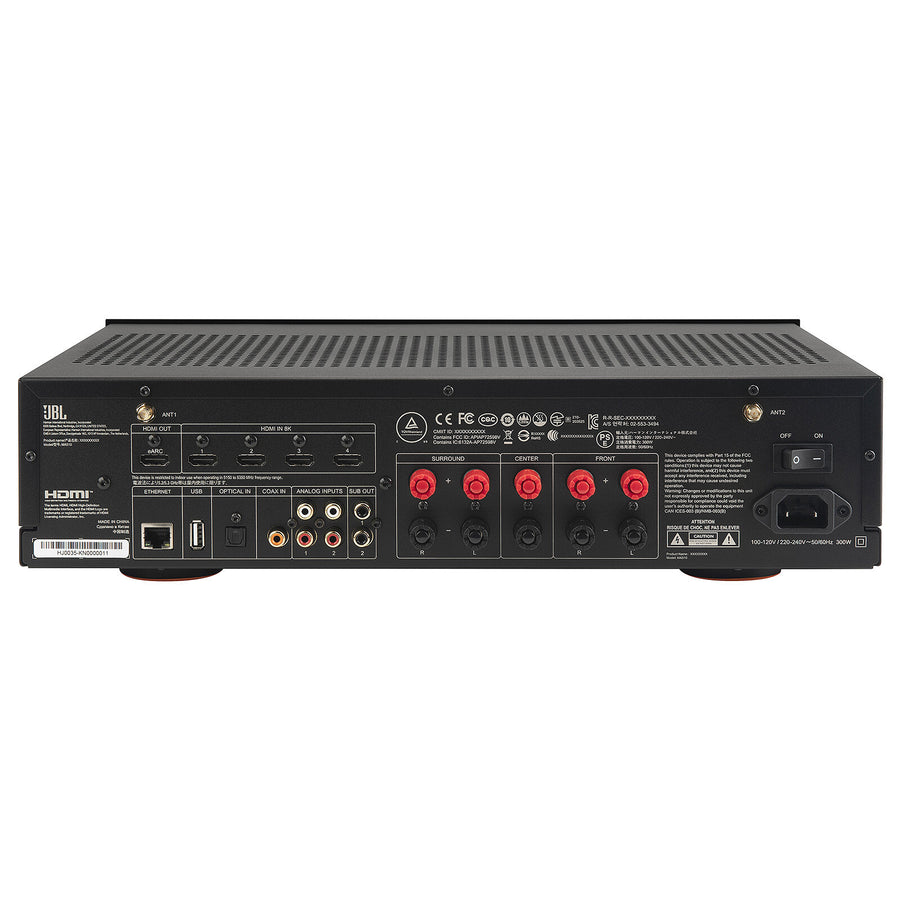

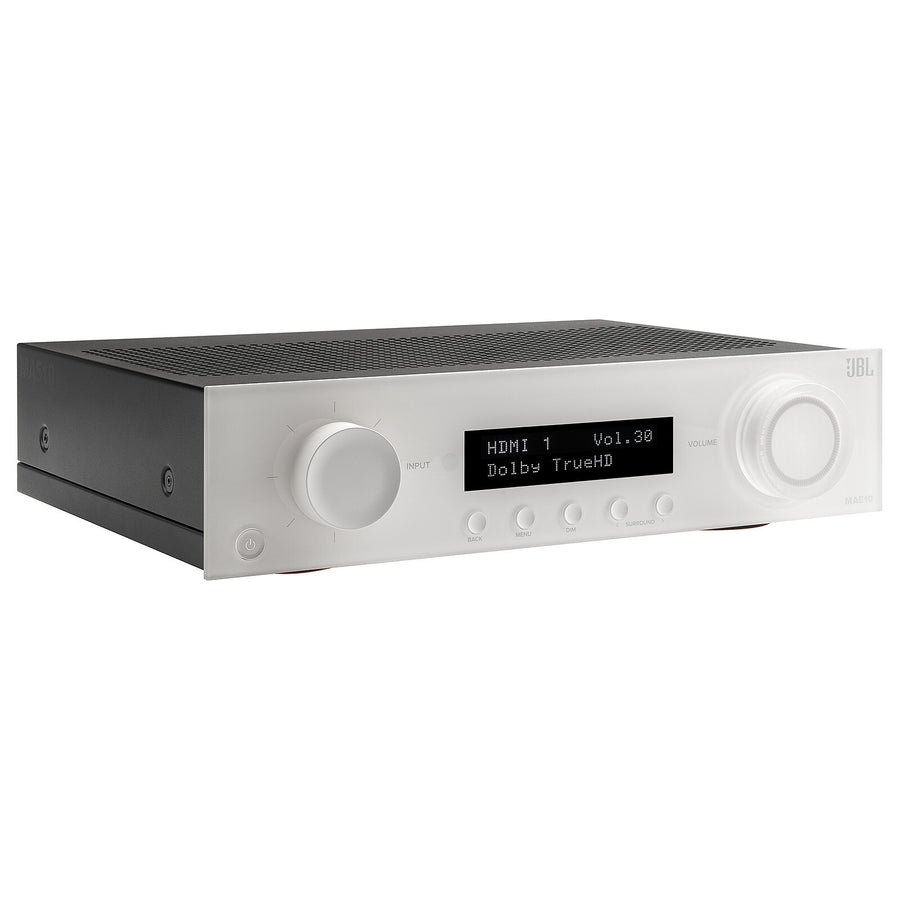

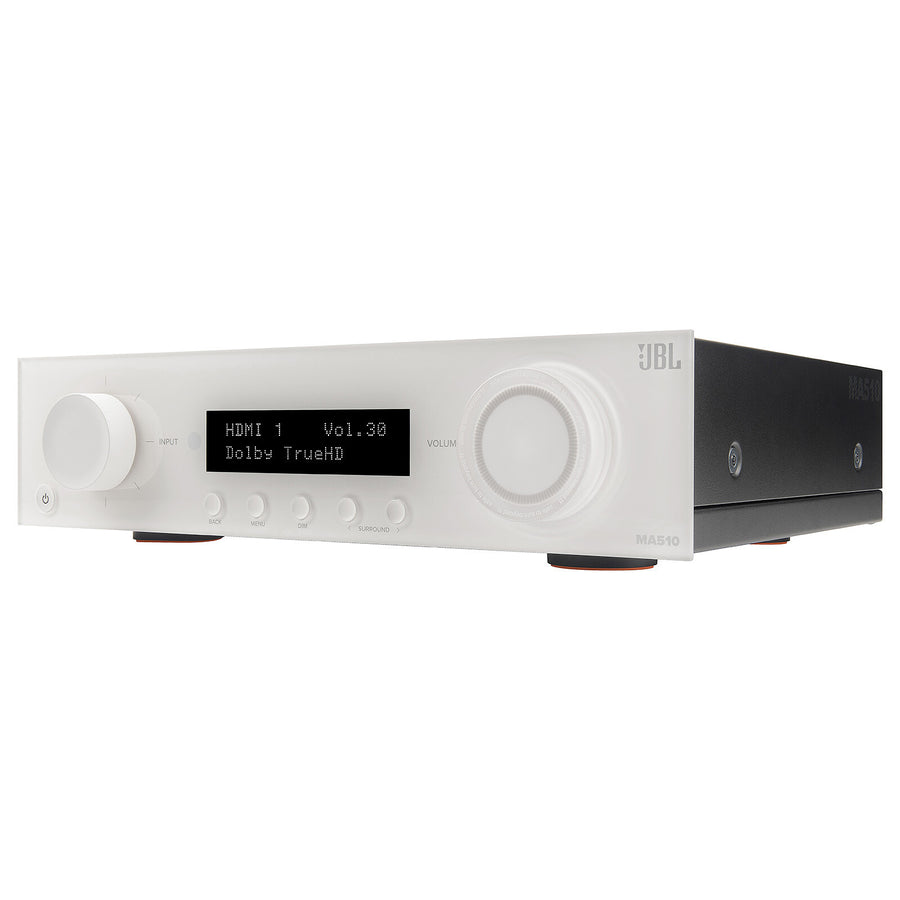

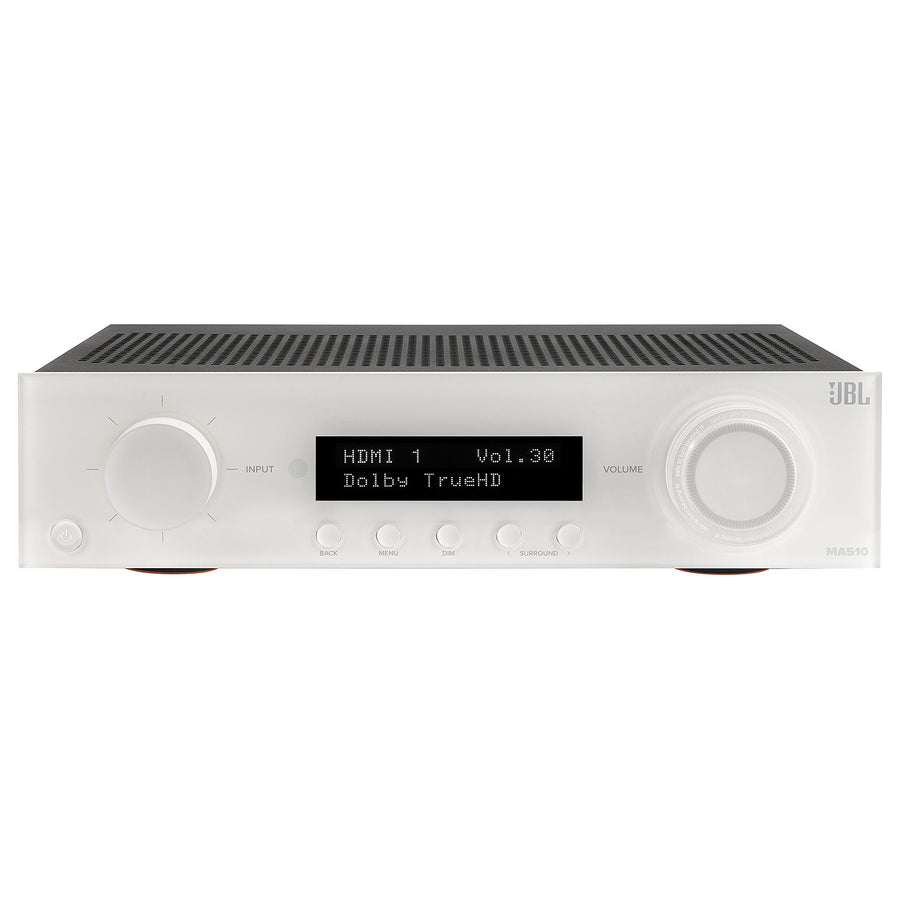

JBL MA510 5.2 Channel 8K AV Receiver - White
Features
Bring both music and movies to life with true high fidelity.
The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.
Spectacular audio and video performance
5.2-channel AV receiver that delivers spectacular audio performance with 8K video for the ultimate home cinema experience.
Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus eARC.
High-performance immersive surround sound
Native 5-channel decoding of Dolby and DTS formats.
Specifications
Technical Specifications
| HDMI eARC | Yes |
|---|---|
| HDMI Audio Return Channel | Yes |
| 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) | 4 |
| HDMI 2.1 enhanced gaming features | Gaming-VRR, ALLM, QFT, HFR (4K @ 120Hz) |
| HDR 10+, Dolby Vision | Yes , Yes |
| File format | MP3 / MPEG-4 AAC |
| Pure Direct | Yes |
| EZ Set EQ | Yes |
| Digital signal processing | up to 24-bit/192kHz |
| Mains voltage | 110 - 240V, 50-60Hz |
| Max. power consumption | 300W |
| Standby power consumption | <0.5W |
| Channels | 5.2 |
| FTC Rated Output Power (20Hz- 20kHz, 2 channels driven, 1% THD max, 8O) | 75W |
| Rated Power @ 8O (20Hz - 20kHz, 2 channels driven, 0.5% THD max) | 75 W RMS |
| Rated Power @ 4O (20Hz - 20kHz, 2 channels driven, 0.5% THD max) | 100 W RMS |
| Dimensions incl. feet and speaker terminals (H x W x D) | 4.3" x 17.0" x 13.7" (109.2mm x 432.0mm x 347.6mm) |
| Weight | 12lb (5.4kg) |
| HDMI Input/Output | 4 / 1 |
| Wi-Fi | Yes (2.4/5GHz) |
| Bluetooth receiver | Yes (v4.1, Low Energy) |
| Digital Audio Input | 1 Coax, 1 Optical, 1 USB |
| Stereo analog input | 2 single-ended RCA |
| Pre-Out (single ended RCA) | Subwoofer 1, Subwoofer 2 |
| Ethernet | RJ45 Gigabit, WiFi Onboard |

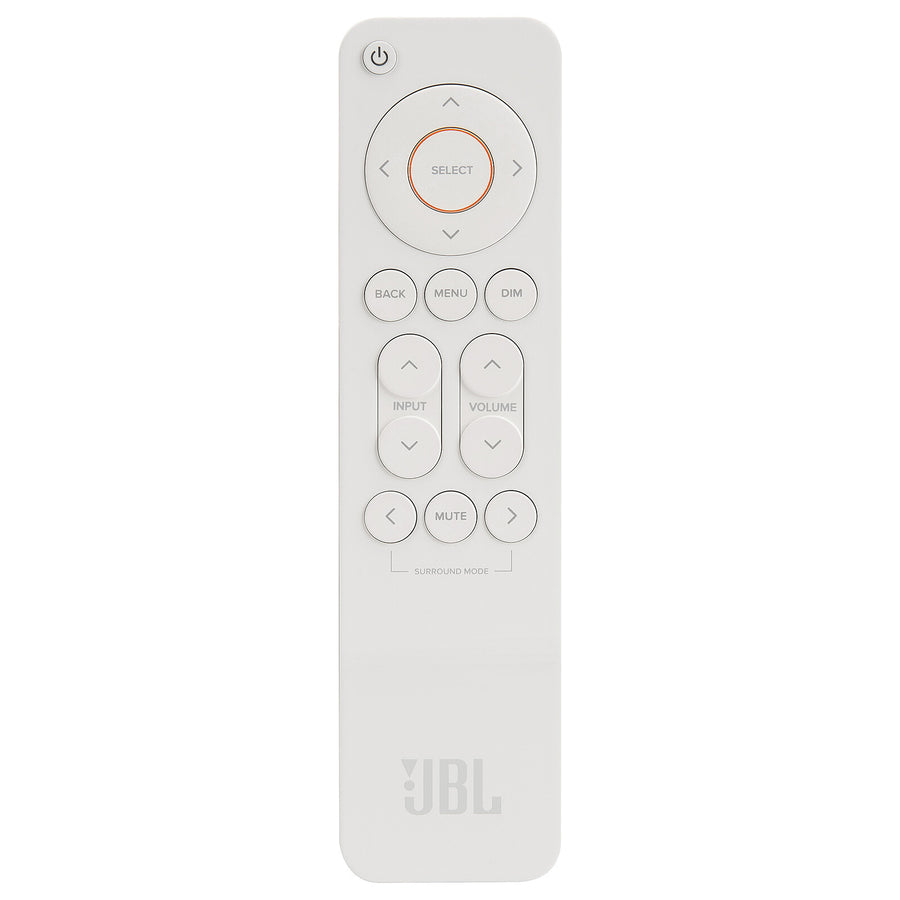

| Contains | 1x IR Remote2x AAA batteries1x Bluetooth antenna1x Wi-Fi antenna1x Power Cord1x Quick-Start Guide1x Safety Sheet |
| Brand | JBL |
|---|---|
| Weight | 9.0 kg |
| Warranty |
|---|
