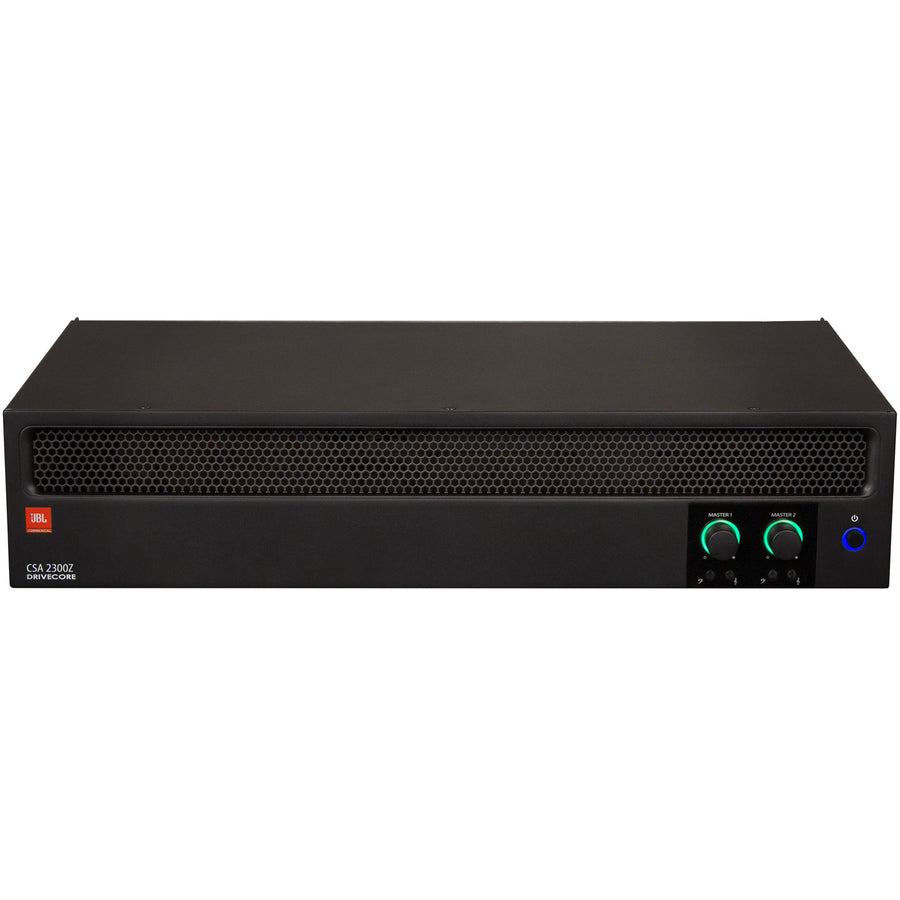

JBL PROFESSIONAL CSA2300Z - 2 X 300W COMMERCIAL AUDIO AMPLIFIER
JBL PROFESSIONAL CSA2300Z - 2 X 300W COMMERCIAL AUDIO AMPLIFIER
Features
300-Watt 2-Channel Commercial Power Amplifier
By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.
The efficient performance of Crown's DriveCore™ Technology continues to set new standards in commercial power amplifier technology.
Simple to configure, the Commercial Series amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.
Supporting 70V and 100V installations out of the box, Commercial Series amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls.
And with HARMAN's GreenEdge™ environmental initiative, Commercial Series amps quickly pay for themselves in energy savings.
- 2 channel 300W output
- Built-in 70V and 100V
- Space-saving 2 RU design
- Sleep mode disable function
- Energy-efficient amplifier
- Sleek industrial look with illuminated rings making knobs easy to see and use
- Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
Specifications
Technical Specifications
| Brand | JBL PRO |
|---|---|
| Manufacturer Part Number | CSA2300Z |
| Dimensions (W x D x H) | 17.0" x 10.8" x 3.5" (432mm x 274mm x 89mm) |
| Weight | Approx. 17.8 lb (8.05 kg) |
| Rated Power into 4ohm or 8ohm; 1kHz, <= 0.5% THD | 300W |
| Number of Output Channels | 2 |
| Insertion Loss (70V & 100V outputs) | 1 dB maximum |
| Input Sensitivity (8ohm Load) | Balanced line input: 775mV RCA Mono Sum input: 300mV |
| Frequency Response (8ohm, 20Hz- 20kHz, tone ctrls set to flat response) | +/- 1.0 dB |
| Total Harmonic Distortion (THD) (@Full rated power, 20Hz-20kHz) | <0.5% |
| Signal-to-Noise Ratio (Ref. rated output, 22KHz BW, A-weighted) | >97dB |
| Input Impedance (nominal) | Euro Block: 20 kohm (balanced); RCA: 10 kohm |
| Maximum Input Level | +22dBu (Nominal) |
| Crosstalk (Ref. rated power, A-weighted, 1kHz) | <-70 dB |
| Tone Controls (Bass and Treble non-detented potentiometers on each channel) | Bass +/-12dB @100HzTreble +/-12dB @10kHz |
| Nominal AC Line Voltages | 100V, 120V, 220V, 230-240V, 50/60 Hz |
| Minimum Load Impedance | Low-Z Output: 4ohm70V Output: 12ohm100V Output: 24ohm |
| Operating Temperature/Humidity | 0°C to 35°C 95% R.H. (non-condensing) |
| Storage Temperature | -20°C to 85°C |
