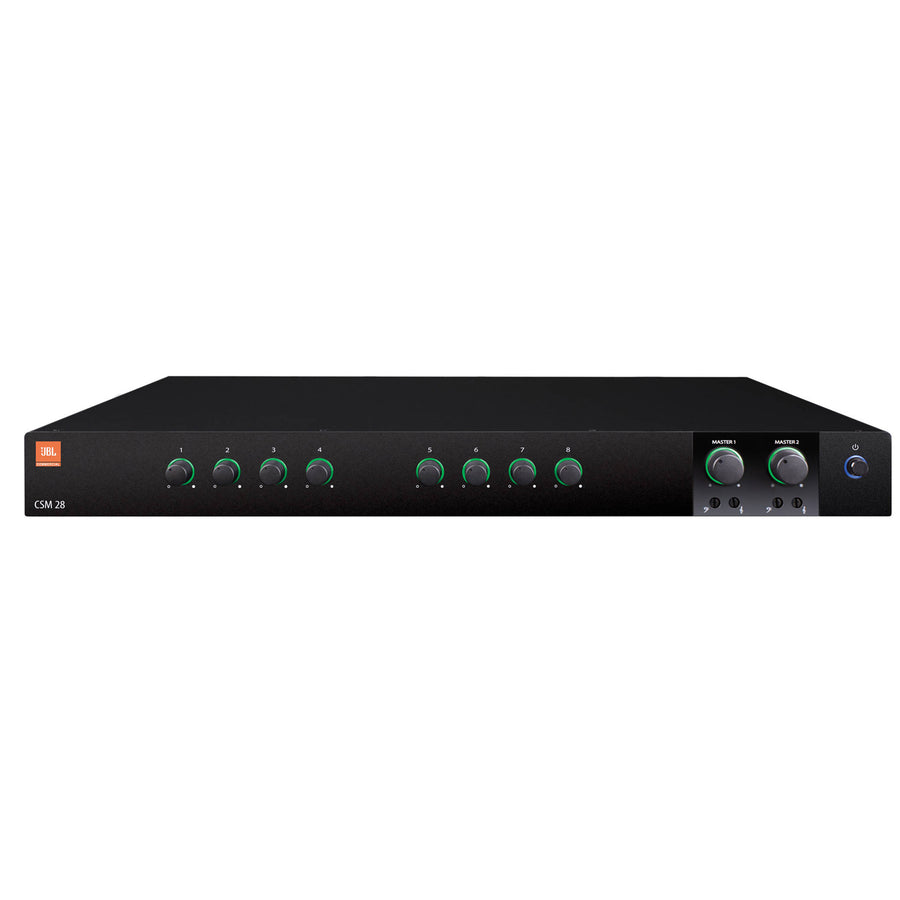

JBL PROFESSIONAL CSM-28 - 8CH 2 ZONE COMMERCIAL RACK MIXER
JBL PROFESSIONAL CSM-28 - 8CH 2 ZONE COMMERCIAL RACK MIXER
Features
Commercial Rack Mixer with 8 inputs and 2 outputs. Fanless 1U design, independent bass/treble controls, GreenEdge energy-efficiency, priority muting, VOX ducking and phantom power on all models.
Backed by the combined technological prowess of multiple HARMAN brands, the JBL® Commercial Series Mixers (CSM) deliver unsurpassed quality in commercial sound.
Easily configured for a range of applications, such as background music, security, and paging, CSM units are designed for everything from schools and hospitals to restaurants and fitness facilities.
They feature RJ45 connectors for use with JBLCSR-V in-wall volume controls, and a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz.
Plus, they're built using HARMAN's GreenEdge™ clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design, and conforming to RoHS standards.
- 8 inputs with 2 channel outputs
- Fanless, space-saving 1U design
- Configurable output routing
- Independent bass/treble controls

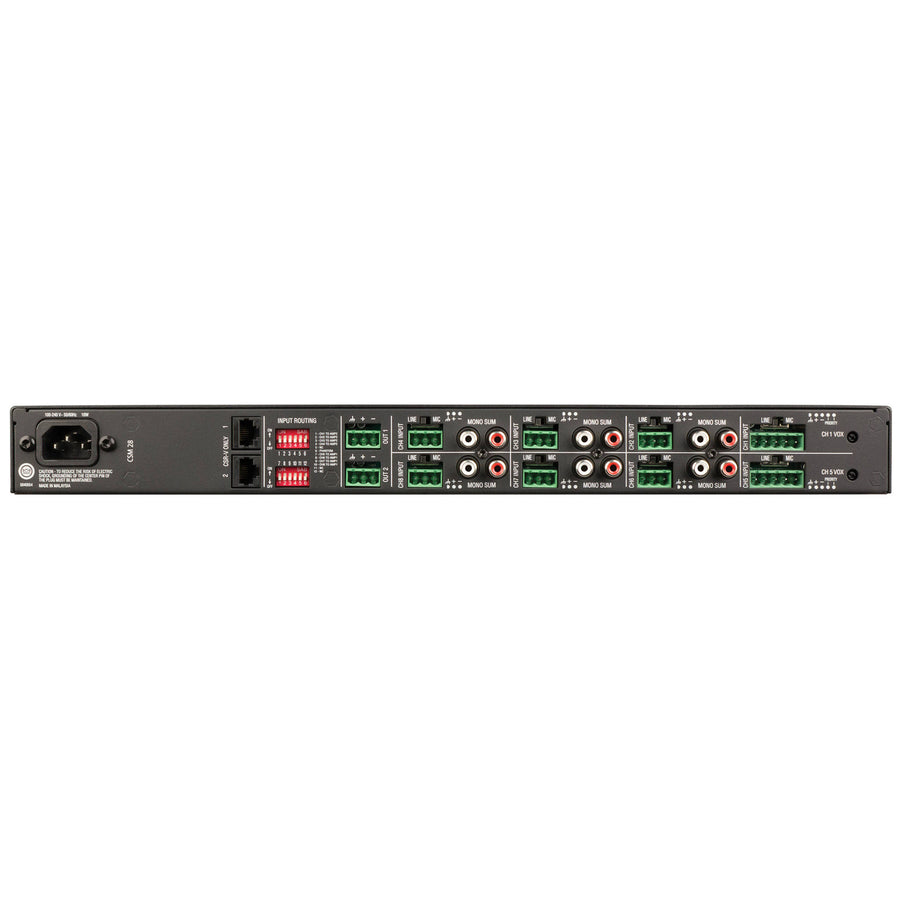

- Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection
- Supports JBL CSR-V wall controller via Ethernet cable
- Priority muting, VOX ducking, and phantom power for all models
Specifications
Technical Specifications
| Manufacturer Part Number | CSM-28 |
|---|---|
| Inputs | 8 |
| Output Channels | 2 |
| Input Sensitivity (Mic) | 3mVrms |
| Input Sensitivity (Line) | 775mVrms |
| Input Sensitivity (RCA) | 300mVrms |
| Phantom Power | 27VDC |
| Priority Muting | Yes |
| Configurable Output Routing | No |
| AC Line Voltage | 100 - 240V, 50/60 Hz |
| Dimensions | 1.7" x 17.2" x 11.9" (43.3mm x 437mm x 303.4mm) |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | JBL PROFESSIONAL |
|---|---|
| Product Type | B2C - Audio & Video |
| Weight | 2.494 kg |
