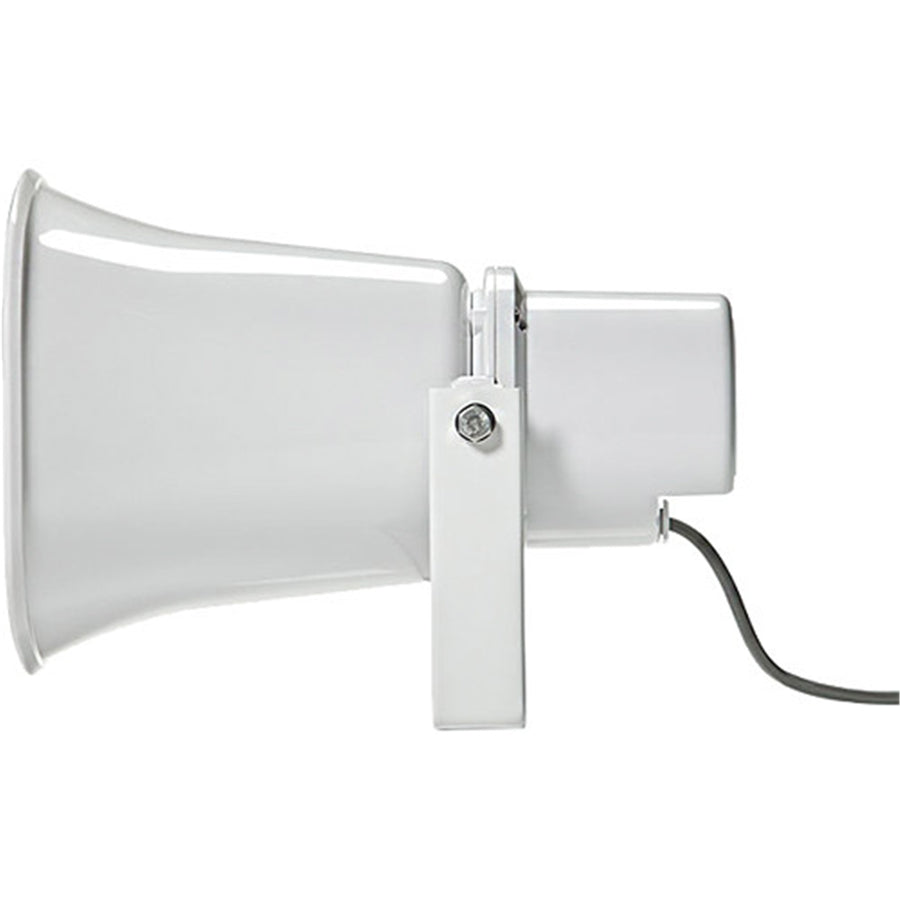

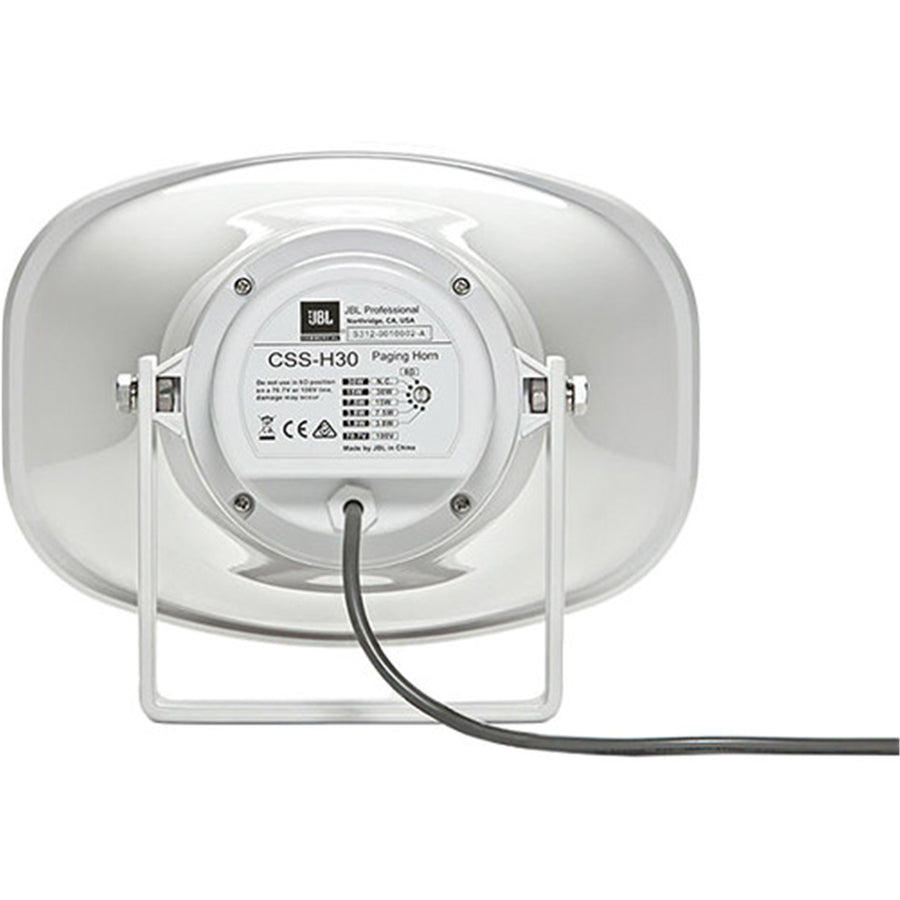

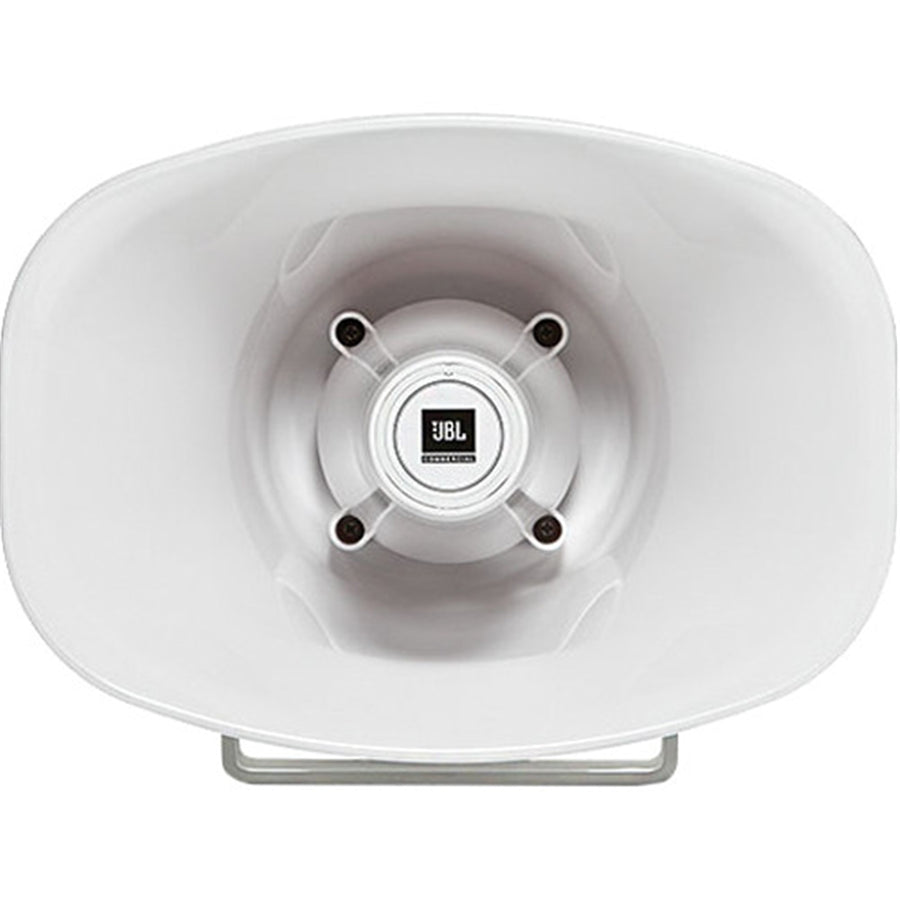

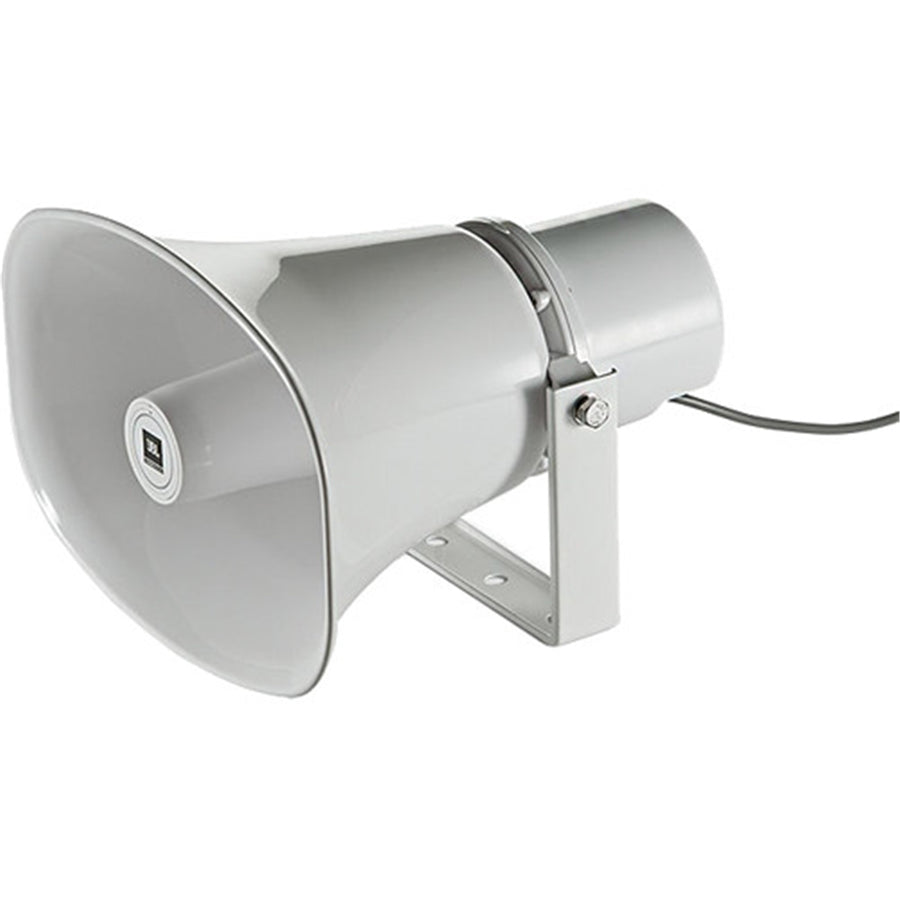

JBL PROFESSIONAL CSS-H30 - 30W PAGING HORN FOR 70V/100V OR 8OHMS
JBL PROFESSIONAL CSS-H30 - 30W PAGING HORN FOR 70V/100V OR 8OHMS
Features
30 Watt Paging Horn. The Commercial Solutions Series CSS-H30 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H30 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The focused coverage pattern allows the horn to project the sound a farther distance than is the case with wider-coverage paging horns. Typical applications for this product are public access areas, warehouses, factories, schools, recreational facilities, commercial buildings, distribution centers, civic centers, and other commercial sound and protectivesignaling systems.
- Excellent voice range clarity for announcement and paging.
- High sensitivity delivers high sound levels with minimal power amplification.
- Focused 50° horizontal by 70° vertical coverage for long throw capability.
- Phenolic diaphragm driver for outdoor durability and high reliability.
- UL-registered 30-watt multi-tap transformer, with 8 O direct bypass.
- Built-in high-pass filter enhances reliability by protecting against low frequency damage.
- Highly weather-resistant, with stainless steel bracket and hardware.
APPLICATION EXAMPLES
- Public Access Areas
- Warehouses
- Factories
- Schools
- Recreational Facilities
- Commercial Buildings
- Distribution Centers
- Civic Centers
- Other Commercial Sound and Protective Signaling Systems
Specifications
Technical Specifications
| Frequency Range (-10dB) | 380 Hz - 6 kHz |
|---|---|
| Coverage Angle | 50°H x 70°V |
| Included High-Pass Filter | Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range. |
| Directivity Factor (Q) | 15.8 (2 kHz) |
| Directivity Index (DI) | 12 (2 kHz) |
| Power Rating | 30 W (120 W peak), 100 hrs. |
| Sensitivity (1W, 2.83V@ 1m) | 108 dB, ave. 1 kHz - 6 kHz112 dB at 1.4 kHz |
| Maximum SPL (1m) | 123 dB cont ave. (129 dB peak), 1 kHz - 6 kHz; 127 dB cont ave. (133 dB peak), 1.4 kHz, 30W input, 8 ohm Setting |
| Impedance | 30W/70V, NC/100V tap: 167 ohms 15W/70V, 30W/100V tap: 333 ohms 7.5W/70V, 15W/100V tap: 667 ohms 3.8W/70V, 7.5W/100V tap: 1333 ohms 1.9W/70V, 3.8W/100V tap: 2666 ohms 8 ohms at 8 ohm direct setting |
| Transformer Taps | 70V: 30W, 15W, 7.5W, 3.8W, 1.9W100V: 30 W, 15W, 7.5W, 3.8W |
| Drivers | 38 mm (1.5 in) diameter with phenolic diaphragm |
| Horn Material | ABS |
| Mounting Hardware | Stainless steel powder-coated U-bracket (yolk) with 3 x 10.4 mm (0.41 in) dia mounting holes, stainless steel exterior hardware. |
| Color | RAL9016 (horn and bracket) |
| Input Connectors | 300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive (+); black = negative (-). |
| Outdoor Capability | IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware. |
| Safety Agency | Transformer UL Registered per UL1876 "Isolating Signal and Feedback Transformers for Use in Electronic Equipment" |
| Included Accessories | Stainless steel mounting bracket |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | JBL PROFESSIONAL |
|---|---|
| Product Type | B2C - Lifestyle & Other |
| Weight | 1.474 kg |
