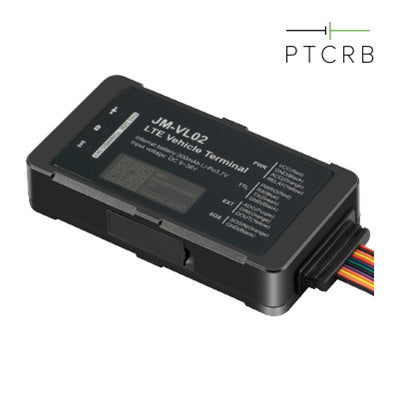

JimiLab JM-VL02 LTE Cat M1 & NB2 Fleet Tracker, Multiple I/Os for Sensors/Peripherals, Emergency SOS Button LTE: Cat M1 & NB2 & GSM, Driving Behavior Analysis, ACC Detection - Ignition Status, Remote Cut-Off (Fuel/Power)
Features
The JM-VL02 is designed to handle industrial and commercial fleet applications ranging from rental agencies and public transportation to construction equipment and beyond. With ACC detection, SOS button, remote fuel/power cutoff, and various other I/Os for peripherals, this powerful device can be customized to streamline your operations and boost efficiency. Built with a cutting-edge communications module leveraging the Cat-M1/Nb-IoT networks with GSM fallback, the VL-02 will be helping to maximize your fleet operations for years to come.
Product is including the tracking platform of 10 years subscriptions. Contact [email protected], to register account for free softtware and APP.
Specifications
Technical Specifications
| Positioning system | GPS+LBS |
|---|---|
| Frequency | L1 |
| Positioning accuracy | <2.5m CEP |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start =1secAvg. cold start =32sec |
| Communication network | LTE/GSM |
| Frequency JM-VL02A | LTE Cat-M1/NB2: B1/B2/B3/B4/B5/B12/B13/B28/B66GSM: 850/900/1800/1900 MHz |
| JM-VL02E | LTE Cat-M1/NB2: B1/B3/B5/B8/B18/B19/B20/B26GSM: 850/900/1800/1900 MHz |
| Battery | 300mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9-36VDC |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM | Standard-SIM |
| Data storage | 32+32Mb |
| Digital inputs | ACC, SOS, input |
| Digital outputs | Relay, output |
| Dimensions | 105.5 x 57.0 x 21.8mm |
| Weight | 104g |
| Operating temperature | -20? to +70? |
| IP rating | IP65 |
| Certificates | CE, FCC, PTCRB, AT&T, T-Mobile, Verizon |
| Sensors | Accelerometer |
| Scenarios | Vehicle movement alert, Over-speed alert, Geo-fence, Vehicle battery detection, Power supply disconnection |
| Driving behavior analysis | Harsh acceleration, Harsh braking, Harsh cornering, Collision |
| Brand | JimiLab |
|---|---|
| Product Type | Computers & Tablets |
| Weight | 0.2 kg |
| Warranty |
|---|
