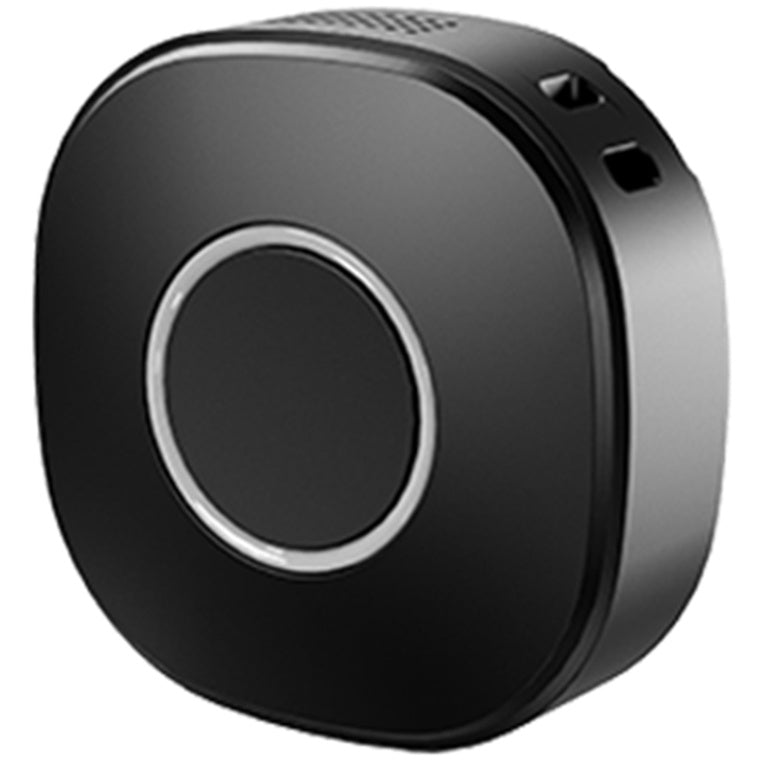

JimiLab Mini Asset Tag PL601 personal tracker, Includes 10-year Subscription
$102.17$107.57
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
The PL601 is a compact, portable personal tracker designed to safeguard children and the elderly. It supports GNSS, Wi-Fi, and LBS positioning, and features 4G Cat 1 connectivity, two-way communication, panic button, geo-fence and route playback, providing comprehensive real-time protection. Additionally, the device is ideal for item and pet tracking, making it a versatile solution for a wide range of needs.
*Product is including the tracking platform of 10 years subscriptions. Contact [email protected], to register account for free softtware and APP.
Specifications
Technical Specifications
| Technology | GPS, BDS |
|---|---|
| Accuracy | <2m CEP50 |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -159dBm |
| TTFF (open sky) | Avg. hot start =1secAvg. cold start =26sec |
| Technology | LTE Cat 1 |
| Frequency | PL601_LA:LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66GSM: 850/900/1800/1900PL601_NA:LTE-FDD: B2/B4/B5/B7/B12/B14/B17/B25/B26/B66LTE-TDD: B41PL601_EA:LTE-FDD: B1/B3/B7/B8/B20/B28LTE-TDD: B34/B38/B39/B40/B41GSM: 900/1800 |
| Battery | 650mAh/3.8V industrial-grade Li-Polymer battery (disposable) |
| Working modes | Intelligent modeTiming mode |
| Battery life | Up to 4 days in intelligent mode, 2 hours moving per day (update every 60s) |
| Operating temperature | -20 to +70C |
| Operating humidity | 5% to 95%, non-condensing |
| IP rating | IP65 |
| Dimensions | 45.0 x 45.0 x 17.0mm |
| Weight | 33g |
| LED indication | Tri-color LED for power, cellular, and GNSS |
| SIM | Nano-SIM |
| Memory capacity | 1000 GPS data entries |
| Button | 1 button for SOS, power on/off, and more |
| USB | Type-C (for charging) |
| GNSS antenna | Internal |
| Bluetooth antenna | Internal |
| Scenarios | SOS alert, Geo-fence entry/exit alert, Abnormal noise alert, Low battery alert, Power on/off alert |
| Mount method | Lanyard, back clip |
| Voice monitoring range | 3m |
| Bluetooth | BLE 5.0 |
| Configuration support | Bluetooth |
| Certification | CE, FCC |
| Brand | JimiLab |
|---|---|
| Product Type | Computers & Tablets |
| Weight | 0.13 kg |
| Warranty |
|---|
