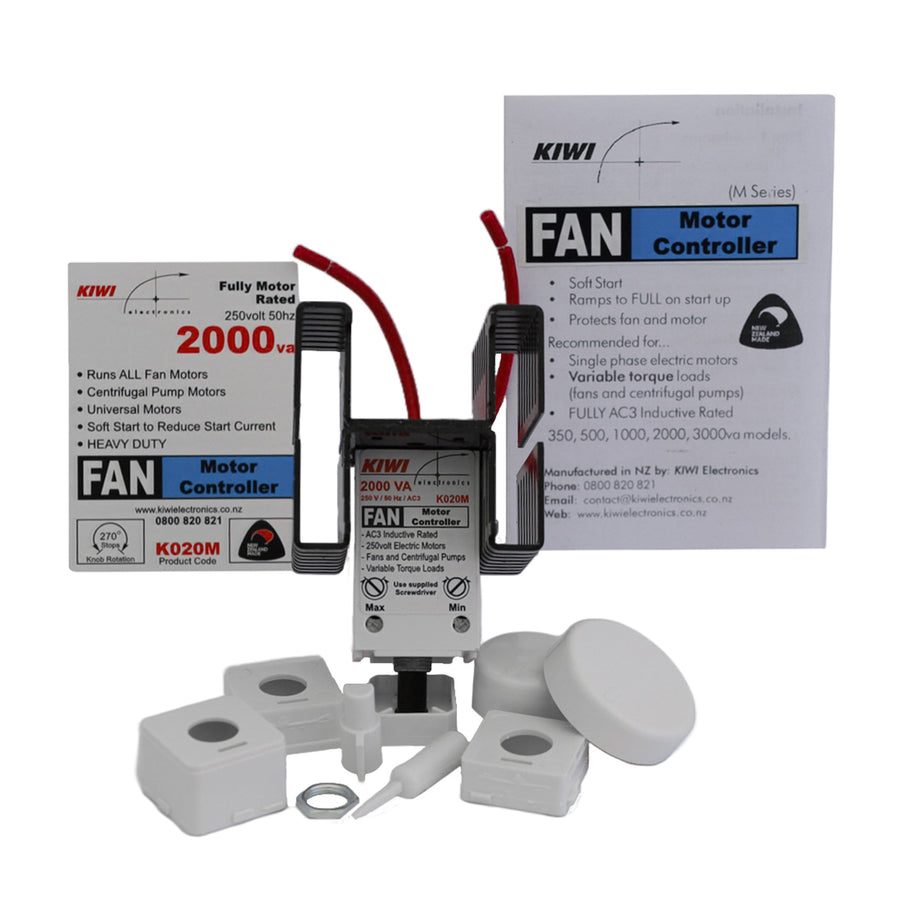

KIWI K020M - Motor Controller 2000va
Features
Large or Small Loads
10 to 3000watts can be controlled from the Flush Plate. Full range covers 350va - 3000va!
Toughest Loads
FULL AC3 Motor Rating for reliable control.
Safe Speed Control
No more burnt-out motors! Soft Starts to Full Speed, ensuring the fan is rotating in the correct direction and the motor is operating correctly (e.g. motors, switches and capacitors operate as designed).
Fits ALL Plates
Just clicks straight into PDL, HPM and Clipsal flush plates with adaptors supplied.
Protects your Motor
Semiconductors rated for inductive loads. Circuitry designed to eliminate the possibility of false triggers. Microprocessor sees any imbalance in the wave, corrects it, or shuts down.
Accurate Air Flow
Fan Speed can be set to the desired Min and Max air flow, and 0-100% adjustability for fan noise. Air flow can be individually set by the installer with a range of fan speeds.
Fully Modular
Fit up to THREE in a flush box.
Thermal Safety PLUS
Temperature compensation built in and backed by a Thermal Fuse for guaranteed safety.
EMC Compliant
Will not interfere with any other device.
Application
- ALL Fans
- Centrifugal Pumps
- Any variable torque load
Specifications
Technical Specifications
| Model | K020M |
|---|---|
| Va Rating | 2000 |
| Amp Rating | 8.0a |
| Input voltage | 250volt |
| Output voltage | 0% to 99% of input |
| Frequency | 50/60hz |
| Minimum current | 100watts |
| Load rating | AC3 Inductive |
| Switching type | Leading Edge |
| Max per flush box | 3 x K004M, 3 x K005M, 2 x K010M, 1 x K020M, 1 x K030M(Ensure mounting method promotes air flow.) |
| Ambient temp | 25°C |
| Thermal Fuse | 16amp/110°C max |
| Thermal Protection | Activated above 70°C |
| Knob Rotation | 270° with memory |
| EMC/RFI approval | AS/NZS 4051 |
| Designed to | AS3100 |
| Note | Specifications may change without notice |
| Brand | KIWI |
|---|---|
| Product Type | Power & Charging > Power Boards, Plugs & Adapters |
| Weight | 0.2 kg |
| Warranty |
|---|
