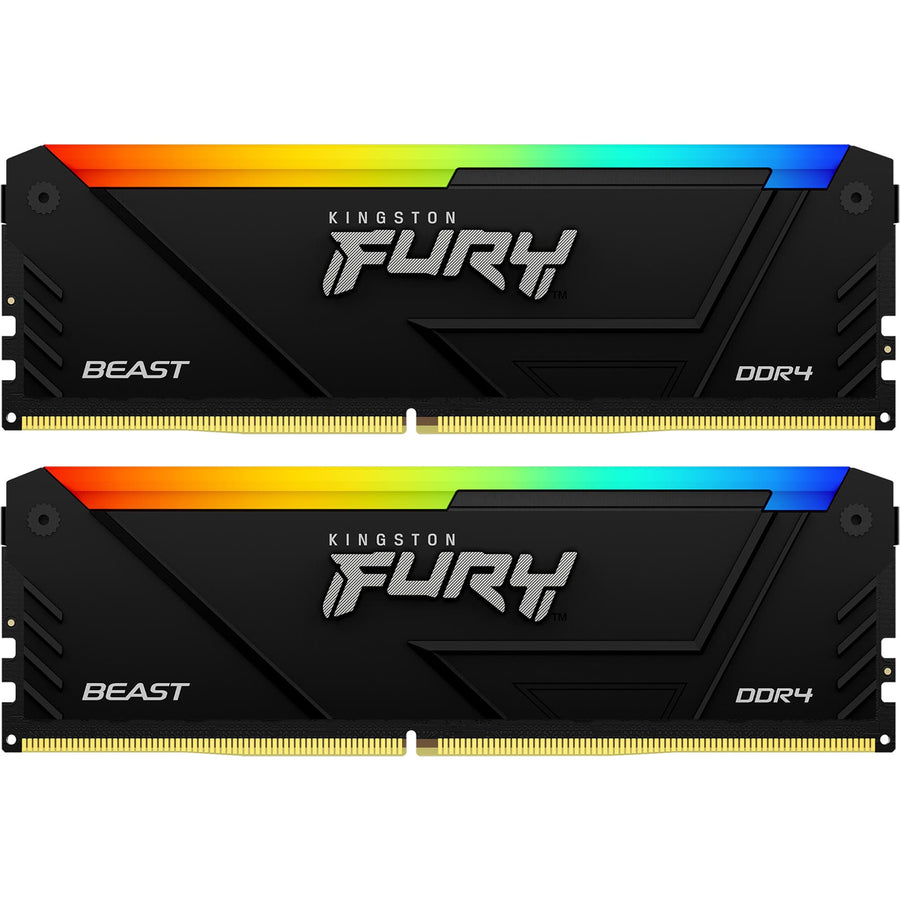

KF432C16BB12AK2/32_ - KINGSTON 32GB 3200MHz DDR4 CL16 DIMM (Kit of 2) FURY BEAST RGB
KF432C16BB12AK2/32_ - KINGSTON 32GB 3200MHz DDR4 CL16 DIMM (Kit of 2) FURY BEAST RGB
Features
DDR4-3200 CL16 288-Pin DIMM Kit
Kingston FURY KF432C16BB12AK2/32 is a kit of two 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- On-Die termination (ODT)
- 16 internal banks; 4 groups of 4 banks each
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Height 1.69" (43mm), w/heatsink
High-Speed DDR4 Performance
The Kingston FURY KF432C16BB12AK2/32 delivers 32GB of DDR4-3200 memory across two 16GB modules, offering low CL16 latency for smooth gaming, multitasking, and content creation.
Intel-Ready Overclocking
Supports Intel XMP 2.0, allowing easy overclocking to unlock the full DDR4-3200 speed, while JEDEC DDR4-2400 timings ensure stable default performance.
Reliable Memory Architecture
Dual-rank 2Rx8 design with 16 internal banks, ODT, and switchable burst length (BL8/BL4) ensures consistent, efficient data handling under heavy workloads.
Durable Cooling Design
Each 288-pin DIMM includes a heatsink and stands 1.69" (43 mm) tall, keeping the modules cool while fitting standard desktop cases for extended high-performance use.

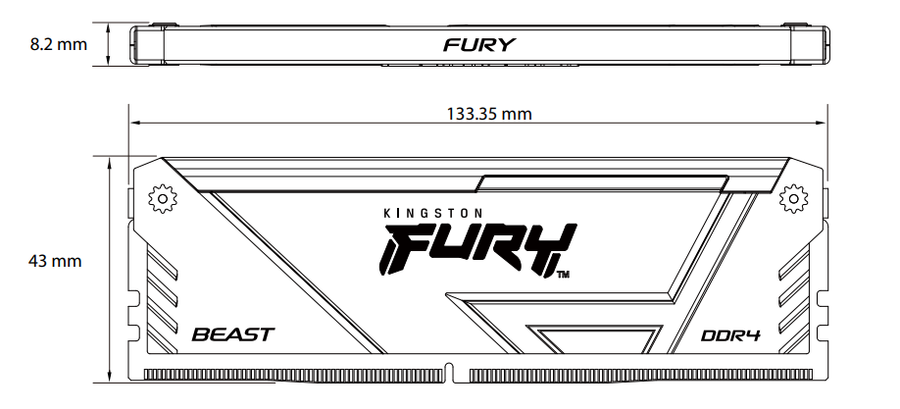

MODULE DIMENSIONS
RAM speeds were traditionally listed in MHz (e.g. DDR4 3200MHz or DDR5 6000MHz). Today, the industry standard is MT/s (megatransfers per second), so you'll now see speeds shown as DDR4 3200MT/s or DDR5 6000MT/s.
What does MT/s mean?
MT/s measures the number of data transfers a memory module can perform each second, making it a more accurate way to express RAM performance.
In practice, a module labelled 3200MHz is the same speed as 3200MT/s - only the terminology has changed.
Specifications
Technical Specifications
| Memory Type | DDR4 SDRAM |
|---|---|
| Capacity | 32 GB (2 × 16 GB) |
| Form Factor | 288-pin DIMM |
| Module Rank | 2Rx8 |
| CL(IDD) | 17 cycles |
| Row Cycle Time (tRCmin) | 45.75ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0 to +70°C |
| Storage Temperature | -40 to +85°C |
