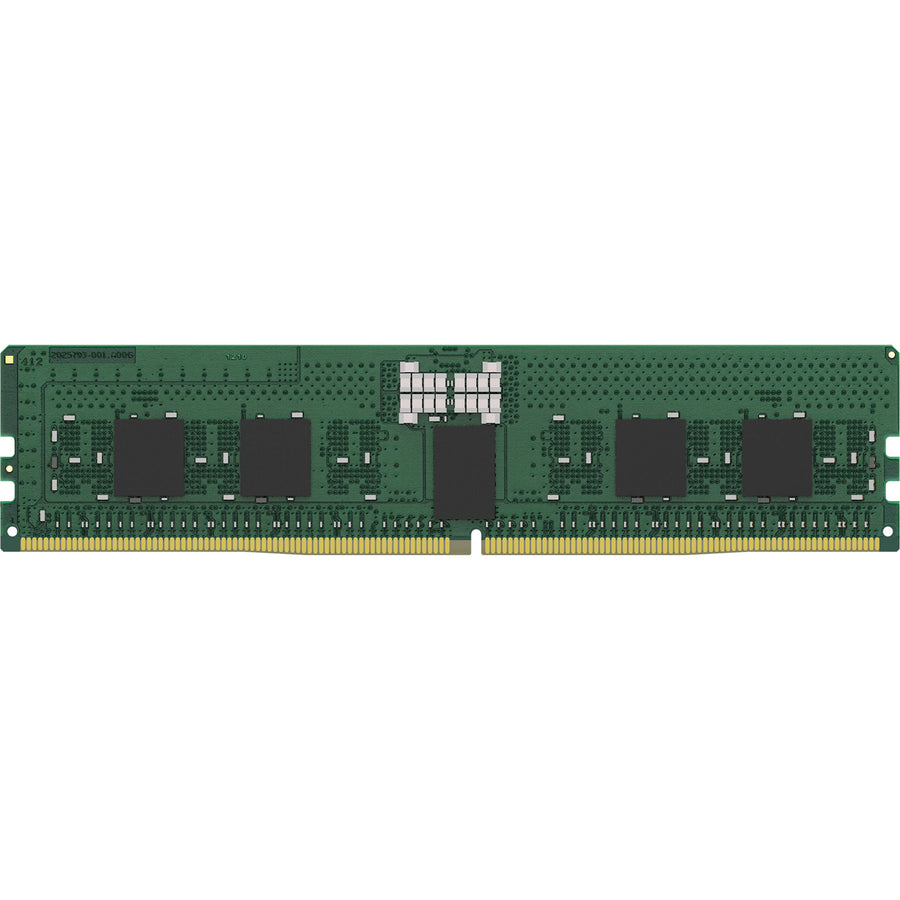

Kingston 16GB DDR5-5600MT/s ECC Reg CL46 RDIMM 1Rx
Features
Kingston's KSM56R46BS8PMI-16HAI is a 2G x 80-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
Updating terminology - MHz and MT/s
RAM speeds were traditionally listed in MHz (e.g. DDR4 3200MHz or DDR5 6000MHz). Today, the industry standard is MT/s (mega transfers per second), so you'll now see speeds shown as DDR4 3200MT/s or DDR5 6000MT/s.
What does MT/s mean?
MT/s measures the number of data transfers a memory module can perform each second, making it a more accurate way to express RAM performance.
In practice, a module labelled 3200MHz is the same speed as 3200MT/s - only the terminology has changed.
Specifications
Technical Specifications
| Capacity | 16GB |
|---|---|
| Chip Organisation | X8 |
| Ranking | 1R |
| DRAM Density | 16Gbit |
| DRAM MFR | Hynix |
| Die Revision | A |
| Component control | Full Lock |
| CL(IDD) | 46 cycles |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| Row Precharge Time (tRPmin) | 16ns(min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0°C to +95°C |
| Storage Temperature | -55°C to +100°C |
| Brand | Kingston |
|---|---|
| Product Type | PC Parts |
