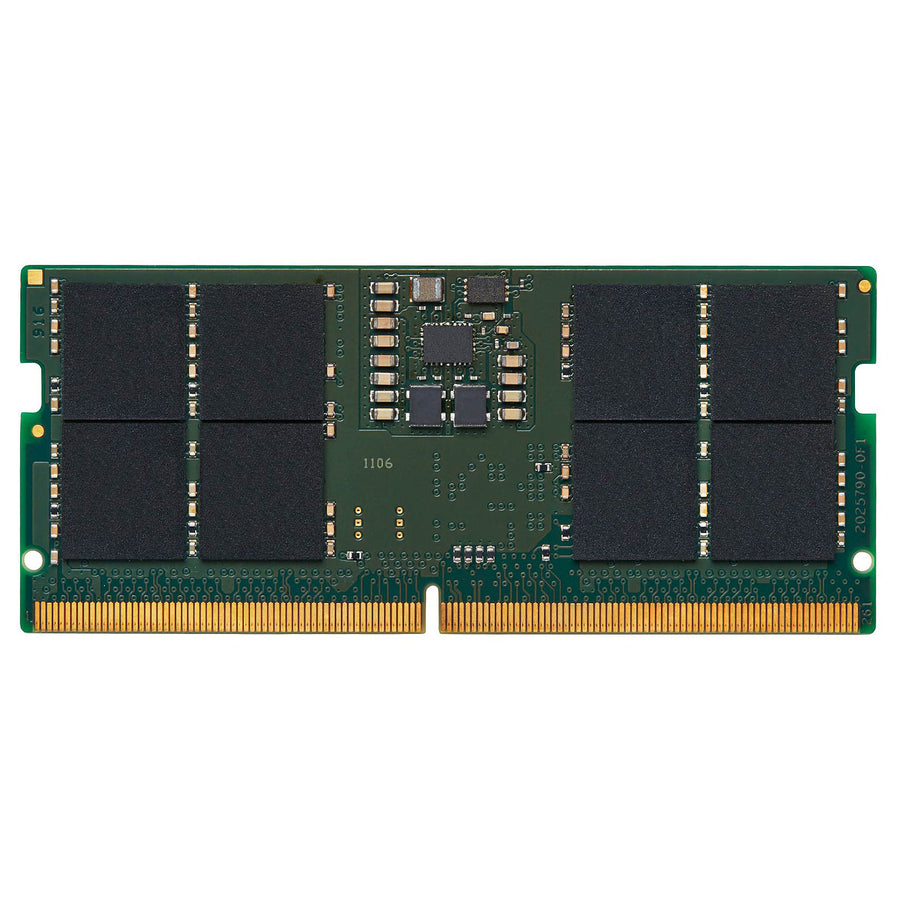

Kingston 16GB DDR5 Laptop SODIMM RAM

SKU: KVR56S46BS8-16 ● In Stock

$492.72

Free shipping over $299 Genuine product 7-day returns

Features

DDR5 5600MT/s* Non-ECC Unbuffered SODIMM

- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- PCB: Height 1.18" (30.00mm)
- RoHS Compliant and Halogen-Free

RAM speeds were traditionally listed in MHz (e.g. DDR4 3200MHz or DDR5 6000MHz). Today, the industry standard is MT/s (megatransfers per second), so you'll now see speeds shown as DDR4 3200MT/s or DDR5 6000MT/s.

What does MT/s mean?

MT/s measures the number of data transfers a memory module can perform each second, making it a more accurate way to express RAM performance.

In practice, a module labelled 3200MHz is the same speed as 3200MT/s - only the terminology has changed.

Specifications

Technical Specifications

Part Number	KVR56S46BS8-16
Capacity	16GB
Kit	Single Module
Chip Organisation	X8
Ranking	1R
DRAM Density	16Gbit
CL(IDD)	46 cycles
Row Cycle Time (tRCmin)	48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)	295ns(min.)
Row Active Time (tRASmin)	32ns(min.)
UL Rating	94 V - 0
Operating Temperature	0 C to +85 C
Storage Temperature	-55 C to +100 C
