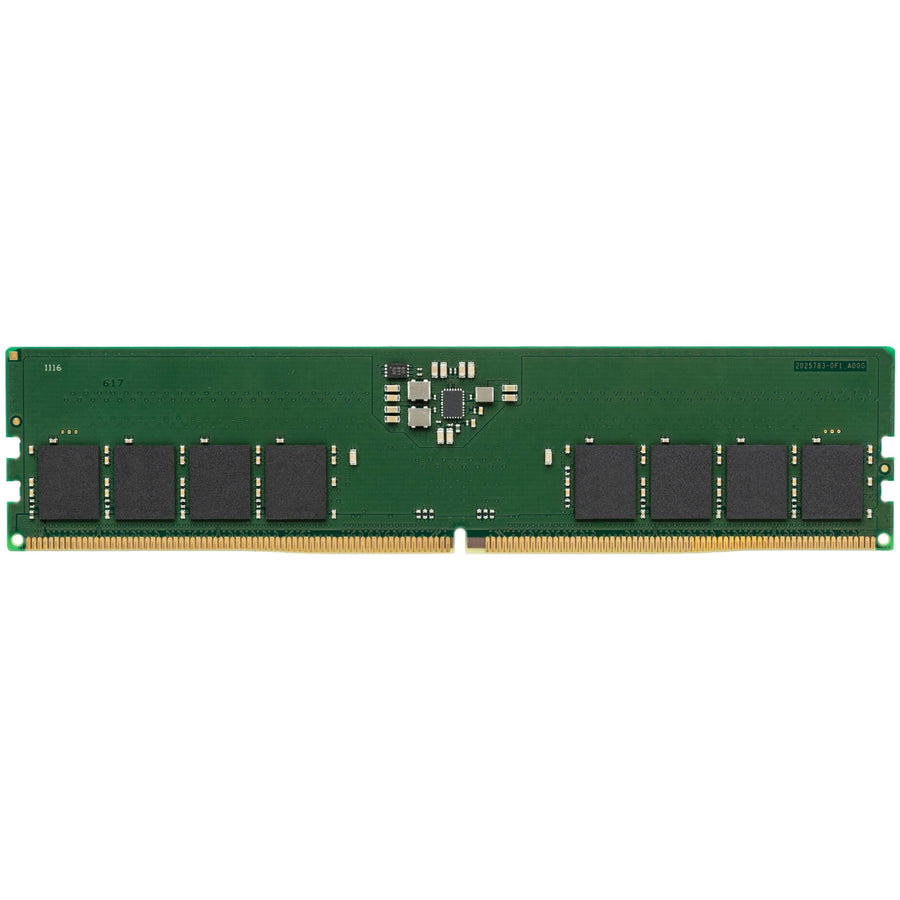

Kingston 32GB DDR5 Desktop UDIMM RAM

SKU: KVR56U46BD8-32 ● In Stock

$903.84

Free shipping over $299 Genuine product 7-day returns

Features

DDR5 5600MT/s* Non-ECC Unbuffered DIMM

This document describes ValueRAM's KVR56U46BD8-32 is a 4G x 64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free

RAM speeds were traditionally listed in MHz (e.g. DDR4 3200MHz or DDR5 6000MHz). Today, the industry standard is MT/s (megatransfers per second), so you'll now see speeds shown as DDR4 3200MT/s or DDR5 6000MT/s.

What does MT/s mean?

MT/s measures the number of data transfers a memory module can perform each second, making it a more accurate way to express RAM performance.

In practice, a module labelled 3200MHz is the same speed as 3200MT/s - only the terminology has changed.
