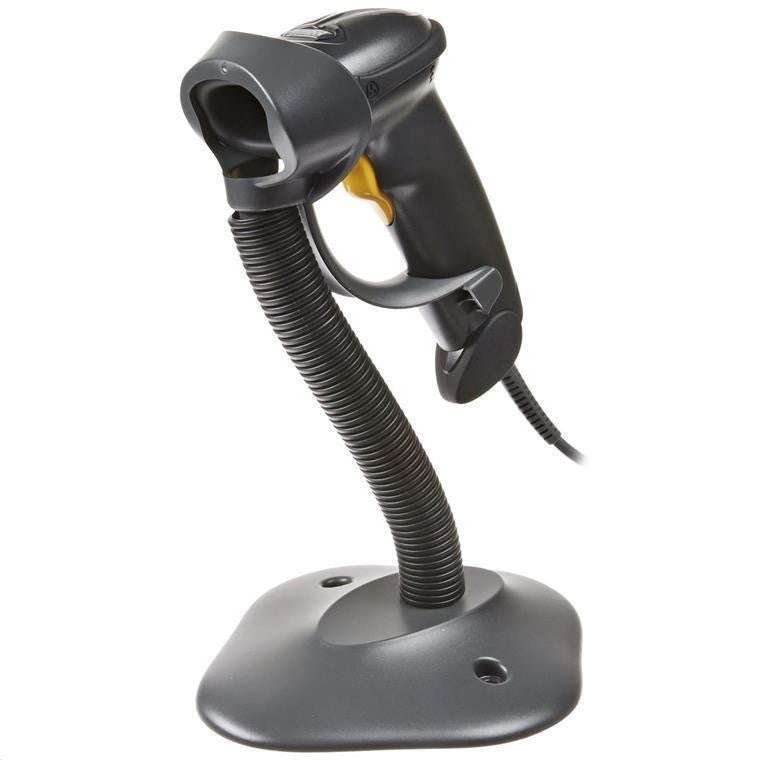

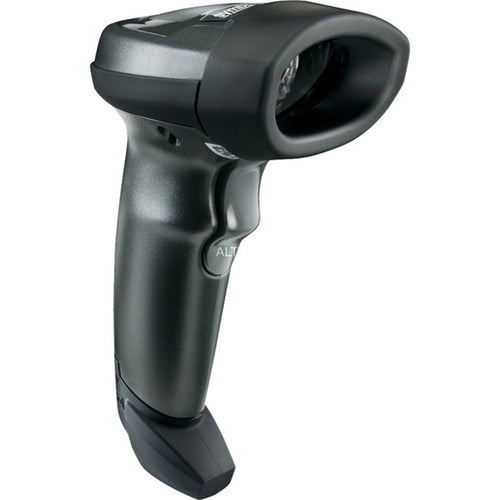

MOTOROLA LI2208-SR7U2100SGW - KITLI2208-SR BLACK W/STAND USB
Features
THE NEXT GENERATION IN 1D SCANNING
Whether your workers are scanning barcodes printed on paper labels or electronic barcodes displayed on the screen of a mobile phone, tablet or computer, the best-in-class LI2208 linear imager delivers unparalleled performance, every time.
The next generation in 1D scanning, the LI2208 provides the same reliability and ergonomics of our most popular scanner, the LS2208, with enhanced features that let you scan more types of barcodes at a greater distance.
A CHAMP ON TRADITIONAL AND MOBILE 1D BARCODES
Many customers have laser technology that cannot read mobile barcodes. With the LI2208, customers can begin reading mobile and electronic barcodes right out of the box, without sacrificing scanning performance. A patented optical design achieves industry leading working range, and since bar codes can be captured at extreme angles, workers spend less time manoeuvring the scanner for increased productivity.
LEVERAGES THE WILDLY SUCCESSFUL LS2208
The LS2208 is Zebra's most successful scanner of all time with millions of customers of all sizes choosing the scanner for its performance, excellent reliability and unparalleled ergonomic design. With the LI2208, your customers will enjoy the same ergonomic comfort and durability of the LS2208 (including the patented single circuit board design), while also benefiting from best-in-class linear technology.
SUPERIOR OUT-OF-THE-BOX EXPERIENCE
Setting up a new scanner can be time consuming and frustrating. The LI2208's smart auto-host detect cables make deployment easier by automatically detecting the attached interface (USB, RS232, RS485 or keyboard wedge), eliminating the need to scan multiple parameter barcodes. More than 90 international keyboards are supported and the scanner is compatible with 123Scan and SMS.
Note: Image for reference only. Actual product may look slightly different.
Specifications
Technical Specifications
| Dimensions | 6.30 in. H x 2.64 in. W x 3.90 in. L16 cm H x 6.7 cm W x 9.9 cm L |
|---|---|
| Weight | 4.95 oz./140 grams |
| Voltage and Current | 5VDC ± 10%<165 mA scanning<40 mA standby<2.5 mA USB suspend<4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only) |
| Power Source | Host power or external power supply |
| Supported host interfaces | USB, RS232, Keyboard Wedge and IBM RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| Skew Tolerance | ±45° |
| Pitch Tolerance | ±45° |
| Roll Tolerance | ±45° |
| Scan Pattern | Single bright aiming lineScan Angle Horizontal 35° |
| Scan Speed | 547 scans per second |
| Motion Tolerance | 25 in./ 63.5 cm per second |
| Light Source | LED Class 1 device 617mm (amber) |
| Min. Print Contrast | 15% MRD |
| Ambient Light Immunity | Max 108,000 lux |
| Operating Temp. | 32° F to 122° F/ 0° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specs | Over 100 drops at 5 ft./1.5 m at room temperature; survives 6 ft./1.8 m drops to concrete |
| Tumble Testing | 1,000 cycles (2000 drops) in 1/2 meter tumbler |
| Environmental Sealing | IP42 |
| Brand | MOTOROLA |
|---|---|
| Product Type | Printers & Office > POS & Barcode Scanners |
| Weight | 0.295 kg |
| Warranty |
|---|
