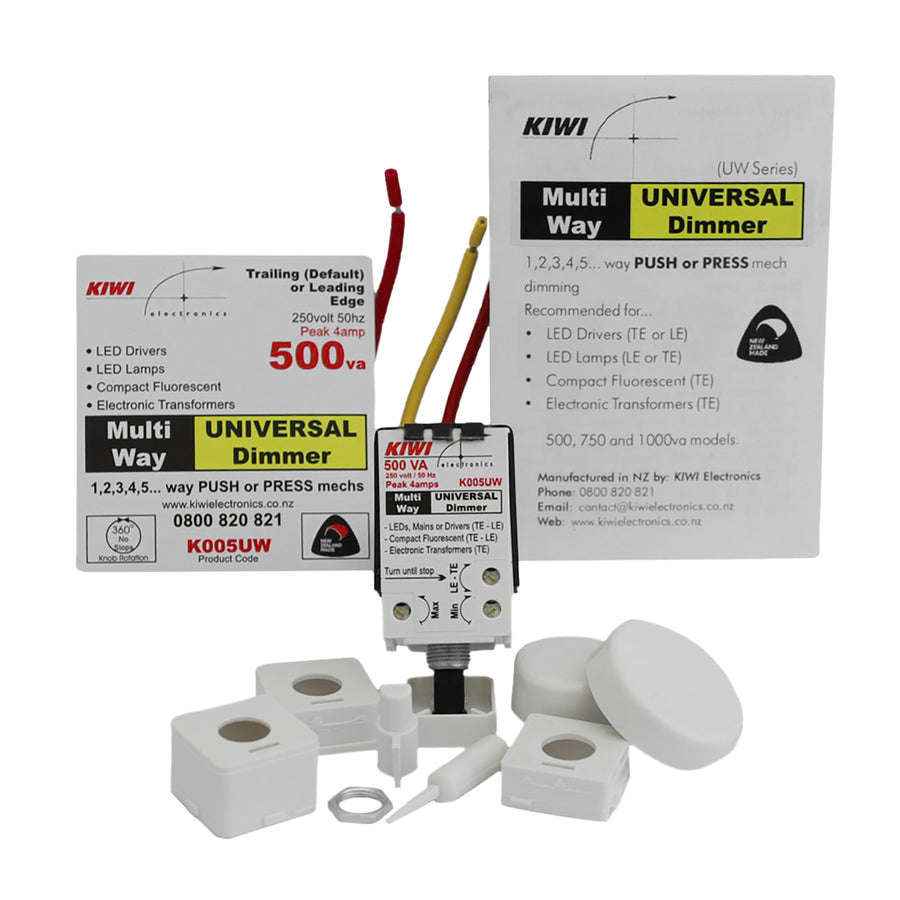

KIWI K005UW - MultiWay UNIVERSAL 500va
Features
MultiWay Dimming
Extended Lamp Life 1, 2, 3, 4, 5... WAY Dimming! With one unit, you can Soft Start or Stop, Turn On or Off, Dim up and down from as many locations as you like.
ALL Loads
Made to control ALL your lighting up to 500va, in either Leading or Trailing Edge.
Easy Installation
No rewiring required; simply replace the existing Intermediate switches with a KIWI MultiWay and a momentary switch.
Fits ALL Plates
Clicks straight into PDL, HPM and Clipsal flush plates with supplied adaptors.
FULL means FULL
Brighter lights, greater heater output and increased efficiency achieved by active power factor sensing. 240volts in and up to 237volts out, 99% efficient.
Extended Lamp Life
Pre-Heat and Soft Start reduce the start current and eliminate thermal shock.
Personalised Control
All Dimmers have minimum and maximum trimmers; you can set the output range for the user.
Thermal Safety PLUS
Temperature compensation built in and backed by a Thermal Fuse for guaranteed safety.
Application
- LED Drivers
- Mains-rated LEDs
- Compact Fluorescent
- Electronic Transformers
Specifications
Technical Specifications
| Model | K005UW |
|---|---|
| Va Rating | 500va |
| Input voltage | 250volt |
| Output voltage | 0% to 98% of input |
| Frequency | 50/60hz |
| Peak current | 4A |
| Load rating | Resistive (LE)Inductive (LE)Electronic Transformers (TE) |
| Switching type | Trailing Edge (factory Default) or Leading Edge (Selectable) |
| Max per flush box | 3 x K005UW, 2 x K007UW, 1 x K010UW(Ensure mounting method promotes air flow.) |
| Ambient temp | 25°C |
| Thermal Fuse | 16amp/110°C max |
| Thermal Protection | Activated above 70°C |
| Knob Rotation | 360° no memory of last setting if isolated |
| EMC/RFI approval | AS/NZS 4051 |
| Designed to | AS3100 |
| Note | Specifications may change without notice |
| Brand | KIWI |
|---|---|
| Product Type | Power & Charging > Power Boards, Plugs & Adapters |
| Weight | 0.2 kg |
| Warranty |
|---|
