KIWI

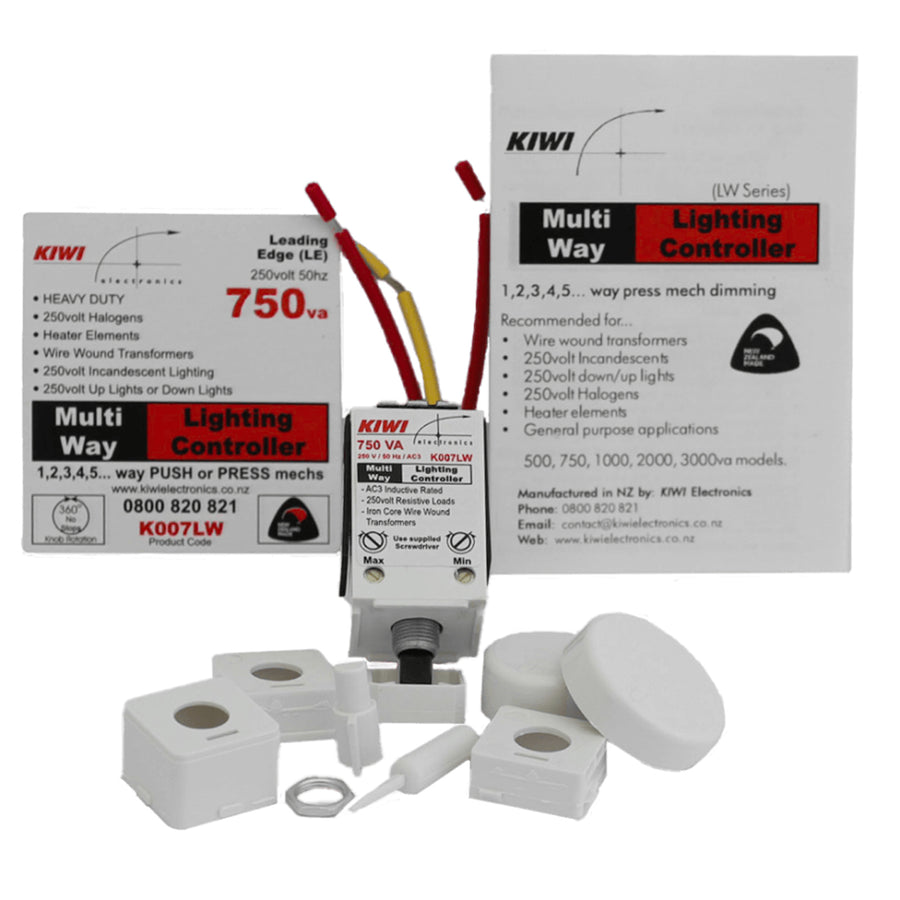

KIWI K007LW - MultiWay Controller 750va

SKU: K007LW ● In Stock
$124.34
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

- Wire Wound Transformers
- 250volt Incandescent Lighting
- 250volt Down/Up Lights
- 250volt Halogen Lighting
- Heater Elements
- General Purpose Applications

MultiWay Dimming

1, 2, 3, 4, 5... WAY Dimming! With one unit you can Soft Start or Stop, Turn Off or On, Dim up down from as many locations as you like.

Easy Installation

No rewiring required; simply replace the existing Intermediate switches with a KIWI MultiWay and a momentary switch.

Fits ALL Plates

Clicks straight into PDL, HPM and Clipsal flush plates with supplied adaptors.

FULL means FULL

Brighter lights, greater heater output and increased efficiency acheived by active power factor sensing. 240volts in and up to 237volts out, 99% efficient.

Toughest loads

Rated for ALL Inductive and Resistive circuits.

Extended Lamp Life

Pre-Heat and Soft Start reduces the start current and eliminates thermal shock to the load.

Personalised Control

All Controllers have minimum and maximum trimmers; you can set the output range for the user.

Thermal Safety PLUS

Temperature compensation built in and backed by a Thermal Fuse for guaranteed safety.

Specifications

Technical Specifications

Model K007LW
Va Rating 750
Input voltage 250volt
Output voltage 0% to 98% of input
Frequency 50hz
Load rating AC3 InductiveAC1 Resistive
Switching type Leading Edge
Ambient temp 25°C
Thermal Fuse 16amp/110°C max
Thermal Protection Activated above 70°C
Knob Rotation 360° no memory of last setting if isolated
EMC/RFI approval AS/NZS 4051
