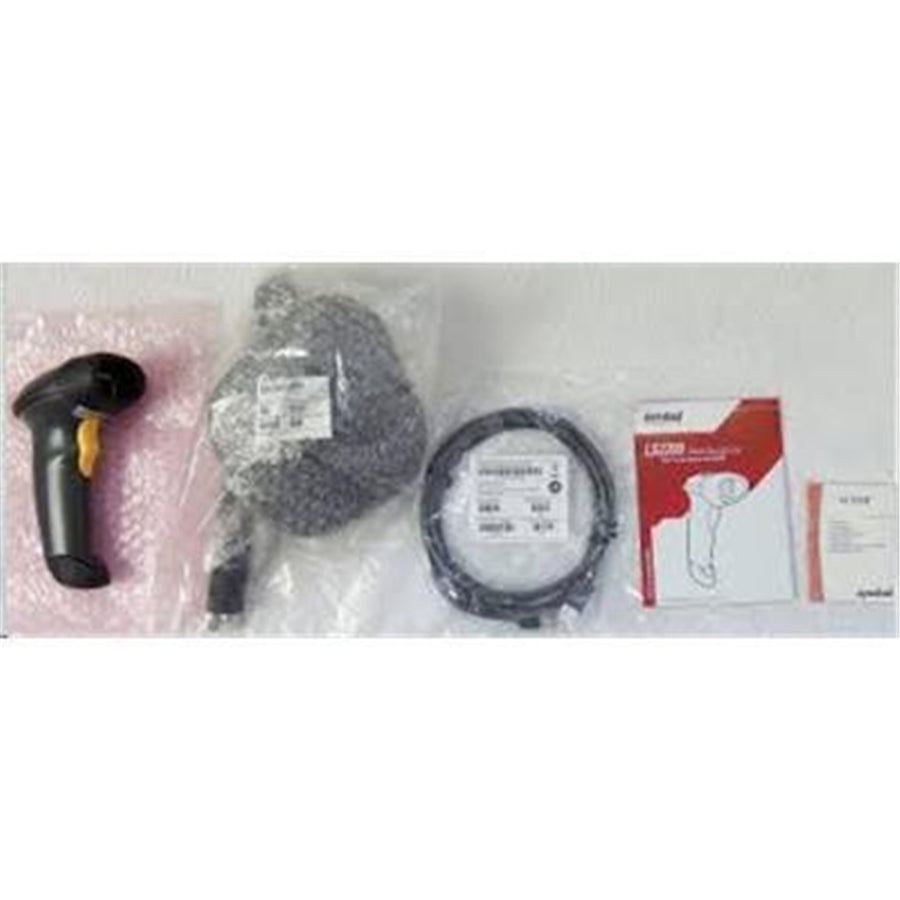

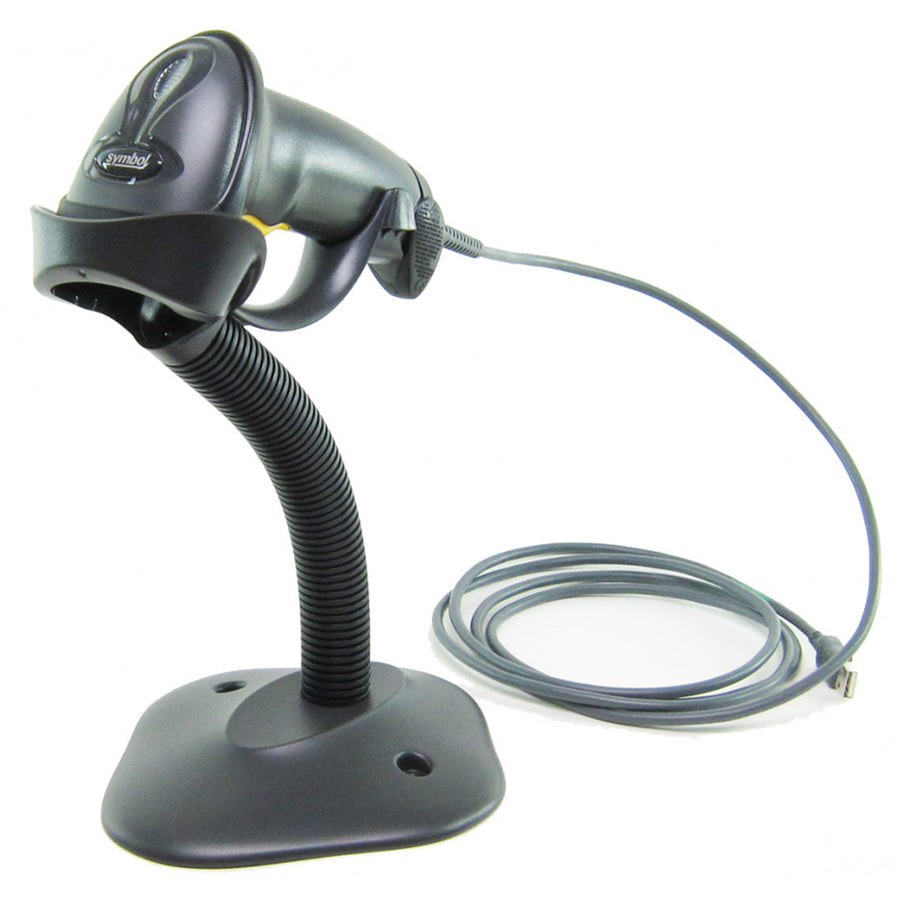

Zebra LS2208 USB kit Corded Black w/stand Wired Handheld 1D Laser Bar Code Scanner bi-directional w/5-year return to base warranty
Features
High performance 1D linear scanner increases productivity, resulting in shorter check-out lines and better customer service.
The Symbol LS2208 handheld barcode scanner offers high performance scanning at a moderate price point. From the retail point-of-sale and backroom to the patient bedside or school book checkout, the LS2208 provides fast, reliable scanning in a durable, lightweight form factor, delivering enhanced productivity and efficiency while reducing your total cost of ownership (TCO). With aggressive scanning capabilities and a wide working range, the LS2208 accurately captures data fast, helping employees work quickly and efficiently. And you'll be up and running fast, because the Symbol LS2208 is easy to deploy and use, thanks to a plug-and-play installation and intuitive, user-friendly design that requires little or no training. Plus the ergonomic, balanced form factor reduces user fatigue to maximize user comfort. All scanners read RSS codes & feature a 5 year warranty.
- Scan Pattern: Bi-directional
- Scan Rate: 100 scan/s
- Connectivity Technology: Cable
- Light Source: Laser
- Image Sensor: Linear
- Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- Code 39
Technical Information
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- IATA
- RSS Variants
- Chinese 2 of 5
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- IATA
- RSS Variants
- Chinese 2 of 5
Specifications
Technical Specifications
| Dimensions | 6 in. H x 2.5 in. W x 3.34 in. D15.2 cm H x 6.3 cm W x 8.4 cm |
|---|---|
| Weight | 5.29 oz/150 gm |
| Voltage and Current | 5 volts +/- 10% at 130 mA typical,175 mA max |
| Power Source | Host power or external power supply |
| Color | Cash Register White or Twilight Black |
| Scanner Type | Bi-directional |
| Light Source | 650 nm visible laser diodeScan Element Frequency: 50HzScan Rate: 100 scans per second typical |
| Print Contrast | 20% minimum reflective difference |
| Roll (Tilt) | 1 +/- 30 degrees |
| Pitch | 2 +/- 65 degrees |
| Skew (Yaw) | 3 +/- 60 degrees |
| Decode Capability | UPC/EAN, UPC/EAN with Supplementals, UPC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5 |
| Interfaces Supported | USB, RS232, Keyboard Wedge, IBM 468x/9x |
| Operating Temp | 32° to 122° F/0° to 50° C |
| Storage Temp | -40° to 158° F/-40° to 70° C |
| Humidity | 5% to 95% relative humidity, noncondensing |
| Drop Specifications | Unit functions normally after repeated5 ft./1.5 m drops to concrete |
| Ambient Lighting | Tolerant to typical artificial indoor and Tolerance natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux) |
| Electrostatic Discharge | Conforms to 15 kV air discharge and 8 kV of contact discharge |
| Compatible Operating Systems: | Windows XP, Windows Vista, Windows 2008, Windows 2003, Windows 7, Windows 8, Windows Server 2012, Windows 8.1, Mac OS |
| Cable Length | 2.1m |
| Brand | Zebra |
|---|---|
| Product Type | Printers & Office > Scanners |
| Weight | 0.728 kg |
| Warranty |
|---|
